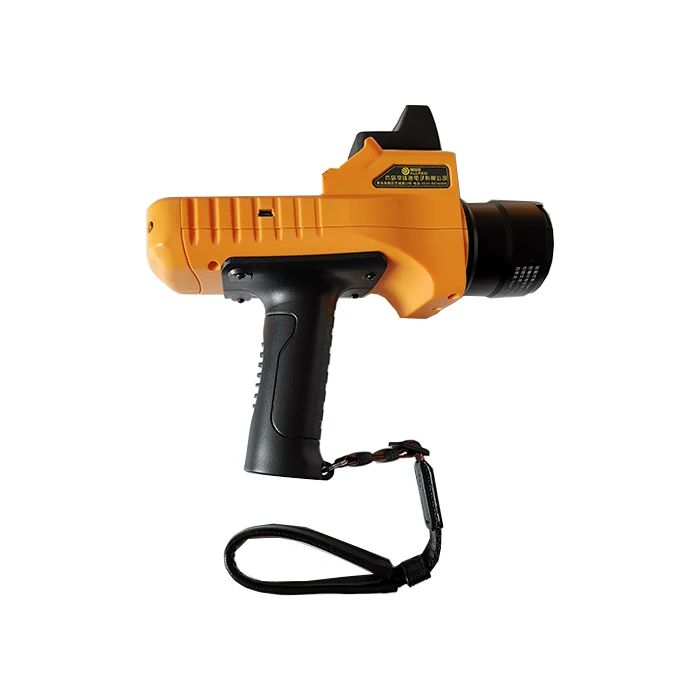

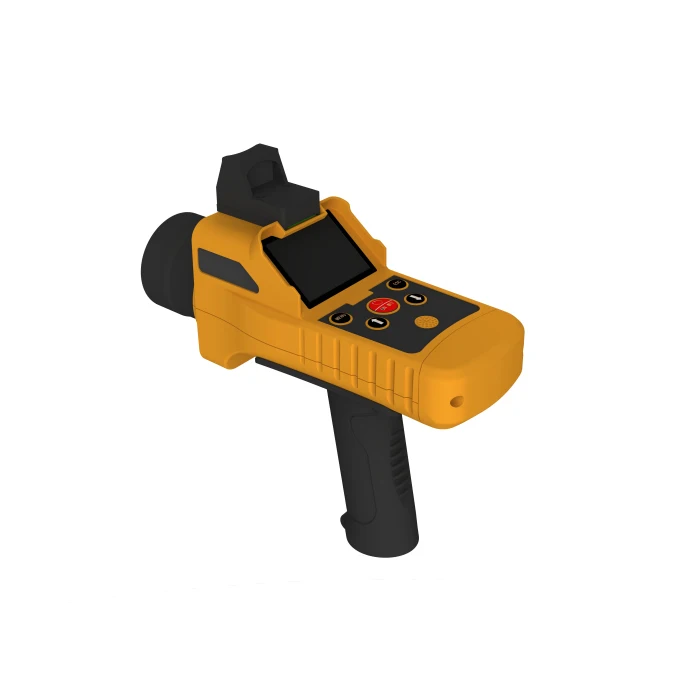

Remote laser methane leakage detector
ARD2100 Remote laser methane leakage detector uses international advanced tunable diode laser absorption spectroscopy technology (TDLAS),which can detect methane gas within a certain distance. At the same time, through optimization design and independent research and development, the detection distance and accuracy of the detector are greatly improved, which is the most powerful safety guarantee for gas inspection and leak detection.


Working Principle

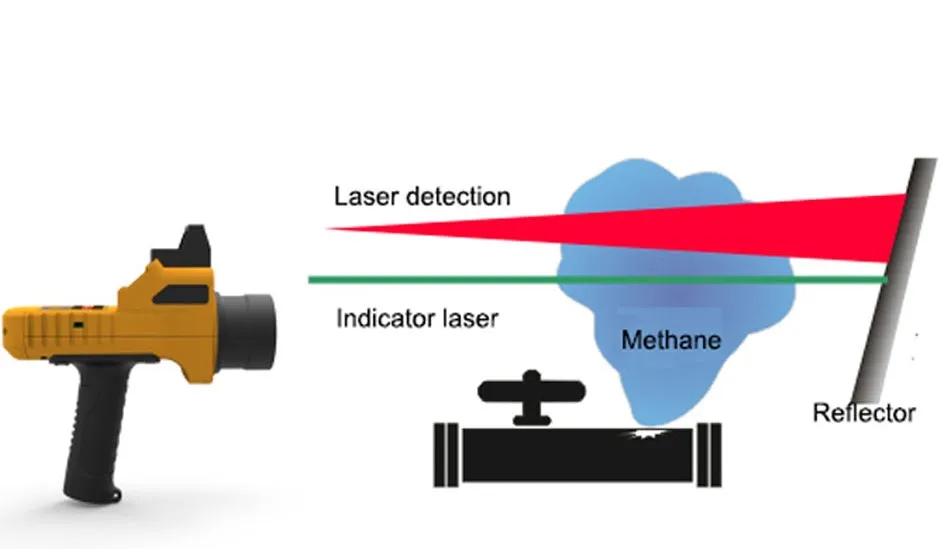

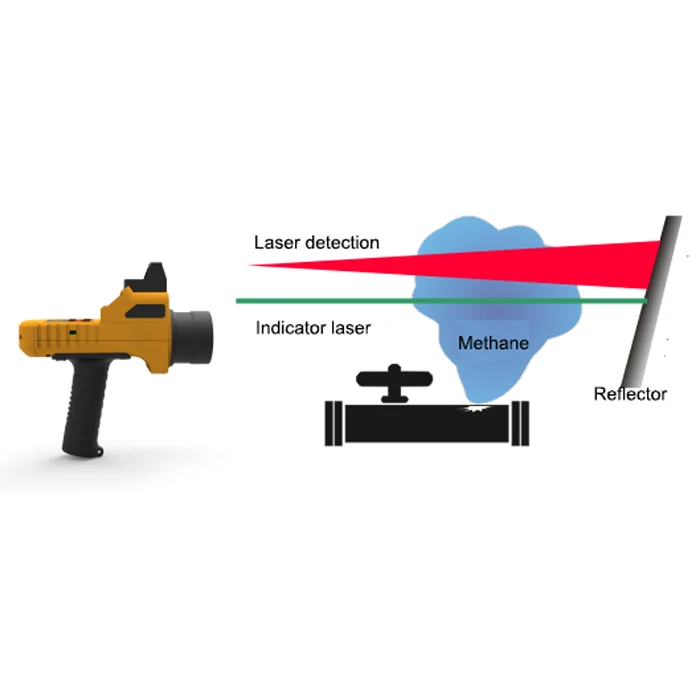

Unlike traditional portable detectors, this Remote Methane Leak Detector does not need to place the probe in a gas-filled environment. Instead, the device emits a laser beam. The laser passes through the pipe or the space above the facility and hits the object at the other end. Reflected back to the receiver, and then converted into electrical signals, these signals are used to analyze the concentration of methane, the unit is ppm﹒m. By using WMS technology, the ARD2100 Remote Methane Leak Detector can achieve extremely high detection accuracy. The light at this wavelength is only absorbed by methane, so it only reacts to methane and is not affected by other gases, which greatly improves the accuracy of detection. Using the Remote Methane Leak Detector, the operator does not need to be in a dangerous environment, which not only protects the safety of the inspector, but also can inspect the overhead pipeline from a long distance, which improves the inspection efficiency. The detection reading is the product of the concentration of the laser passing through the methane gas mass and the thickness of the gas mass in ppm﹒m.


Specification


Detection Method:
Tunable Diode Laser Absorption Spectroscopy (TDLAS)
Detection Gas:
Methane
Measurement Method:
Laser Reflection
Measurement Range:
0 to 100000 ppm-m
Detection Distance:
100m nominal. Actual distance may vary due to
background type and conditions
Sensitivity:
5 ppm.m
Measurement Accuracy:
±10%
Response Time:
0.1s
Detection Alarms Modes:
Buzz with LCD turning red

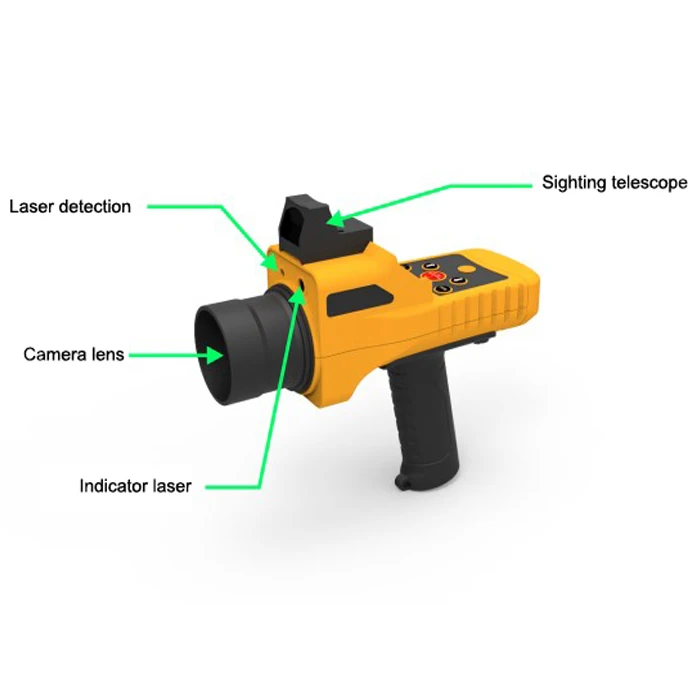

Laser Eye Safety:
IR Detector Laser:
Class I
Green Spotter Laser:
Class IIIa; Do not stare into beam or view directly with optical instruments.
Display:
Large easy to read backlit LCD
Compliance:
EMC (EN61000-6-2, EN6100-6-4) Pending
Self Test & Calibration:
Built-in Self-Test and Calibration function verifies

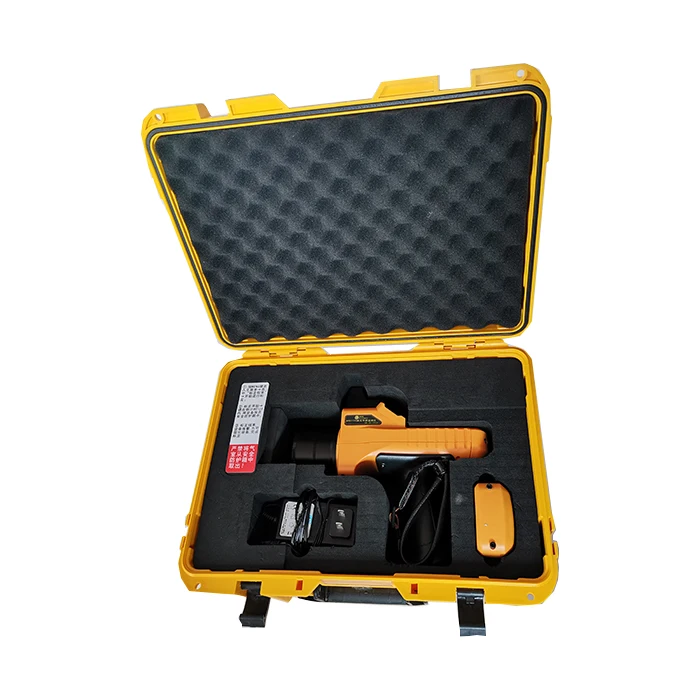

operation and adjusts laser wavelength for maximum sensitivity. Test gas cell integrated with carrying case.
Battery
Rechargeable Lithium battery
Battery Operating Life:
8 hours (Internal battery)
Battery Charger:
External, in-line, 220 VAC, 50/60 hertz universal type with charge indicator
Explosion-proof Classiafication
ExibIIA T4Gb
Enclosure:
IP54 (Water splash and Dust resistant)
Size:
206mm×200mm×76mm


Application


1. What to do if there are too many pipelines and there are not enough inspection staff?
Efficient remote detecting, no need to go everywhere.
2. What should I do if the user is not at home and I cannot enter the house for security check?
Measuring height up to 30th floor.
3. What if the distance is too far to detect?
150 meters actual detection distance.
4. What to do if a small leak is difficult to detect with similar equipment?
2.5ppm·m minimum air mass concentration detection.

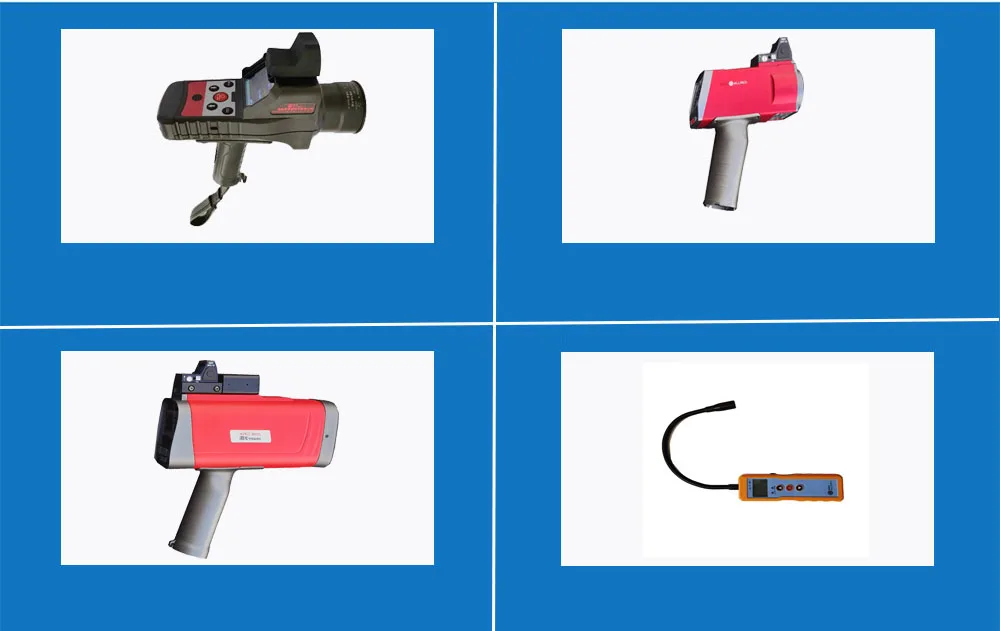

Related Products
