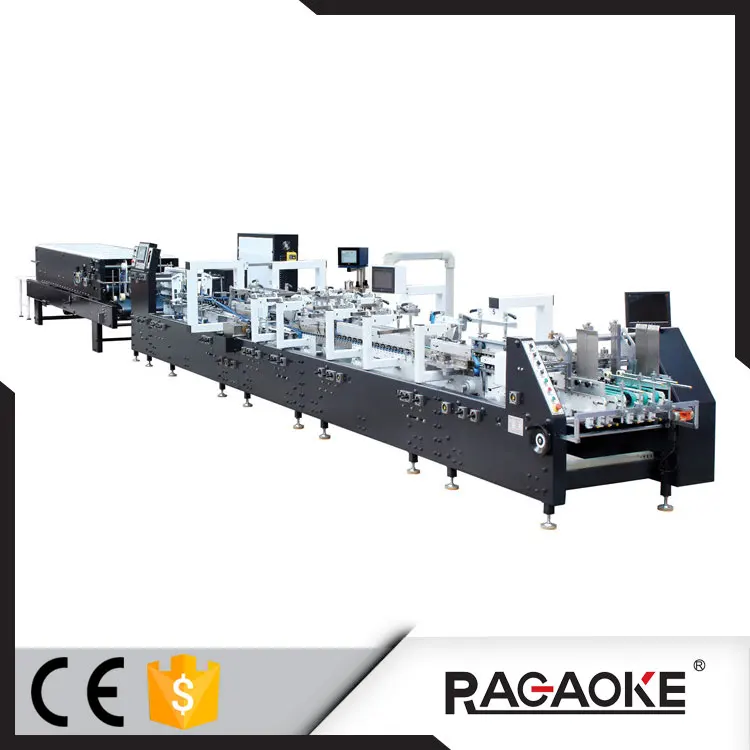

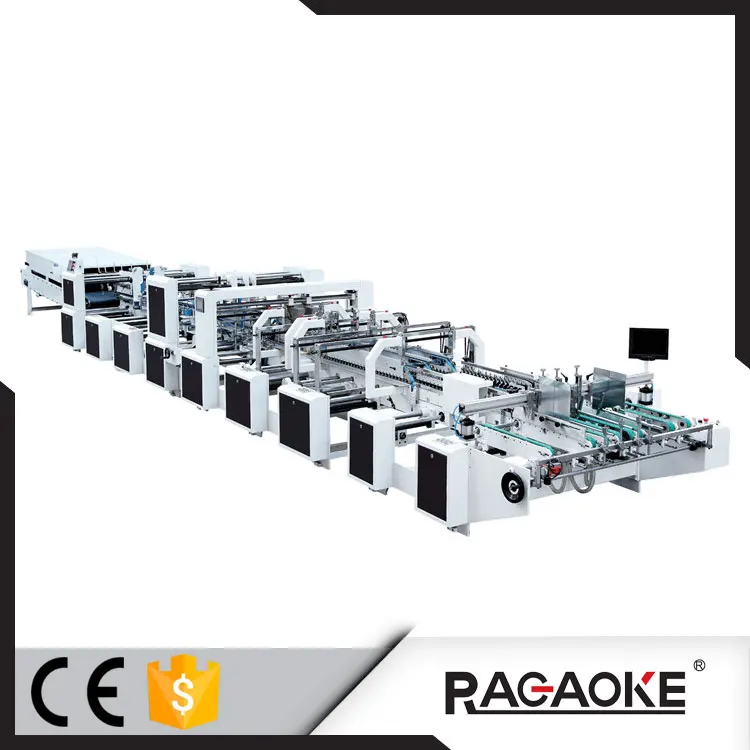

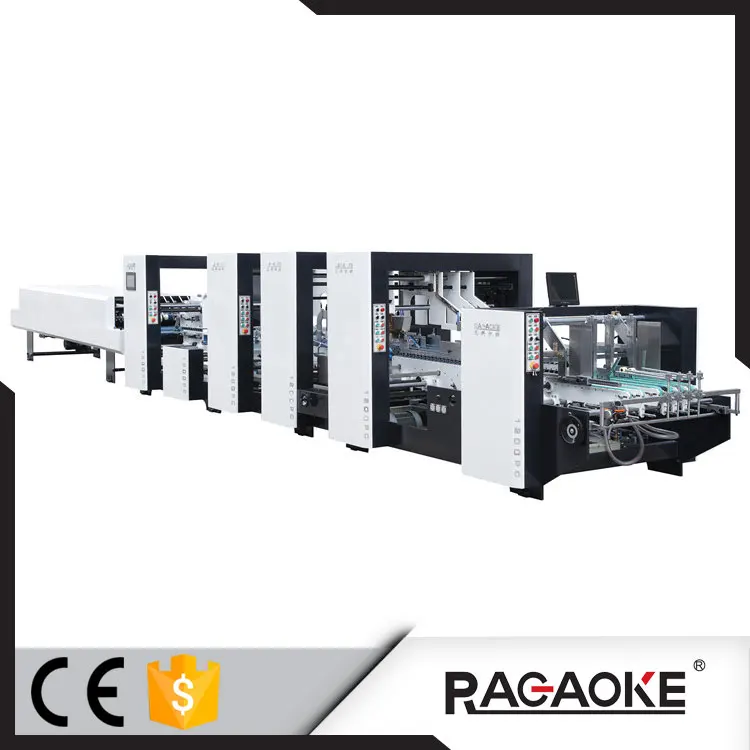

Automatic crash lock bottom folder gluer machine for cardboard (GK 1200PCS/1450PCS/1800PCS)
- Category: >>>
- Supplier: Ruian Gaoke Machinery Co. Ltd.
Share on (60828698767):
Product Overview
Description

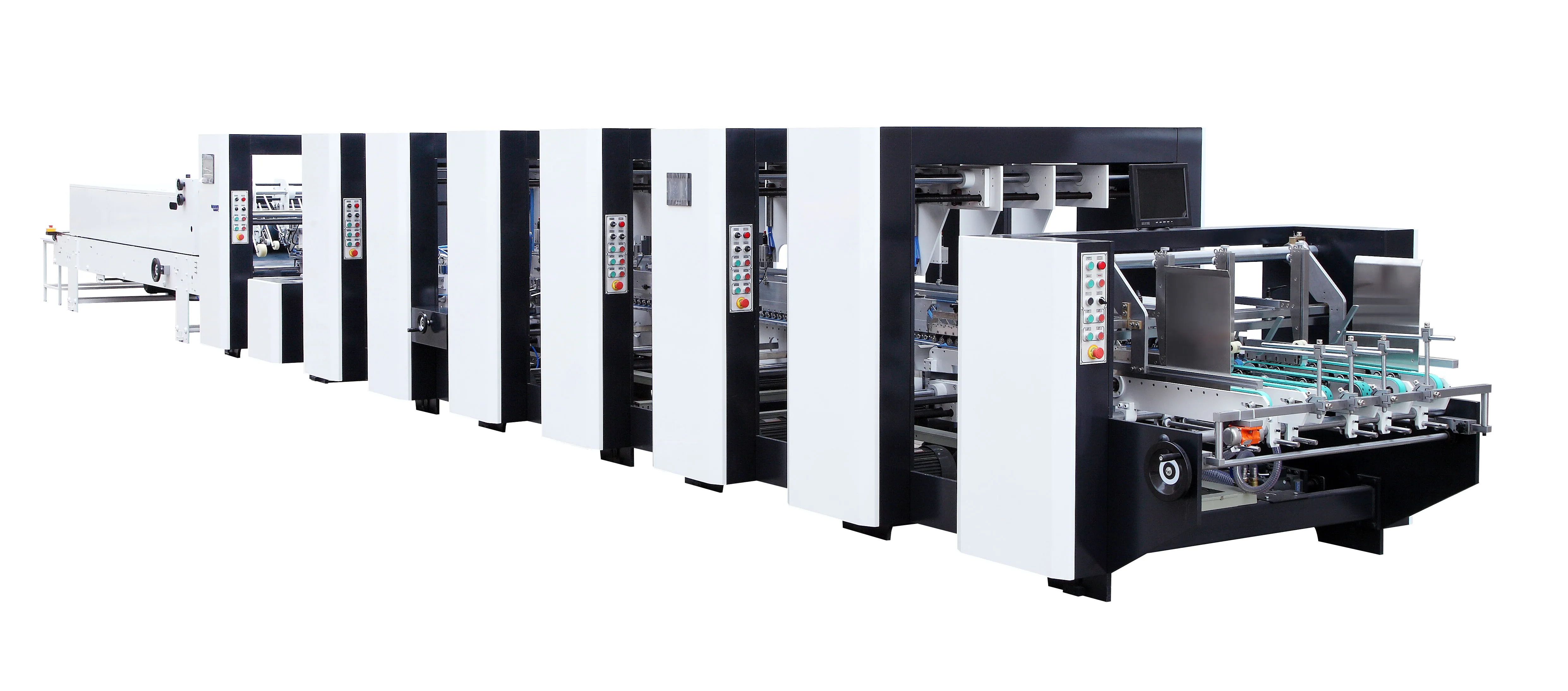

Big Sides Corrugated and Cardboard Carton Folder Gluer Machine (GK-1200PCS/1450PCS/1600PCS/1800PCS)
1.Pcs series folding gluing machine with 4/6 corner function, each set is controlled by independent motor.
2.adopt electrical regulating board, PLC, imported electronic componts, three plates track mode device,Aluminum plates are all Chute structure, which is easy to add spare parts.
3.The machine is especially designed for all kinds of 4/6 corner cardboard or corrugated packaging boxes, which can meet to all kinds of requirements of automatic packaging area.
Technical Parameters
| Name | GK- PCS Four Six Corner Folding Gluing Machine | |||
| model | GK-1200PCS | GK-1450PCS | GK-1600PCS | GK-1800PCS |
| Paper Material | Cardboaed 210-800g, A/B/E Corrugated | |||
| Max. Liner speed | Max.260 meter/minute | |||
| Feeding way | Automatically and continuously feeding | |||
| Way of folding | Fold 1 and fold 3 are 130°and 180° | |||
| Power Supply | 3P 380V 50HZ | |||
| Main motor power | 18.4kW | 18.4kW | 26KW | 26KW |
| Total power | 30kW | 30kW | 35KW | 35KW |
| Weight | 9.5T | 11T | 13T | 15T |
| Overall dimension | 17*1.84*1.65m | 17*2.1*1.65m | 17*2.25*1.8m | 17*2.45*1.8m |
Product Component
 |  |

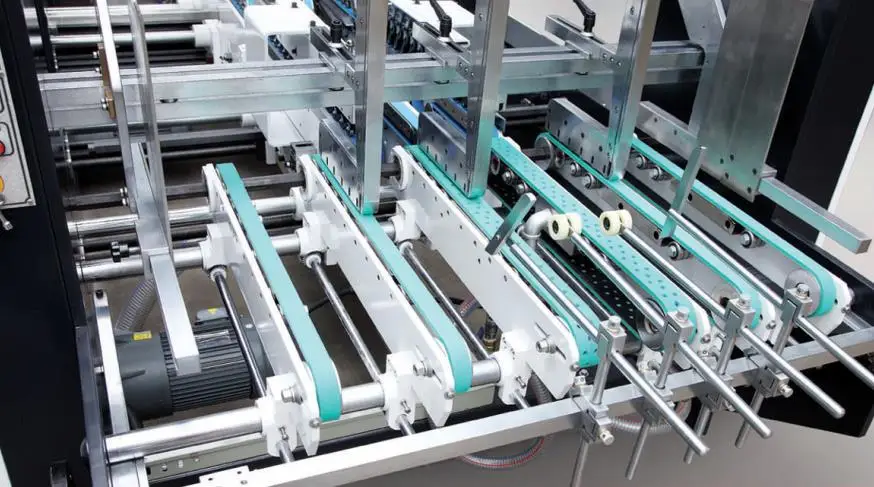

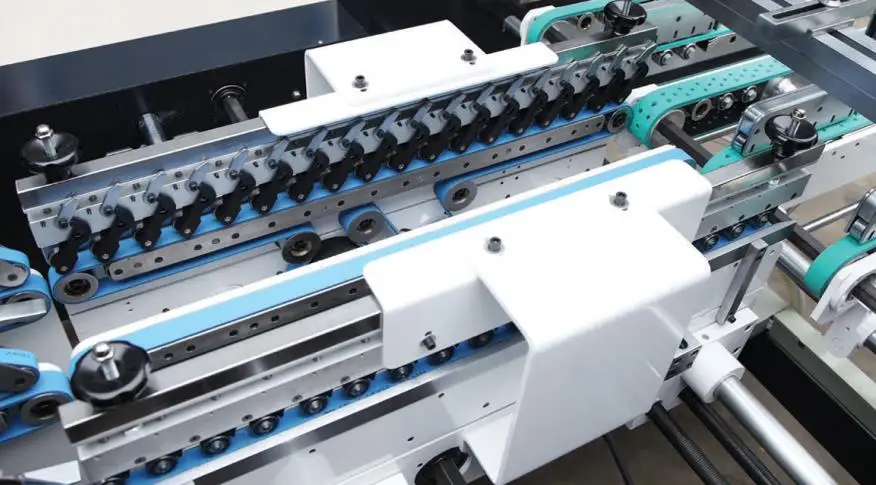

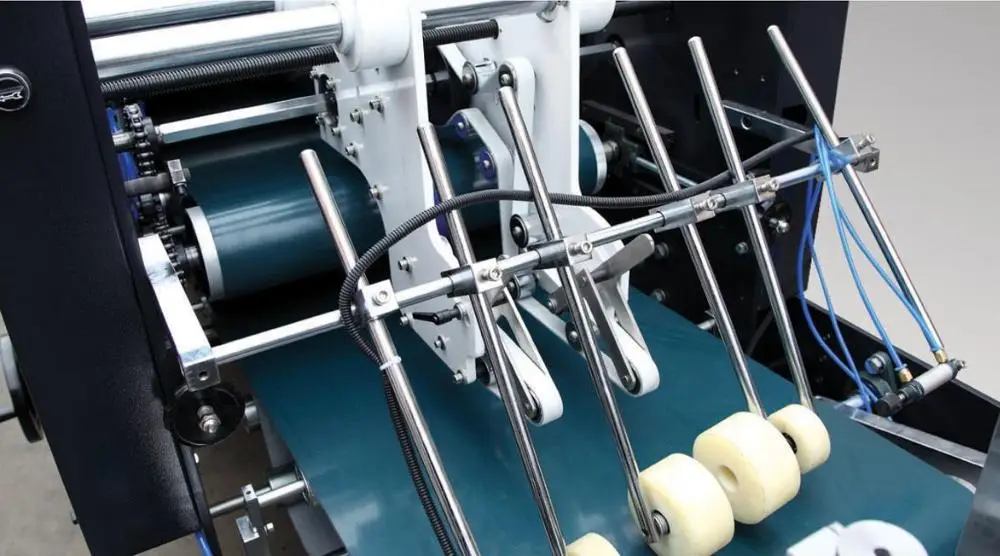

Feeding Section Driven by independent motor, feeding belt has a function of air suction. | Aligner Section Equipped with auto-correction device to correct the obliquity and ensure the correct feeding. |
 |  |

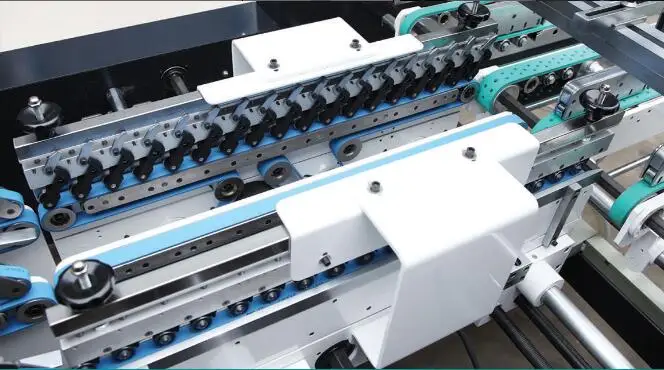

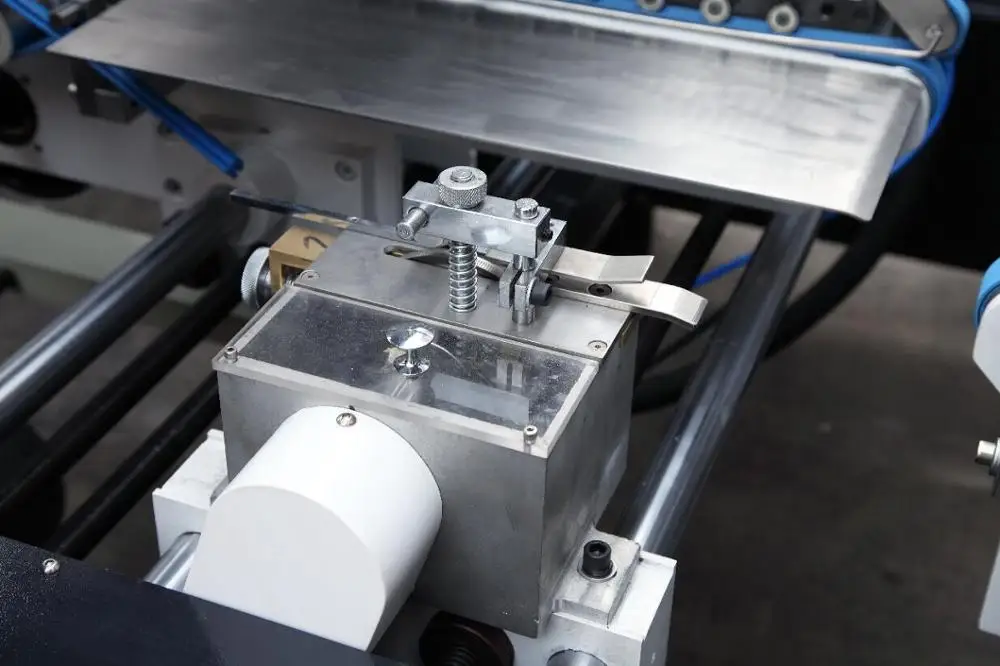

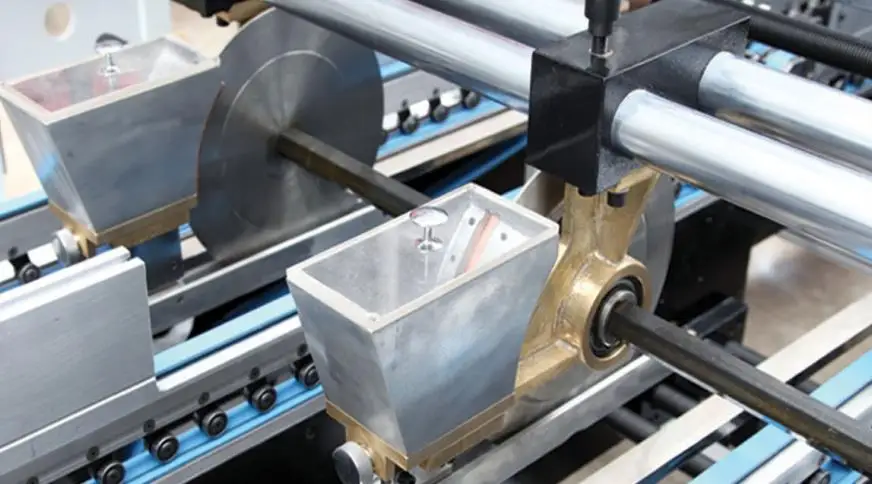

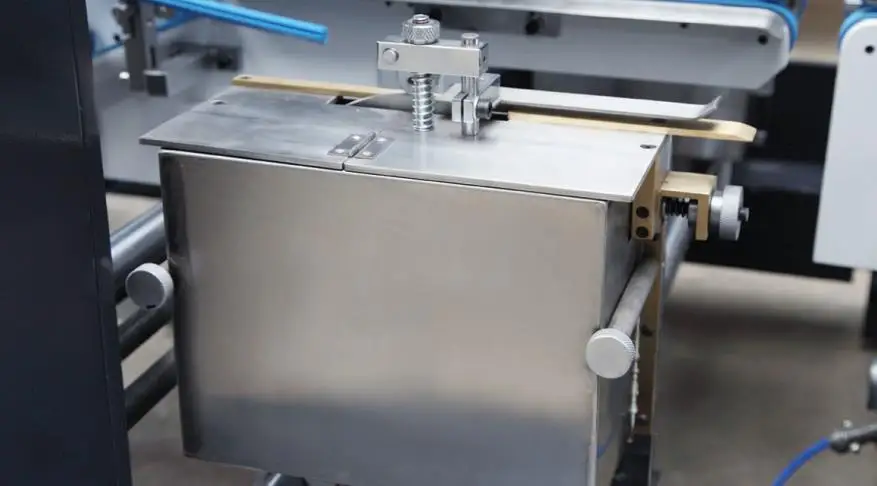

Bottom-lock Equipped with the upper and lower gluing tank. | Gluing Section Equipped with the lower gluing tank.
|
 |  |

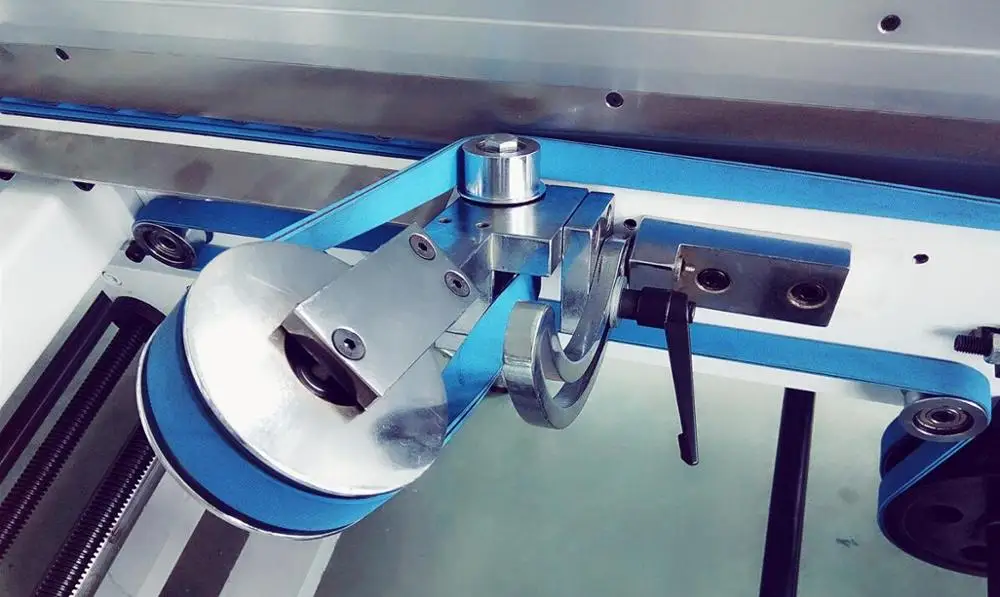

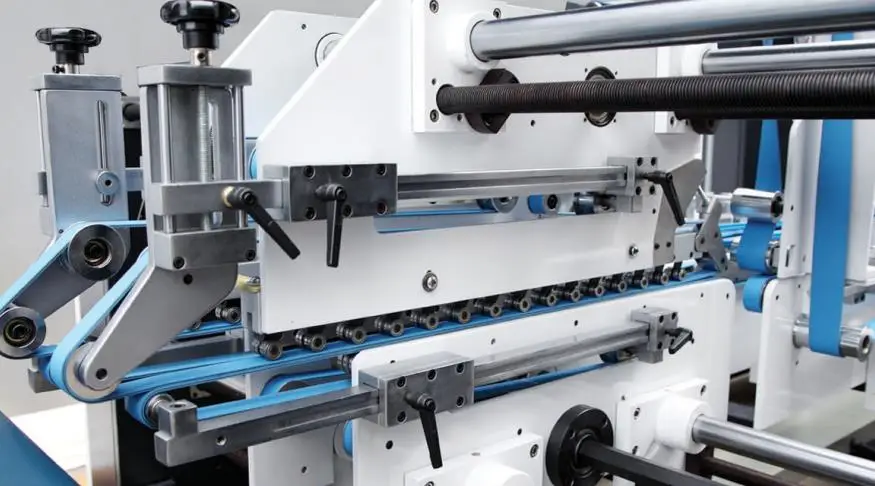

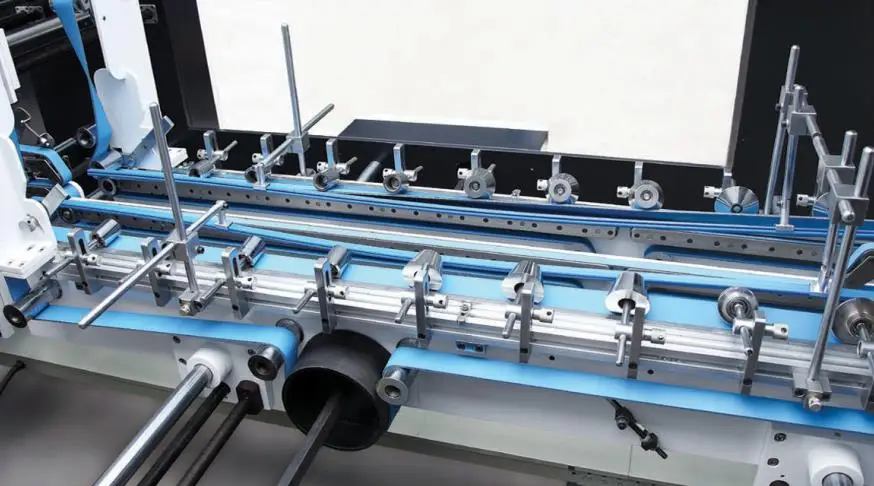

Folding Section Folding section equipped with cone pulley in left and right to adjust belt speed. | Trombone Fully press section continuous and automatic box collection mechanism that ensures a neat transfer to the press section guaranteeing a well aligned flow. |
1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirm to export packing standard.
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem as soon as possible.
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders
from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspection the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What’s the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.

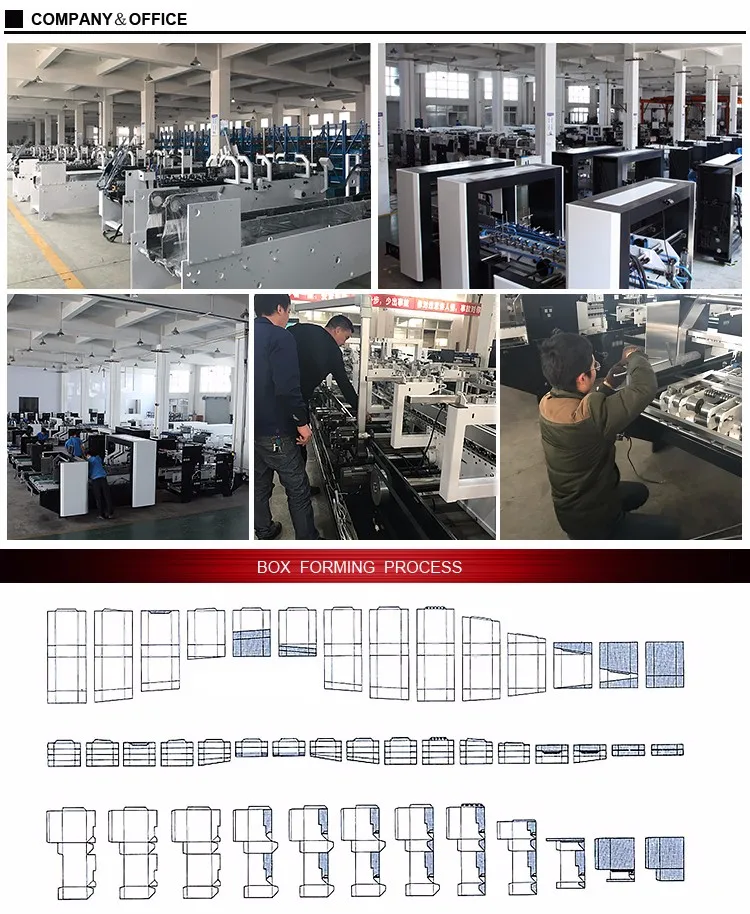

We are professional manufacturer since 2005. We believe our products will provide
you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
If you have any inquiry, please don’t hesitate to contact us. We will reply to you
at the first time as we can.
