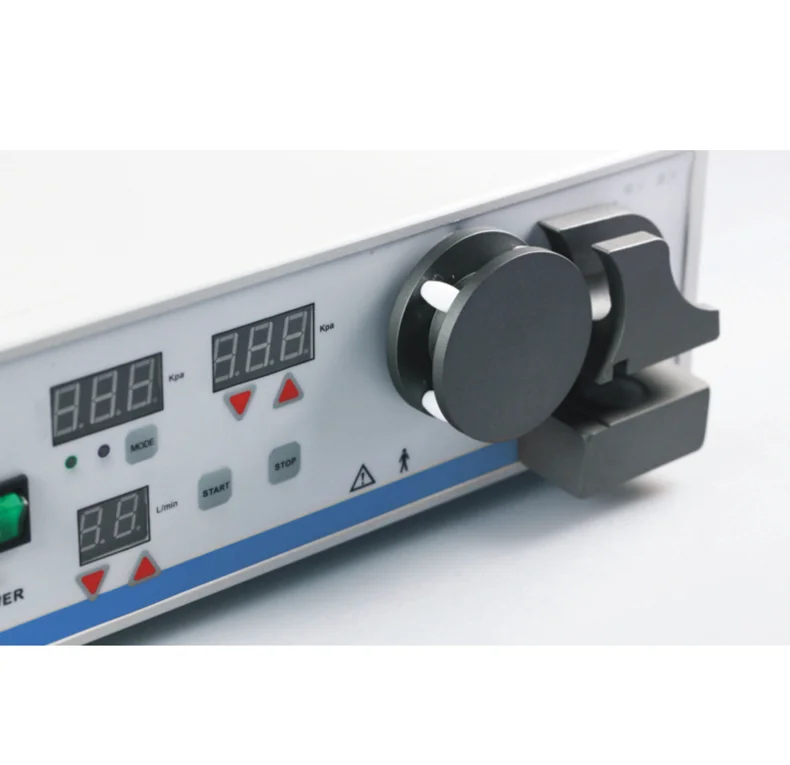

Automatic arthroscopy for irrigation pump

Product Description

Description:



The irrigation pump is designed according to the clinical experiment and is suitable for arthroscopy, hysteroscope and urological surgery system.Under constant pressure, the rinse solution is introduced to ensure a clear vision and surgical space for the operation by continuously replenishing the washing fluid.The pump meets all users' requirements, and the operation is simpler and faster.The intelligent self-diagnosis function can directly connect the infusion tube of the pressure sensor to the equipment, convenient and quick.Once the cavity pressure is greater than or equal to the preset pressure, the infusion will be stopped automatically and the patient's safety will be ensured to a greater extent.



Feartures:

1.The same unit is suitable for Arthroscopy,Hysteroscopy and Urology systems

2.Sterile tubing sets with sensor,a peristaltic pump,with two channels

3.Emulsion tube and shim are replaceable(5pcs,L:approx.16cm)

4.High sensitivity pressure sensor



Tech Data:

Power supply	AC110/220V±10%,50/60HZ 0.5A	Fuses	φ5x20mm  250V 2A
Max.Power consumption	100W	Pressure presetting range	15-600mmHg(2-80kPa,error approx.±2kPa)
Flow rate	0.1-1.01/min(error approx.±20%)	Signal/Noise ratio	≤55dB
Safety standard	IEC601-1	Storage temp	-15℃to+50℃
Operating temp	0℃-45℃	Relative humidity	30% to 85%
Dims	340x335x100mm	N.W.	11kg



Standard Features

Main unit

Sterile tubing sets with sensor

Shims of sensor (3pcs),Emulsion tube and shim(5pcs,L:approx.16cm)

Power cable
