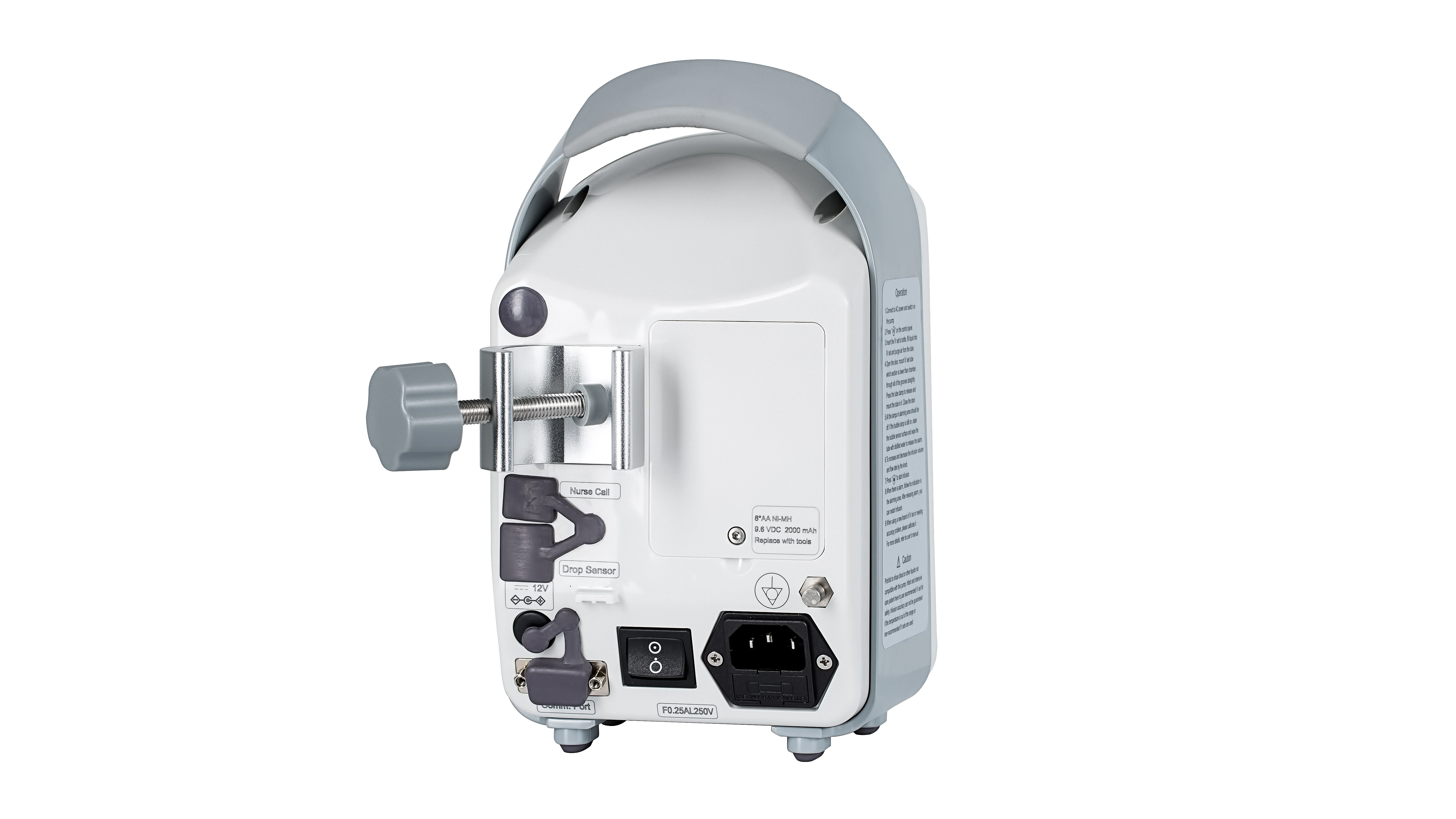

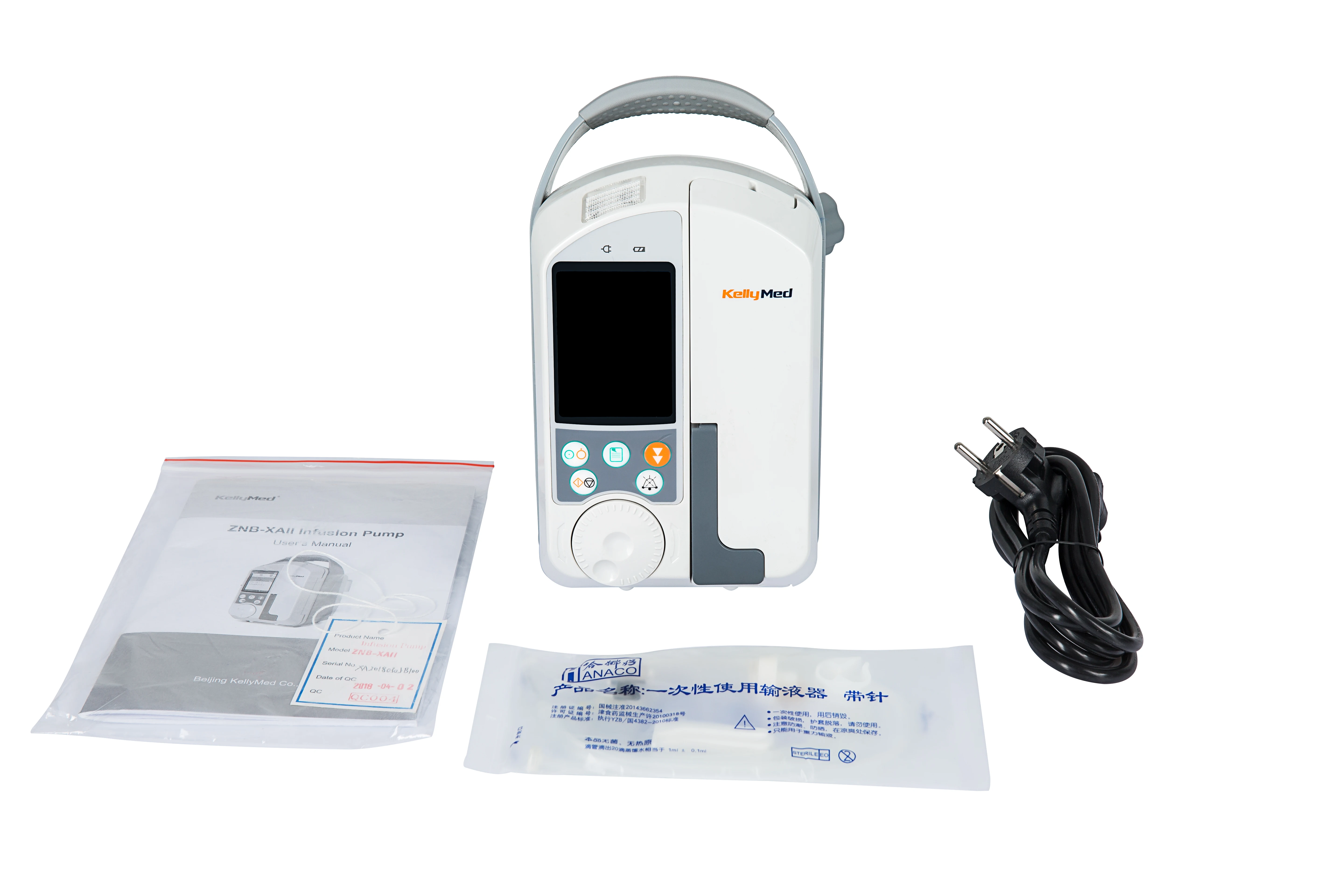

Ambulance use high quality Medical Rotary Knob Volumetric Infusion Pump with druge library and key locker CE and FSC approved

Model

ZNB-XAⅡ

Pumping Mechanism

Curvilinear peristaltic

IV Set

Compatible with IV sets of any standard

Flow Rate

1-1200 ml/h (in 0.1 ml/h increments)

Purge, Bolus

Purge when pump stops, bolus when pump starts,

rate at 500, 800, 1200 ml/h

Accuracy

±3%

VTBI

1-20000 ml (in 0.1 ml increments)

Infusion Mode

ml/h, drop/min, time-based, body weight, nutrition

KVO Rate

1-5 ml/h (in 0.1 ml/h increments)

Alarms

Occlusion, air-in-line, door open, end program, low battery, end battery,

AC power off, motor malfunction, system malfunction, reminder alarm

Additional Features

Real-time infused volume, automatic power switching,

mute key, purge, bolus, system memory, history log

Occlusion Sensitivity

High, medium, low

History Log

50000 events

Air-in-line Detection

Ultrasonic detector

Wireless management

Optional

Drop Sensor

Optional

Vehicle Power (Ambulance)

12±1.2 V

Power Supply, AC

110/230 V (optional), 50-60 Hz, 20 VA

Battery

9.6±1.6 V, rechargeable

Battery Life

5 hours at 25 ml/h

Working Temperature

10-30℃

Relative Humidity

30-75%

Atmospheric Pressure

860-1060 hpa

Size

130*145*228 mm

Weight

2.5 kg

Safety Classification

Class Ⅰ, type CF
