Product Overview

Description

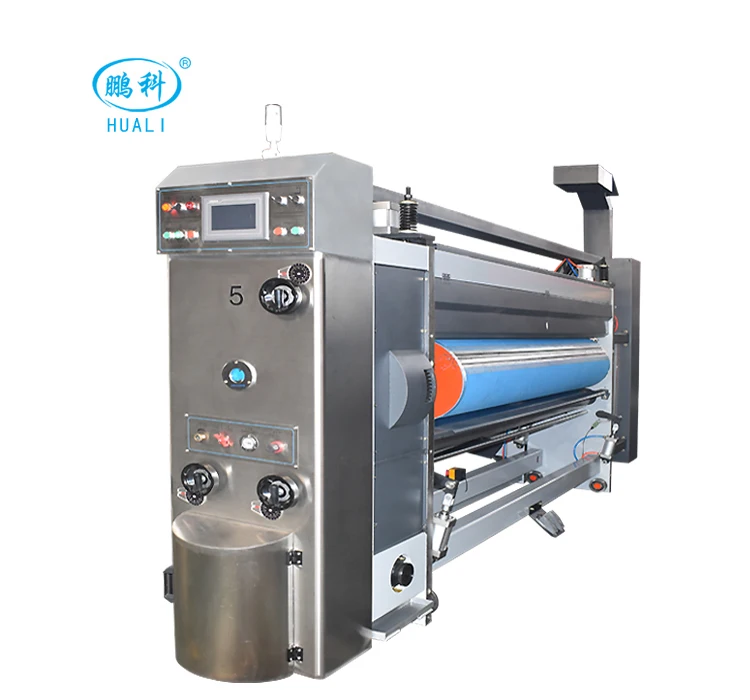

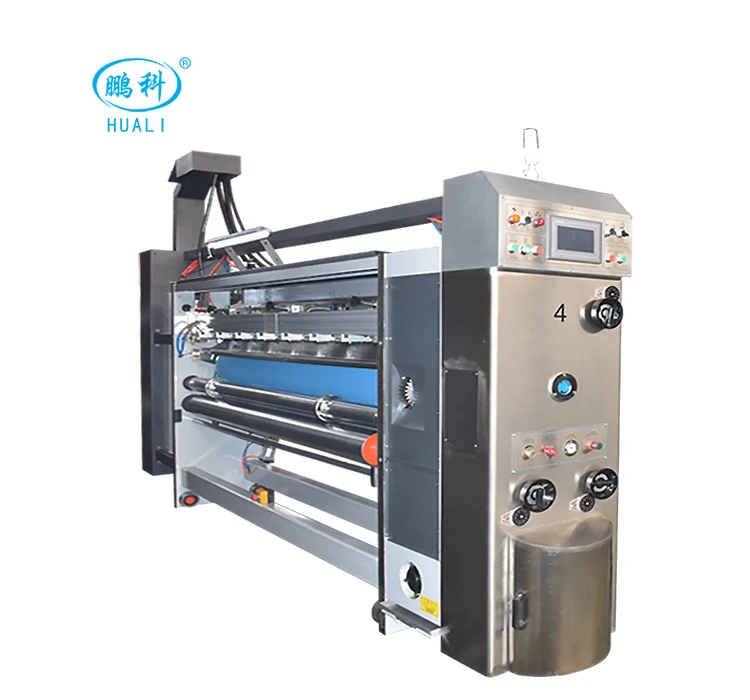

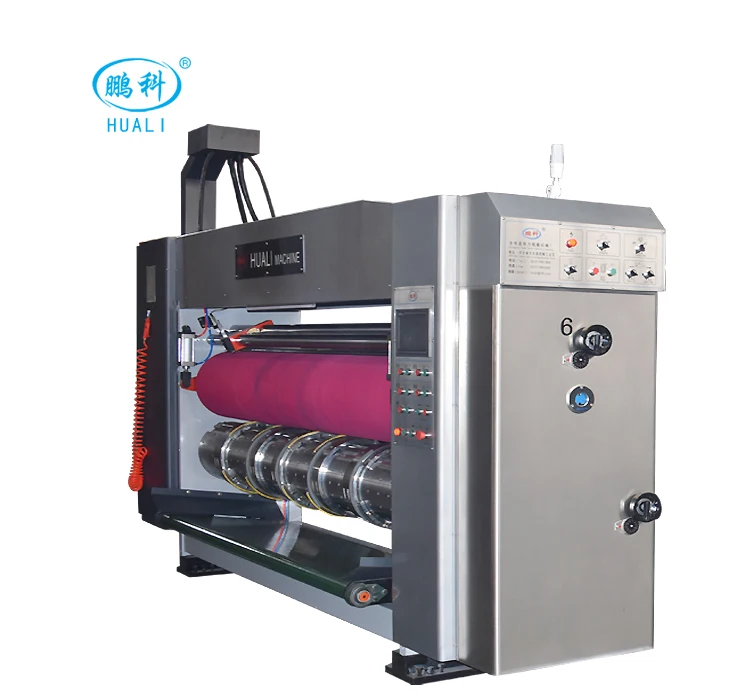

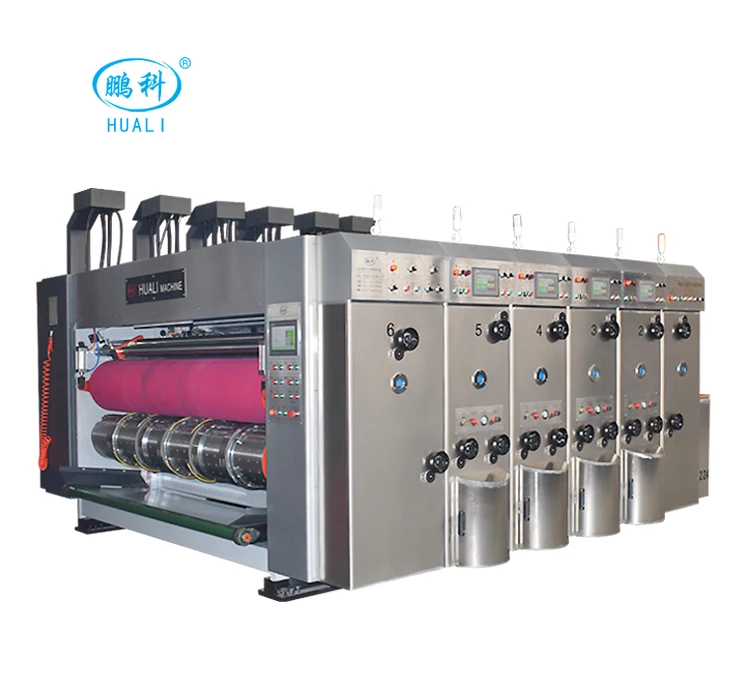

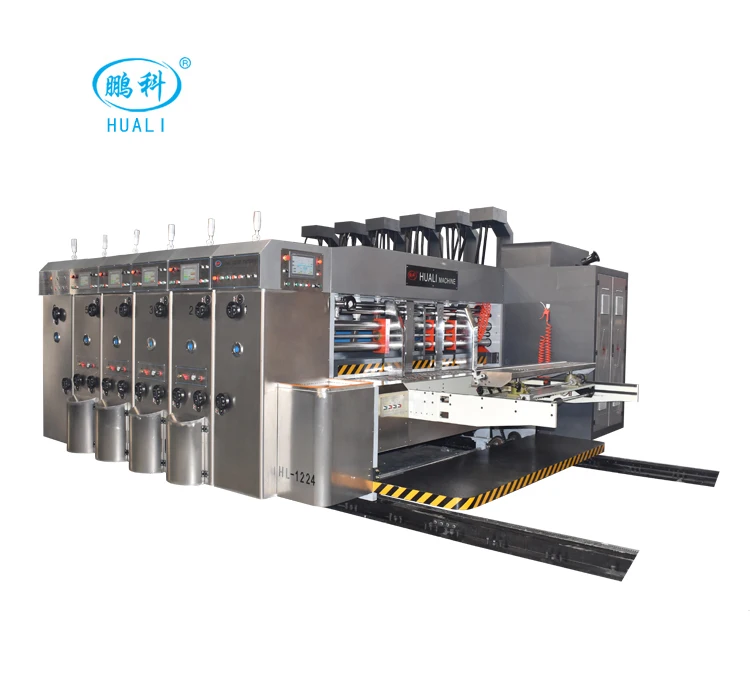

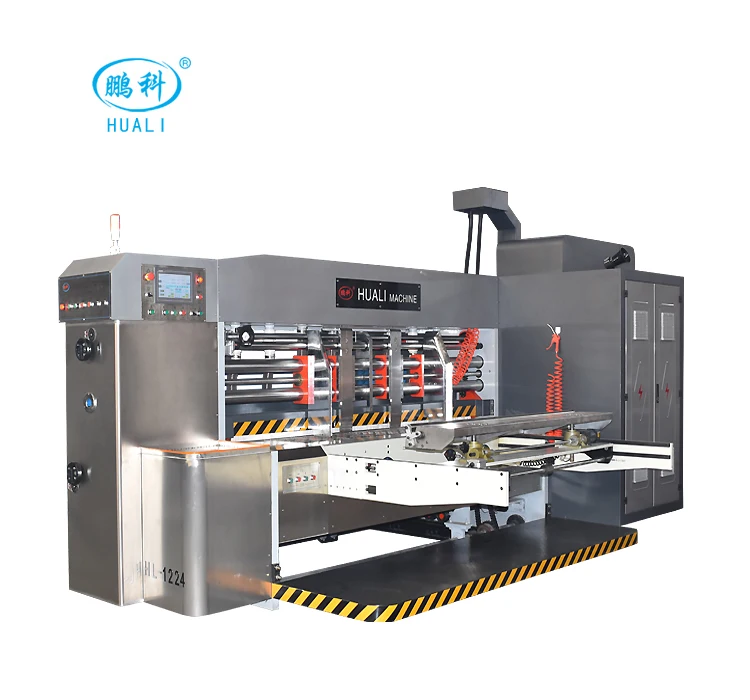

cardboard carton box printer printing file making machine

1	Color group	to be configured according to user’s needs
2	Printing paper	A,B,C,A/B,B/C and A/B/C type corrugated paperboard (the maximum interval 11mm)
3	Width of machine inside	2200mm	2600mm	2800mm
4	Max.paper size	900×2000mm	1200×2400mm	1400 ×2600mm
5	Max.printing size	900×1800mm	1200×2200mm	1400 ×2400mm
6	Skip feeding paper	1100×2000mm	1400×2400mm	1600 ×2600mm
7	positive knife Min.paper size      negative knife	300×640mm 300×720mm	350×720mm 350×740mm	400 ×720mm 400 ×740mm
8	Printing plate thickness	7.2mm	7.2mm	7.2mm
9	Design speed(piece/min)	200pcs/min	180pcs/min	150pcs/min
10	Economic speed(piece/min)	80-180pcs/min	80-160pcs/min	80-130pcs/min
11	Tinted precision	4( color) ±0.5mm	4( color) ±0.5mm	4( color) ±0.5mm
12	Slotting precision	±1.5mm	±1.5mm	±1.5mm
13	Max.slotting depth	7 ×220mm	7×300mm	7×350mm
		increase the blade, increase the slot depth
14	positive knife Min. Slot distance    negative knife	150 ×150 ×150 ×150mm 250 ×90 ×250 ×90mm	170×170×170×170mm 260×90×269×90mm	260×90×269×90mm 260×90×269×90mm
15	Max.die-cutting size	260×90×269×90mm	260×90×269×90mm	260×90×269×90mm
16	Printing plate diameter (contain plate thickness)	260×90×269×90mm	260×90×269×90mm	260×90×269×90mm



 Function and characteristics:
1. The electric appliances of a whole machine adopt the product of SCHNEIDER made in FRANCE.
2. Adopting helical gear driving, the gears are made from high frequency quenching and polishing-gear.
3. All the axles of roller must be chrome-plating in order to increase the hardness.
4. The gears adopt shower type circular lubricating.
5. This machine adopts PLC touching screen control, adopts frequency Converter, rightly and truly.
6. Automatically changes return zero and correct the plate position
7. Adopting the mould unit designing. The multi-color printing unit can be combined and
linked in any way.

Feeding part



1.Adopt lead edge feeding type , absorbing wind auxiliary paperboard feeding, can make the cardboard feed favoringly. The volume of the wind can be adjusted accord the camber of the paperboard.



2.Vacuum suction assist paper feed to ensure stable high-speed operation and wind rate setting according to requirements.

3. Front baffle can be electrically adjusted with scale on it,easily understood. Side bar can be computerized adjusted,with digital setting and pneumatic appliance

4 Electric controlling the cluth of te machine platform and istalled alarm in order to assure the safe of he operating personnel while the bell rings constnatlty during marching



5 The movement of post bar can be computerized adjusted,with digital setting and manual adjustment of the scale

6 .Equipped with brust to suffciently eliminate dust and scraps as well as foreign subtances on the printing surface improve printing quality


7 .Skip feed device with continuous feed or every other page feed options.



8  Pneumatic interlocking mechanism



9 Equipped with clean foreign matter device on the printing face of the paperboard and improve  the printing quality



10 The control center uses German Simens PLC and color touch screen,higher reliability,lower failure and higher efficiency, and is easy to learn and operate;the main machine and fan motor applies transducer speed regulation,stable and energy saving

Printing Part



1.The printing roller and trace pressing roller adop good quality without gap steel roller ,surface is treated by lapping finish, after balance correct and hard chrome plating, smooth operation.

2.Adopting the hang printing plate system,it is easy to change printing plate ,and installed switch by feet ,which is convinent to hang printing plate
3.International standard high-precision harmonic phasing device,PLC and touchscreen controlled 360 degree adjustment
4.Special planet gear desing enables long service life
5.Equipped with auto braking device with braking mechanism to lock rotation of pressplate roll and maintain the fixing point of original gears when the printing machine breaks away
6.With auto reset system after cleaning
7.Computerized digital axis adjustment,with adustment distance of ±10mm
8.Equipped with auto raising device onthe reticulate roll,separated the printing board when stopping feed paper
9.All the intervals adopt computerized adjustment and digital setting

10 Installed with ink roller rotation electrical machinery to prevent water ink drying while main machine stopping
