Product Overview
Description

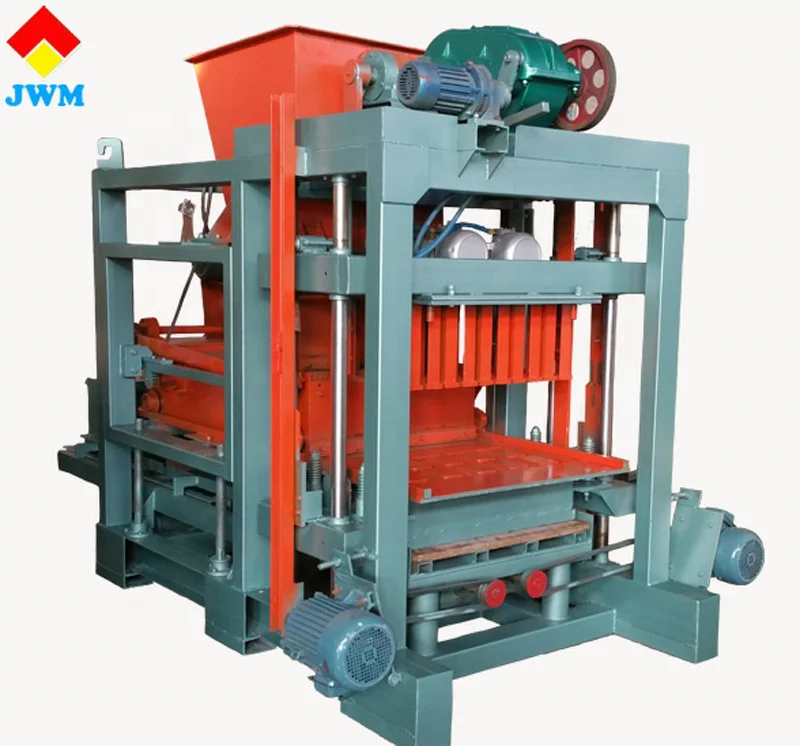

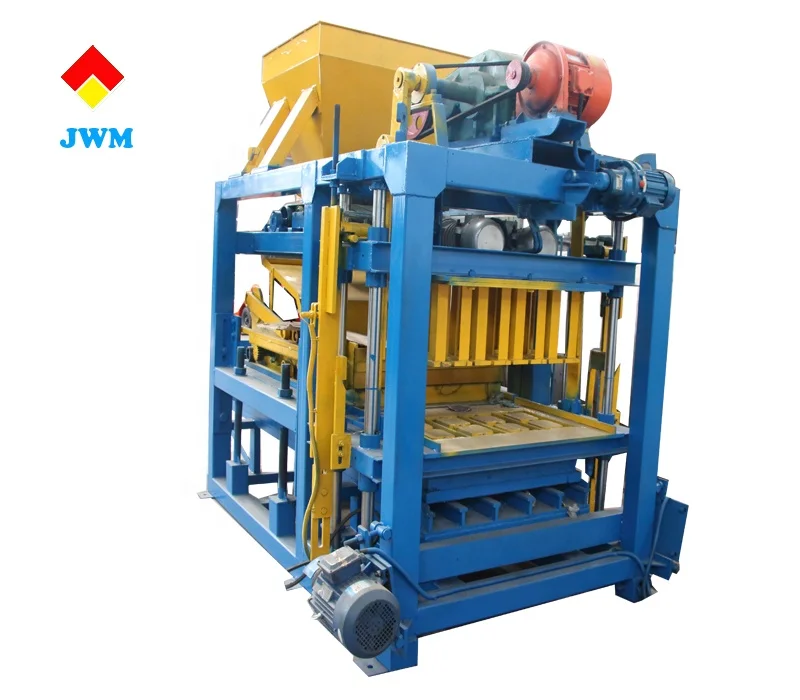

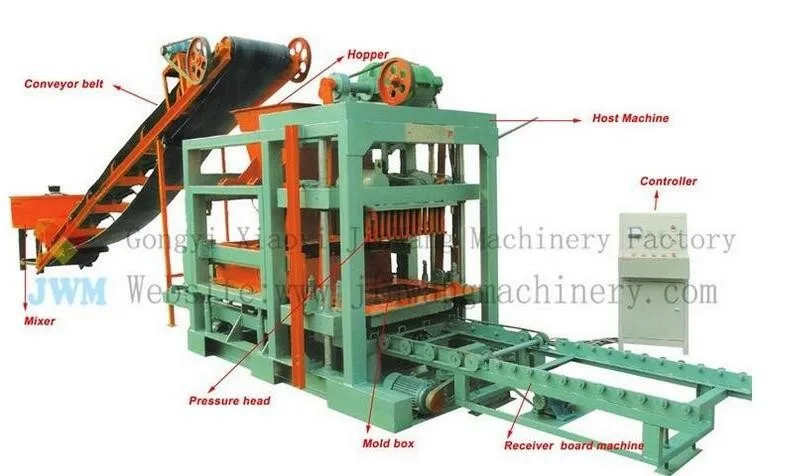

QTJ4-22 block making machine
The brick making machine, also called the baking machine is mechanical equipment,which is used of raw materials to carry out the scientific ratio,add water and mixing.The brick making machine can pressure highly cement brick, hollow brick and colorful road brick,which need not sintering and can use wit short time drying .It possess the features of simple operation,low investment and large-scale production and is one of the ideal models in current market,so it is the first choice to customers.
Main technical parameters | ||
Model | QMJ4-22 | |
Power | 17.65kw | |
Weight | 3T | |
Voltage | 380v | |
Board size | 850*550*30mm | |
Overall size | 2700*1900*2100mm | |
Productivity | 3840-23040pcs/8hours | |
Types and capacity | ||||||
Cut specifications (mm) | Number of molded blocks(pcs) | Molding cycle(s) | Class production (pcs/8 hours) | |||
390*190*190 | 4 | 22 | 3840 | |||
390*120*190 | 8 | 22 | 7680 | |||
390*240*190 | 4 | 22 | 3840 | |||
390*150*190 | 6 | 22 | 5760 | |||
240*115*90 | 15 | 22 | 14400 | |||
240*115*53 | 24 | 22 | 23040 | |||
Main Features
1.Environmentally friendly .Because of using electric,it is very environmental ,not produce the polution air.
the used material are slag, construction waste, cement which is using up waste.
2.Operate easily, the machine is convenient for customers to use.
3.Maintenance easily, the machine can be cleaned and made some basic maintenance easily by buyers.
4.Saving labor and time, is not only save manpower and time but also improve efficient. .
This brick making machine can produced blocks with various shapes such as hollow block, standard brick, paving block ,interlock block, etc.
Shaped bricks by our machine.
The range of application is wide,which can be used in sidewalk, roadside ,square,park, indoor and outdoor flooring, etc

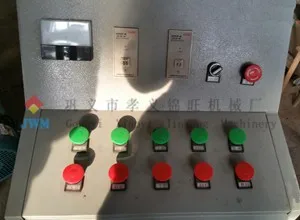

Name:Controller
Control the operation of a machine,the operation of each part.
Name:Pressure head
Which is used for the molding of the equipment, provide pressure for the equipment.
Name: Mold box
Name: Motor
Which is super strong vibration motor,provide power to the equipment.

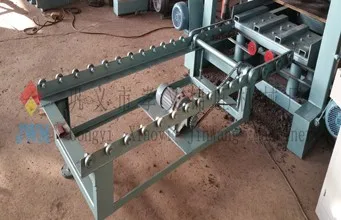

Name:Receiver board machine
Transport the finished productions.

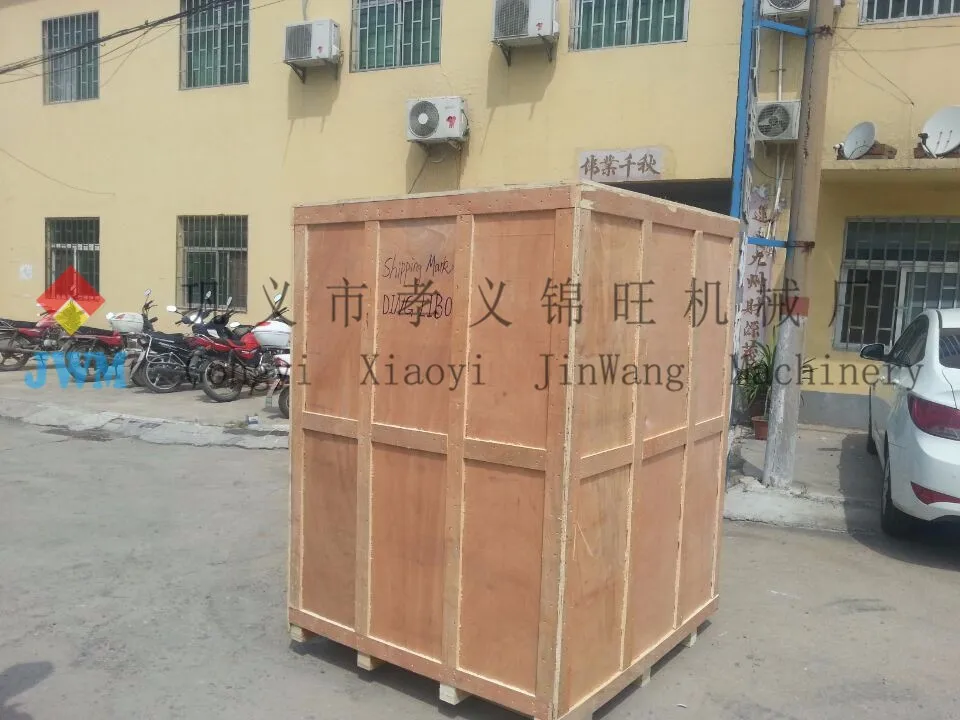

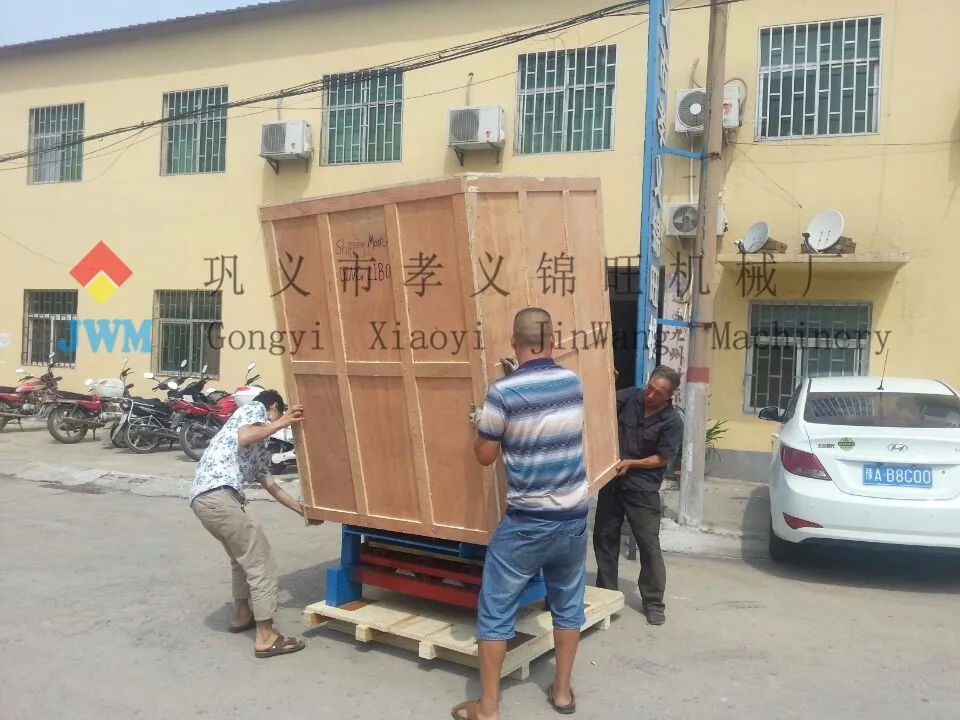

Less than container load(wooden box)

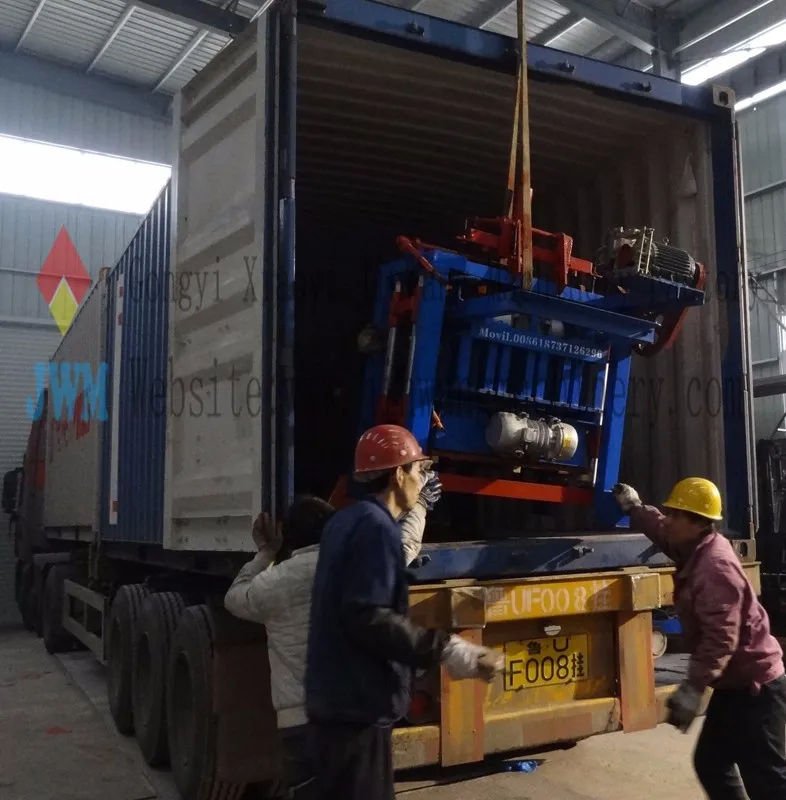

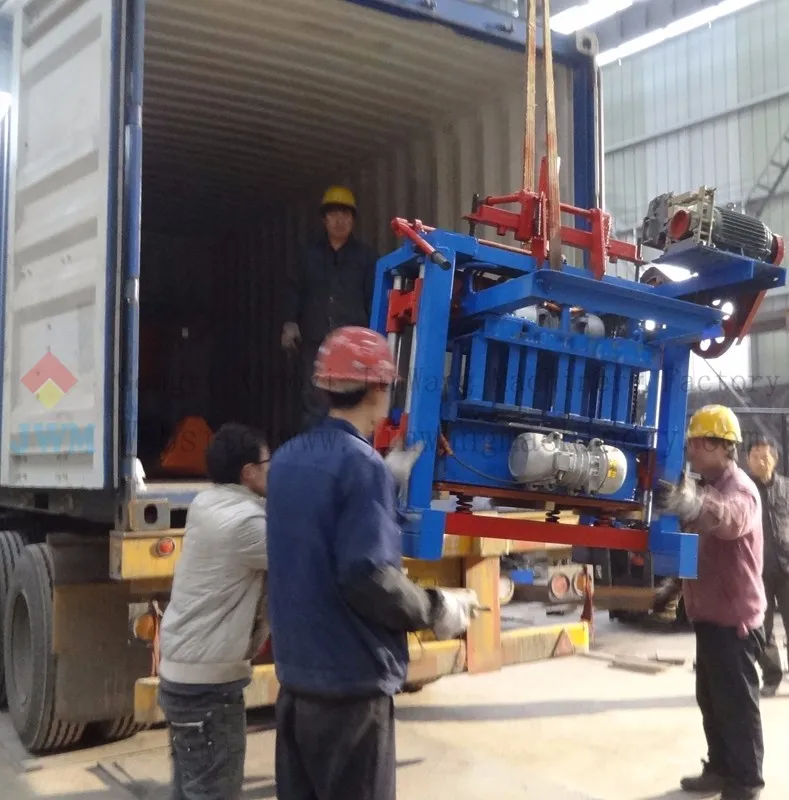

Full container load
The machinery guarantees to strictly carry out production and inspection in strict accordance with the relevant national standards.

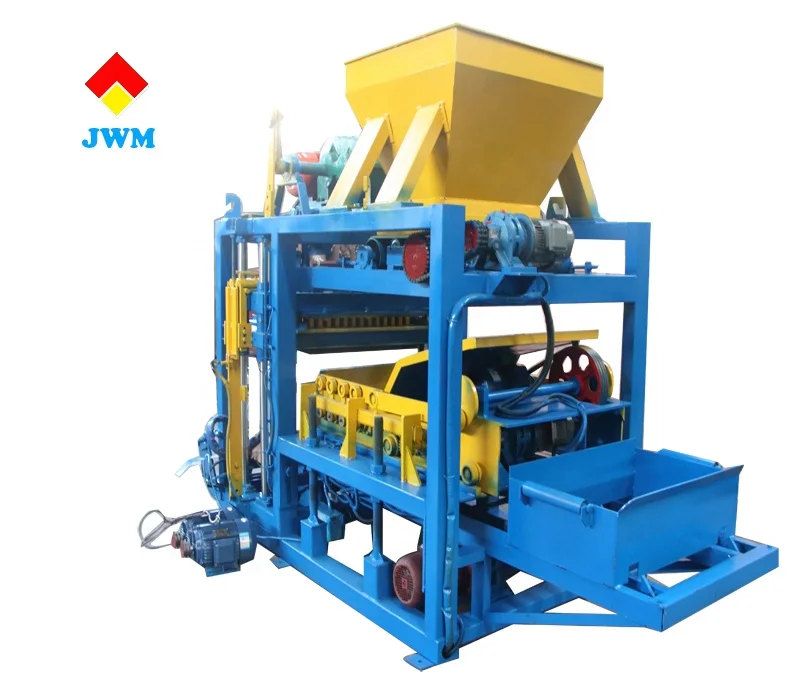

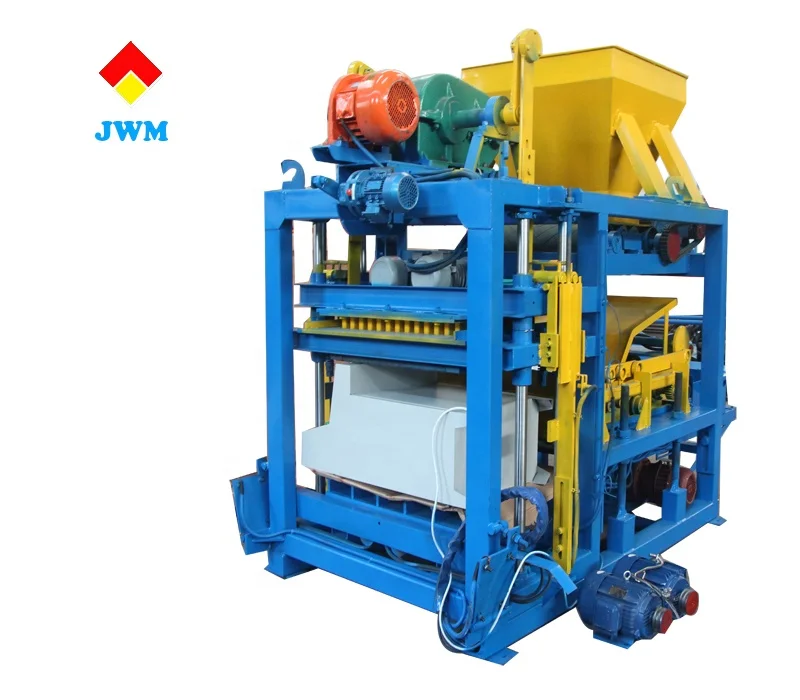

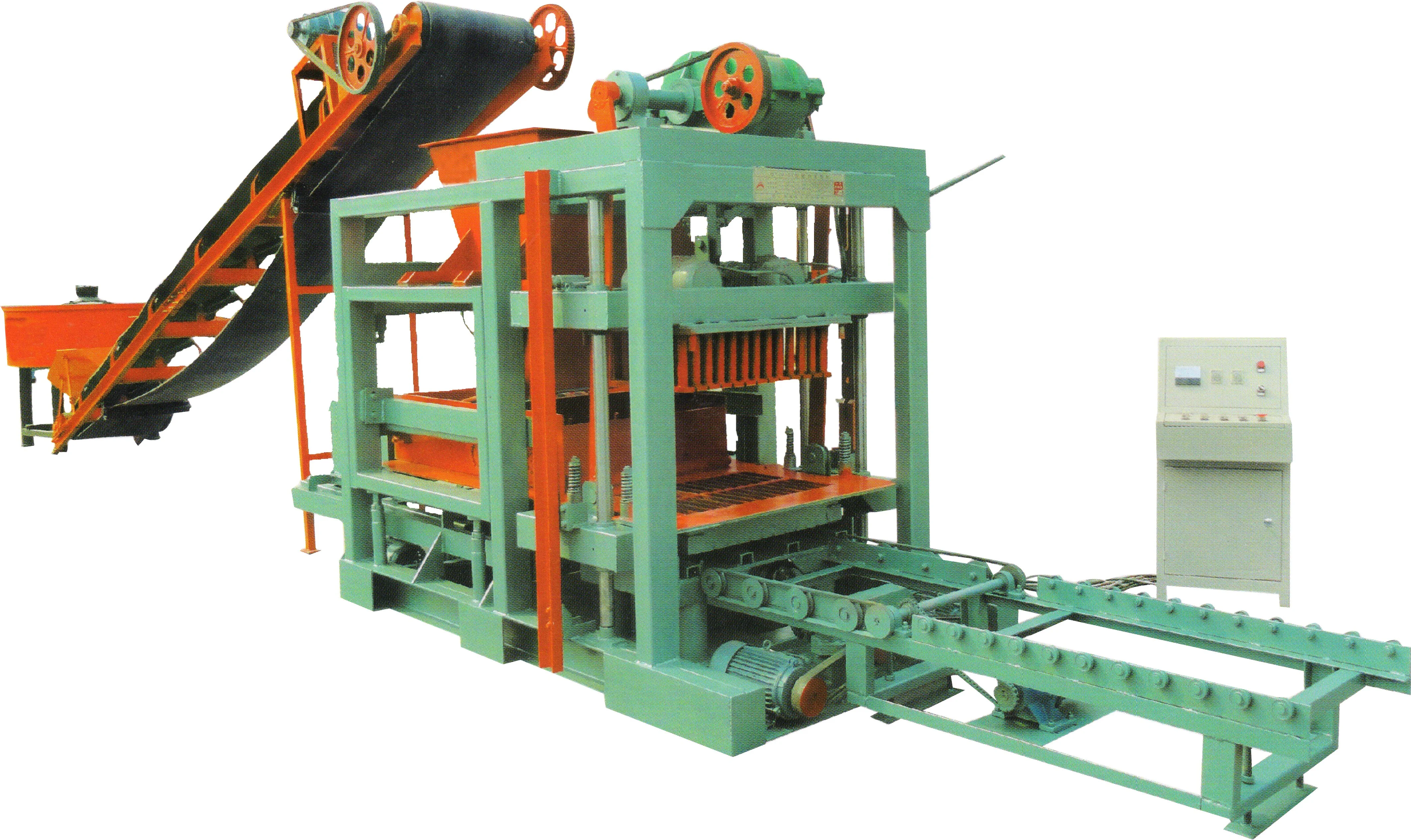

We also have other types of block making machines for reference,QMJ4-35A,and QMJ4-35C,which is an automatic block making machine.
Some other related products can be used for cooperation when using the block making machine.
Mini dumper
Mini dumper is our other important product,there are two types,one is electric and another one is diesel engine. It can not only loading the blocks,garbage and some other things,but also can be used as farm vehicles,and some other areas.
Mucking loader
It is also named as excavating loader.Reasonable bonding of manipulator and conveyor.Acquisition and reansmission function combine into one.Besides,it adopts hydraulic control system and production equipment,so safty and environmentalprotection,low energy consumption,high efficiency,etc.
