Double color silicone LED strip extrusion line
- Category: >>>
- Supplier: Dongguan Dinglong Electrican Machine Co. Ltd.
Share on (60828789867):
Product Overview
Description
Product Description
Double color silicone LED strip extrusion line
Technical Specifications
| Model | DL65+45 | DL65+65 | DL80+65 | DL80+65 |
| Finished diameter | 1.5-28 mm | 1.5-30 mm | 2.0-40 mm | 3.0-60 mm |
| Line speed (max) |
10 m/min |
10 m/min | 10 m/min | 10 m/min |
| Extrusion output(max) | 65 kg/h | 70 kg/h | 100 kg/h | 150 kg/h |
| Screw diameter ratio | 12:1 | 12:1 | 12:1 | 12:1 |
| Extruder power | 11 kw | 11 kw | 22 kw | 37 kw |
| Horizontal curing length | 20 m | 20 m | 20 m | 24 m |
| Capstan power | 1.5 kw | 1.5 kw | 1.5 kw | 1.5 kw |
Application:
Suitable for double color silicone LED lights,
LED lights,
LED rainbow with flexible neon lamp,
LED 3528 lamp,
LED 5050 high voltage chip outsourcing,
Silicone band extrusion mold.
Detail pictures:

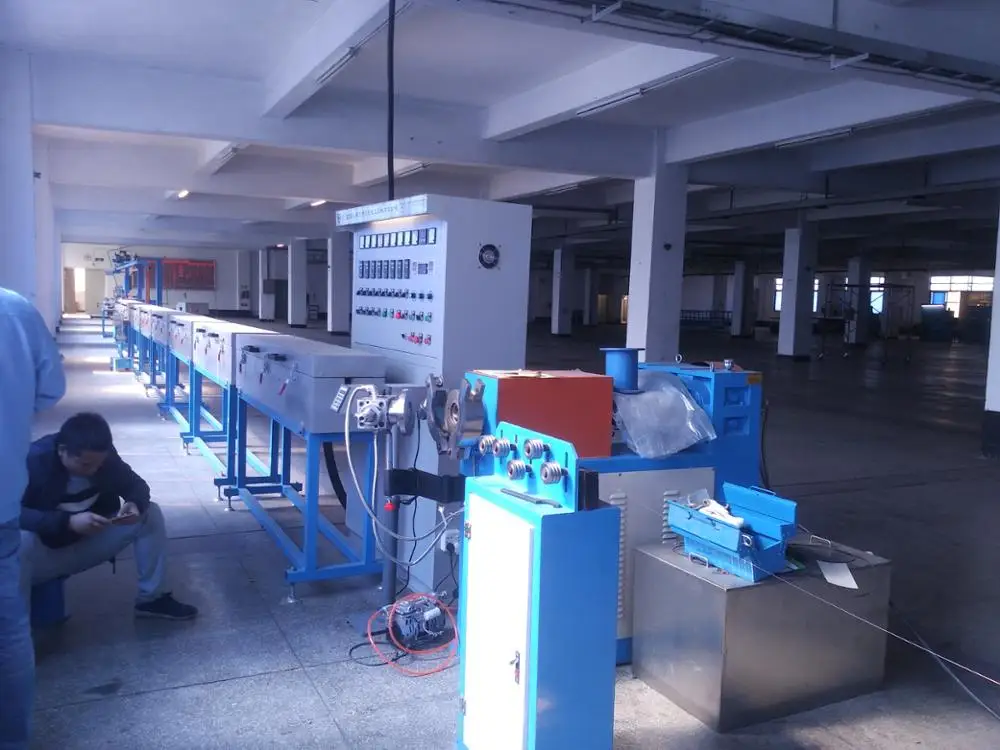

1. Complete set of equipment plans picture

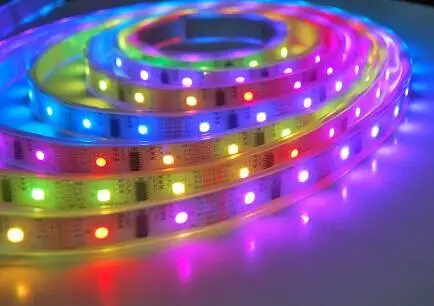

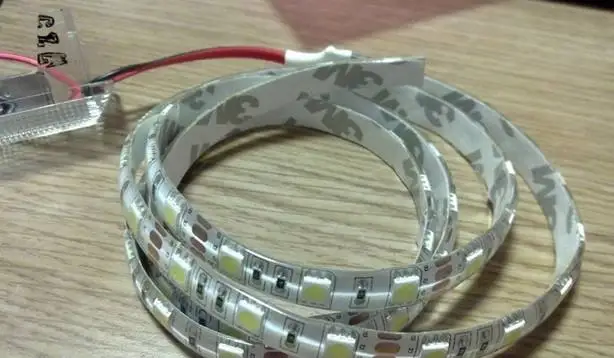

2. Product sample picture
3. Partial supporting facilities
Pay-off reel and take-up reel
,
Packaging & Shipping
- Packaging Details:
- Wooden case.
- Delivery Detail:
- Shipped within 30 days after full payment.
Company Information
Dinglong Electrical Machinery Co., Ltd. is a high-tech manufacturer specialized in designing and manufacturing electrical machinery with ISO9001 certificates.
Our products include:
1. Silicone strip equipment series.
2. 3D printer filament extruder machines.
3. LED strip equipment series.
4. Rubber processing machines.
Since our company was founded, over the past 10 yeas, our products have been extensively imported from Africa, Southeast Asia, Latin America, Europe and other markets.
Company certificate and honor
FAQ1
Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production.
It takes more than 30 business days to customize complex mechanical equipment.
Q2: What is terms of payment? MOQ?
A2: T/T, L/C. 1 set.
Q3: How do you gurantee the machine stable operating?
A3: We do pre-shipment test for every single set of machine.
We have seperate QC, delivery, sales and after-sales departments.
Also strict management process from pre-sales to after-sales.
Q4: What is your after-sales service?
A4: 1 year warranty with 60+ oversea after-service engineers (oversea after-service team of high efficient, professional and enough experience for various non-standard project) .
Q5: How can I install my machine when it arrives?
A5: For simple and semi auto machine, Dinglong would send manual instruction and teaching video.
For complex operation , we will send the engineers overseas to help client installing, operating
and training.
