Pe film extruder screw and barrel

Product Overview

Description

38CrMoAlA Plastic HDPE /LDPE/LLDPE Film Blowing Machine Screw And Barrel:



Technical Parameters:



Diameter: Ø40-Ø300

L/D ratio:28-32

Or other according to requirement, we are rich experience in producing and designing!



Product	single screw and barrel for extruder
Material	38 CrMoAlA(JIS SACM645);
Nitrided Hardness	HV900°~1000°
Hardness after hardening and tempering	HB260 °
Nitrided Depth	0.5~0.7mm
Nitrided Brittleness	above 2 stage
Surface Roughness	Ra0.4
Screw straightness	0.015mm
Hardess of surface chromium-plating after Nitriding	HV≥950HV
Chromium plating Depth	0.05~0.10mm
Alloy Depth	0.8~3.0mm
Alloy hardness	HRC56°~65°
Alloy(bimetallic)	iron,nickel,tungsten,molybdenum
Types of screw barrel	Gradual type,mutant type,wave type,barrier type,double screen type,shunt type,separation type,exhaust type,pin type,mixed type,double-head type,three-head type,multi head type etc.

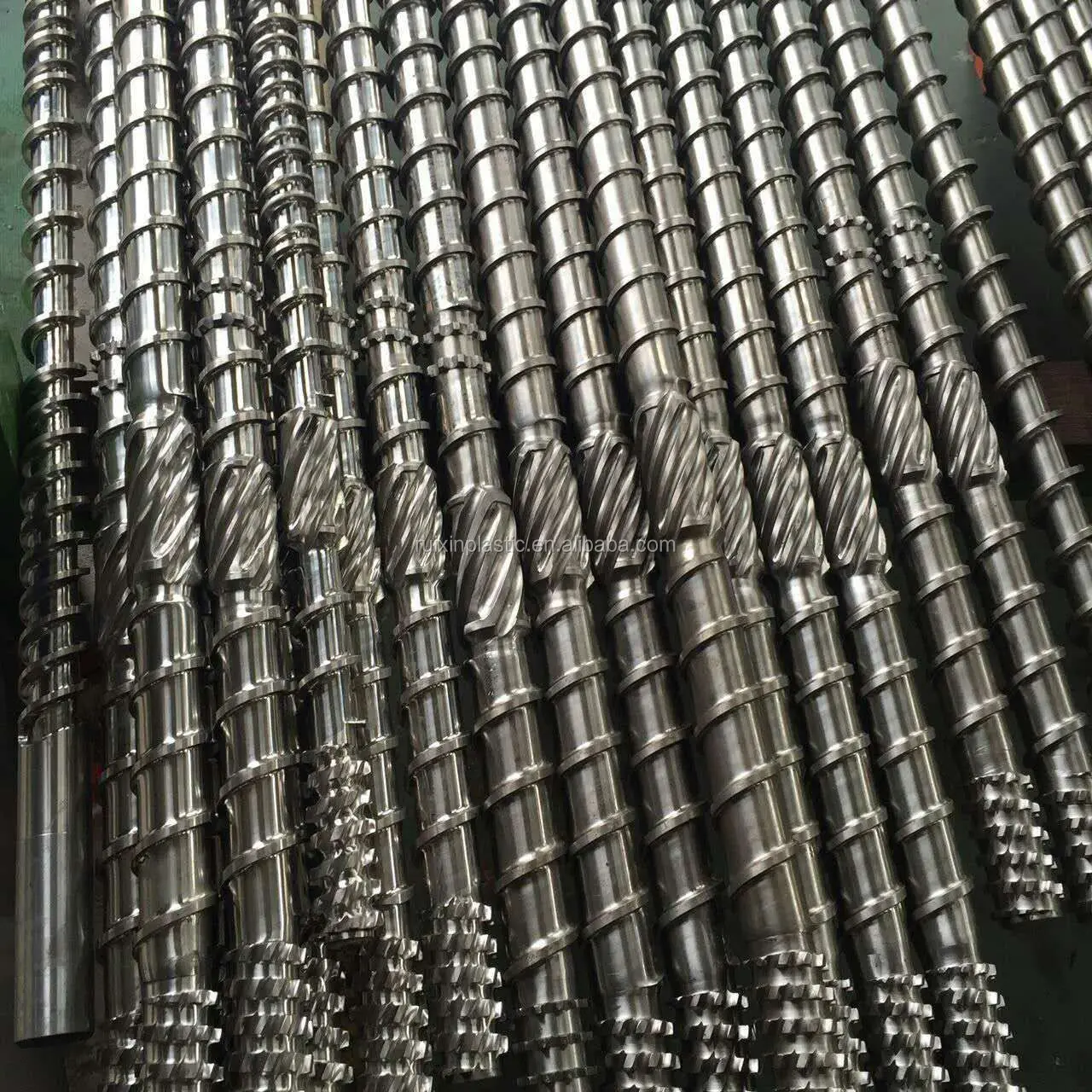

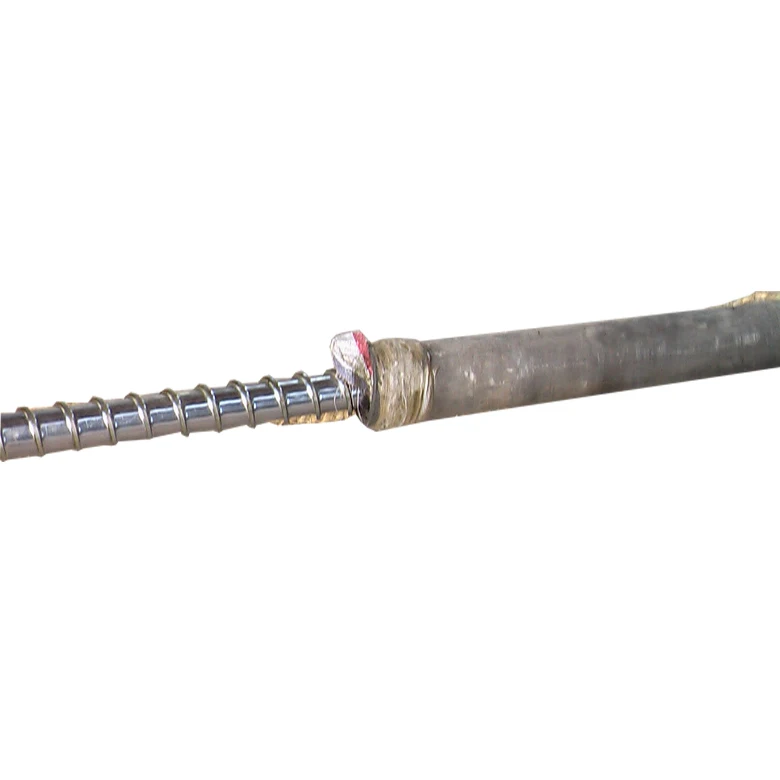

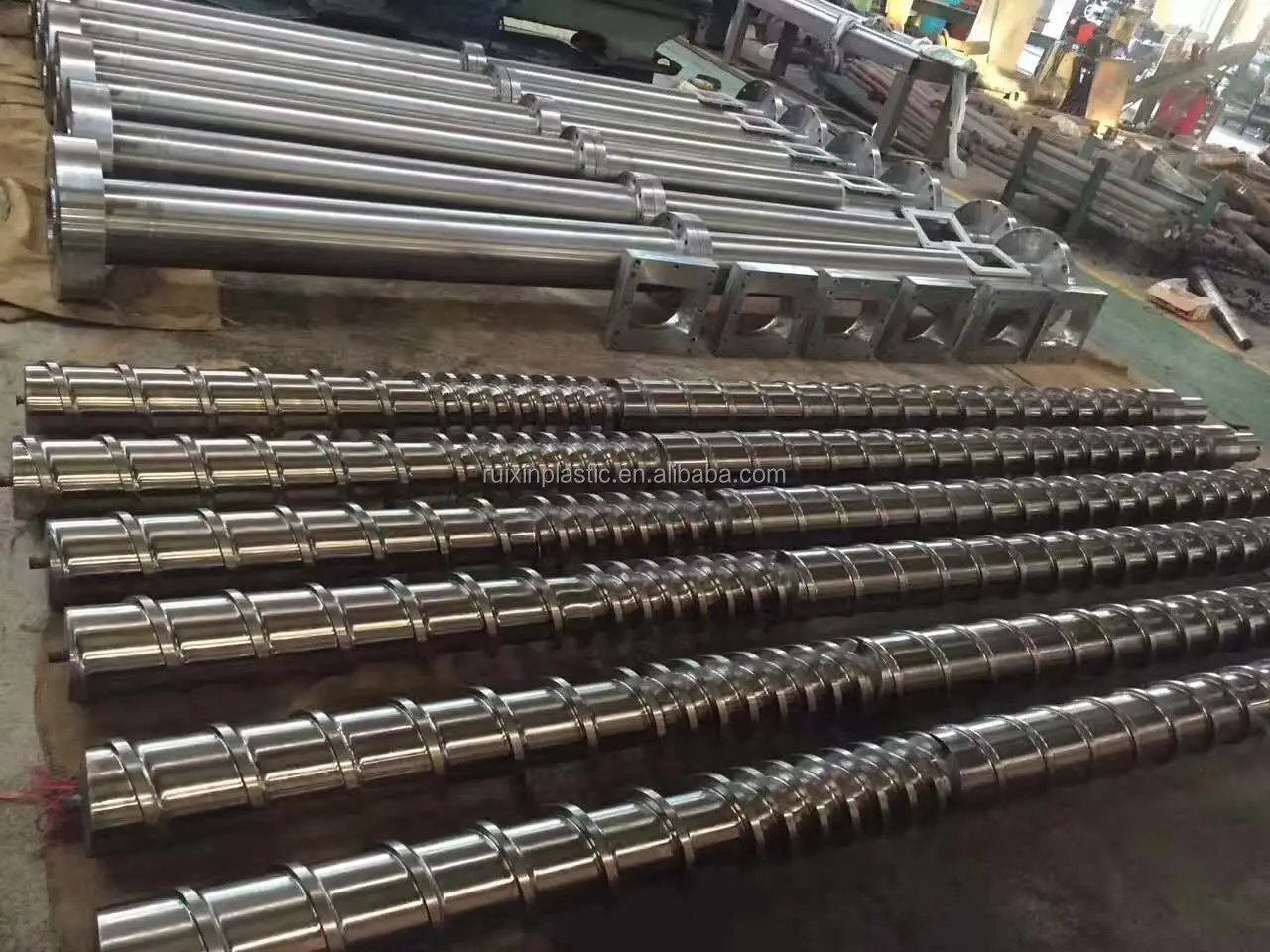

Film Blowing Machine Screw And Barrel Detail Image :



















For good plasticizing effect,we have different designs of screw and barrel for extruder or injection to meet customer's demand.Our factory manufactures with high-quality material, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness.



















Application Machine :



It Can Sue For PE Plastic Film Blowing Machine / Film Extruder Machine

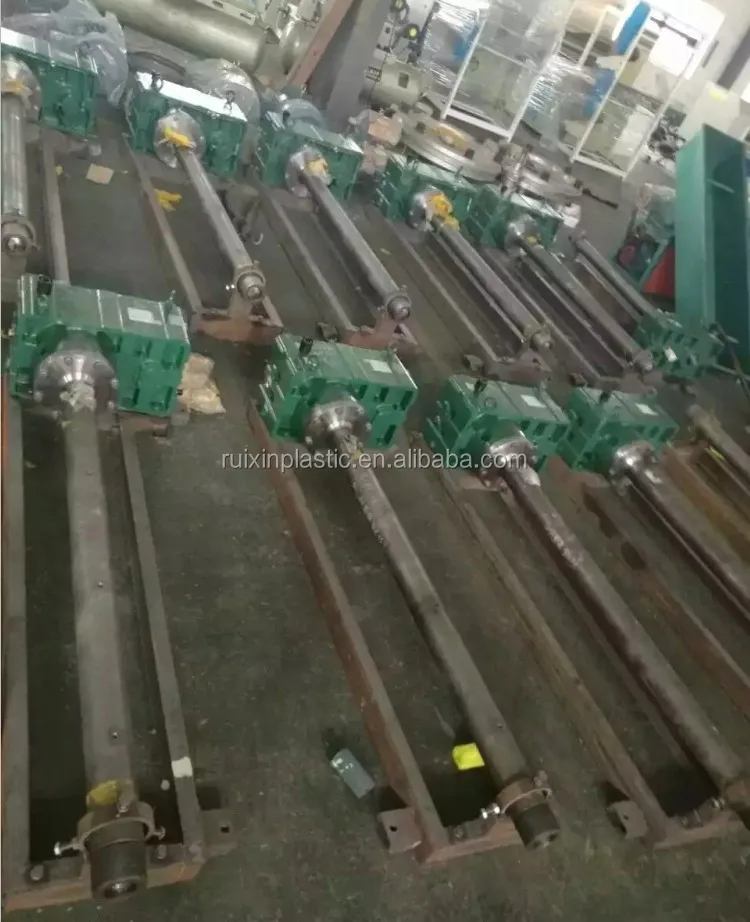

Extruder Unit :

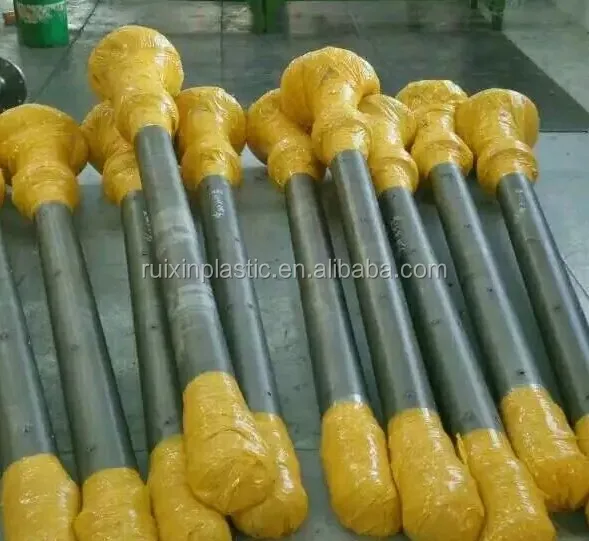

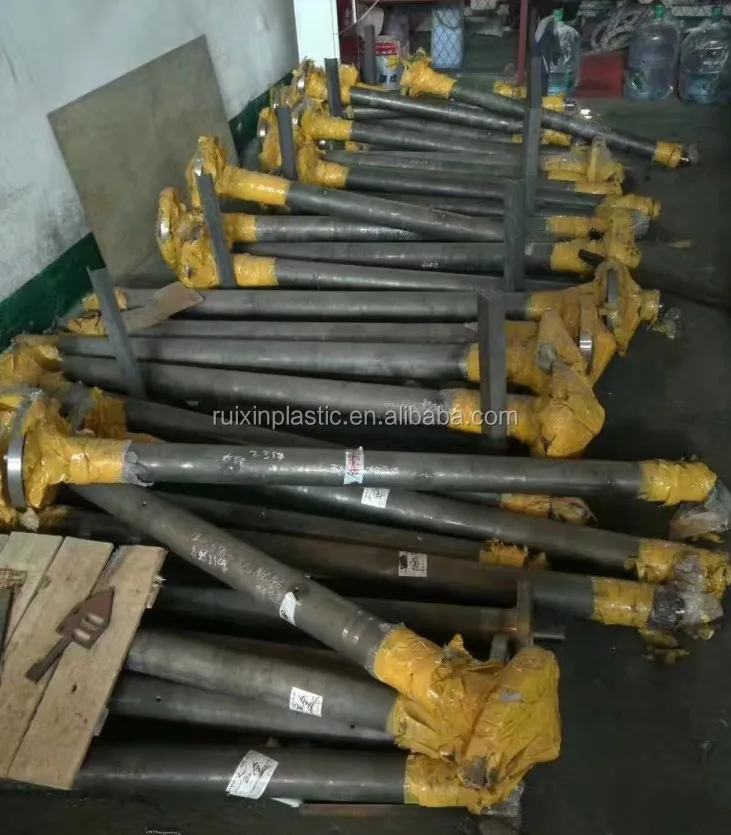

Shipping & Delieve :
