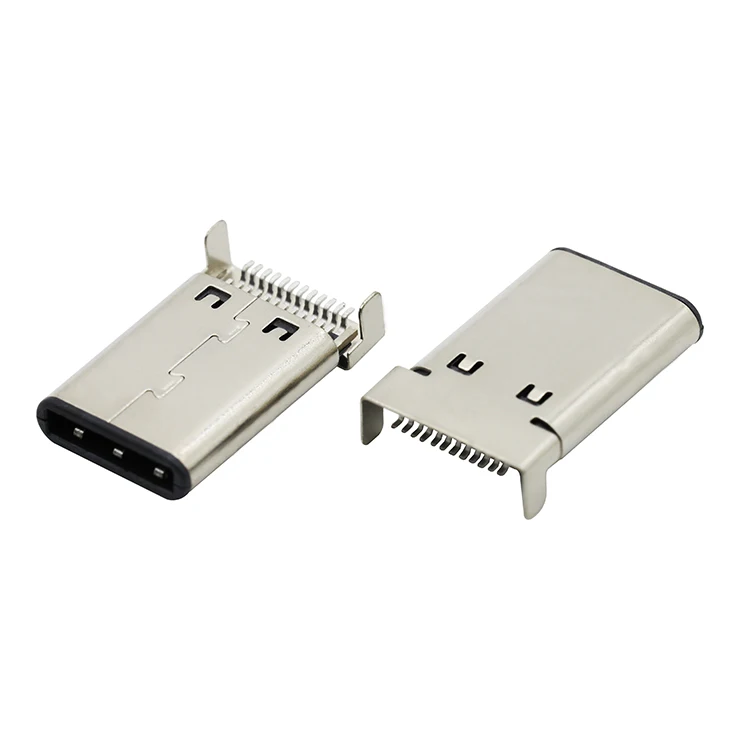

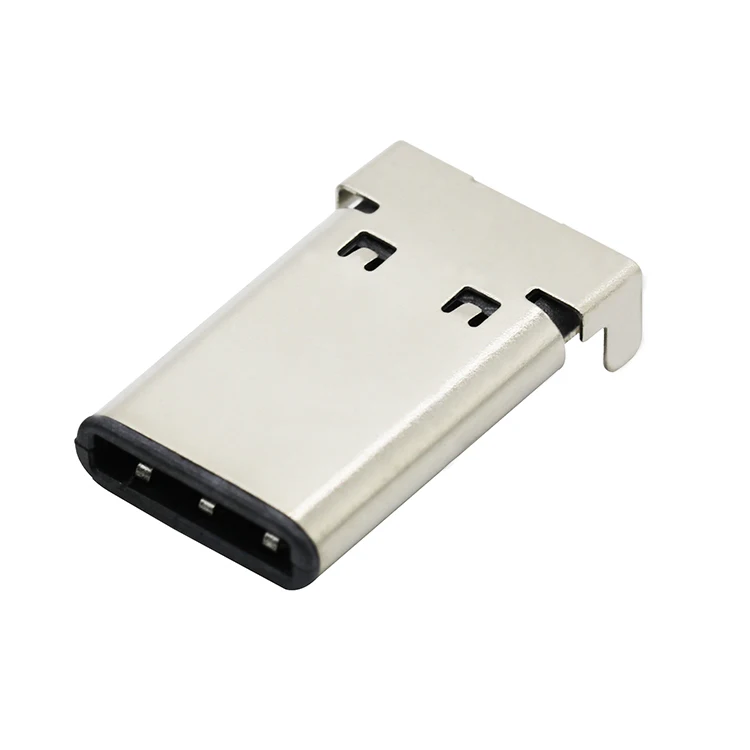

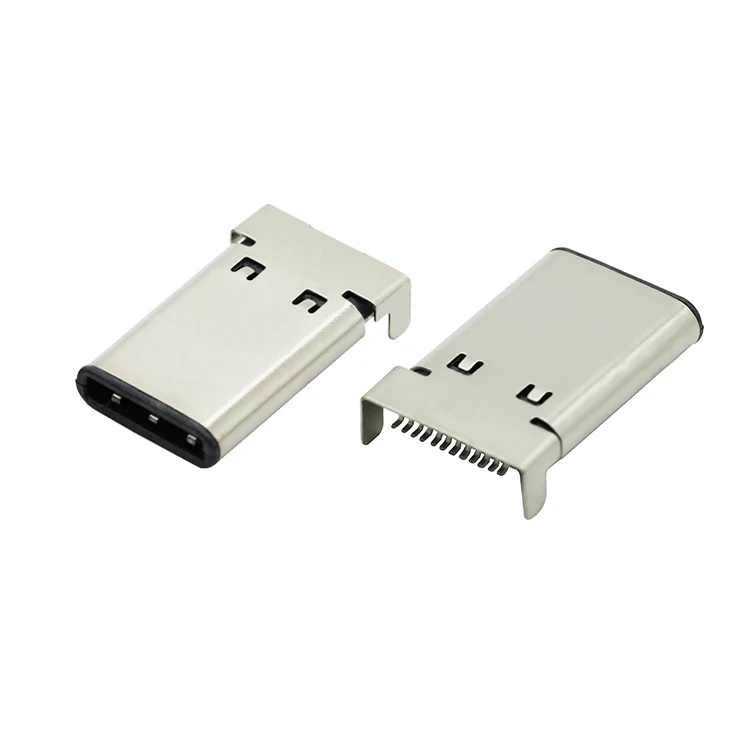

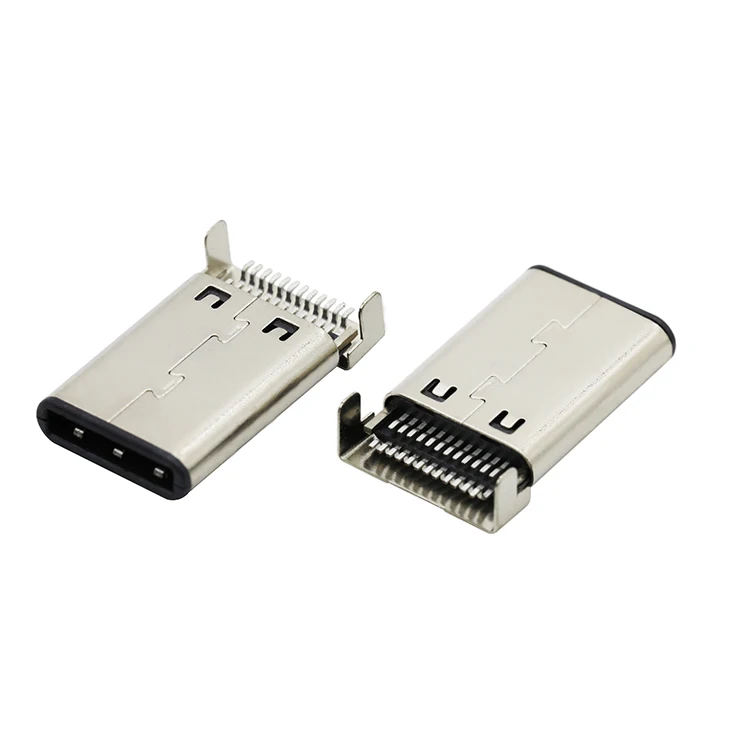

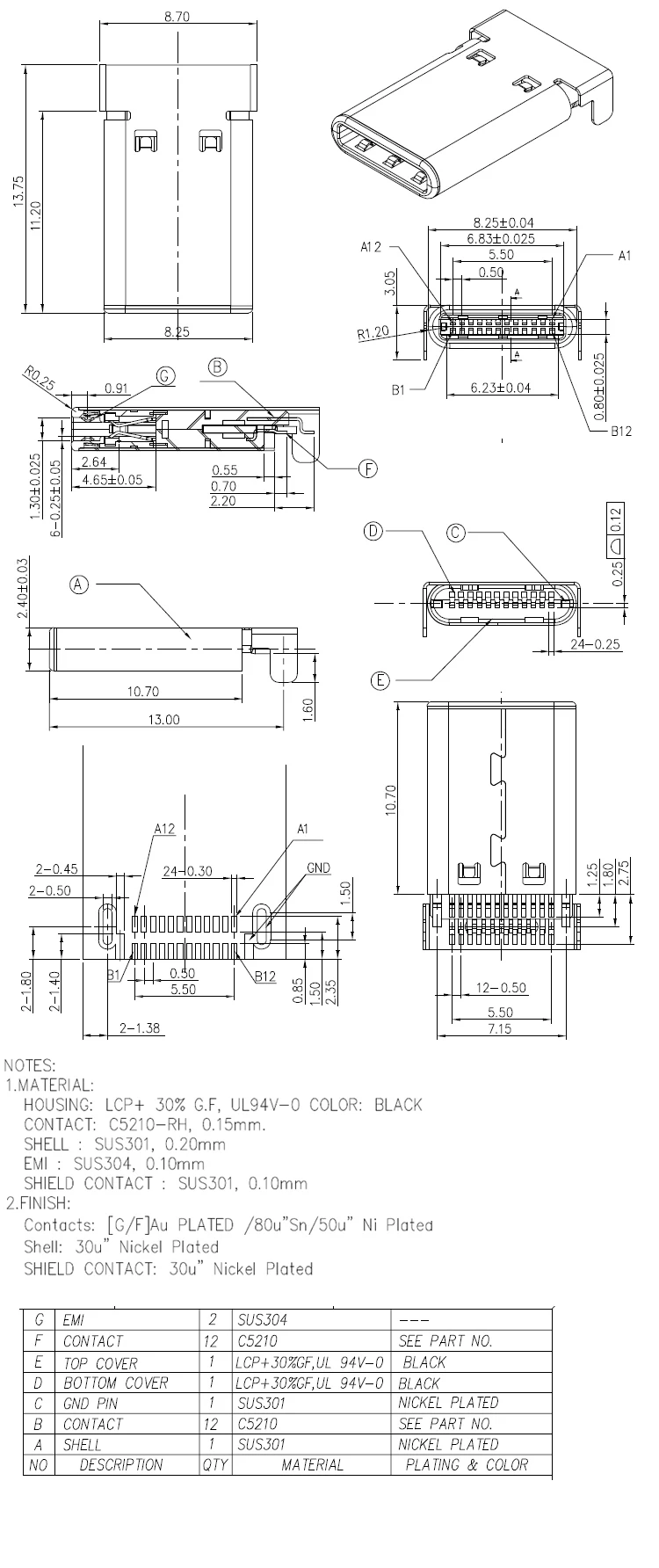

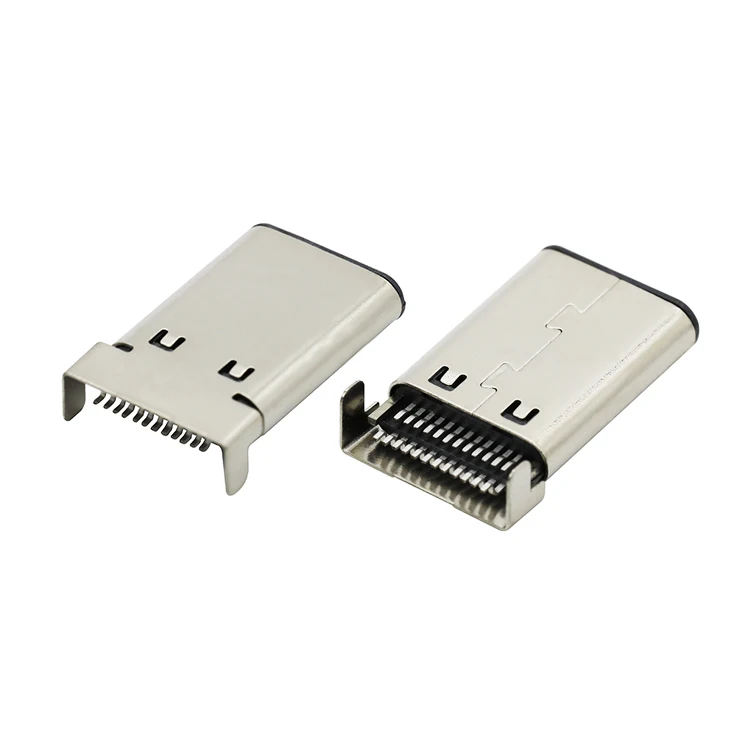

PCB Mount 24Pin USB 3.1 Type C Male DIP Jack Socket Charging Port Connector
- Category: Connector >>>
- Supplier: Dongguan Bsc Electronics Technology Co. Ltd.Dongguan Ltd.
Share on (60828819356):
Product Overview
Description
Quick Details
| VOLTAGE: | 100 VAC |
| Place of Origin: | Guangdong China |
| INSULATOR: | LCP |
| CURRENT RATING: | 3A MAX |
| Gender: | Male |
| Model Number: | U06-CMXX5R-001 |
| Brand Name: | Bestcreate |
| DURABILITY: | 10,000 CYCLES |
| Type: | usb |
| LNSERTION FORCE: | 5N~20N |
| TEMPERATURE RANGE: | -30 °C ~ 85 °C |
| PIN: | 24P |
| Pins: | 24 |
| UNMATING FORCE: | 8N~20N |
| Application: | PCB |
| INSULATION RESISTANCE: | 100 MEGOHMS MIN. |
| CONTACT RESISTANCE: | 40 MILLIONHM MAX |
| Packaging Detail: | Tape & reel package,then to a carton PCB Mount 24Pin USB 3.1 Type C Male DIP Jack Socket Charging Port Connector |
| Selling Units: | Multiple of 1,000 |
| Package size per batch: | 37X37X5 cm |
| Gross weight per batch: | 2.0 KG |
| Package Preview: | https://sc03.alicdn.com/kf/H97b21f6ab6904b19896e8f98732ec566a.jpg_640x640.jpg,https://sc03.alicdn.com/kf/H6d32e94a45a4460c931fd9e38c90b570t.jpg_640x640.jpg |
