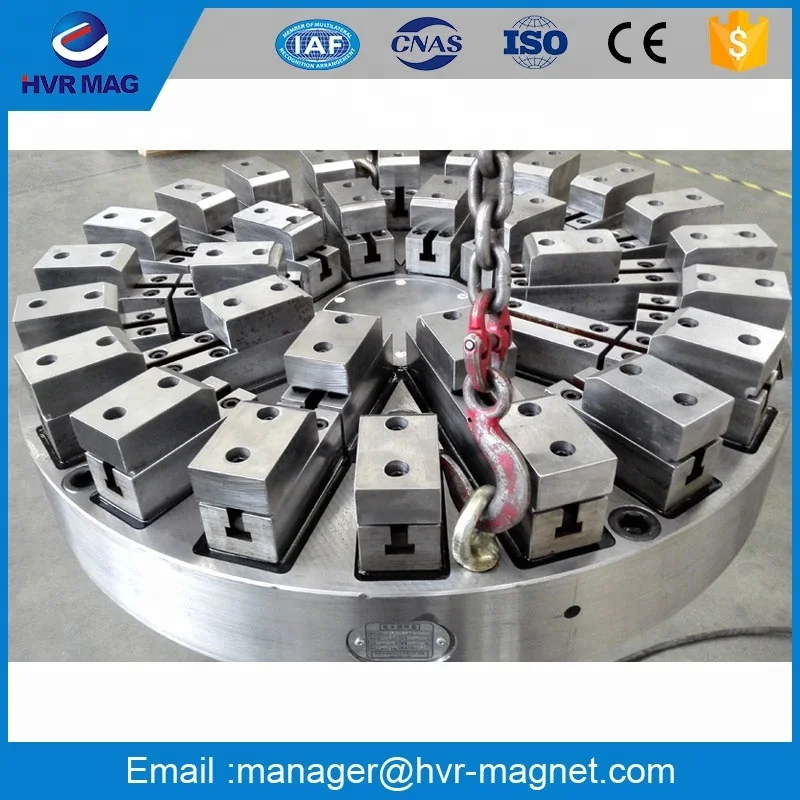

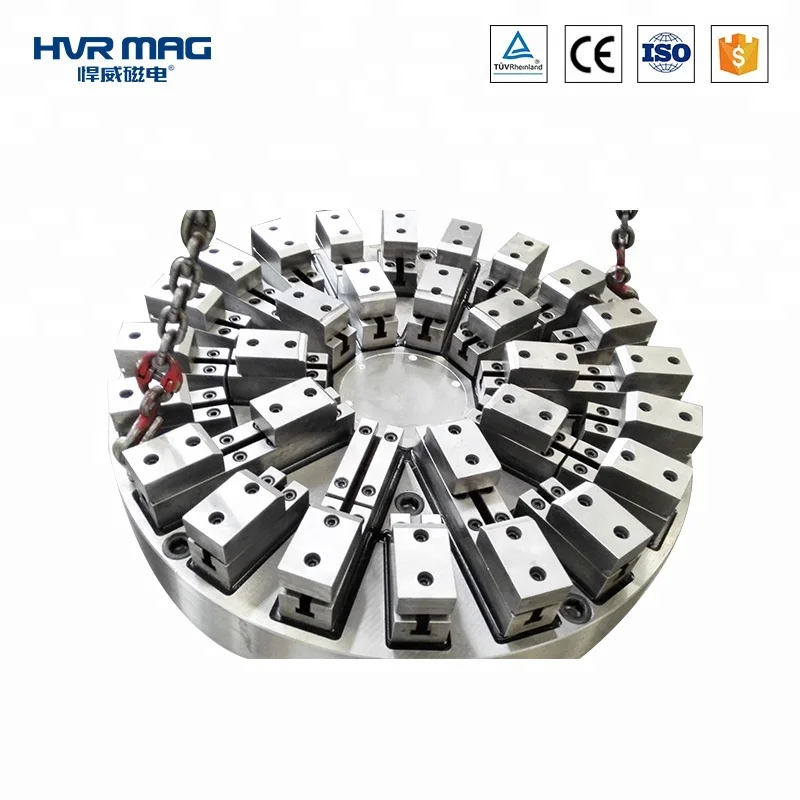

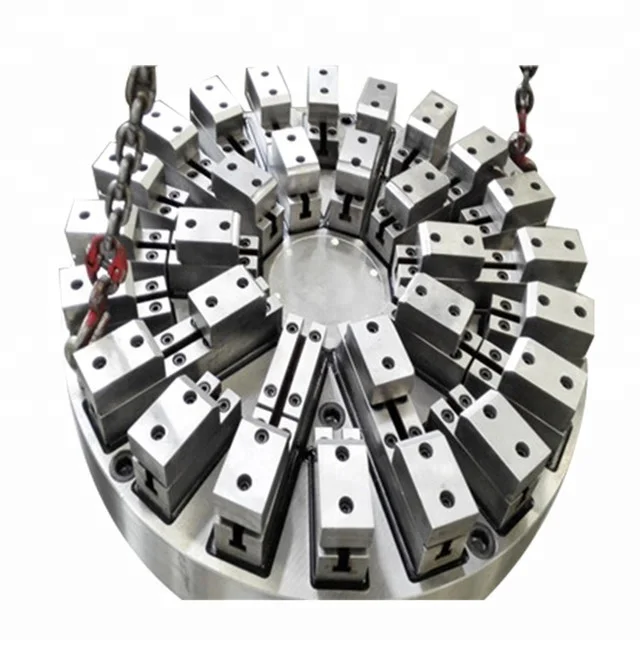

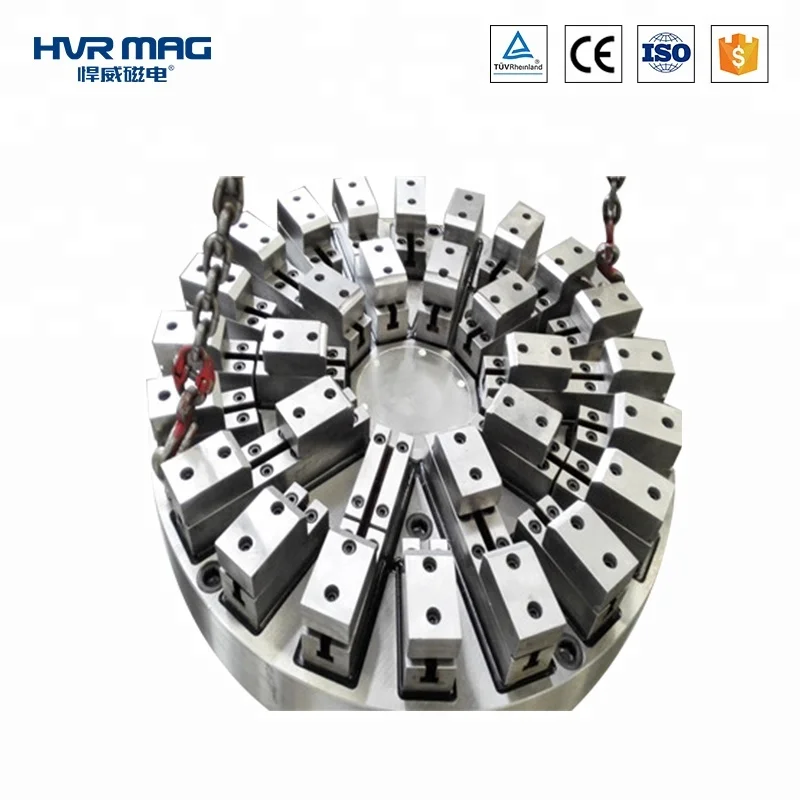

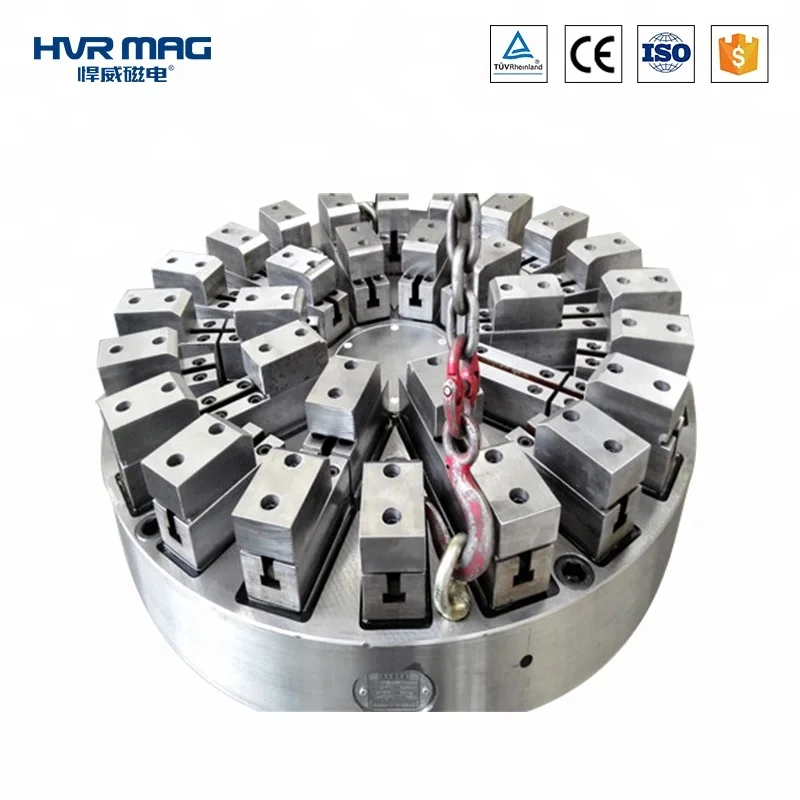

Round Shape Vertical lathe machine Electro permanent magnetic chuck
- Category: >>>
- Supplier: Zhuzhou HVR Magnetics Co. Ltd.
Share on (60828834680):
Product Overview
Description
Round Shape Vertical lathe machine Electro permanent magnetic chuck

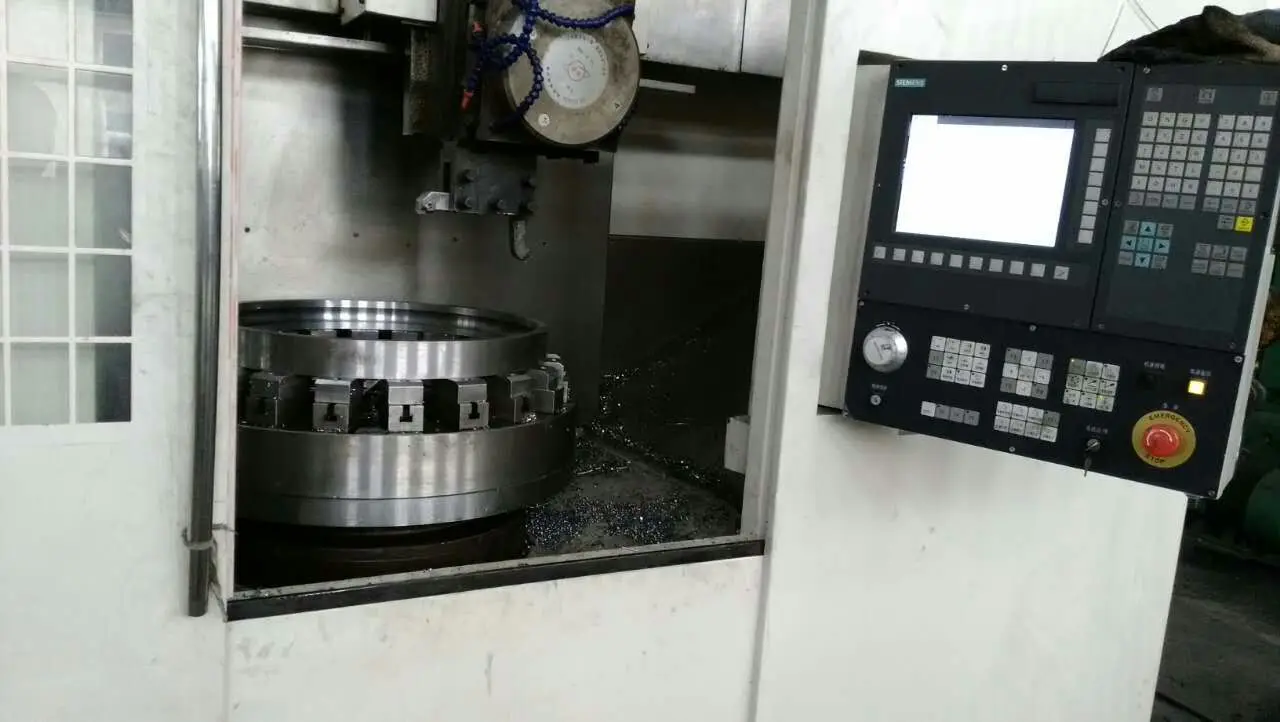

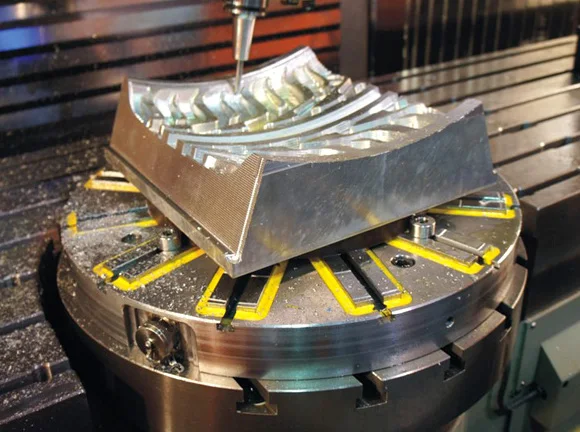

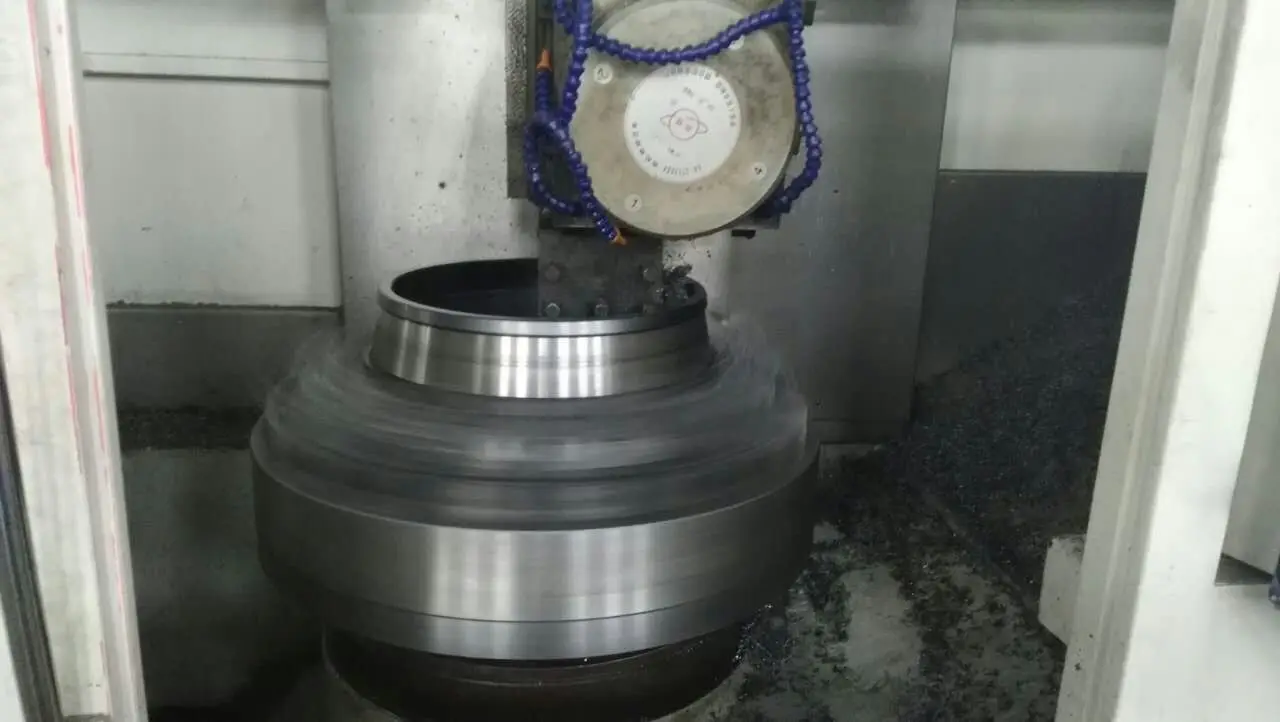

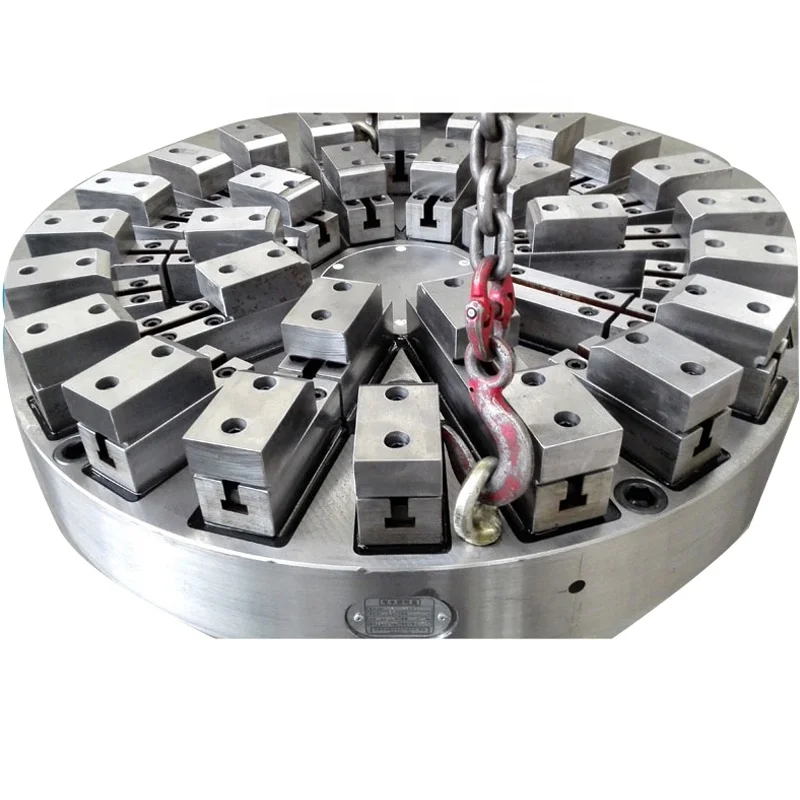

Details Images
Product features
1. Magnetic powerful, high machining accuracy. Maximum suction table 13-18kg/cm ², is an ordinary magnetic suction cup 2 times, to ensure that the workpiece clamping firm plan move does not appear strained, due process does not require electricity, so there is no heat distortion of the phenomenon of products, effective ensure accuracy.
2. Safe, strong, energy saving, environmental protection. Magnetic sucker in the work process does not require electricity, rely on suction for holding permanent jobs, to avoid the electromagnetic system and the cord is damaged in a sudden power loss arising from the magnetic piece off the danger. Because only in the charging electric permanent magnetic chuck and the degaussing process energy used within 1-2 seconds, the work did not use any energy and produce safe, strong, efficient power, both economic, and environmental protection.
3. Instant current controls magnetization and demagnetization without affecting the workpiece and machining. Electrical power in an instant after sucker magnet permanent magnet can be sucked into prison to locate the workpiece processing, reverse current is applied, you can remove the workpiece demagnetization, security, energy saving, easy to operate, no temperature variations, high machining accuracy. The product is equipped with power supply unit for charging and demagnetization.
3. Instant current controls magnetization and demagnetization without affecting the workpiece and machining. Electrical power in an instant after sucker magnet permanent magnet can be sucked into prison to locate the workpiece processing, reverse current is applied, you can remove the workpiece demagnetization, security, energy saving, easy to operate, no temperature variations, high machining accuracy. The product is equipped with power supply unit for charging and demagnetization.
Product Paramenters
Type&Data | Magnetic pole number | Total magnetic force(≤KN) | Overall dimension(mm) | Weight(kg) | ||||
D | d | H | ||||||
DYCC3-500 | 12 | 70 | 500 | 60 | 70 | 95 | ||
DYCC3-600 | 12 | 100 | 600 | 60 | 70 | 135 | ||
DYCC3-800 | 16 | 160 | 800 | 150 | 80 | 290 | ||
DYCC3-1000 | 16 | 200 | 1010 | 200 | 80 | 460 | ||
DYCC3-1300 | 24 | 360 | 1260 | 300 | 90 | 680 | ||
DYCC3-1500 | 24 | 480 | 1520 | 500 | 100 | 1240 | ||
DYCC3-1600 | 40 | 600 | 1620 | 800 | 125 | 1560 | ||
DYCC3-1800 | 40 | 800 | 1820 | 800 | 125 | 2050 | ||

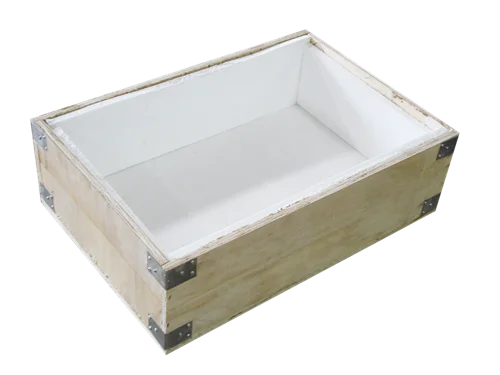

Packing&Shipping
After Sales Service
Why Choose Us
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
FAQ
Q: HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best clamping solution for fixed workpiece based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best clamping solution for fixed workpiece based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
