Abrasion resistance stretch resistance conveyor belt

Share on (60828916714):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Product Name
\t

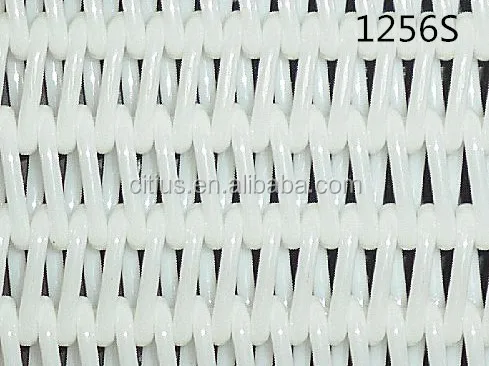

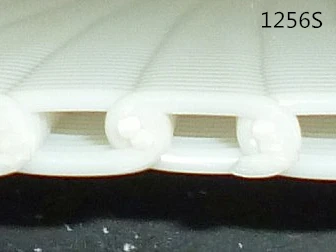

Abrasion resistance stretch resistance belt conveyor   1256S
\t
Color
\t
white, customized other color
\t
Diameter of Warp Yarns (mm) / Material
\t
1.5/PET
\t

Diameter of Weft Yarns

(mm) / Material

\t
1.0 5*2/PET
\t

Air Permeability at 127 Pa

\t

4600~4850 L/m2.S

905~955 CFM

\t
Air Permeability at 200 Pa
\t

5900~6150 L/m2.S

\t
Thickness
\t
4.9 mm
\t
Tensile strengths
\t
1340 N/cm
\t
Elongation rate (500kg/m)
\t
0.42%
\t
Weight
\t
2765 g/m2
\t
Using range/ application
\t
It is matched with belt conveyor and has the advantages of abrasion resistance and stretch resistance.

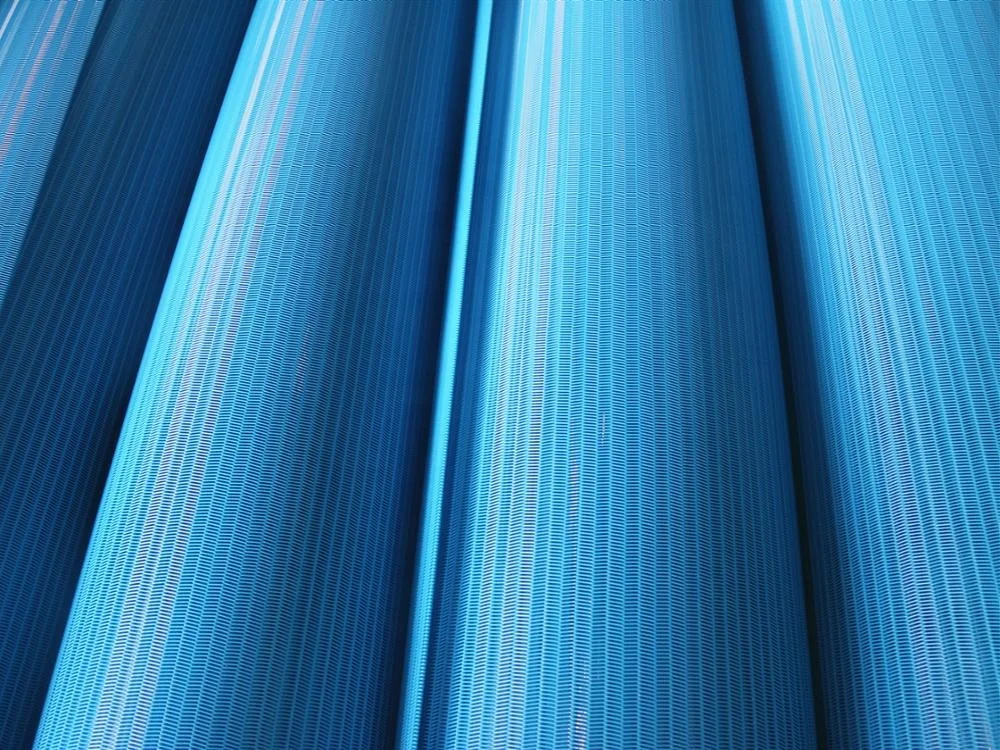

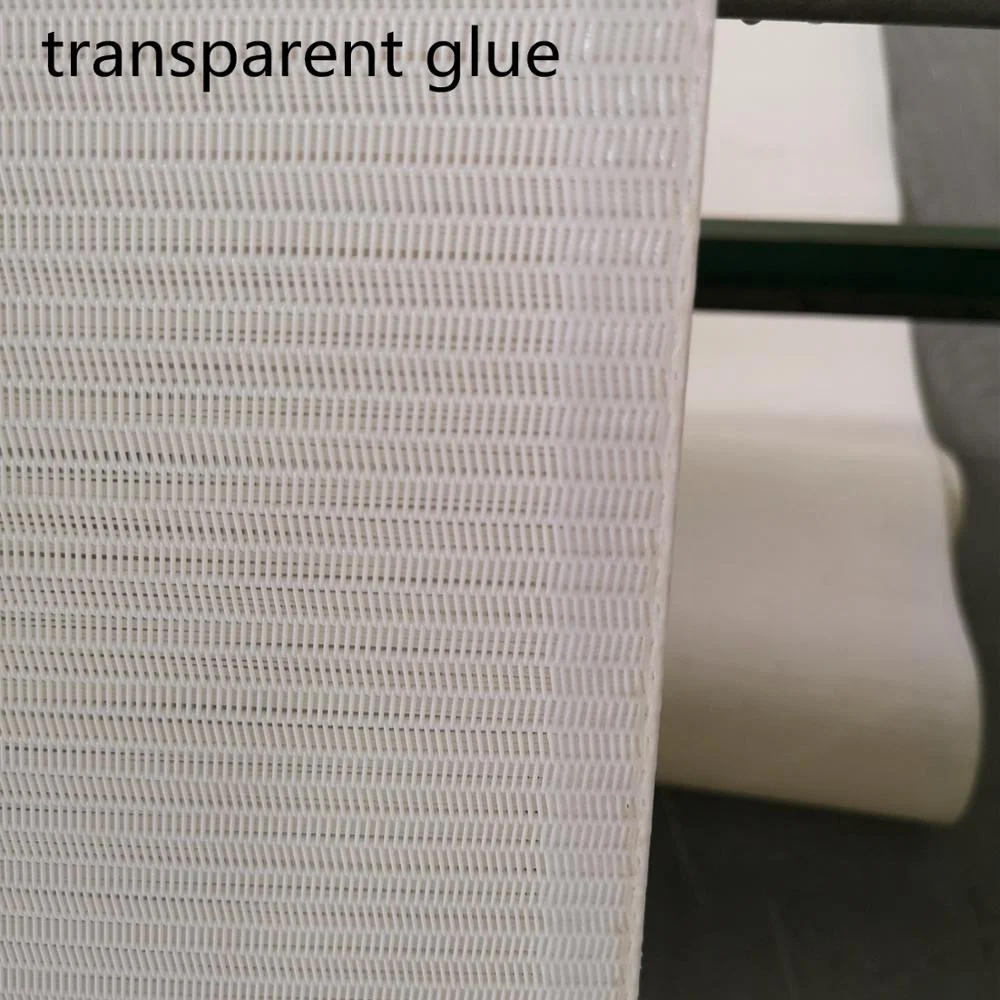

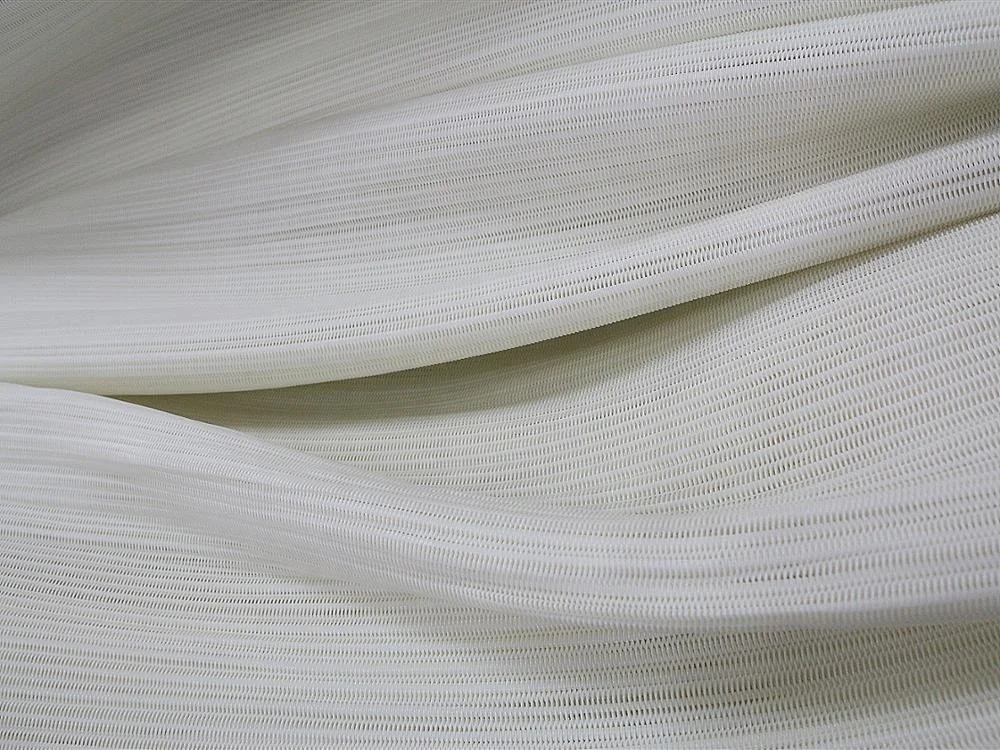

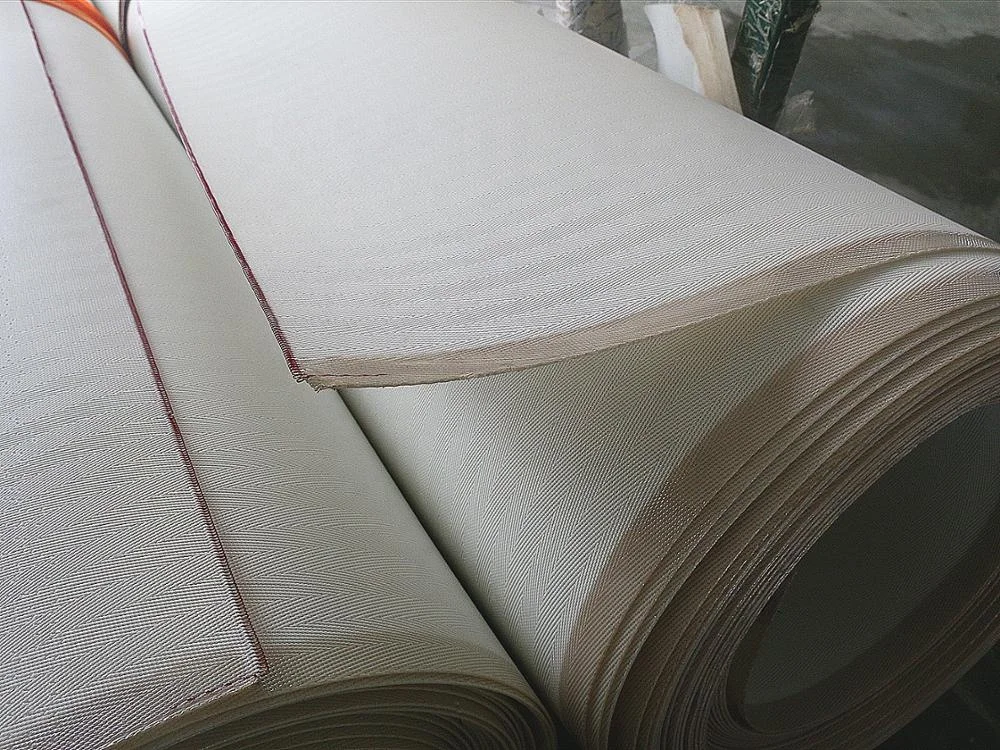

ProductsShow
Our Service

Our technilogy department can do the test according to your data or samples to give you the best suggestion or design the most suitable belt for you.

Our Company

Company information.


1.\tXiamen Citius Environment Technologies Co., Ltd specializes in the engineering, design, and manufacturing of industrial  filter fabrics. We have a professional technical team and specialized laboratory to customize products for clients.

2.\tCitius products have been divided into four applications: Sludge dewatering, Vacuum filter, Paper-making, and Refined.  The products are widely applied in dewatering equipment including belt presses, horizontal, vacuum belt presse, paper  machines, plate and frame filter presses, disc filters, drum filters, and continuous filter presses.



Citius makes many different industry specific fabrics and filters. All fabrics are woven with monofilament wire or a combination of monofilament and multifilament wires from virgin high viscosity PET, PP, PA, PPS chips. After heat-setting or calendaring the fabric has the following advantages:



1. Shape stability: The fabrics will maintain their shape under proper temperature and tensile strength settings.

2. Chemical stability: Citius fabrics are acid proof, alkali proof, and anti-corrosive. They also are able to withstand high        temperatures.

3. Long life-span: Citius fabrics are anti-abrasive and have a strong tensile strength.

4. Can meet different filtration requirement (2-100um).

5. Strips easily.

6. Strong seam strength: Citius fabrics combine high quality materials and advanced manufacturing procedures to increase the life of their products.


Our products are also exported to Australia, America, South Africa, Brazil, Europe, southeast Asia and other countries and regions, and have been successfully applied to the filtration equipment of dwt-engineering LTD of Finland, DELKOR of the UK, BELLMER of Germany, etc., which has been highly praised by users.

company


certificate


Packing & Delivery

Packing Details : Wooden packing, ordinary packing with waste fabric or leader cloth around the whole roll.
Delivery Details : 20 days
