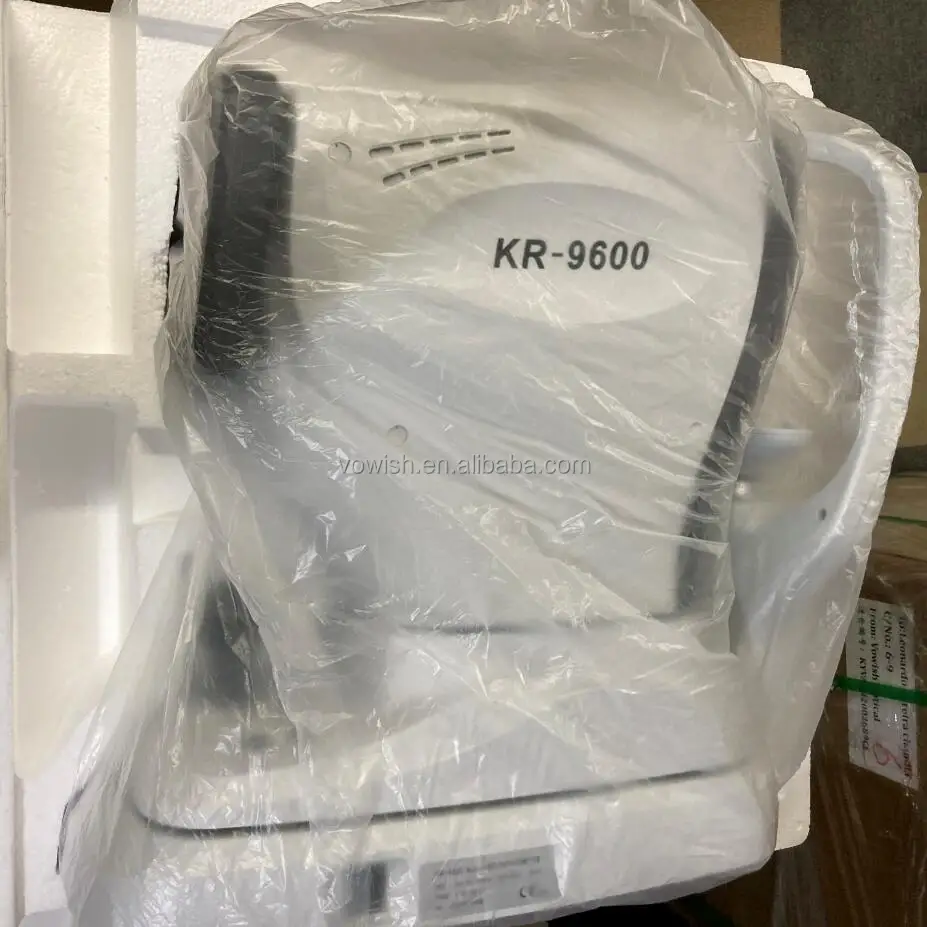

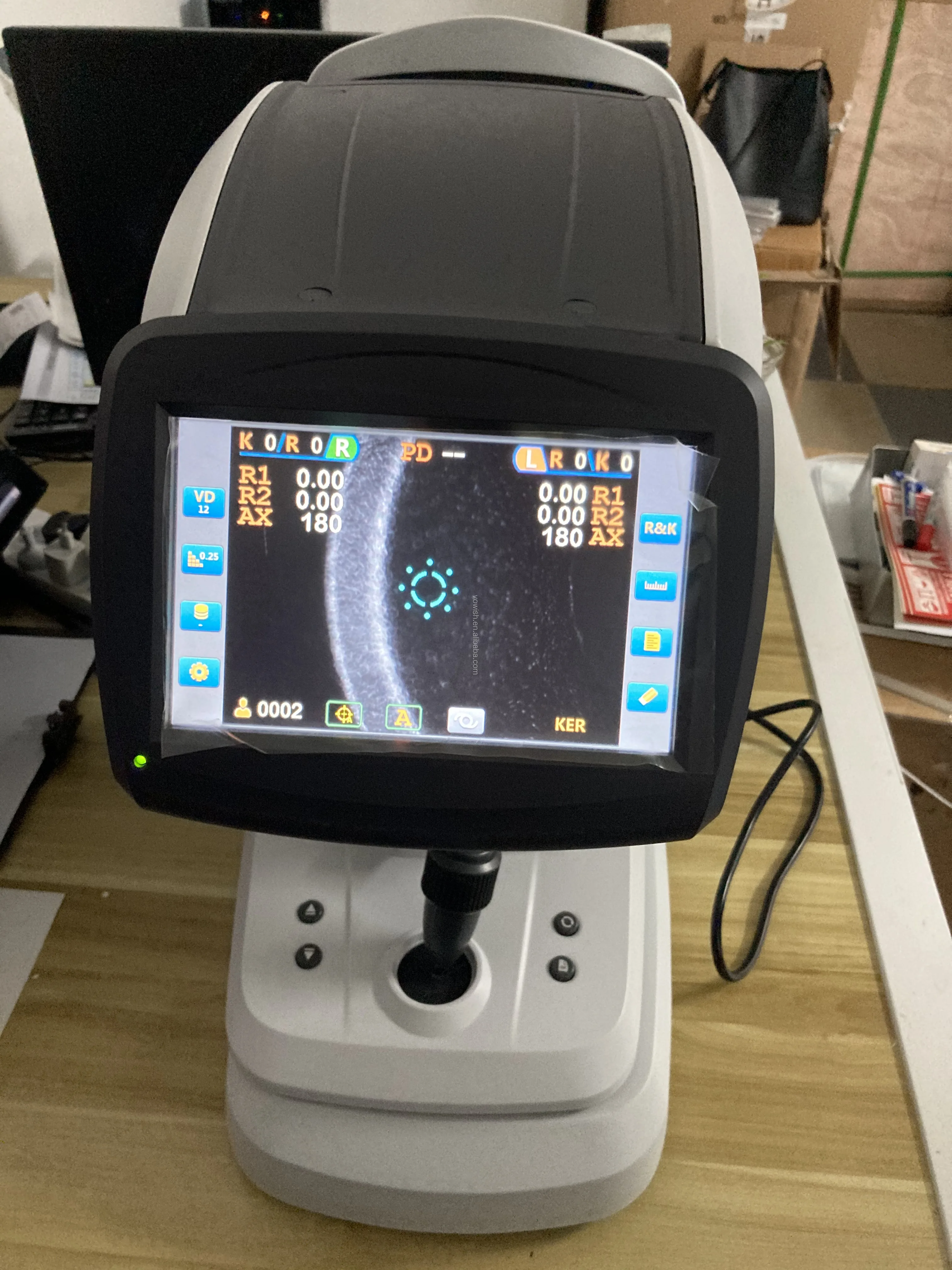

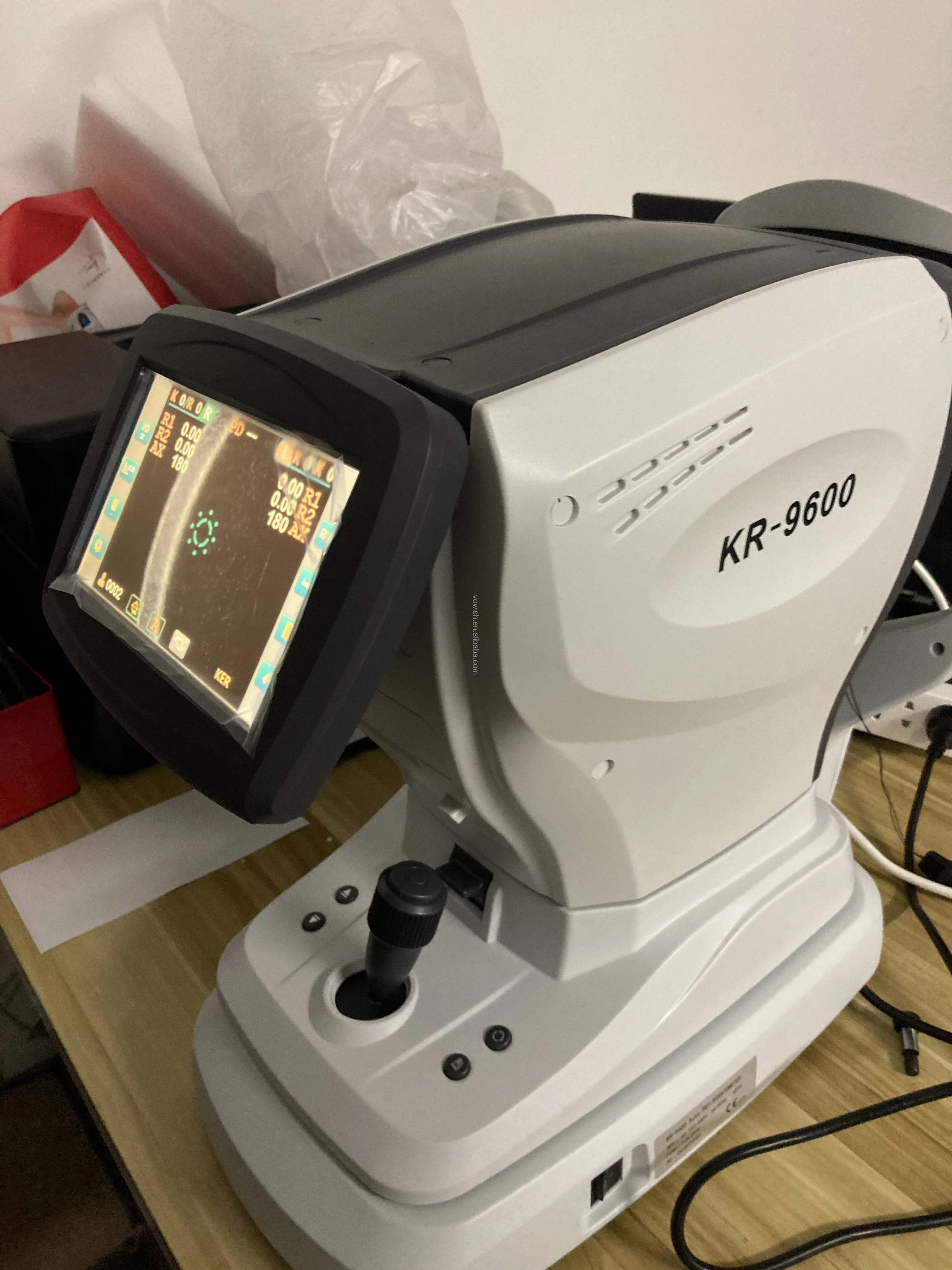

china optometry equipment KR 9600 korea auto ref/keratometer

Features:

1. Fashion and compact design.

2. Adopt the ARM Cortex-A8 processor provides faster measurement.

3. Advanced refraction measurement technology, image analysis more entirely,

             enable the reliable measurement result and optimize date consistency.

4. Automatic identification the best measurement position for keratometry,

             avoid the operating error and enable the accurate Keratometry measurement.

5. IOL function available.

Measurement mode

K/R

Refraction/ Keratometry measurement

REF

Refraction measurement

KER

Keratometry measurement

Refraction measurement

Vertex Distance

0.0, 12.0, 13.75, 15.0mm

Sphere

-25.00~+22.00DD(0.12/ 0.25D step)(VD=12mm)

Cylinder

0.00~±10.00D(0.12/0.25 step)

Axis

0~180°(1°step)

Pupil Distance

10~85mm

Minimum measurable pupil diameter

2.0mm

Target

Automatic fogging target

Keratometry Measurement

(KR-9600)

Curvature radius

5~10mm(0.01mm step)

Refractive power

33.75D~67.50D(0.12/0.25D step)

Cylindrical power

0.00~15.00D(0.12/0.25 step)

Axis

0~180°(1°step)

Corneal diameter

2.0~12.00mm

Hardware specification

Monitor

7.0 inch Color LCD

Printer

Thermal printer with easy loading and auto cutter

Power saving

5/15 minutes

Data output

RS232/Blue  tooth

Power supply

AC100~240V, 50/60 HZ,50W

Dimensions/Weight

262(W)*487(D)*467(H)mm/17.5kg
