Refrigerated Air Dryer is a air drying equipment, which works with air compressor and air filters to get the dried and purified compressed air.

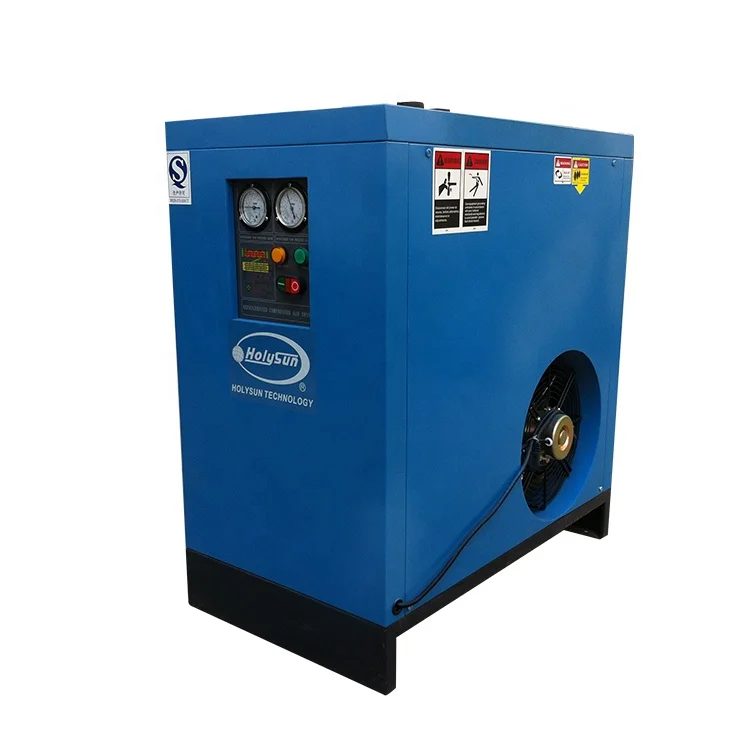

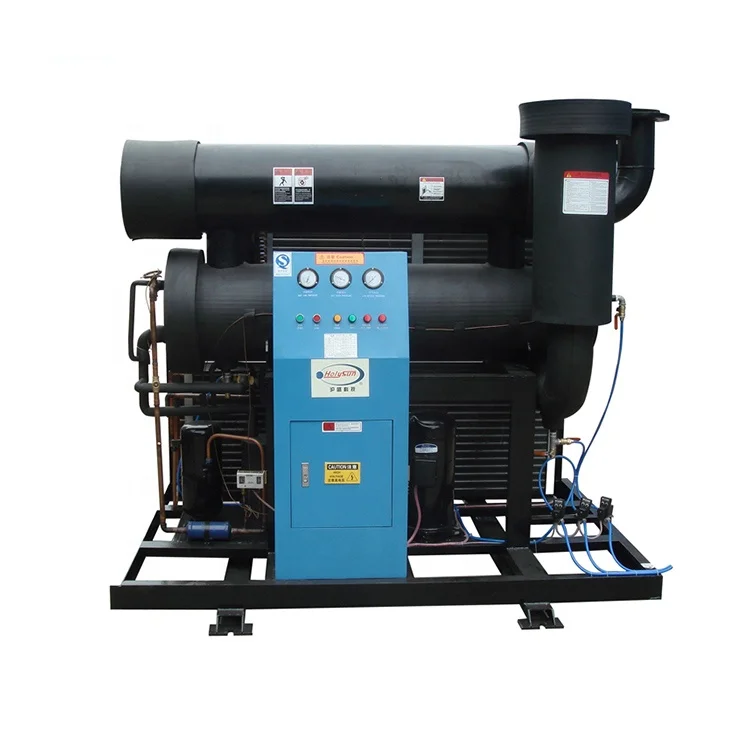

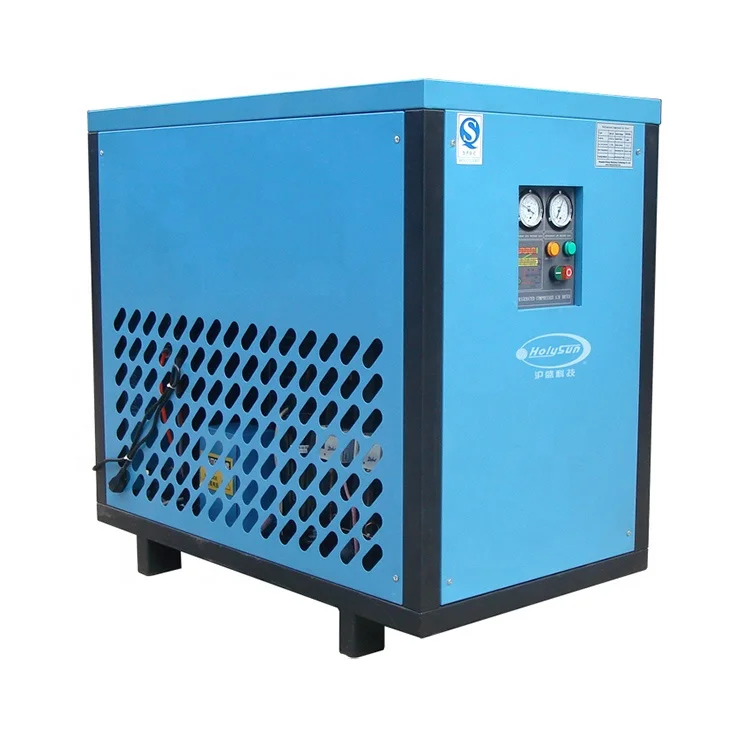

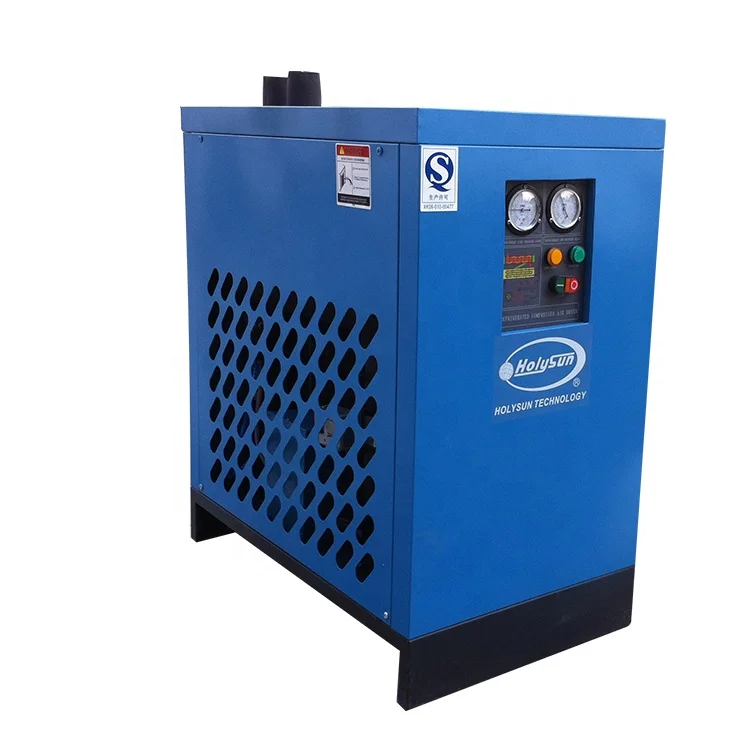

PRODUCT SHOW
INTERNAL PHOTO
HOW IT WORKS?
Refrigerated air dryer is drying through cooling. It cools the compressed air from upstream to certain dew point temperature,condensates most of liquid water with dust and oil,and then drains out of the machine through gas/liquid separator so as to get the dried finished air from its outlet.

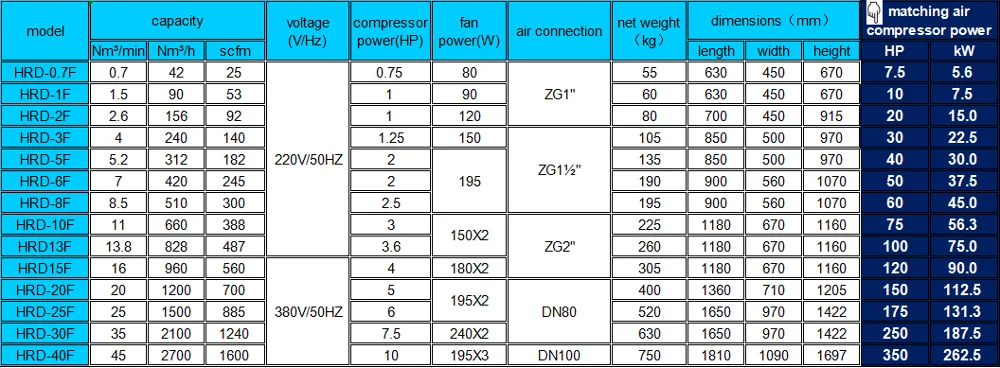

HRD SERIES TECHNIACL DATA
HOW TO CHOOSE CORRECT MODELS?
To Choose a Refrigerated Air Dryer correctly, you should consider the actual compressed air flow rate, inlet pressure, inlet temperature, ambiant temperature and the request of dew point. Therefore, Capacity=Compressor FAD÷(table-1)÷(table 2) x (table 3).
RECOMMENED CONFIGURATION AND INSTALLATION
Company Information
Packaging & Shipping
FAQ
1. What is the power supply? Can a special power supply be customized? A: The conventional power supply is 220V/60Hz, 380V/50Hz; 115V/50Hz, 220V/60Hz, 380V/60Hz can be customized, and the production cycle should be extended. Please confirm with the customer service for specific requirements!
2. What is the working pressure? A: The normal pressure is 7~10kg (0.7~1.0MPa).
3. Is it more than 10kg (1.0MPa)? Can it be customized? A: Yes, the high pressure can be customized.
4. Can the dryer be adapted to corrosive gases? A: No, the conventional dryer is suitable for non-corrosive compressed air purification.
5. What is the control method for the dryer? A: The conventional cold dryer uses several instrument controls.
6. What is the control method for the dryer? A: The conventional dryer is controlled by a microcomputer program.
7. Can the machine be made into a PLC control method? A: Yes, our strong design team can tailor the solution for specific project requirements, and PLC can also be compiled according to actual requirements.
8. What kind of refrigerant is your cold dryer? A: We use invironmental friendly refrigerant of R-407C, R-134a etc.
9. Do you have a discount on your price? A: We have favorable price for dealer, if you're in the compressed air market, we can talk to get a discount base on the qty.
10. Why are your prices more expensive than others? A: We promise to use the new compressor, the Dutch Joke electric row, the high quality copper tube, we guarantee the source of each accessory, to ensure that every production process has passed 100% inspection.100% of the finished machine has passed 3 inspections to ensure that our machine runs stably. So the price is slightly higher!
11. What qualification certificates do you have? A: HOLYSUN has a production license, CE, ISO, China Top Ten Famous Brands and various patent certificates.
12. What is your market distribution? A: 60% in China and 40% in exports.
