customized 220~240v water pump controller board design and PCBA manufacturing
- Category: >>>
- Supplier: Shenzhen DYC Electronic Technology Co. Ltd. [Guangdong China]Shenzhen
Share on (60829022668):
Product Overview
Description

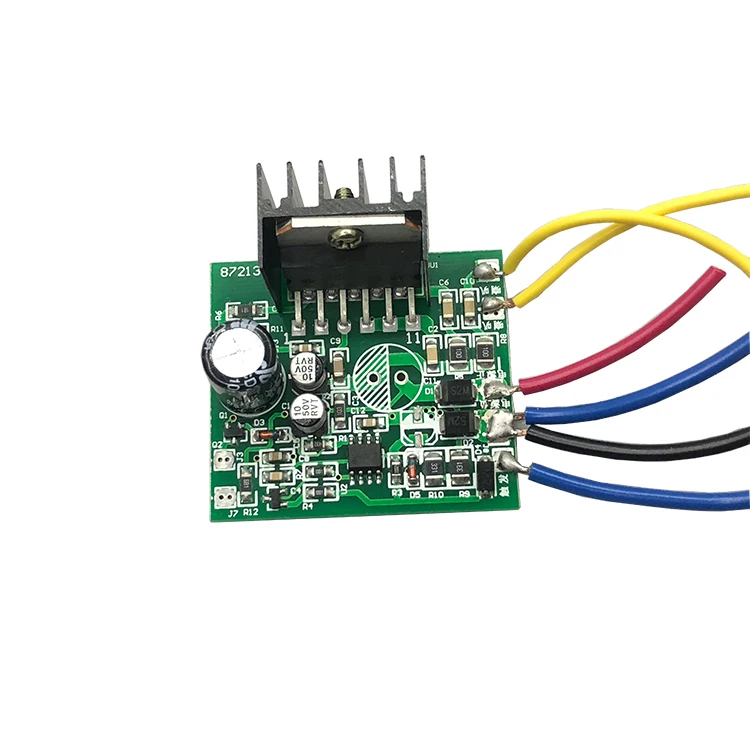

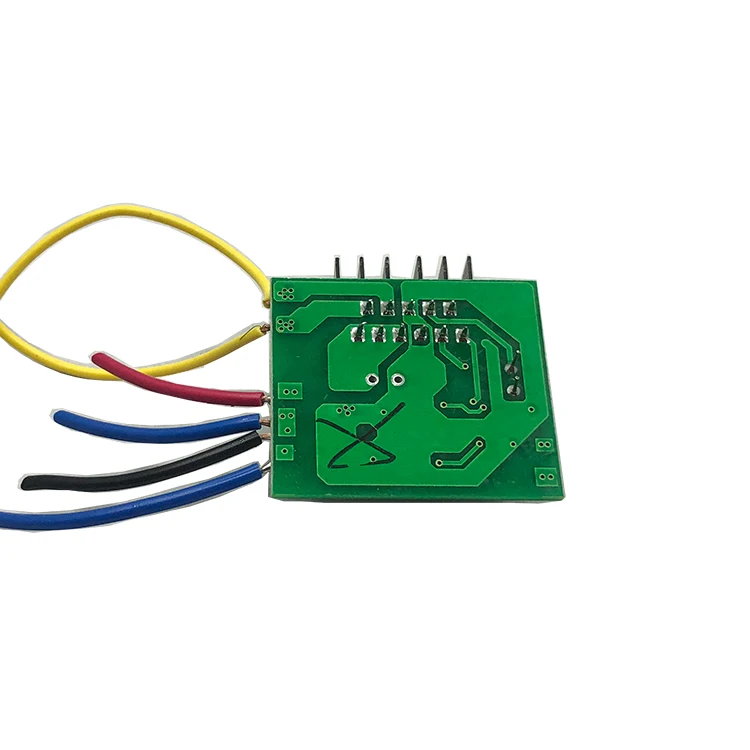

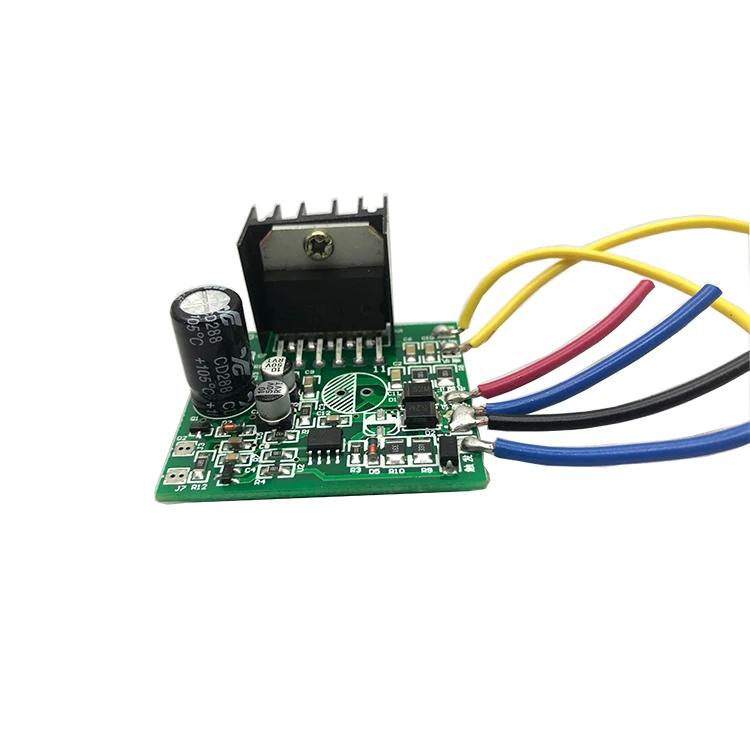

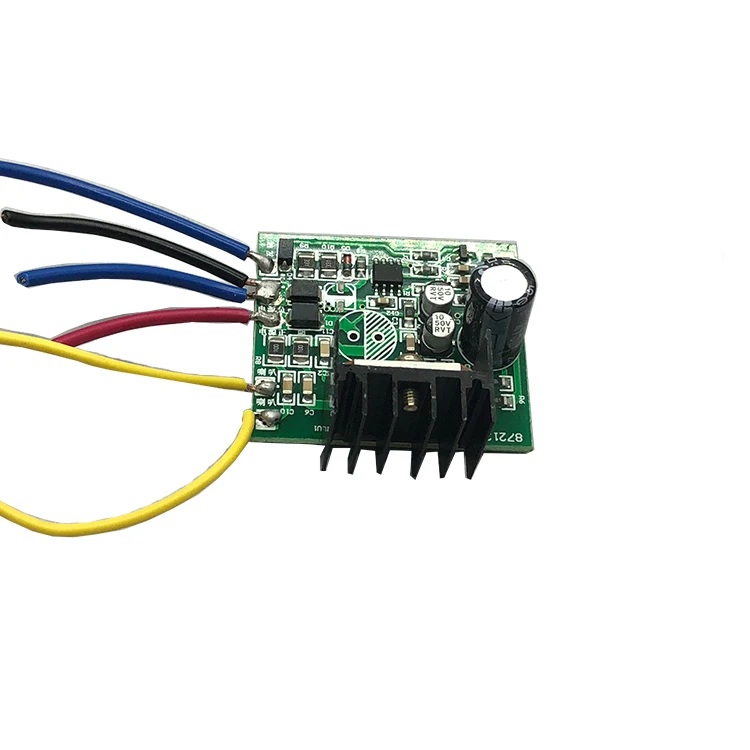

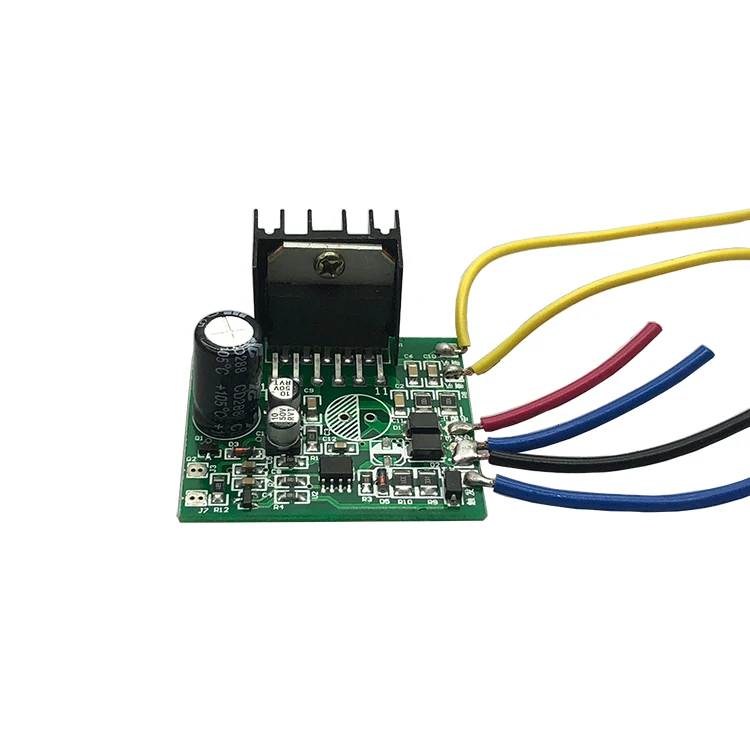

customized 220~240v water pump controller board design and PCBA manufacturing
Our Services
1. PCB design ,PCB clone and copy ,ODM service.
2. Schematic design and Layout
3. Fast PCB&PCBA prototype and Mass Production
4. Electronic Components Sourcing Services
5. PCB Assembly Services:SMT,DIP&THT,BGA repair and reballing
6. ICT, Constant Temperature Burn-in and Function Test
7. Stencil,Cables and Enclosure building
8. Standard Packing and On time Delivery
Product Description
PCBA Capability
| Max size of pcb board | 500* 400mm |
| Max thickness | 3mm |
| Min thickness | 0.5mm |
| Min chip | 1005 |
| Max SMD components weight | 100g |
| Max part height | 25 mm |
| Max part size | 150*150 mm |
| Min pin space | 0.3mm |
| Max BGA components space | 0.3mm |
| Max BGA components space | 0.3mm |
| Max SMD accuracy | 25um@ IPC |
| SMD capacity | 8 Million point/day |
PCB Capability
Layer:1~30 layers
Materials: FR-4, CEM-3, Teflon, Aluminum, Rogers, High Tg
Surface finished:Lead Free HASL,Immersion Gold/Tin/Silver, OSP, Gold Finger Plating, Selective Immersion Gold,Gold Plating
| English | Metric | |||
| 1 | Max. Panel Size | 22" x 26" | 550 x 650mm | |
| 2 | Mechanical Drill | |||
| Min. Finished Holes Size | 0.004" | 0.10mm | ||
| Finished Holes Tolerance | PTH | ±0.003" | ±0.075mm | |
| NPTH | ±0.002" | ±0.050mm | ||
| Press Fit | ±0.002" | ±0.050mm | ||
| Aspect Ratio | 9:01 | 9:01 | ||
| 3 | Laser Drill | |||
| Microvias diameter | 0.004" - 0.006" | 0.10 - 0.15mm | ||
| Aspect Ratio | 1:01 | 1:01 | ||
| 4 | Min. Line Width/Spacing | ½oz / 18um | 0.003" / 0.003" | 0.075 / 0.075mm |
| 1oz / 35um | 0.006" / 0.006" | 0.15 / 0.15mm | ||
| 2oz / 70um | 0.008" / 0.008" | 0.20 / 0.20mm | ||
| 3oz / 105um | 0.010" / 0.010" | 0.25 / 0.25mm | ||
| 5 | Registration | |||
| Solder Mask | ±0.003" | ±0.075mm | ||
| Layer to Layer | ±0.0024" | ±0.060mm | ||
| Copper Feature to Holes(Outer) | ±0.003" | ±0.075mm | ||
| Min. Plated Drills to Copper (inner) | 2L - 8L | 0.010" | 0.25mm | |
| 10L -30L | 0.012" | 0.30mm | ||
| 6 | Board Outline | |||
| Edge to Edge Tolerance | ±0.004" | ±0.10mm | ||
| Holes to Edge Tolerance | ±0.004" | ±0.100mm | ||
| Min. Copper to Edge distance | Outer | 0.010" | 0.25mm | |
| Inner | 0.016" | 0.40mm | ||
| 7 | Max. Copper Thickness | 4oz | 140μm | |
| 8 | Max. Board Thickness | 0.189" | 4.80 mm | |
| 9 | Min Board Thickness | 2L | 0.008" | 0.20mm |
| 4L | 0.016" | 0.40mm | ||
| 6L -30L | 0.020" | 0.60mm | ||
| 10 | Min. Core Thickness | 0.004" | 0.10mm | |
| 11 | Min. Soldermask Dam | 0.004" | 0.10mm | |
| 12 | Controlled Impedance (Ohm) | ±7% - 10% | ±7% - 10% | |
Click here to get more information
Company Information
2007-2018, 11 years, PCB & PCBA One stop service
DYC is a PCB&PCBA contract manufacturing with one-stop service. we have 6 Yamaha YS series high-speed assembly machine, 6 sets of fully automatic printing machines, 6 sets of AOI, 6 sets of SPI, 2 DIP lead-free production lines, 4 end-product assembly lines and a large number of advanced inspection and testing instruments.
| Established time | Aug 2007 |
| Number of employes | 250 |
| Factory area | 15,000 sqm |
| Location: 6,7 floor, Yuxing Second7 floor, Yuxing Second industrial park, xixiang, Bao'an district, Shenzhen. | Near by shenzhen airport, 15 minutes. |
| Near by Hongkong airport, 74 km. | |
| Near by shekou terminal, 22 km. | |
| Fabrication | 80 million spot SMT/month. |
| Certification | ISO9001-2008, CE, RoHS. |
| Sales avenue | 0.3 billion |
Our Equipment
We have kinds of test machine to ensure the higher pass rate of the board when our client receive PCB/PCBA.
Click here to get more information
Certifications
Buyer Feedback
FAQ
Q1: What should i provide to get one PCB quotation?
A1: Gerber file, PCB technical, quantity.
( Layer, Base material, Finished copper, Finished thickness, Surface finish, Solder mask)
Q2: What file formats of PCB do you support?
A2: Gerber file, PADS_LOGIC, AD, protel, allegro, Orcad.
Q3: Will you check the PCB gerber file before production?
A3: Yes, our engineer will check the coordinate file, layout, silkscreen, packing and full design to avoid the design-error.
Q4: My budget is limited, can you provide solutions to save cost ?
A4: Yes, we can. For example:
a, Replace the DIP components with SMD components, so it can narrow the PCB board size to save cost.
b, Relayout the pcb to reduce the size, it can save cost.
c, we can recommend you suitablet PCB tecnical parameter according to the product character, like board materials, thickness etc.
Q5: Do you have any other special discount ?
A5: Yes, we provide free panel, free test and free packaging.
Any other questions please contact us directly.As a global supplier of PCB /PCBA,we will meet the needs of customers world wide,with professional technology and sincere spirit of service and reasonable price, delivery on time. We look forward to your visit and establish long-term cooperation.
