aluminium tube evaporative condenser for fish cold storage
Specification ofNew Integration space saving ammonia evaporative condenser for industry
Type
Heat rejectiom(kw)
Fan power(kw)
Water pump power(kw)
Operating weight(kg)
GWBS-145
145
1.5
0.75
2685
GWBS-160
160
2.2
0.75
2690
GWBS-180
180
1.5
0.75
2700
GWBS-200
200
1.5
0.75
2870
GWBS-220
220
2.2
0.75
2880
GWBS-240
240
3.0
0.75
3050
GWBS-260
260
1.5
0.75
2890
GWBS-280
280
2.2
0.75
3060
GWBS-300
300
3.0
0.75
3060
GWBS-340
340
2.2
1.1
3660
GWBS-380
380
3.0
1.1
3670
GWBS-400
400
4.0
1.1
3680
GWBS-430
430
4.0
1.1
2685
GWBS-475
475
4.0
1.1
2690
GWBS-495
495
5.5
1.1
2700
OPERATING PRINCIPLE
The vapor to be condensed is circulated through a condensing coil, which is continually wetted on the outside by a recirculating water system.Under the action of the axial flow fan, the inside of the condensation chamber is in a negative pressure state.Air is simultaneously blown upward over the coil, causing a small portion of the recirculated water to evaporate. This evaporation removes heat from the coil, cooling ,and condensing the vapor in the coil.
Product Details
Condensing coil
1.Material:high-quality seamless steel tube Φ25mm(GB/T8163) 2.The design pressure is 1.97Mpa and all the coils have been pneumatically tested 3 times at 2.5Mpa to avoid leakage. 3.Integrated hot dip galvanizing of condensing coil can enhanced corrosion resistance.
Axial Fan
1.The ventilating system of GWBS adopts the aluminum alloy propeller fan for cooling tower.
2. Advantage:high blowing rate,low damping,low noises,good perormance and high efficiency.
3.motor:Fully closed and self-cooled ,low noise,reliable operation,etc.
Water Circulating Pump
1.The Water pump uses a high-quality mechanical seal that is not limited by the steering
2.Motor:special outdoor type motor,the advantage of the motor is low power,high flow,low noise.
PVC Filler
1.Material:PVC honeycomb type stuffing .
2.Use:Extended water cooling time to improve the effect of cooling.
3.Adavantage:aging resistance,low wind resistance and deformation resistance.
Removable Drift Eliminator
1.Material:specially designed non-corroding PVC
2.Advantage:remove moisture effectively from the moist air .It ia convenient to disassemble.
Main Features(OEM best ammonia evaporative condenser for industrial building)
1.Excellent heat exchange performance 2.Low operating cost and Energy saving,space saving 3.Convenient examine and repair 4.Reliable fixing element 5.low fault rate 6.Convenient trasportation and installation
Our Service
Pre-sales Service
1.Professional technical Team: Providing technnical proposal and Various CAD Drawings available.
2.High quality sales team:Helping customers to choose suitable products.
After-Sales Service
1.When the product is sent to the user, our company will assign relevant personnel to confirm with your company and sign the product acceptance form. 2.help customers to train install machine and use machine for free. 3.Acceping the customers' feedback and opinons.

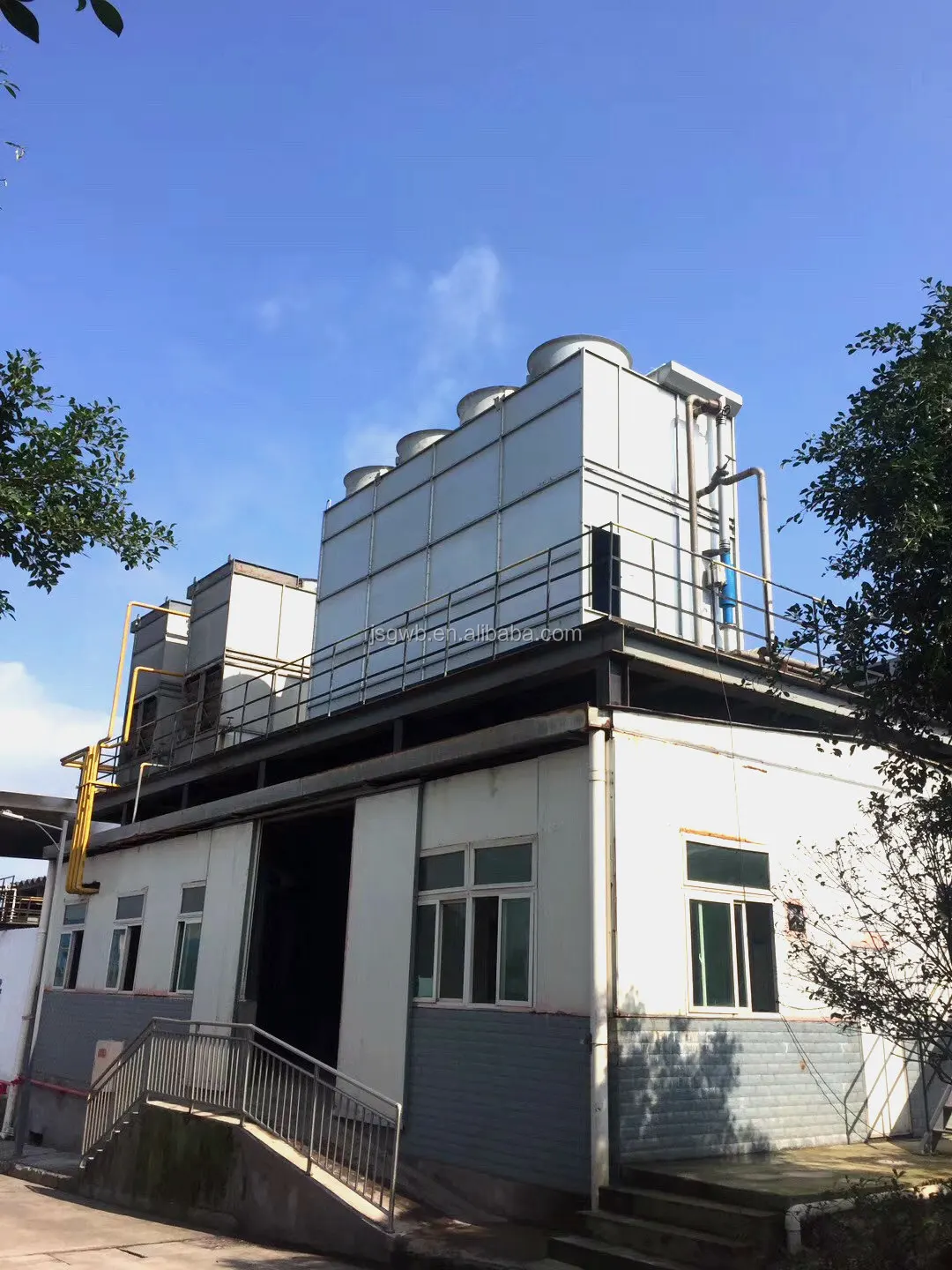

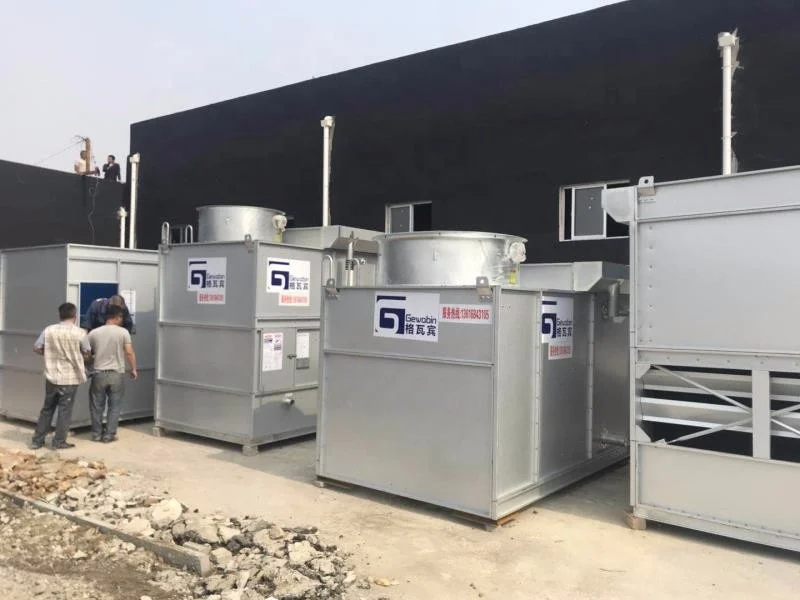

Pruducts case
Packing & Delivery
Packing
Packing Details
1.Two body parts: upper and bottom boxes.
2.Packing with plastic film
3.Shipped by one 40ft container.Upper and bottom body parts are separated in the same container.
Delivery time:
shipped in 30days after payment
Our Company
Jiangsu Gewabin Heat Technology Co., Ltd is a manufacturer and trader specializing in the research,design,development and production of refrigeration with well-equipped facilities and strong technical force. We are located in beautiful and rich Yixing city, with convenient transportation access . We are constantly improving ourselves, and now our main production base has reached 15,000 square meters.All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have domestic and foreign technology development products include evaporative condenser, closed circuit cooling tower, air coolers, compressor and evaporator.We can also customize products according to coustomers' requirements, and we provide processing services and OEM products.
Originated from China, we have a global perspective. "Integrity, efficiency, and practicality" is our motto. we have the spirit of faith to build a world-famous brand, providing high-quality equipment and services for the refrigeration industry, and achieve win-win results for both enterprises and customers. Our success can be attributed to our dedication to quality, technical expertise, cost efficiency, and high technology capabilities.
FAQ
1. Q: Are you trading company or manufacturer ? A: We are industrial and Trading Company.we have an own facory in yixing city,Jiangsu,China.Welcome to visit us!
2. Q: What is your price? A:Our FOB price is based on the quantity , material and size of the product you buy.
3.Q:When can I get the price? A:Usually within 24 hours after receiving your inquiry. And if you are very urgent, you can call us or send an e-mail to us that we can reply you in time.
4.Q: How long is your delivery time? A: If the goods we have in stock,the delivery time is 25days after payment. or if the goods are not in stock, it is according to your quantity.
5.Q: What is your terms of payment ? A: When payment ≤2000USD, 100% in advance. Payment ≥2000USD, 30% T/T in advance ,balance before shippment.
