RaySmart HD MI HD Display 13.3 Inches Industrial Video Camera VMS4M33 M B133 HD
- Category: >>>
- Supplier: Shenzhen Raysmart Technology Co. Ltd.
Share on (60829098158):
Product Overview
Description

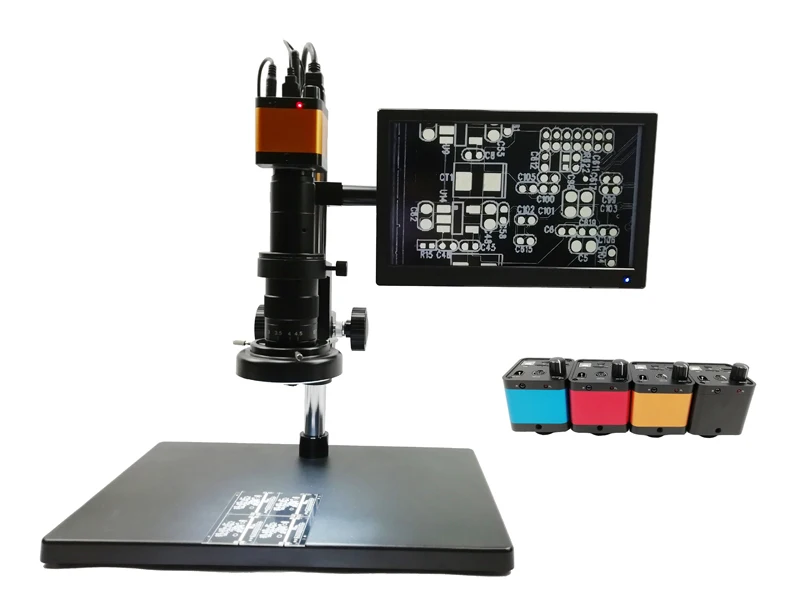

RaySmart HD MI HD Display 13.3 Inches + Industrial Video Camera VMS4M33-M+B133-HD
Specifications
For Video Microscope:
| Image sensor | 4MP 1/3 inch BSI |
| Pixel size | 2um x 2um |
| Picture resolution | 2688x1512(16:9),2016x1512(4:3) |
| Video resolution | 1080P/30FPS, 720P/60FPS |
| HD MI resolution | 720P/60FPS |
| USB resolution | 1080P/20FPS,720P/30FPS,WVGAP/60FPS |
| WIFI output | 720x360@30fps,Support Andriod / iOS(optional) |
| Zoom | 1X~16X Infinite magnification |
| Exposure control | AE lock, exposure compensation (10 levels adjustable) |
| White balance | Automatic, manual (R, G, B 10 levels adjustable), calibration cooperation |
| Image control | contrast, saturation, resolution 10 levels for option |
| Screen freeze | full screen, left and right, up and down, 1/4. |
| Grid | 8 groups, position, color, thickness adjustable |
| Measurement | point, line, circle, angle (Optional) |
| Language | English, Simplified Chinese, Traditional Chinese |
| Mouse interface | PS/2, recommend to use the original mouse (Optional) |
| IR Remote | Max 5 meters |
| WIFI antenna | SMA(Optional), max 10 meters |
| HDMI port | TYPE-A |
| USB port | TYPE-B USB2.0 |
| Memory card | Max support 32G TF card |
| Lens | Suitable for C mount or or CS mount |
| Microscope dimension | L195 * W125 * H25 (mm) |
| Microscope | 185g(With WIFI) / 175g(Without WIFI) |
For Display:
| Model | B133-HD |
| Size | 13.3 Inch |
| Panel Type | IPS panel |
| Point distance | 0.0445×0.1335 mm |
| Resolution | 1920*1080 |
| Display scale | 16:9 |
| Contrast | 1000:1 |
| Brightness | 350cd/square meter |
| View angle(H / V) | 178°/178° |
| Response time | 6ms |
| Display color | 262K |
| Working temperature | 0~50℃ |
| Storage temperature | -20~60℃ |
| Video input/output | HDMI |
| Audio input/output | N / A |
| Touchpad | No |
| Material | Aluminum Alloy |
| Power | DC 12V |
| Product size | 32.0*20.1*1.6CM |
| Net weight | 0.69KGS |
Product Description
- Adopt professional image processing DSP,3D de-noise, and restore colors and details really;
- Support picture, video record and playback function;
- Support HD MI + USB(UVC) output display;
- Support 1X~16X infinite magnification, clear and smooth;
- Support full screen freezing, left and right, up and down, 1/4 PIP comparison;
- Support 8 groups of grid, and position , color , thickness are adjustable;
- Support AE lock, exposure compensation function;
- Support auto, manual and calibration white balance;
- Support WDR, contrast, saturation, sharpness are adjustable;
- Support image horizontal mirror and vertical flip;
- Support IR remoter, voice record, and buzzer prompt;
- Support 4GB ~32GB TF card;
Accessories
1 PCS * Video Microscope
1 PCS * Adaptor
1 PCS * HD MI Cable
1 PCS * IR Remote
1 PCS * Mouse
1 PCS * Stand
1 PCS * Lens
1 PCS * Light Source
1 PCS * 13.3" Display
1 PCS * Cleaning cloth
1 PCS * User Manual

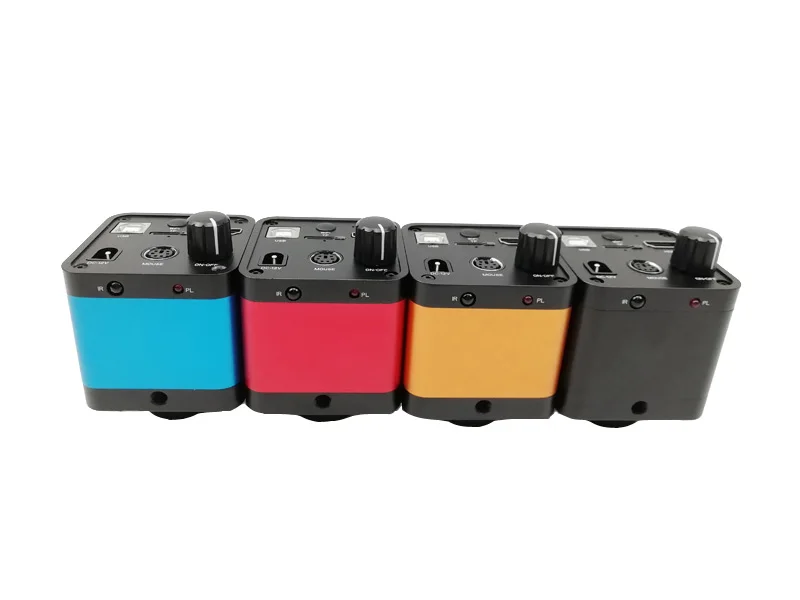

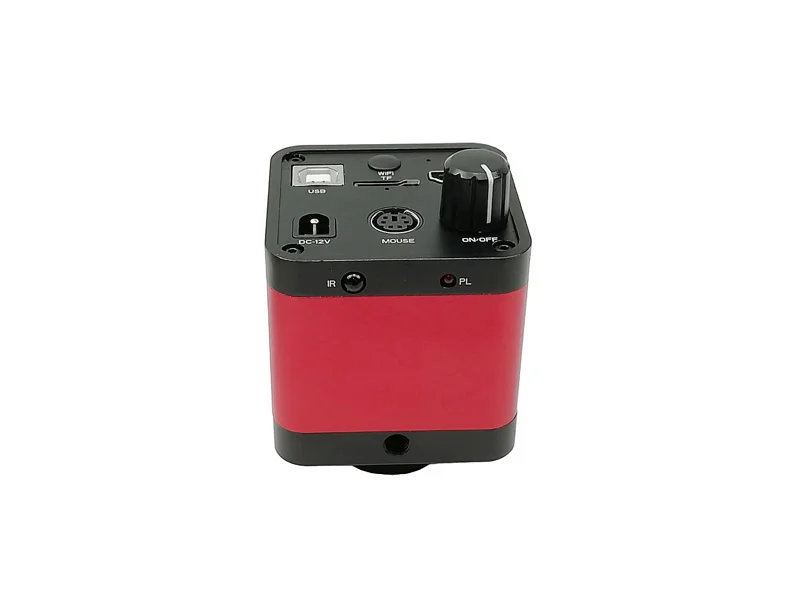

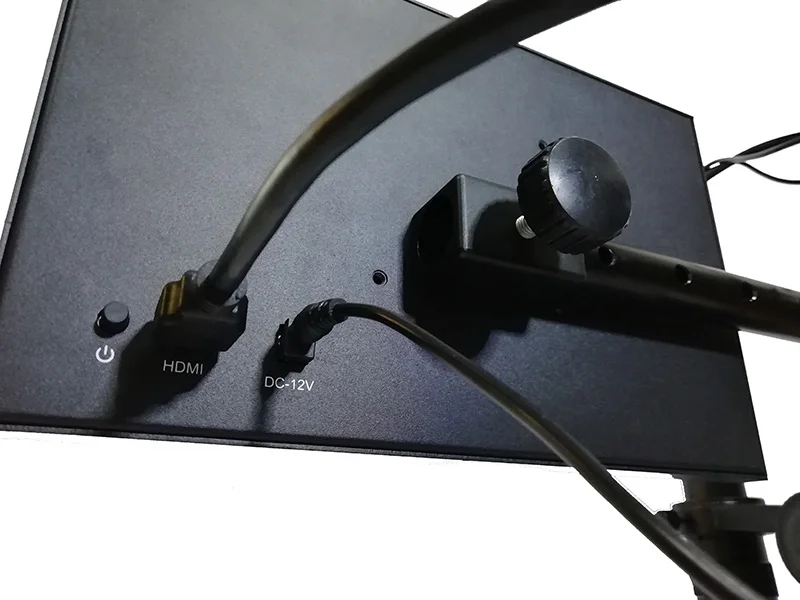

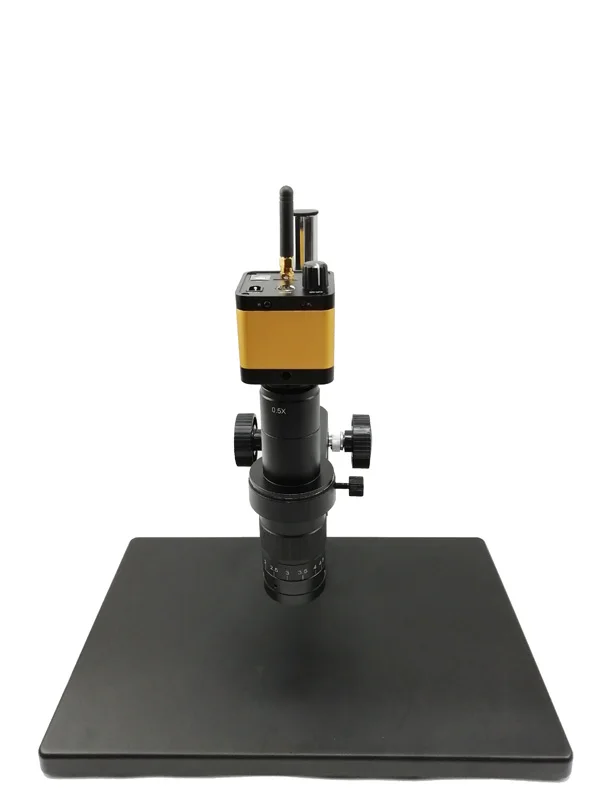

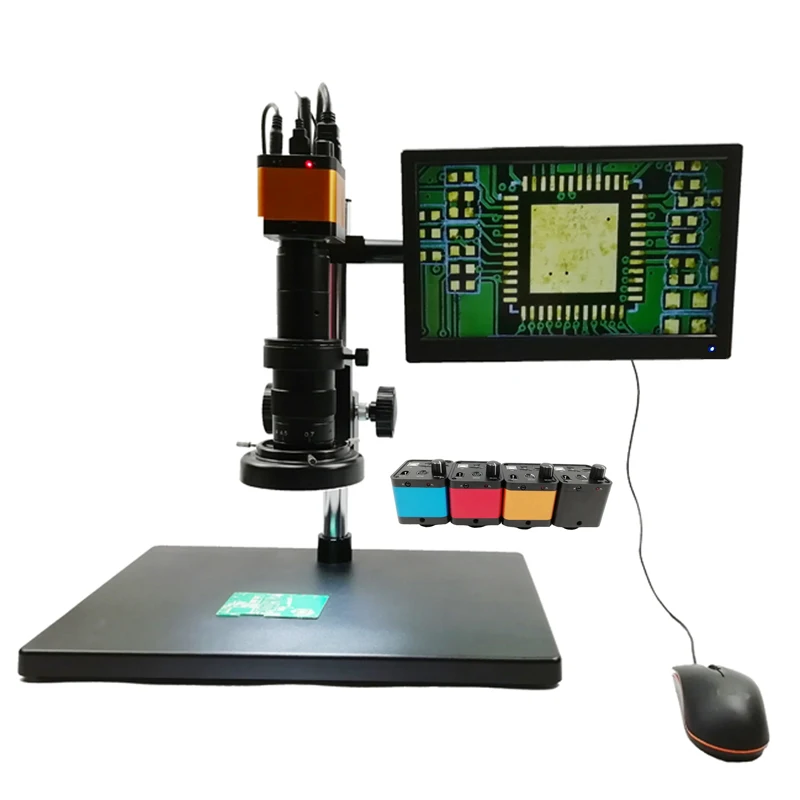

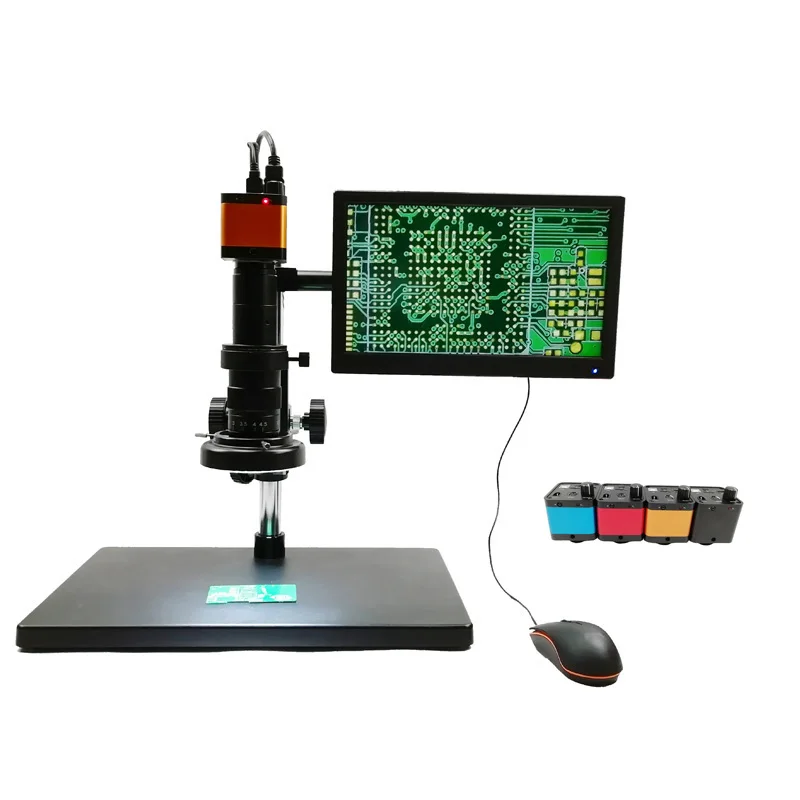

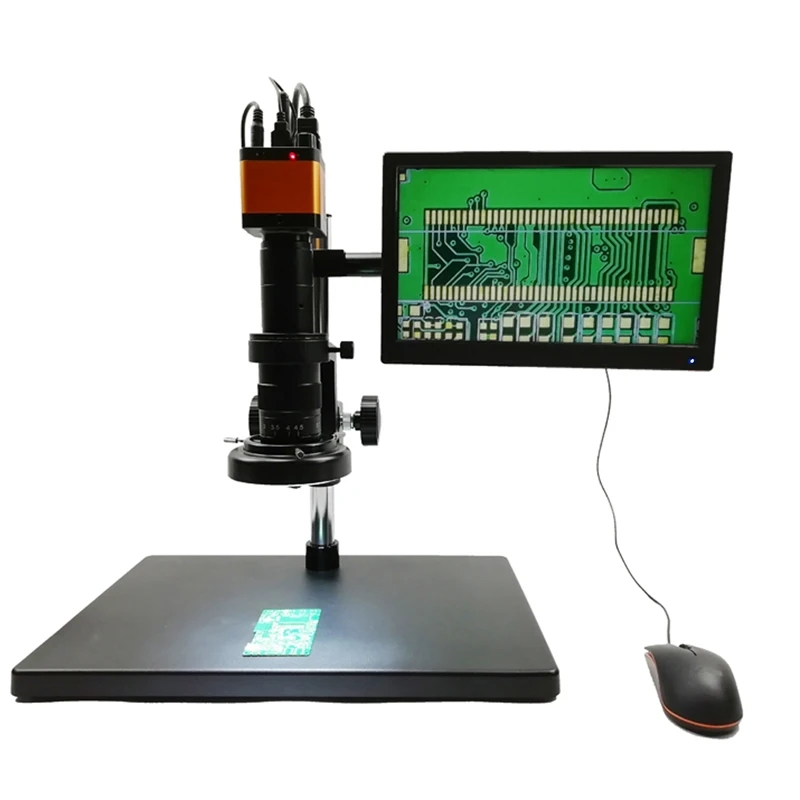

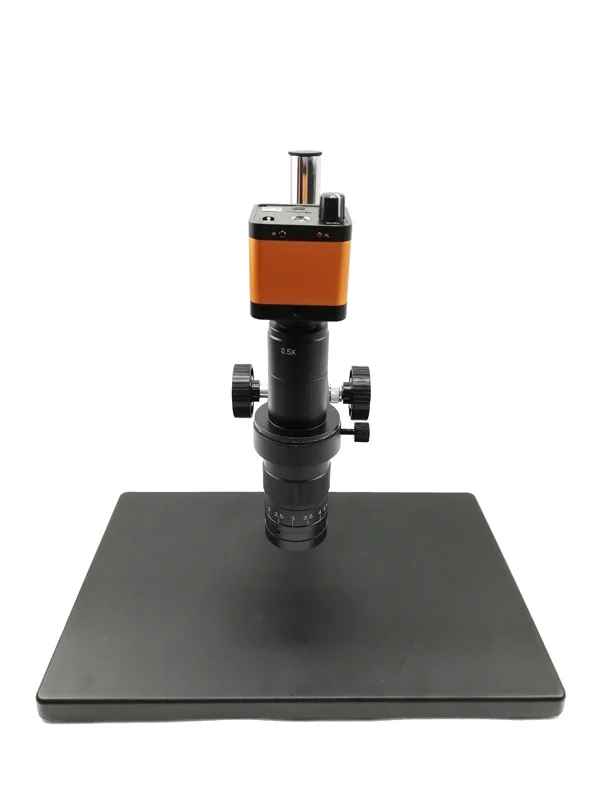

Product Images

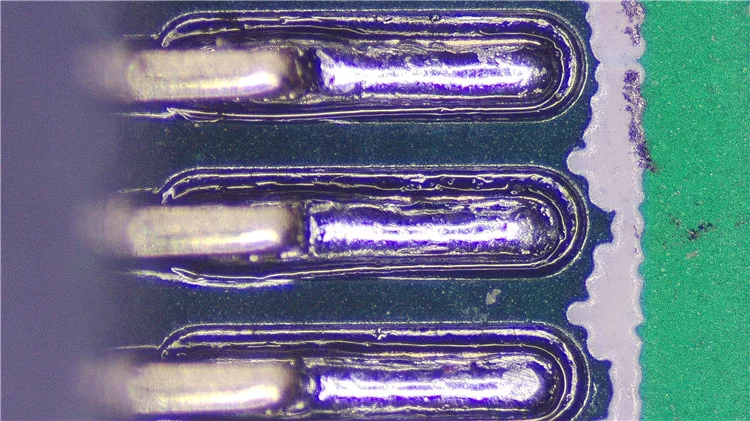

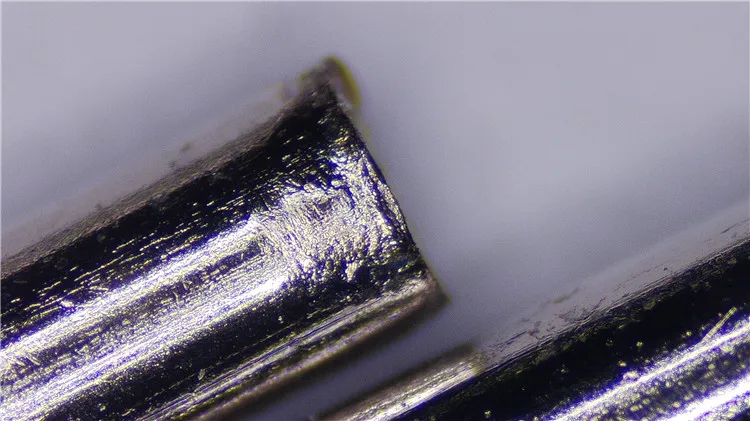

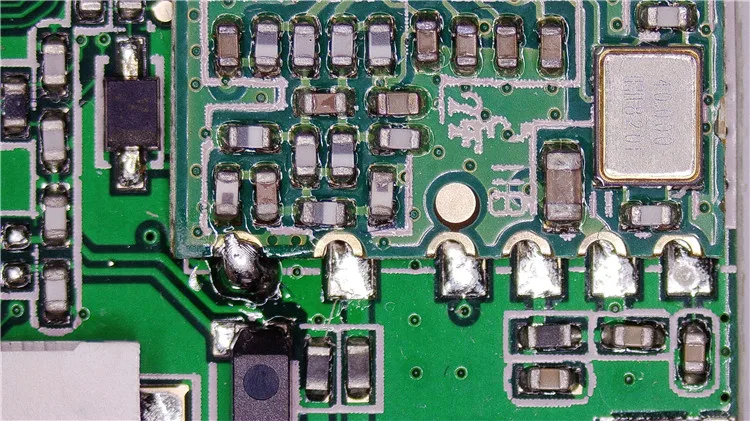

Photos from the camera:
