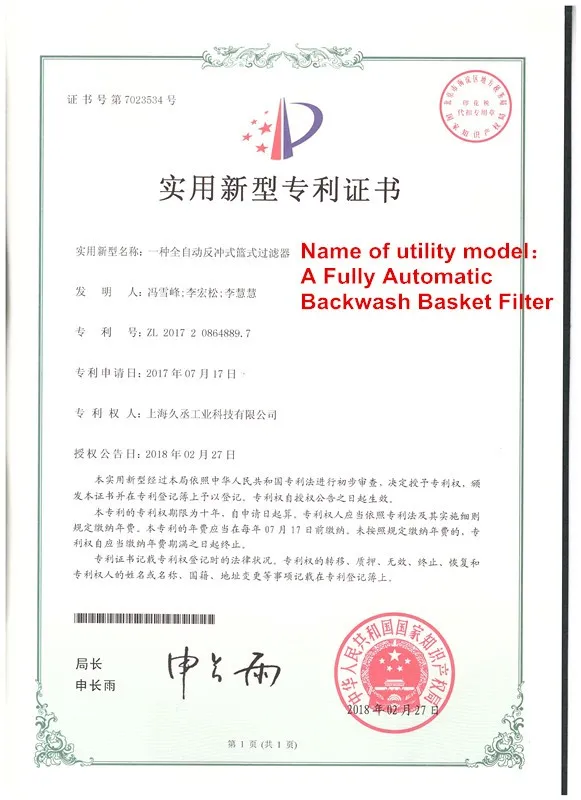

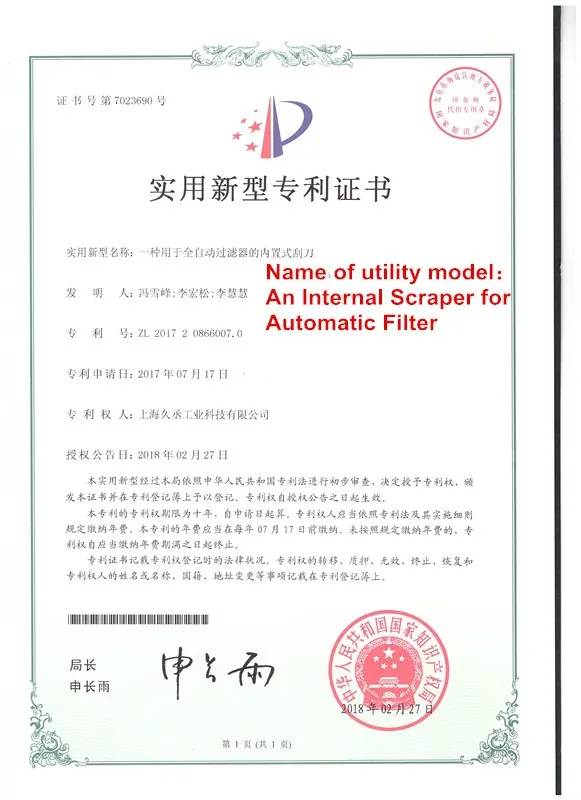

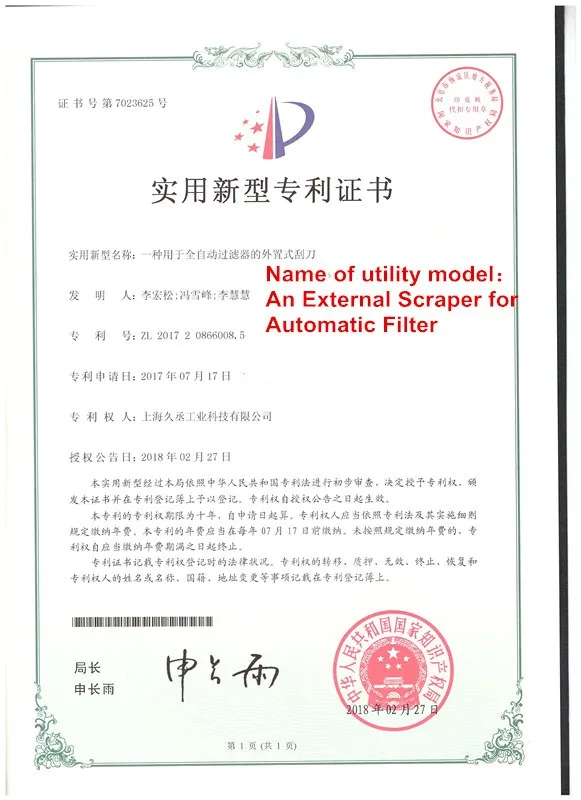

Certifications
All our certifications are REAL ONE.
NOT FAKE, NOT FAKE, NOT FAKE!!!
Please contact us to show you!!!
Product Introduction
Factory Price Self Cleaning Brush Filter for Cooling Tower Water Treatment
Brief introduction
1. AFB series is a new type of self-cleaning strainer independently developed by Shanghai JCI with our own intellectual property. It is designed for continuous online filtration to remove impurities on the inner surface of filter screen via highly-efficient mechanical scrapping.
2. AFB Filter can quickly remove impurities from the surface of filtering screens, thus removing more impurities with high efficiency. It applies to the filtration of water and various low viscous liquids. AFB Filter designed and manufactured as per Shanghai JCI's standards for high performance, high quality and high reliability, it features internationally first-class quality.
3. AFB filter always keeps the filter element clean by its advanced self-cleaning mode, and discharge the waste liquid containing high concentration impurities to reduce material waste. It is more obvious efficient to filter water with poor quality and low viscosity liquid . AFB Filter with notable technical advantages and low operation costs, it has gradually displaced the traditional manual filters in various fields, such as vibrating-screen filters, bag filters, basket filters, etc.

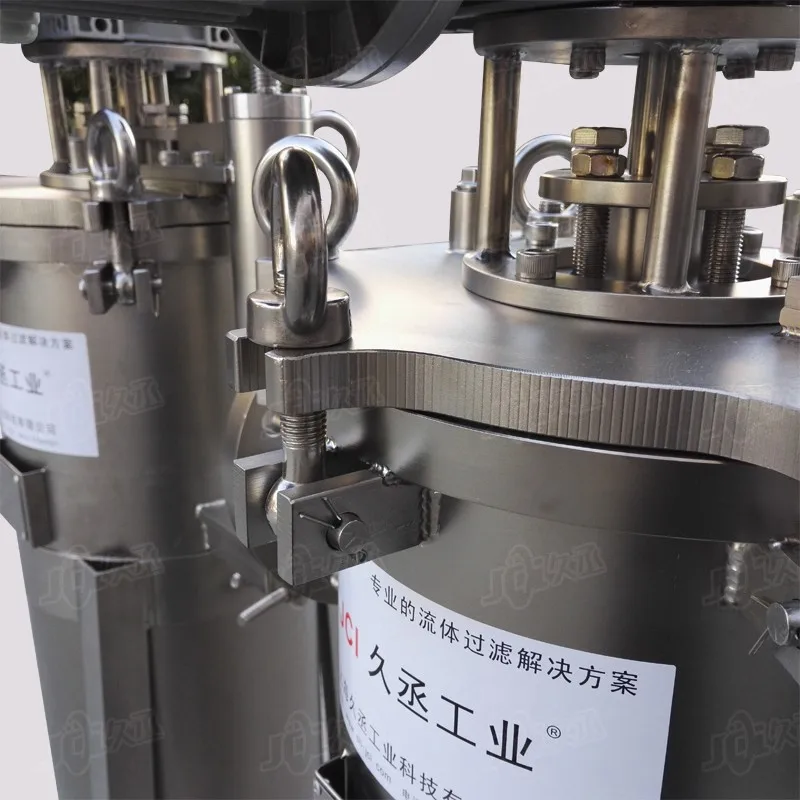

Product Details Show
How Does It Work?

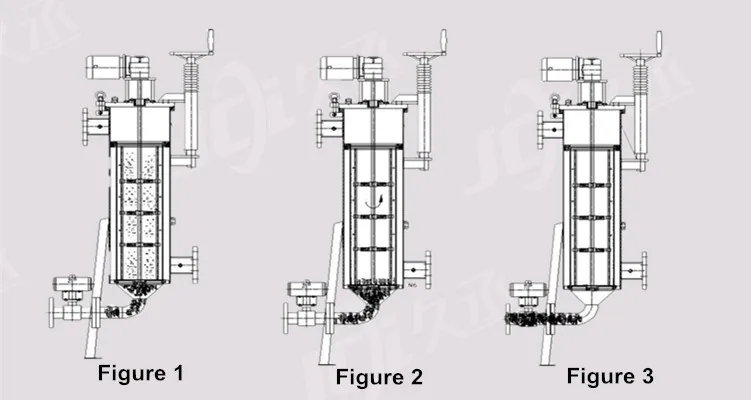

Filtering status(see figure 1)
Liquid flows inside from the inlet.The liquid flows outwards from the inner surface of the filter screen, and the impurities are intercepted on the inner surface. Then, the liquid flows out from the outlet; with the passage of time, the impurities gradually increase, and differential pressure rises. We can begin to clean the filter screen according to the preset differential pressure or the timing.
Cleaning status(see figure 2)
The motor drives the scraping brushes to rotate horizontally to clean the filter screen. When the brushes rotates, impurities are scraped off and filtered along the filter net to the bottom of the filter, and the impurities with large specific gravity are deposited into the dirty collector. Each cleaning is made up of a number of strokes. After the filter screen is cleaned, the filtering ability is restored. No filtration interruption while self-cleaning.
Discharging status(see figure 3)
After a number of cleaning cycles, impurities accumulate to a certain amount. Regular opening of drain valve, and the waste liquid containing high concentration of impurities is discharged. which can also be recycled, if necessary.
Technical Parameters & Specifications
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
Technical features and advantages
1. Horizontal rotary scraping, scraping off the impurities directly, is good at filtering viscous liquids and removal of viscous, soft and suspended impurities;
2. Simple structure, easy dismounting; after removing the scraper, easy to take out the filter screen, and easy to clean the inside;
3. Automatic operation, continuous online filtration, to end up the heavy filter screen replacement and cleaning work;
4. Do not produce disposable filter material, saving consumables costs and environmental costs;
5. Small filtration pressure loss, stable flow rate, energy saving is beneficial to the continuous stability of the whole process;
6. Sealed filtration, preventing dangerous material leakage, is advantageous to the safe production and the staff health;
7. Discharge waste liquid with high impurities concentration can be recycled, to reduce the loss of high-value materials;
8. A variety of advanced control systems are optional, powerful, efficient and reliable;
9. Selection of world-renowned brands of components, high reliability, low costs.

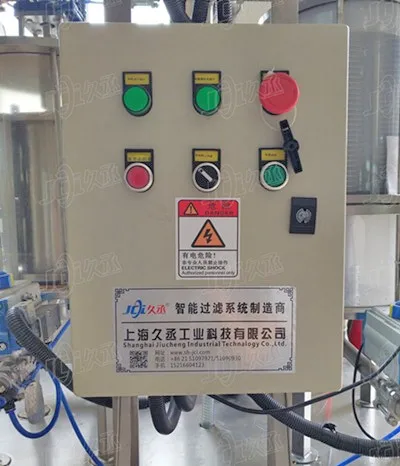

Automatic Cleaning Control System
| \t | |
| \t | |
| \t | |
| \t | |
| \t | |
| \t | |
| \t | |
| \t | |
| \t |
accumulation of of filter cakes and the blocking of the filter element. When the preset pressure differential is reached, it starts the self-cleaning action. It is suggested that the cleaning pressure differential is 0.1MPa, which can be adjusted within the scope of 0.01-0.1MPa, by the working conditions. Periodically cleaning can be set 0-24 hours, and if the differential mode is inefficient, time pattern still works. It can be considered as the ultimate protection. The cleaning period setting should be close to the average period of the filter pressure differential cleaning mode.
Product Application
Part of Applicable Industries
Applicable fluid types: Groundwater, seawater, lake water, reservoir water, circulating cooling water, frozen water, spray water, heat exchanging water, sealing water, bearing cooling water, oil well water injection, craft circulating water, machining coolant, cleaning water, etc.
Filtration effect: Constant-value screening, removing large particles, purifying fluid, and protecting key equipment.
Filtration type: Mechanical online scraping filtration.
Part of Our Cooperated Customers

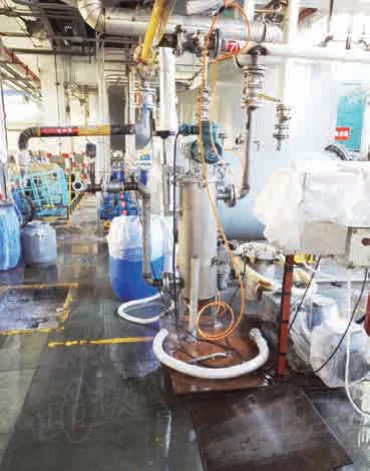

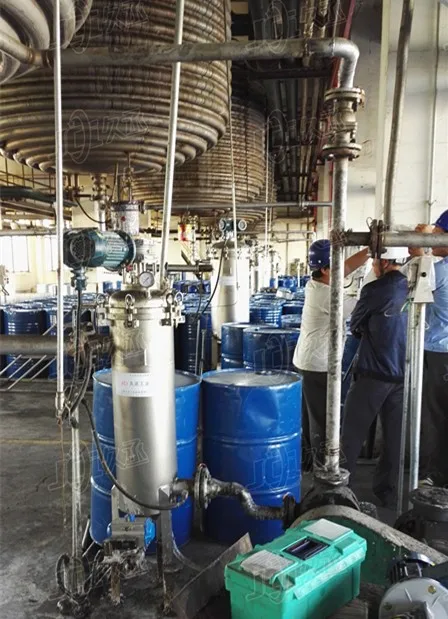

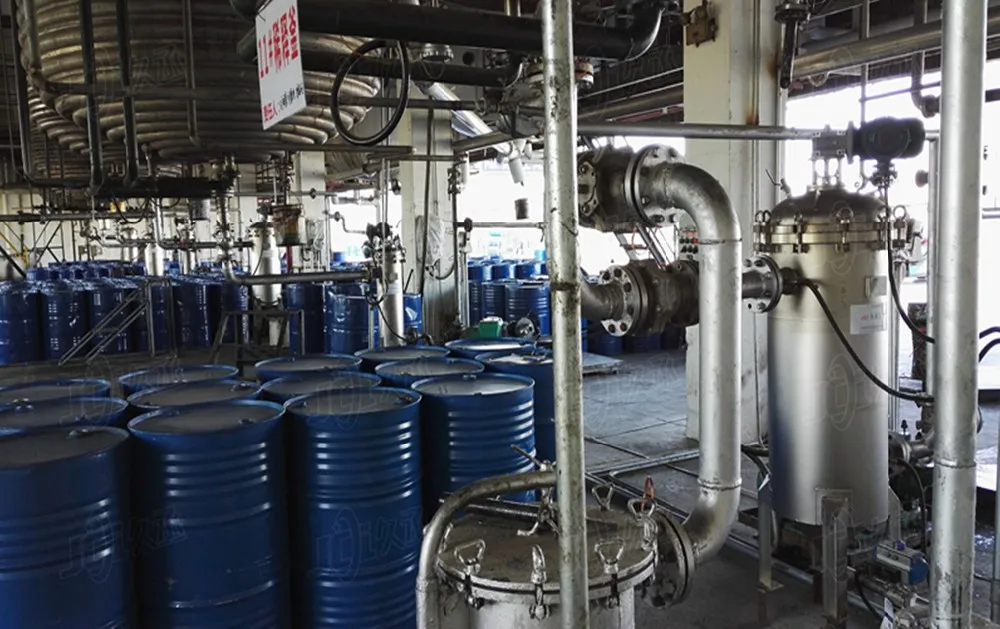

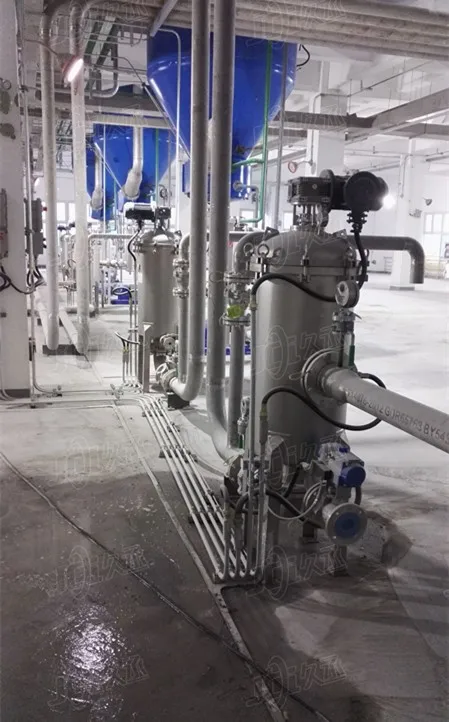

Customer On-site Photos

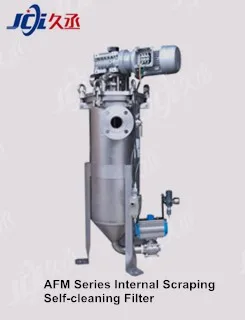

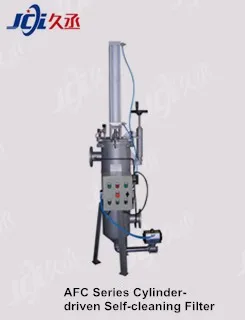

Related Products
Our Company
Company Profile
Shanghai JCI Technology Co., Ltd. is a leading company in design and manufacturing around the world filtration industry. The company specializes in automatic and intelligent filtration, especially holds an important status in the field of self-cleaning filtration.
We have a large group of excellent technical personnel concentrating on filtration R&D. The company has strict control on all processes ranging from design to production, inspection and after-sales service as conducted by its well-experienced engineers. The awareness of quality and service as well as the spirit of detail-focused manufacturing has been penetrated into every detail of the company. Through carrying out scientific and normative management and establishing follow-up service archive for every product, we can ensure that every product and every detail of it is excellent, safe and reliable.
We are a global professional company. Over the years, we have possessed many R&D, management and manufacturing centers, marketing and service networks throughout the world. Headquartered in Shanghai, the company has two production bases in Kunshan, Jiangsu and Taiwan, China, and has agents in Singapore, Malaysia and Myanmar, etc. In the future, JCI will become a leader in the field of automatic filtration system and industrial purification technology, to enable efficient and safe filtering products to serve the whole world.
We have a large group of excellent technical personnel concentrating on filtration R&D. The company has strict control on all processes ranging from design to production, inspection and after-sales service as conducted by its well-experienced engineers. The awareness of quality and service as well as the spirit of detail-focused manufacturing has been penetrated into every detail of the company. Through carrying out scientific and normative management and establishing follow-up service archive for every product, we can ensure that every product and every detail of it is excellent, safe and reliable.
We are a global professional company. Over the years, we have possessed many R&D, management and manufacturing centers, marketing and service networks throughout the world. Headquartered in Shanghai, the company has two production bases in Kunshan, Jiangsu and Taiwan, China, and has agents in Singapore, Malaysia and Myanmar, etc. In the future, JCI will become a leader in the field of automatic filtration system and industrial purification technology, to enable efficient and safe filtering products to serve the whole world.
Customer Visiting
Why Choose Us
Professional marketing personnel
1. At least 2 months of technical product training before work.
2. Reply your inquiries in 5 minutes; submit the competitive price in 2 hours.
3. Business English major and Communicate smoothly.
Professional design team
1. Custom-built filters to meet your project requirements.
2. Design in 2 hours for free.
3. After sales service engineers available to service machinery overseas or making phone calls. Solving problems in 1 hour.
We are factory
1. Self-marketing.
2. We have strict control on all processes ranging from R&D design, production, inspection and after-sales service.
3. Warmly welcome to our factory for a visit.
Product Processing

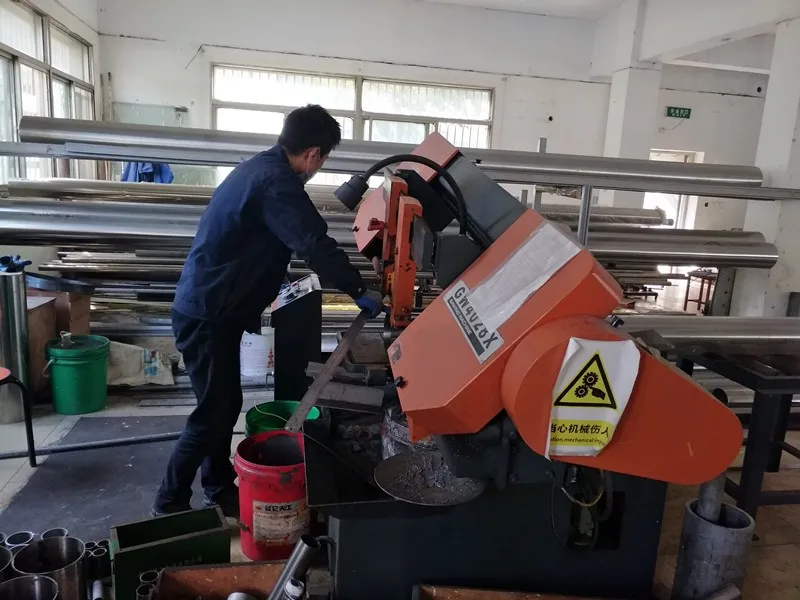

Sawing Process

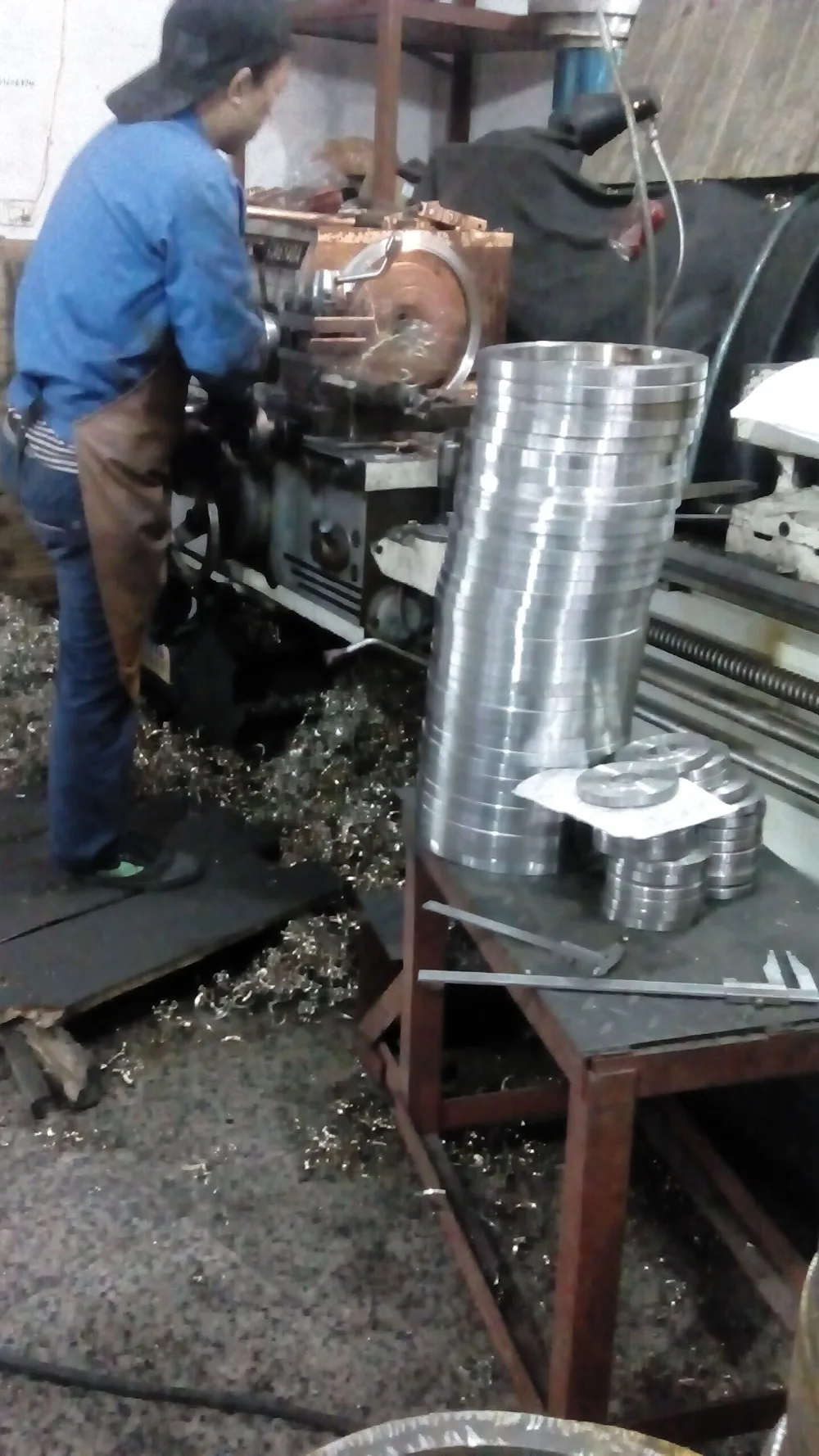

Lathe Machining

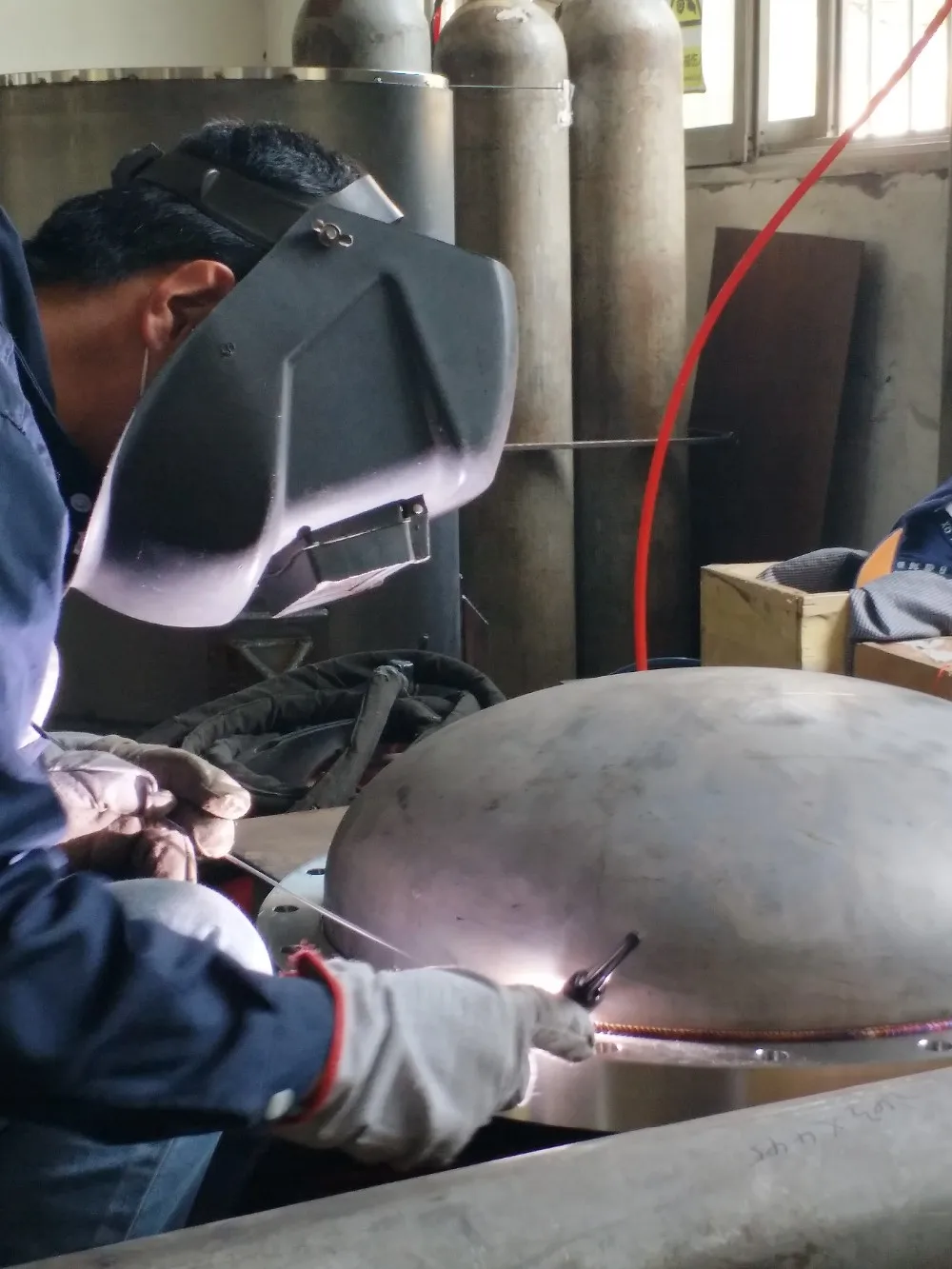

Welding Process

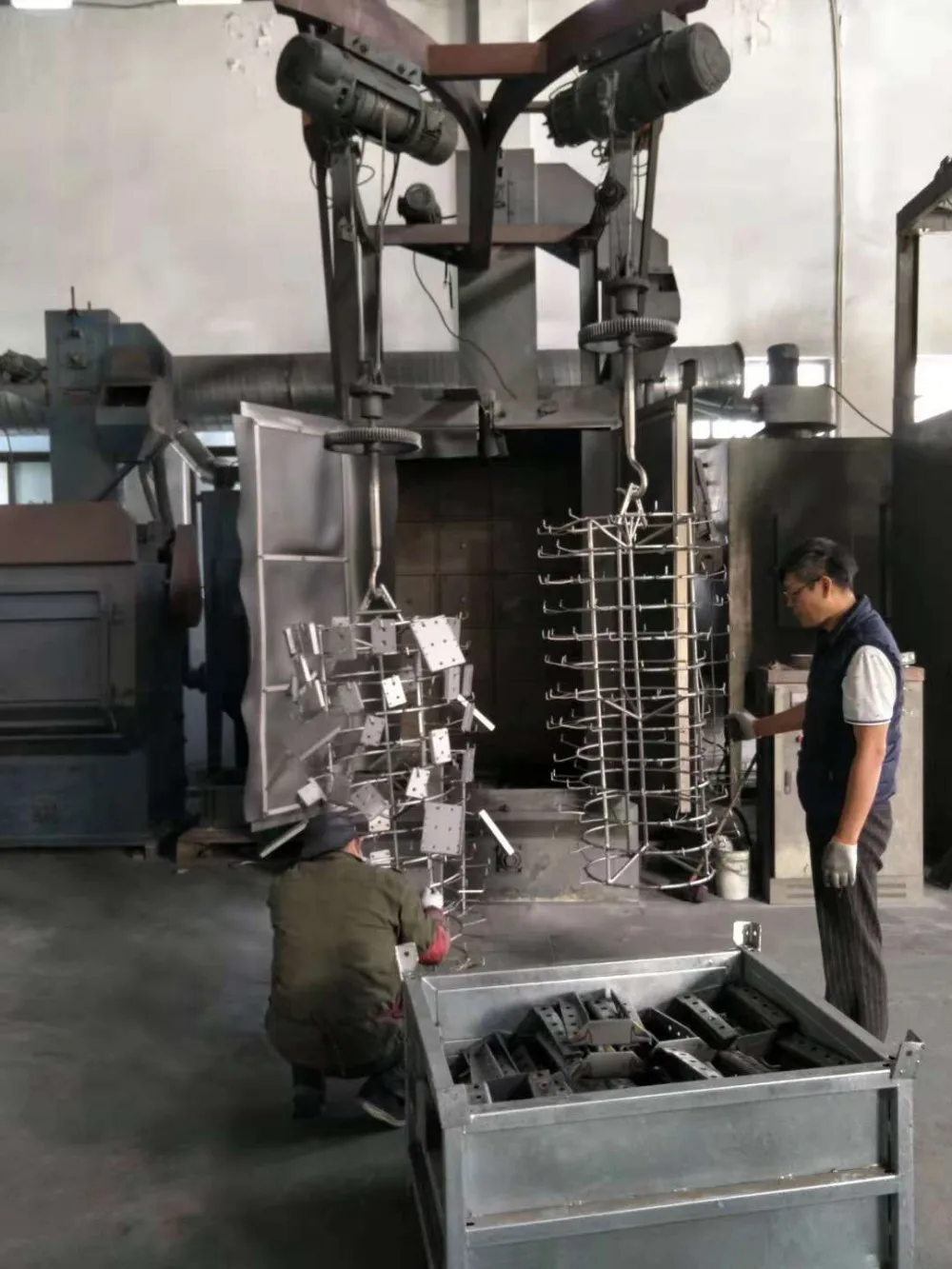

Sand Blasting

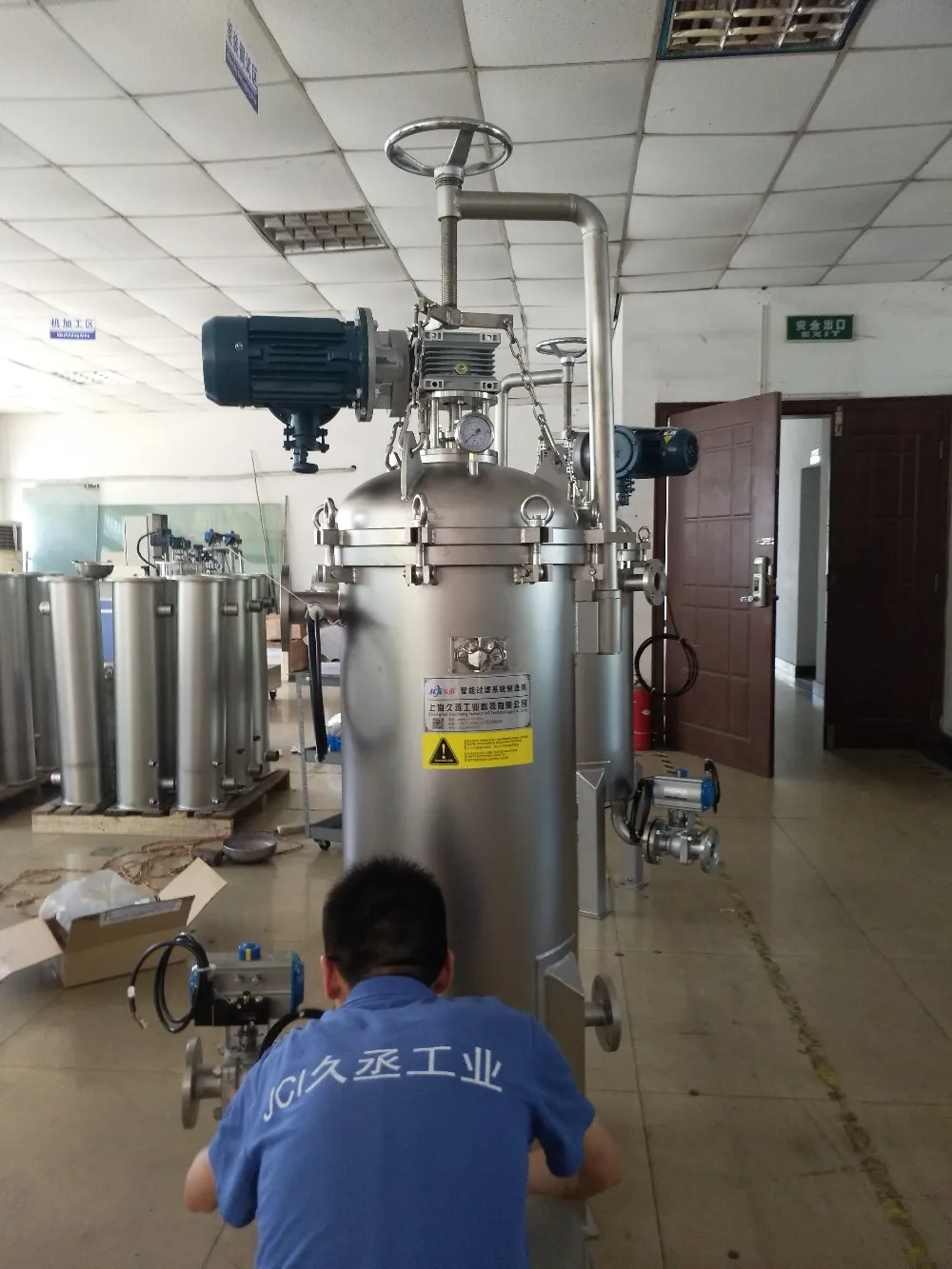

Assembling
