Mining Stone Industry Ceramic Industry Membrane Filter Press Plate
US $20.00-$80.00
Мембранный фильтр высокого давления гидравлического типа
- Category: Filter Press Equipment >>>
- Supplier: Cangzhou Best Machinery Manufacturing Co. Ltd.
Share on (60829132403):
Product Overview
Description
High Pressure Membrane Chamber Filter Press Hydraulic Type
Product Description
The filter plates of membrane type filter press consists of two kinds filter plates: membrane filter plate (whose surface is flat) and chamber plate (which as depth for filter cake storage). The filtering process as following. Under the pressure of feeding pump, material is pumped into filter chamber, solid and liquid are separated by filter medium (filter cloth). After filter cakes formed, the compressed air will be blown into the membrane plate and inflate it to squeeze cake, thus realize lower moisture. Membrane filter press specially applies to viscous material and users who require a strict cake dryness.

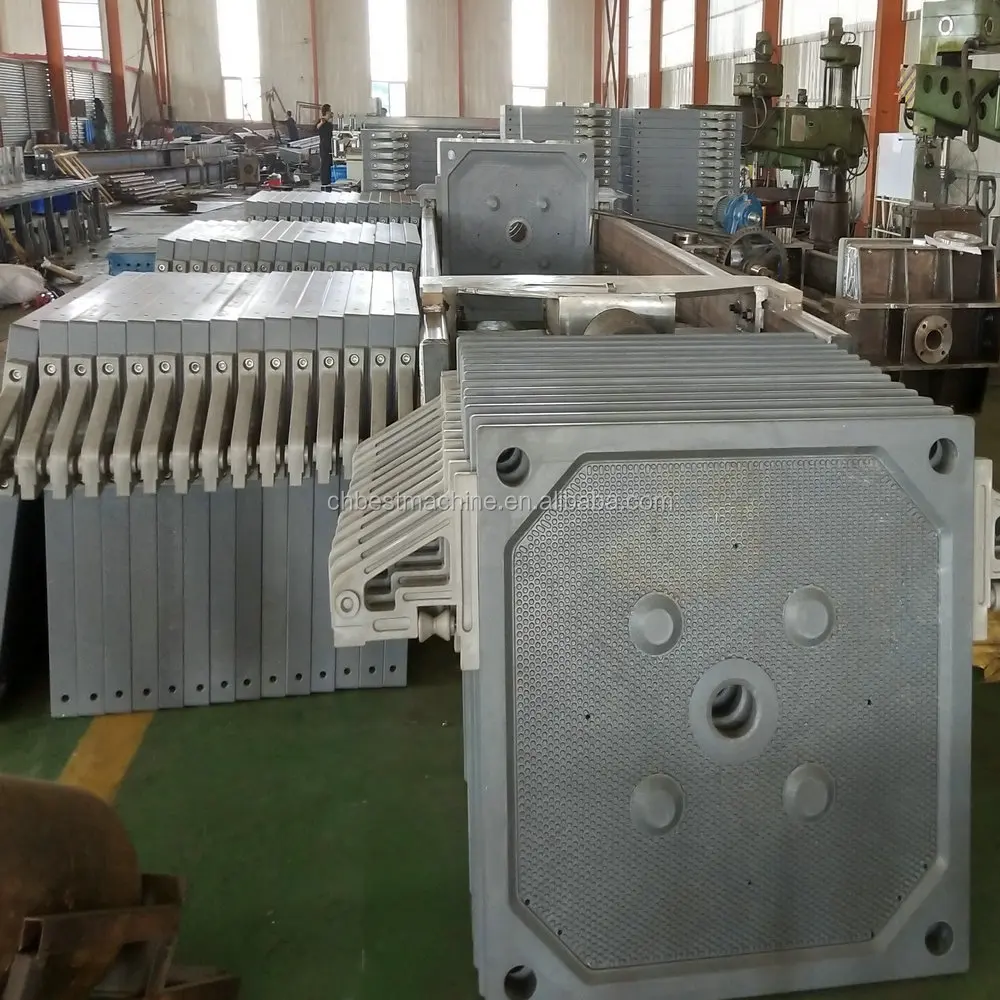

Filter plates are made from reinforced PP by mould pressing. Membranes are recessed with PP plates integrally. They are firm and steady, not easy to fall off, and enjoy long
Filter Press Working Flow:
Filer Press Application
Parameter
Model | Size | filter square | frame size | plate qty pcs. | power | pressure | weight kg |
BYY60/1000-U | 2570×1020×1200 | 60 | 630×630×50 | 16 | 1.5 | 0.6 | 2040 |
BYY80/1000-U | 3360×1020×1200 | 80 |
| 32 |
|
| 3240 |
BYY120/1000-U | 4200×1020×1200 | 120 |
| 48 |
|
| 3440 |
BYY140/120-U | 6200×1240×1620 | 140 | 1200×1200×60 | 49 |
|
| 5700 |
BYY180/120-U | 7800×1250×1620 | 180 |
| 59 |
|
| 6060 |
BYY200/1200-U | 7400×1250×1620 | 200 |
| 79 |
|
| 6360 |
The Benefits:
1.Structure is made of Q235 high quality carbon steel. It adopts automatic welding, solder side is flat, weld-joint is solid and durable, it can perfectly avoid distortion. It has reached the advanced technology in Europe and the United States.
2.Main-beam is processed by high speed centrifugal sand blasting to remove rust and iron oxide scale, then painted by epoxy micaceous iron primer to get better rustproof and corrosion resistance effect.
3.Side bar is covered by stainless steel 304 shell to protect itself from wearing. The smooth surface of shell also make plate shifting more easily.
4.Plate is made from PP. It is tasteless and non-poisonous, safe with food and pharmacy industry. It is characterized by light weight, easy operation, acid and alkali resistance, high temperature and high pressure resistance.

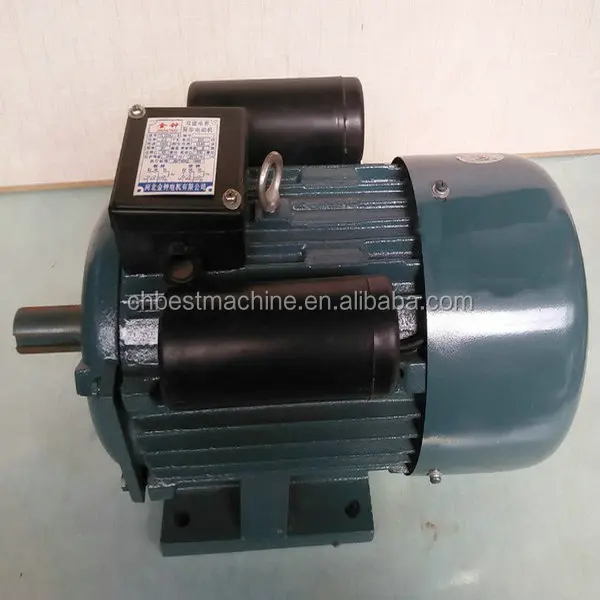

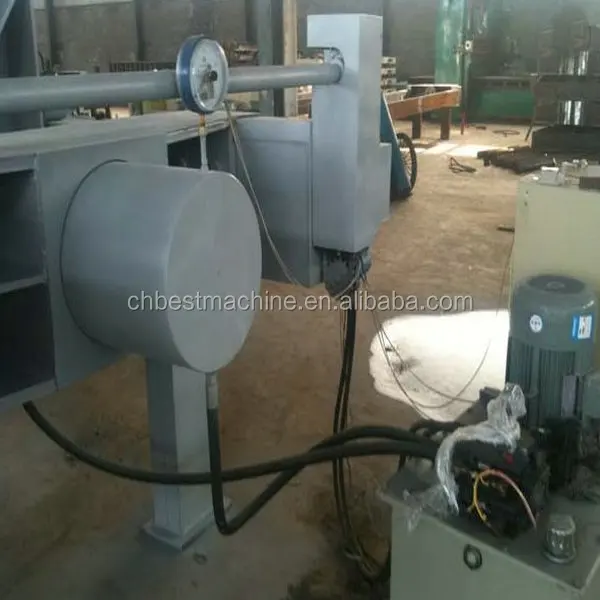

5.Hydraulic system adopts ABB motor, it is steady in operation and easy in maintenance. Pistons are made of steel #45 after surface specially processed to get better anti-wearing and high hardness performance.
6.Electric control cabinet adopts renowned electrical components, it can realize auto closing, auto opening, auto pressure maintaining and trouble-free operation.

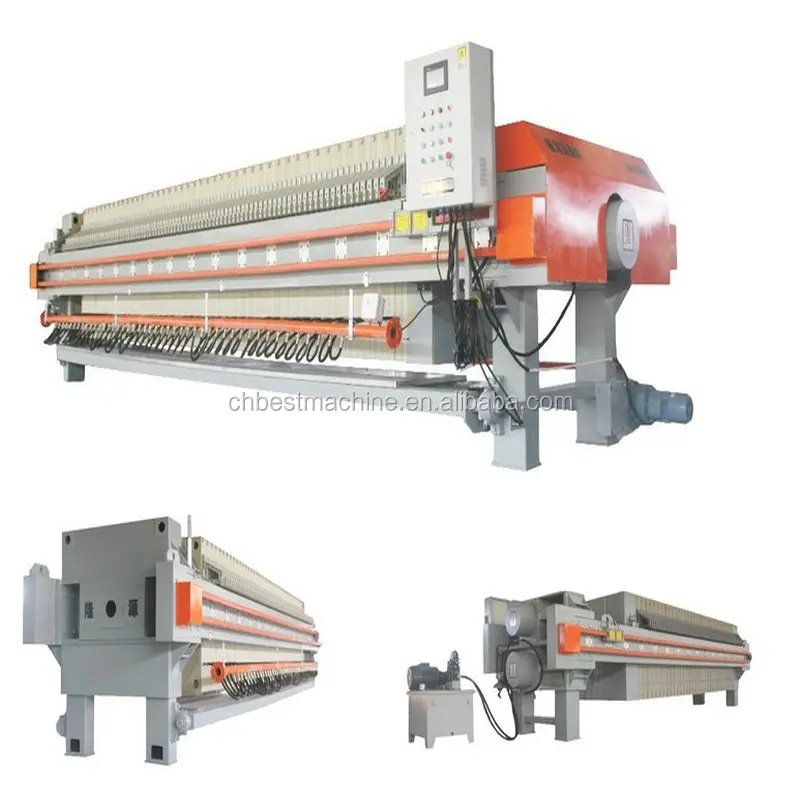

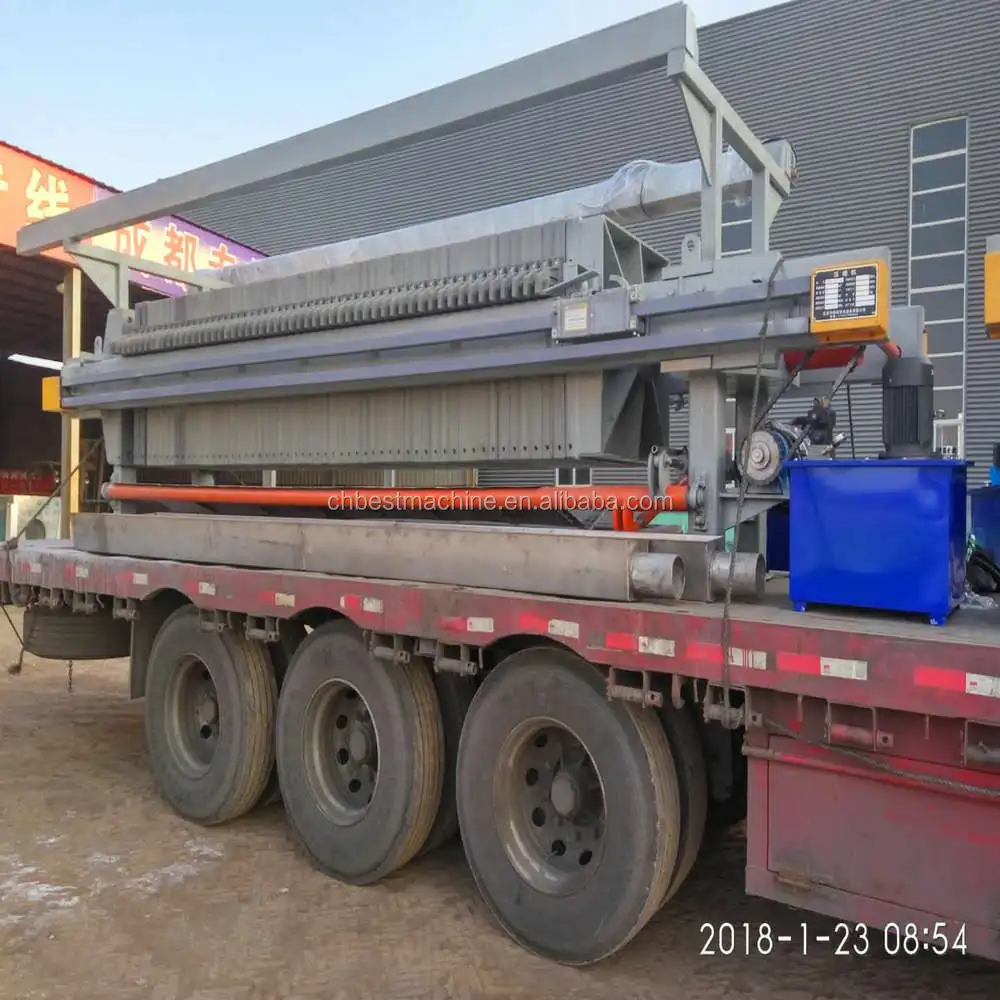

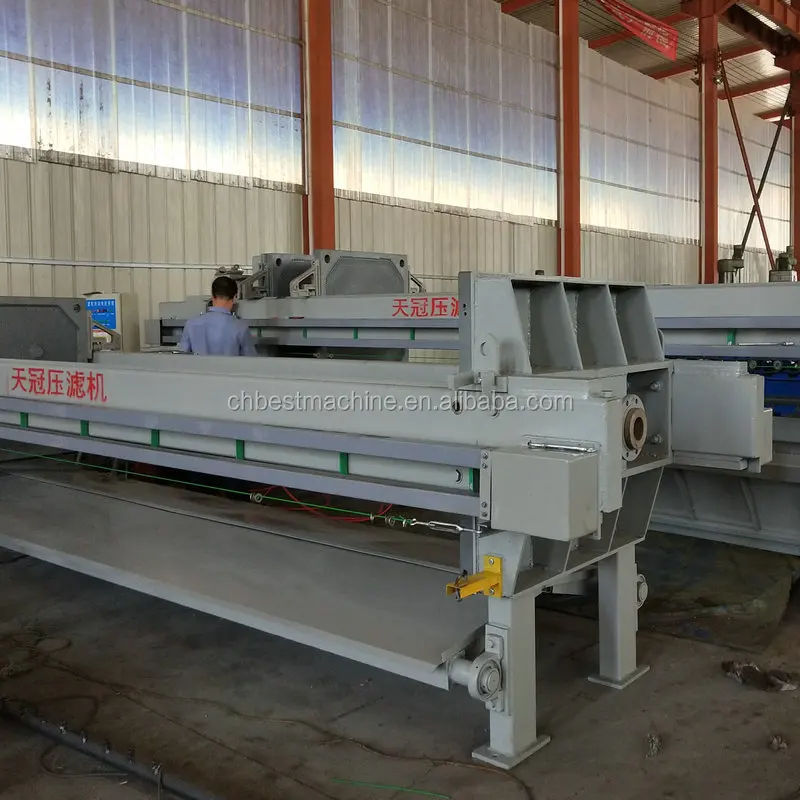

Machine Photots
Optional: Feeding pump and washing pump
Service
Pre-sale service:
1.24 hours online service.
2.Help you to select suitable model
3.Design totally according to your requirements
After-sale service:
1.Provide 12 months warranty period and you will have our technology support forever
2.Engineering available to offer the service to your machinery overseas
Welcome to visit our factory anytime
