Frp Inox Steel Panel Price Square Plastic 1000 Liter Grp Water Tank Korea

Share on (60829143383):


Price:$50.00 - $95.00

Quantity:


Product Overview

Description





Product description

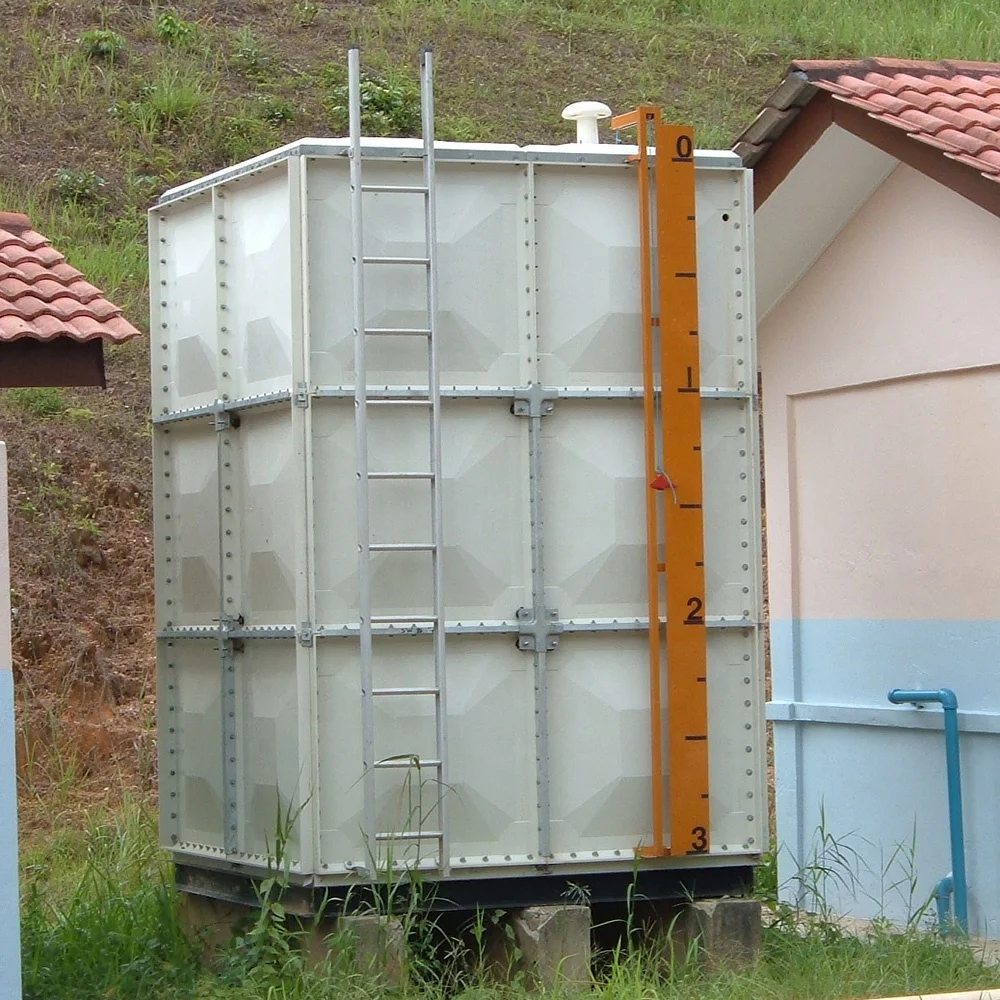

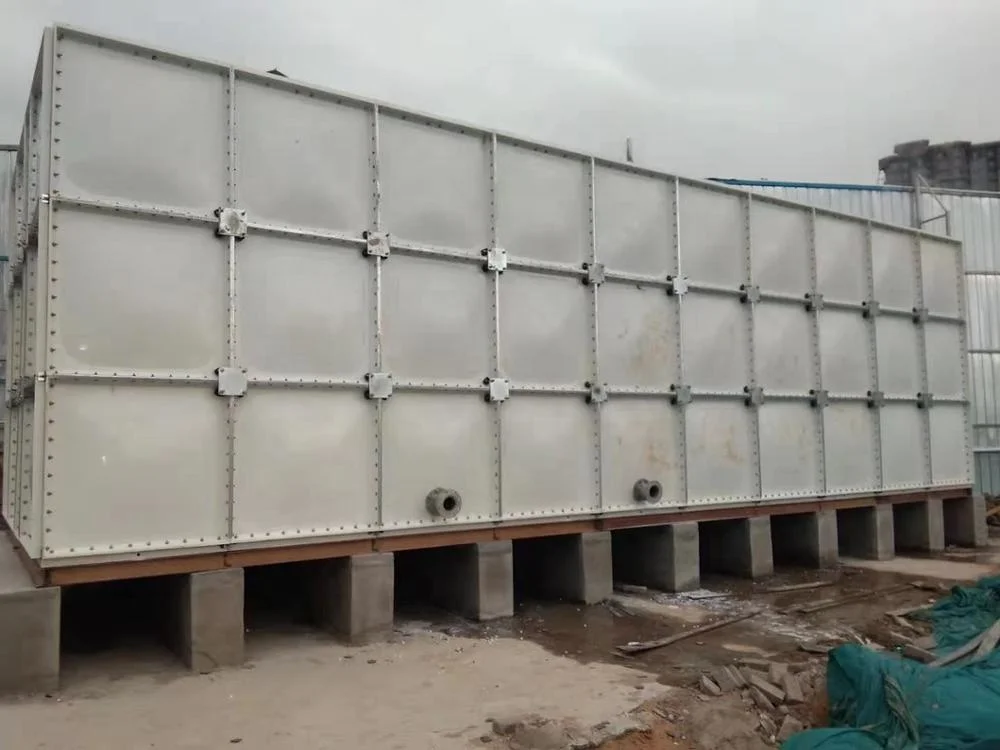

FRP water tank possesses sheet molding compound, sealing materials, metal structure and piping system, etc. Designed capacity is from 0.125to 10000 m³


FRPwater tank plates adopt foodgrade resin material, formed by high temperature and high pressure. It is made by the press machine.

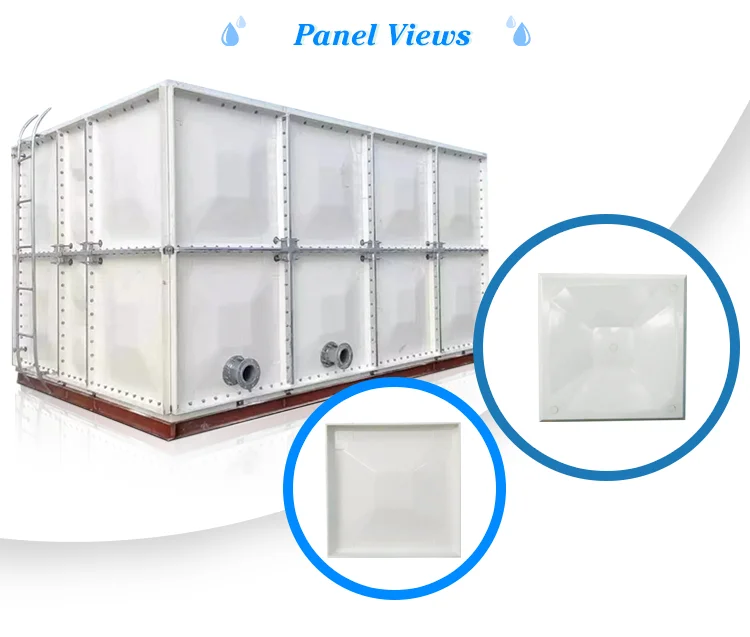

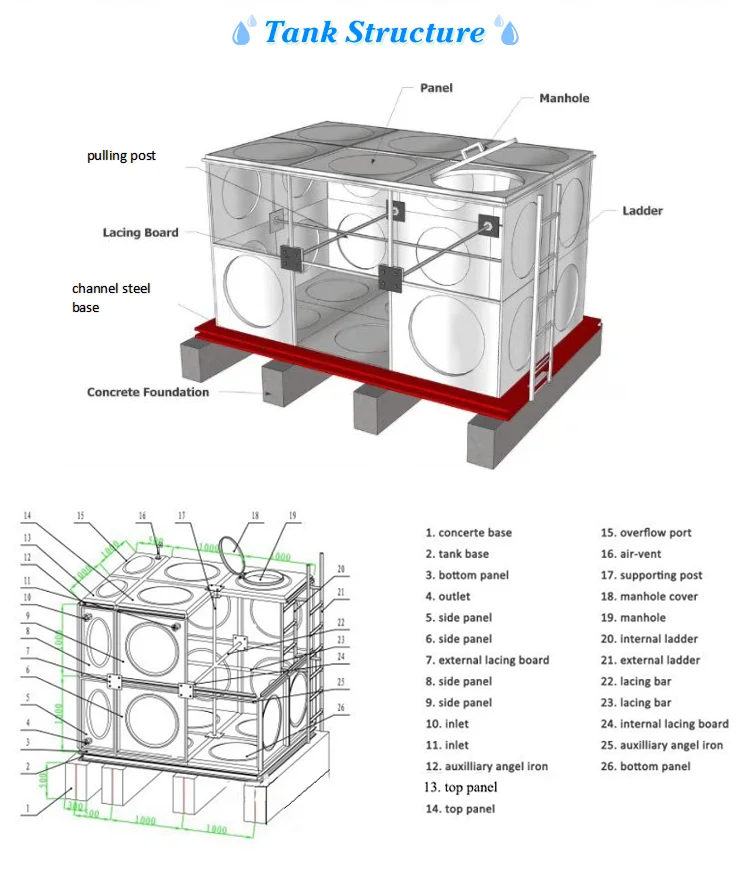

FRPwater tank is assembled by standard water tank plates, our plates have 5 sizes for your choosing ,such as 1500mm*1000mm;1500mm*500mm;1000mm*1000mm;1000mm*500mm;500mm*500mm;thickness is from 4mm to 20mm,4mm thickness plate is only for the upper cover of water tank.

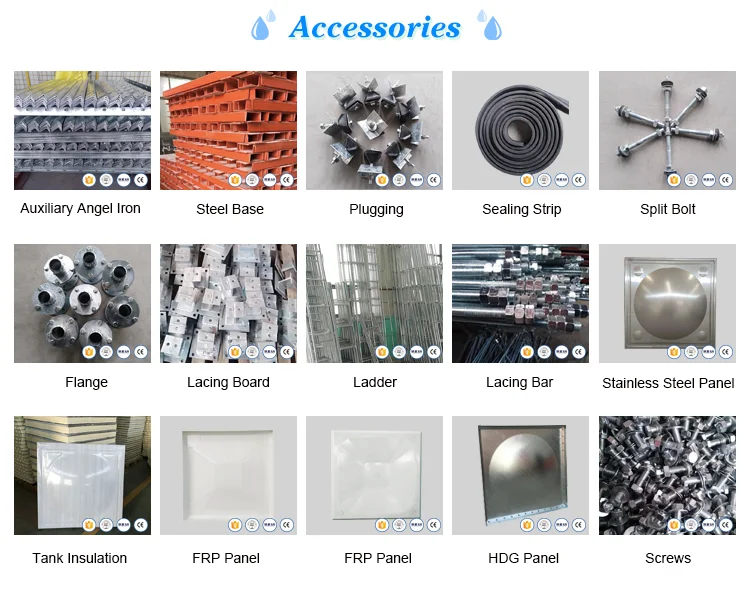

Plates linked together by screws, sealed and waterstopping rubber strip is nipped in the middle of two plates ,then added some other parts, one any size high quality water tank can be assembled.


FRPwater tank has many advantages: easy installation, flexible size, high strength, anticorrosion, good price, nice appearance,  easy to clean, etc .  This water tank has been widely used in residential buildings, hotels, office buildings, schools, mine industry, enterprise to store drinking water, fire-demand water, etc.3.png4.jpg5.png6.png7.png8.png





Buying Guides































































































water tank heightbottom panel thkside 1st panel  thkside 2nd panel thkside 3rd panel thkside 4th panel thkside 5th panel thktop  panel thk
1m1m*1m-7mm7mm    4mm
1.5m1m*1m-8mm8mm7mm   4mm
2m1m*1m-8mm8mm7mm   4mm
2.5m1m*1m-10mm10mm8mm7mm  4mm
3m1m*1m-12mm10mm8mm7mm  4mm
3.5m1m*1m-14mm12mm10mm8mm7mm 4mm
4m1m*1m-16mm14mm12mm10mm8mm 4mm
5m1m*1m-18mm16mm14mm12mm10mm8mm4mm
