Soybean grinding machine / TGM 130 Soya milk maker / Food grinding machine

Product Overview

Description

TGM-130 Soybean Grinding Machine



Soy bean grinder slag removal machine. It is suitable for soy milk, bean flower, etc., used in canteens, food and beverage stores and small food processing plants.
Help you grind the bean slag once, produce a rich soy milk, and separate the bean dregs like snowflakes.
1. Unique material door mechanism and special waterproof device for grinding and motor, which effectively solves the leakage problem of equipment.
2. The well-designed honing can make the slurry flow smoothly, less material accumulation and convenient cleaning.
3. Practical and unique coarse and fine pitch adjustment mechanism, convenient adjustment and reliable locking.
4. The specially formulated edible sand tablets have long service life and high output.
5, clean and sanitary, the entire working flow path from feeding, grinding to discharging is made of all stainless steel;
It is suitable for beans, soaked items, and fines such as soybeans after soaking.

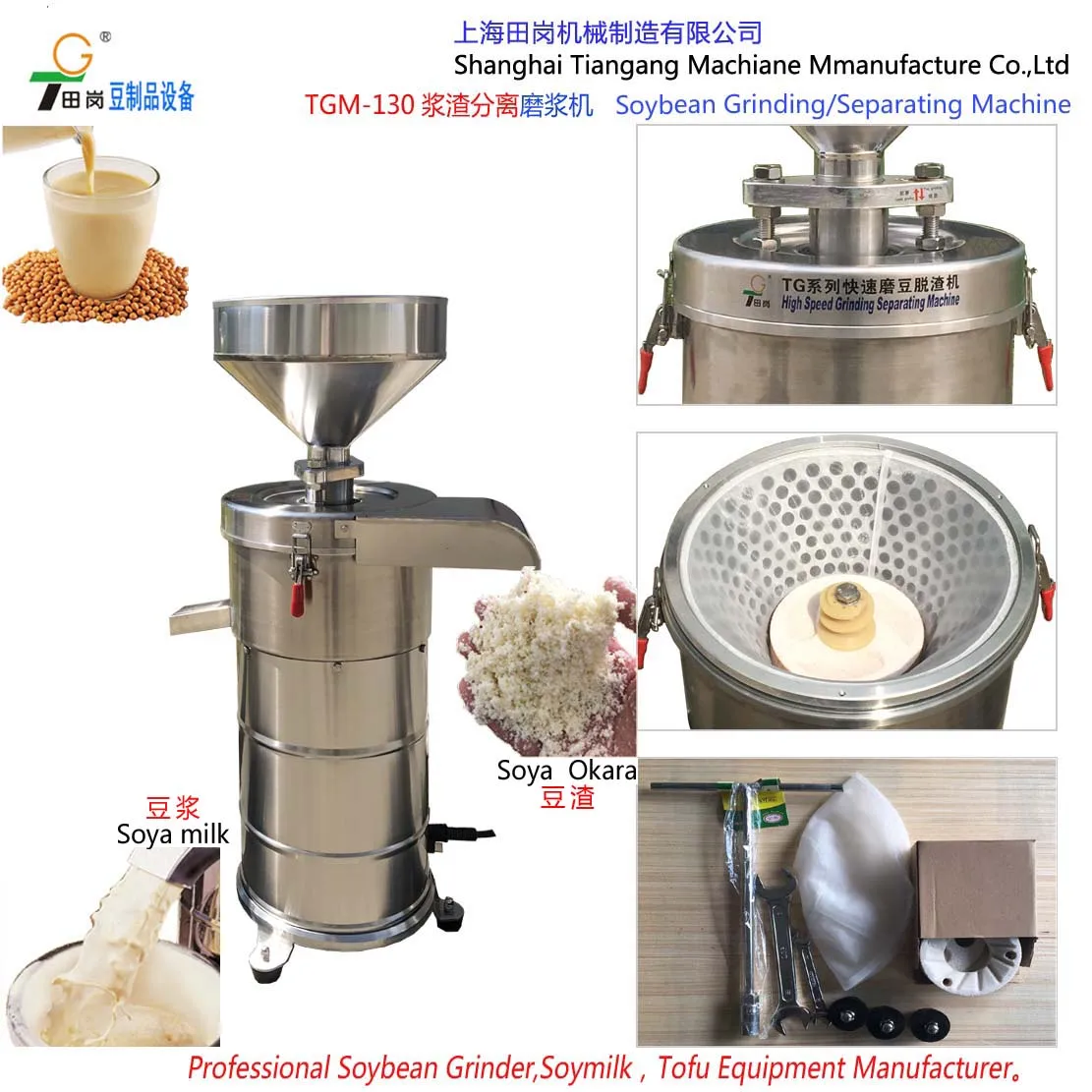

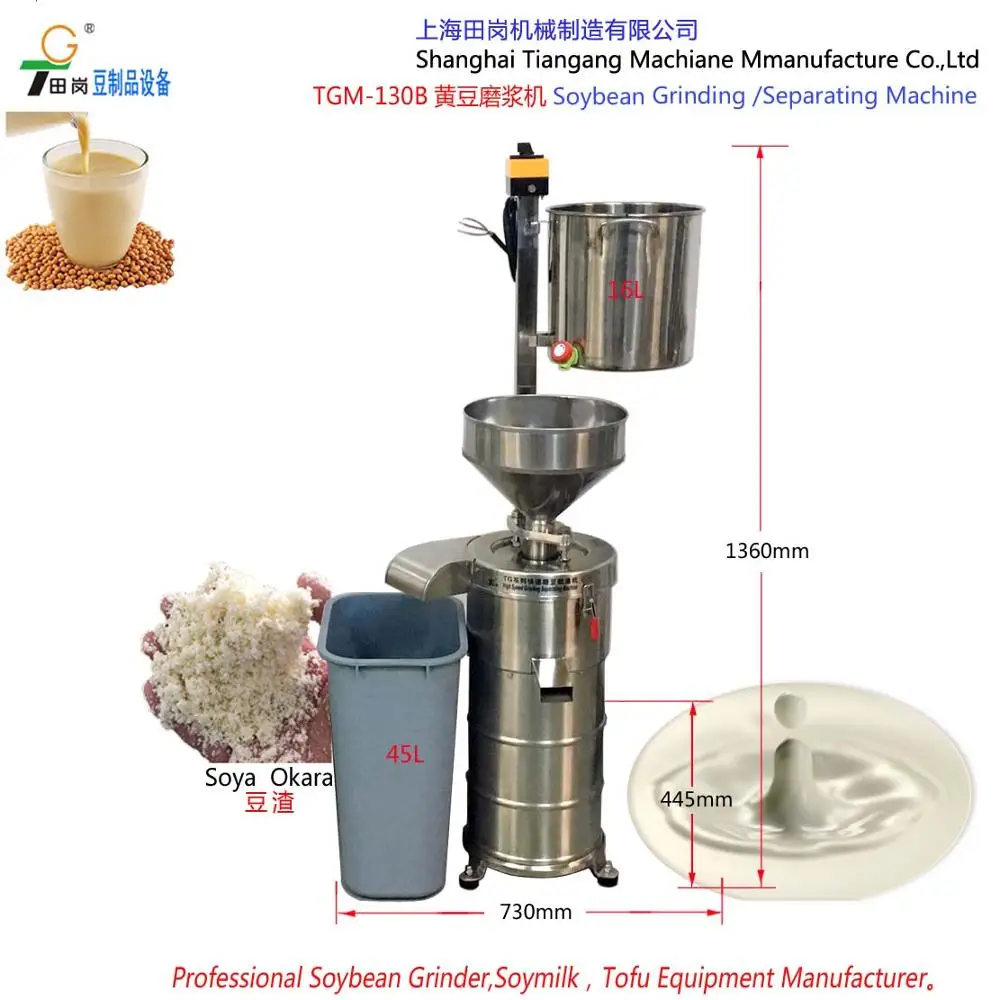

TGM-130B &TGM-130

Model: TGM-130
Production: 40-65kg / hour;
Grinding wheel diameter: 125mm; Filter: 100 mesh
Power supply: 220V/50Hz
Power: 1500W Speed: 2800 R.P.M
Dimensions: 400*500*880mm
Weight: 40kg

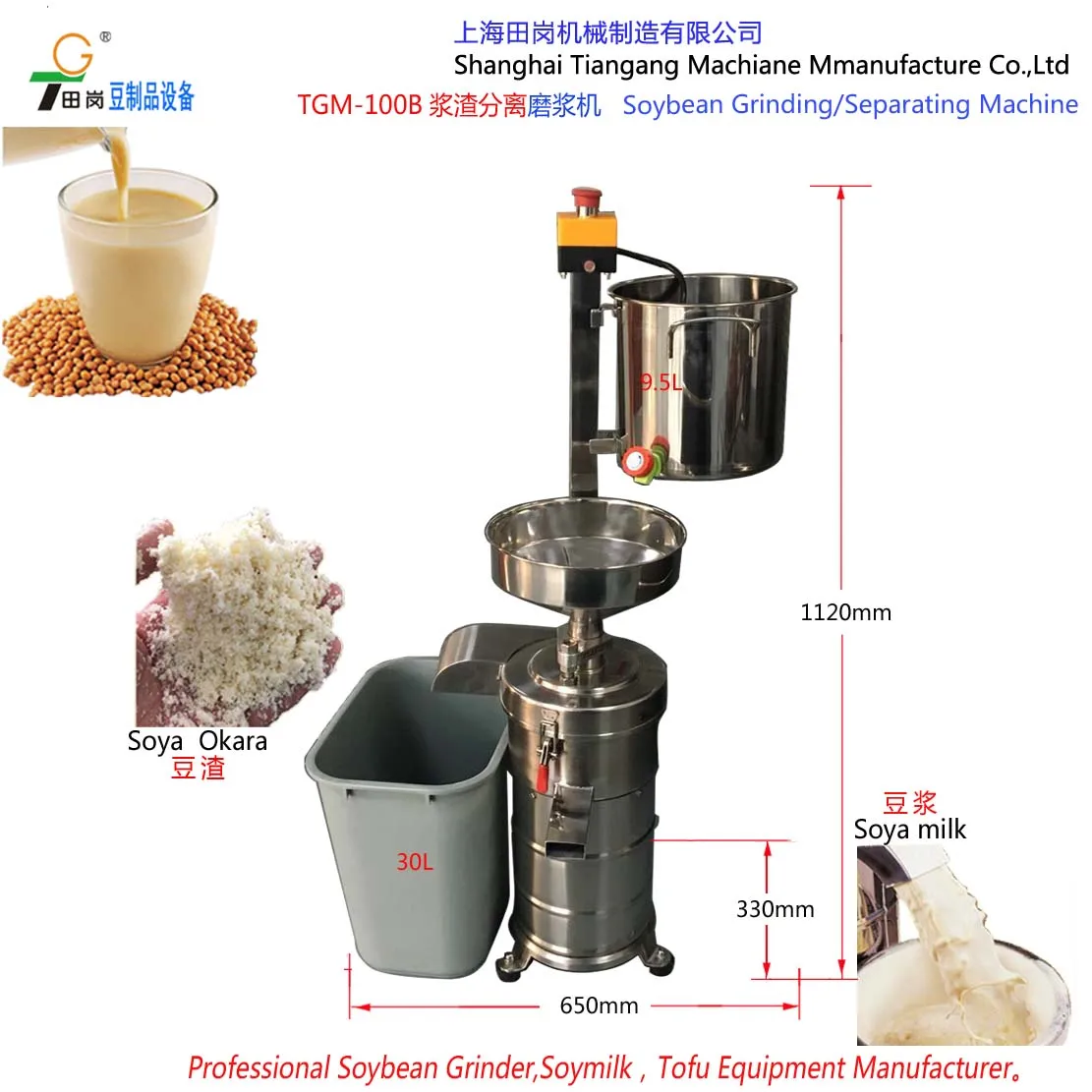

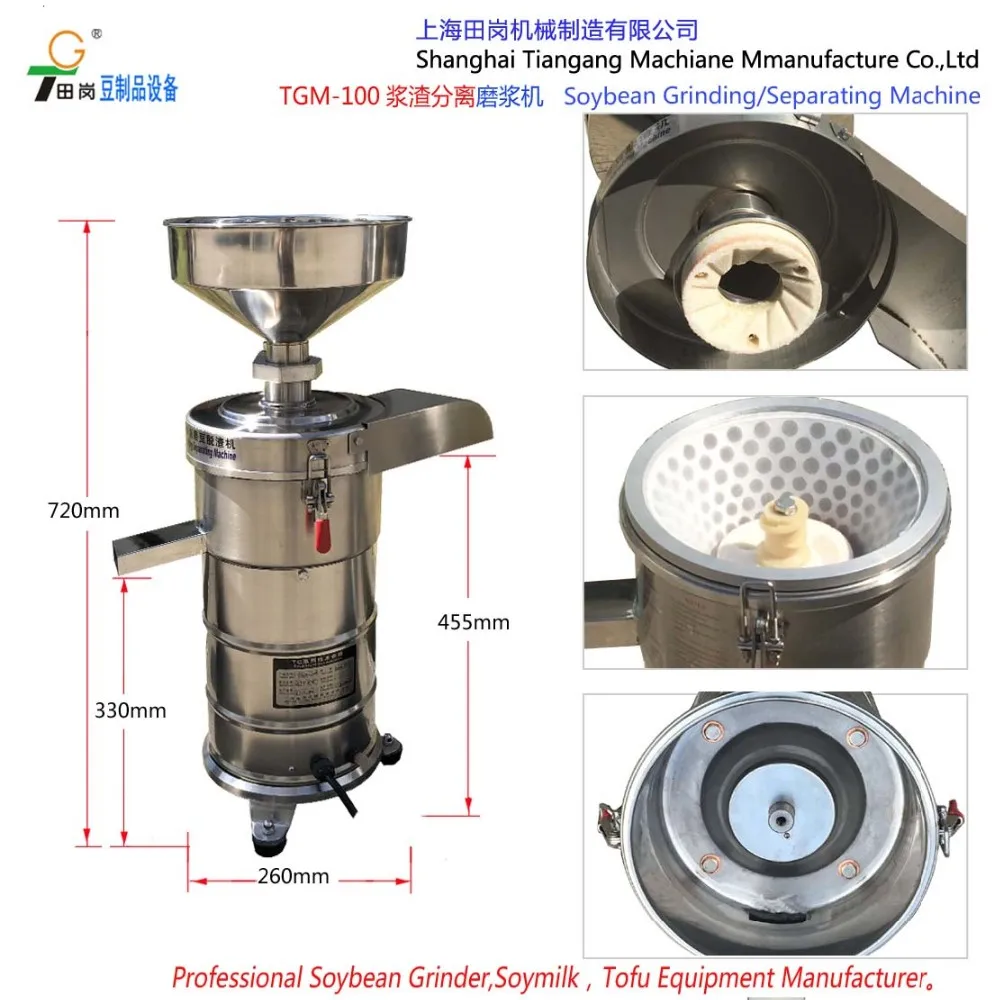

TGM-100B& TGM-100



Model: TGM-100
Power supply: 220V/50Hz
Production: 15-30kg / hour;
Grinding wheel diameter: 95mm; Filter: 100 mesh
Power: 750w Speed: 2800 R.P.M
Dimensions: 320*360*720mm
