1 3 phase diesel generator price prime power 22kw 20kva 250kva 25kva 200kva 30kw 30kva 40kw 40kva 400kva 45kw 50kw 500kva 60kw
- Category: >>>
- Supplier: Fujian Bobig Electric Machinery Co. Ltd.
Share on (60829168121):
Product Overview
Description
1 3 phase diesel generator price prime power 22kw 20kva 250kva 25kva 200kva 30kw 30kva 40kw 40kva 400kva 45kw 50kw 500kva 60kw
Products Features:
1.We cooperate with famous diesel engine -Powered by Cummins, Perkins Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25
Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.
Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list,please contact us.
Product Description
-S for silent type
| MODEL | PRIME POWER KW/KVA | STANDBY POWER KW/KVA | ENGINE MODEL | ENGINE POWER KW | STAMFORD TYPE | SIZE |
| BYU17S | 12/15 | 13.2/17 | YC2108D | 18 | BW-164D | 1700*880*1040 |
| BYU17 | 12/15 | 13.2/17 | YC2108D | 18 | BW-164D | 1400*610*1140 |
| BYU21S | 15/18.8 | 16.5/21 | YC2115D | 24 | BW-184E | 1900*880*1060 |
| BYU21 | 15/18.8 | 16.5/21 | YC2115D | 24 | BW-184E | 1400*610*1160 |
| BYU27S | 20/25 | 22/27.5 | YC2115D | 24 | BW-184F | 1900*880*1060 |
| BYU27 | 20/25 | 22/27.5 | YC2115D | 24 | BW-184F | 1400*610*1160 |
| BYU33S | 24/30 | 26/33 | YC2115ZD | 28 | BW-184G | 2100*880*1120 |
| BYU33 | 24/30 | 26/33 | YC2115ZD | 28 | BW-184G | 1550*610*1220 |
| BYU42S | 30/38 | 33/42 | YC4105D | 38 | BW-184H | 2300*970*1200 |
| BYU42 | 30/38 | 33/42 | YC4105D | 38 | BW-184H | 1800*710*1300 |
| BYU50S | 36/45 | 40/50 | YC4D60-D21 | 40 | BW-224C | 2300*970*1200 |
| BYU50 | 36/45 | 40/50 | YC4D60-D21 | 40 | BW-224C | 1800*710*1300 |
| BYU62S | 45/56 | 50/62 | YC4D85Z-D20 | 55 | BW-224E | 2500*1040*1440 |
| BYU62 | 45/56 | 50/62 | YC4D85Z-D20 | 55 | BW-224E | 2000*710*1540 |
| BYU68S | 50/62.5 | 55/68 | YC4D90Z-D20 | 55 | BW-224E | 2500*1040*1440 |
| BYU68 | 50/62.5 | 55/68 | YC4D90Z-D20 | 55 | BW-224E | 2000*710*1540 |
| BYU82S | 60/75 | 66/82 | YC4A100Z-D20 | 70 | BW-224F | 2900*1040*1480 |
| BYU82 | 60/75 | 66/82 | YC4A100Z-D20 | 70 | BW-224F | 2200*800*1580 |
| BYU113S | 80/100 | 90/113 | YC6B135Z-D20 | 90 | BW-274C | 2900*1040*1480 |
| BYU113 | 80/100 | 90/113 | YC6B135Z-D20 | 90 | BW-274C | 2200*800*1580 |
| BYU125S | 90/113 | 100/125 | YC6B155L-D21 | 103 | BW-274D | 2900*1040*1480 |
| BYU125 | 90/113 | 100/125 | YC6B155L-D21 | 103 | BW-274D | 2350*800*1580 |
| BYU138S | 100/125 | 110/138 | YC6B180L-D20 | 120 | BW-274D | 2900*1040*1530 |
| BYU138 | 100/125 | 110/138 | YC6B180L-D20 | 120 | BW-274D | 2350*800*1630 |
| BYU165S | 120/150 | 132/165 | YC6A205L-D20 | 138 | BW-274F | 3200*1040*1530 |
| BYU165 | 120/150 | 132/165 | YC6A205L-D20 | 138 | BW-274F | 2500*800*1630 |
| BYU192S | 140/175 | 154/192 | YC6A230L-D20 | 155 | BW-274G | 3200*1040*1530 |
| BYU192 | 140/150 | 154/192 | YC6A230L-D20 | 155 | BW-274G | 2500*800*1650 |
| BYU206S | 150/188 | 165/206 | YC6A245L-D21 | 165 | BW-274G | 3200*1250*1650 |
| BYU206 | 150/188 | 165/206 | YC6A245L-D21 | 165 | BW-274G | 2500*800*1750 |
| BYU275S | 200/250 | 220/275 | YC6MK350L-D20 | 235 | BW-274K | 3700*1400*2000 |
| BYU275 | 200/250 | 220/275 | YC6MK350L-D20 | 235 | BW-274K | 2600*1000*2100 |
| BYU302S | 220/275 | 242/302 | YC6MK350L-D20 | 235 | BW-4D | 3700*1400*2000 |
| BYU302 | 220/275 | 242/302 | YC6MK350L-D20 | 235 | BW-4D | 2600*1000*2100 |
| BYU350S | 250/313 | 280/350 | YC6MK420L-D20 | 280 | BW-4E | 4000*1400*2150 |
| BYU350 | 250/313 | 280/350 | YC6MK420L-D20 | 280 | BW-4E | 3100*1050*2250 |
| BDYU13S | 300/375 | 330/413 | YC6MJ480L-D20 | 321 | BW-4F | 4000*1400*2150 |
| BDYU13S | 300/375 | 330/413 | YC6MJ480L-D20 | 321 | BW-4F | 4000*1400*2150 |
| BYU440S | 320/400 | 352/440 | YC6T550L-D21 | 368 | BW-5C | 4000*1400*2150 |
| BYU440 | 320/400 | 352/440 | YC6T550L-D21 | 368 | BW-5C | 3100*1050*2250 |
| BYU500S | 360/450 | 400/500 | YC6T600L-D22 | 401 | BW-5C | 4600*1500*2250 |
| BYU500 | 360/450 | 400/500 | YC6T600L-D22 | 401 | BW-5C | 3600*1500*2350 |
| BYU550S | 400/500 | 440/550 | YC6T660L-D20 | 441 | BW-5D | 4600*1500*2250 |
| BYU550 | 400/500 | 440/550 | YC6T660L-D20 | 441 | BW-5D | 3600*1500*2350 |
Powered by Cummins , Powered by weifangricardo ,Powered by yangdong ,Powered by YTO ,
Powered by weichai ,Powered by Yuchai ,Powered by FAW ,Powered by quanchai ,Powered by Deutz ,Powered by Lovol ,Powered by Kubota ,Powered by Perkins
Packaging & Shipping
Plywood case ,10~15 working days after receiving customers
Company Information

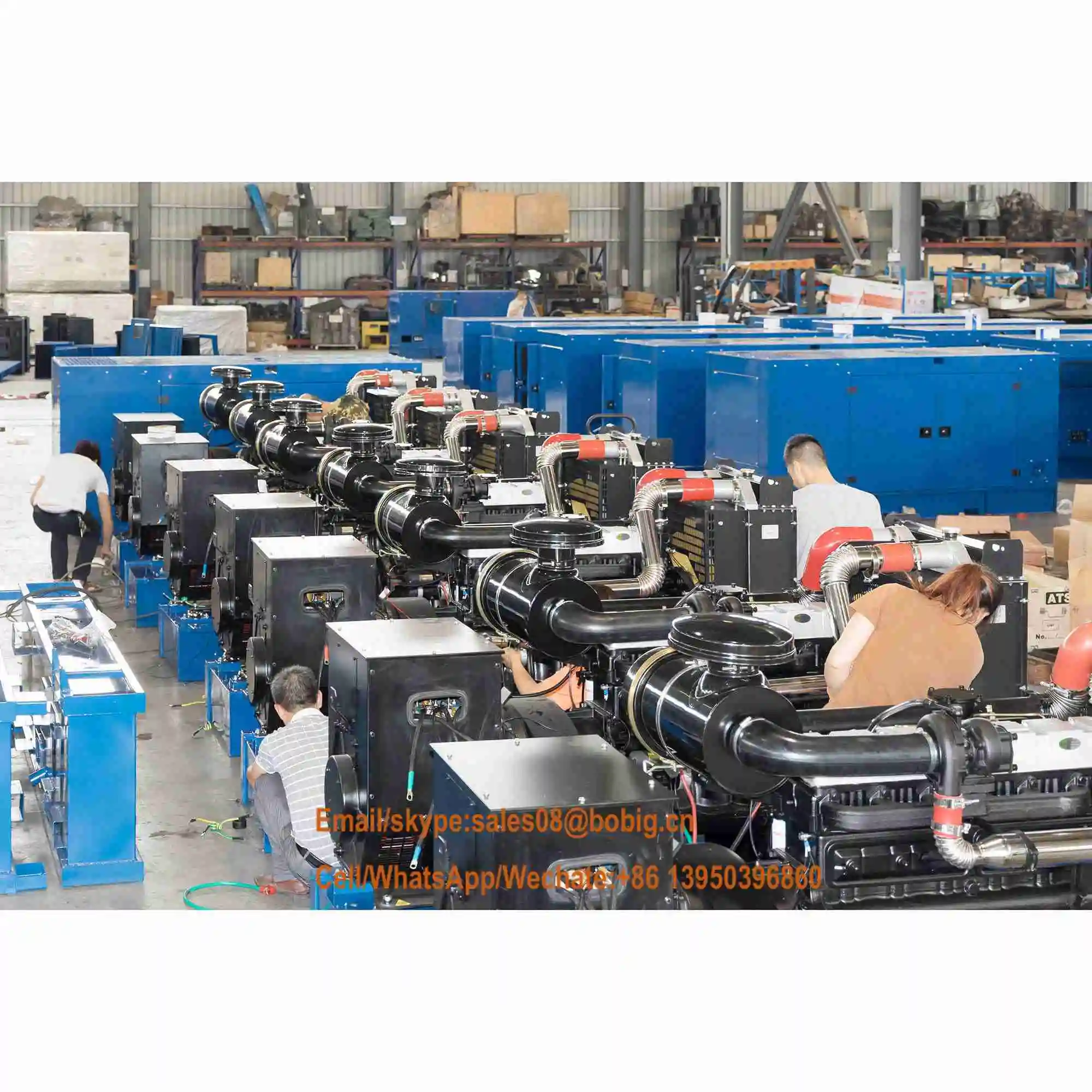

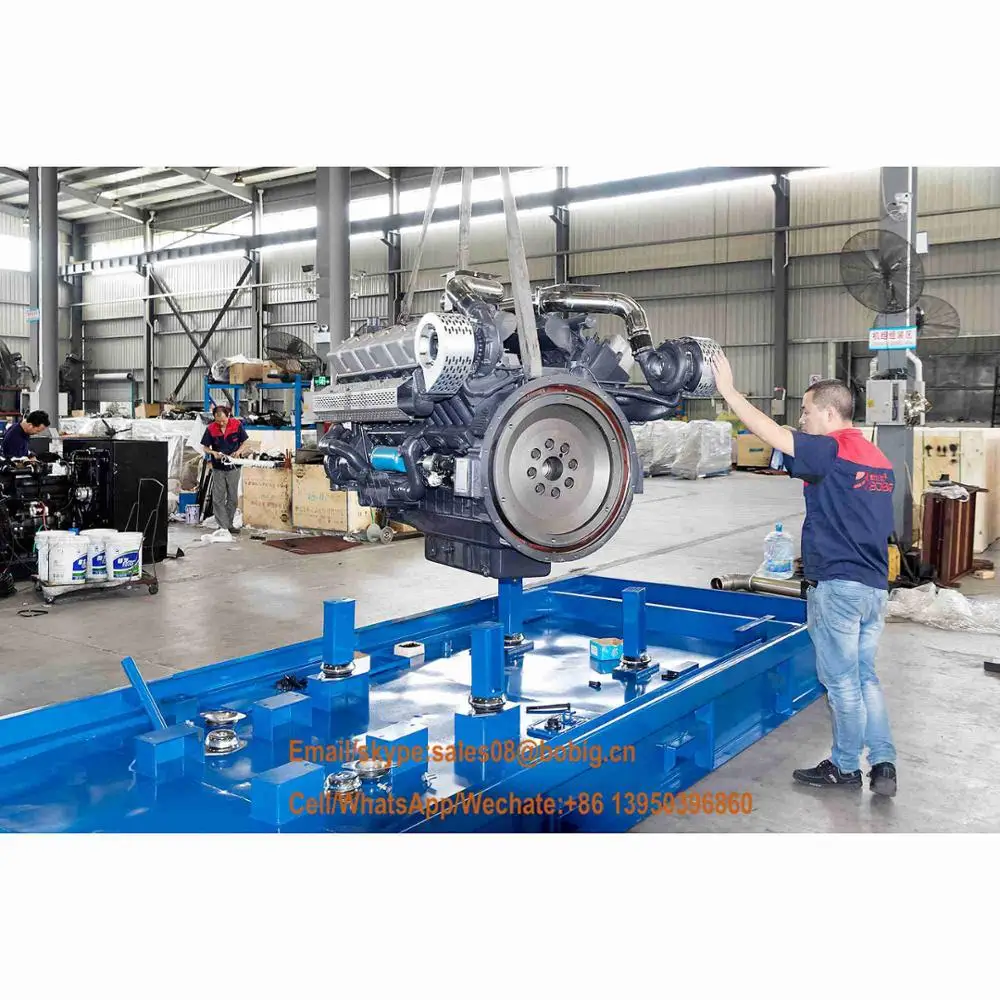

We are an electrical machinery manufacturer collecting the technological research, production and sale together. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, among which 20 people are technicians.
Our main products include gasoline generators, diesel generators 5-2000kva, gas generator,pump etc. Due to our advanced technique and devices,rich experience, reliable quality,considerate service and good team work,we have won a great reputation in the world market.
Adhering to the idea of "Quality, Creation, Service and Development", we keep the aim of updating technology, improving quality and providing better service all the time. We also have kinds of advanced equipment to test our products, such as CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment.
We always control product quality strictly and our company has obtained ISO9000 Quality System Certification. We warmly welcome you to build sincere cooperation with us.
Our Services
BOBIG products has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, we will provide the free easy-damageable spare parts, caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance.
FAQ
1. What is your MOQ, payment method, delivery time?
Answer: Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering.
Or 100% L/C,tradeassurance,paypal,wester union..Delivery period normally will be 10~15 working days after receiving customers' deposit.
2. Which port do you often use when export?
Answer: Fuzhou port,Fujian province or as customer request.
3. Is there any spare parts you can provide along with genertors to make the maintenance convenient?
Answer: We can provide regular engine's air filter, water filter, fuel filter, oil filter to customers for self-maintenance.
4.Can you offer parts to us if we need?
Answer: Yes,we can offer parts to you at any time,not limited in warranty time.usually the parts can be sent out during 3-5days.
5. For voltage,frequency,tank capacity,phase and color,can you made accord with our requests?
Answer: Yes,they can be made accord with your need.
6. If I want to be your products distributor in our country, what is your distribution policy?
Answer: Welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.
Why BOBIG
1. 15 years experience in supplying diesel generator sets and gas generator with different sorts of brand
2. We are Factory,you will have Factory price,Factory Quality,Factory Warranty.
3. Offer Super good service before and after sales,Respone your needs fast.
4. Our reputation for low prices, fast shipping and excellent customer service keeps customers coming back
