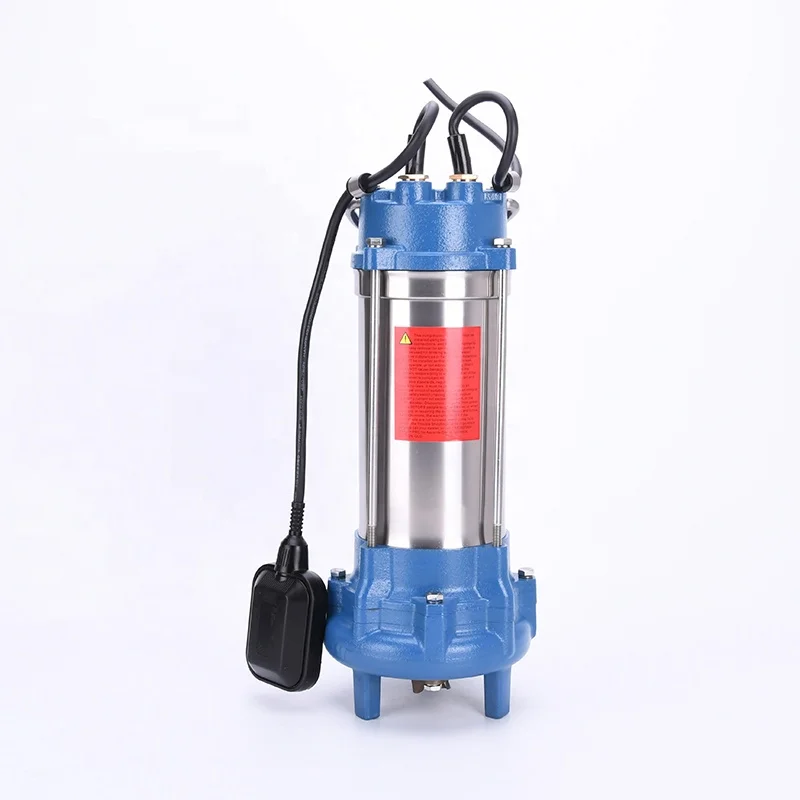

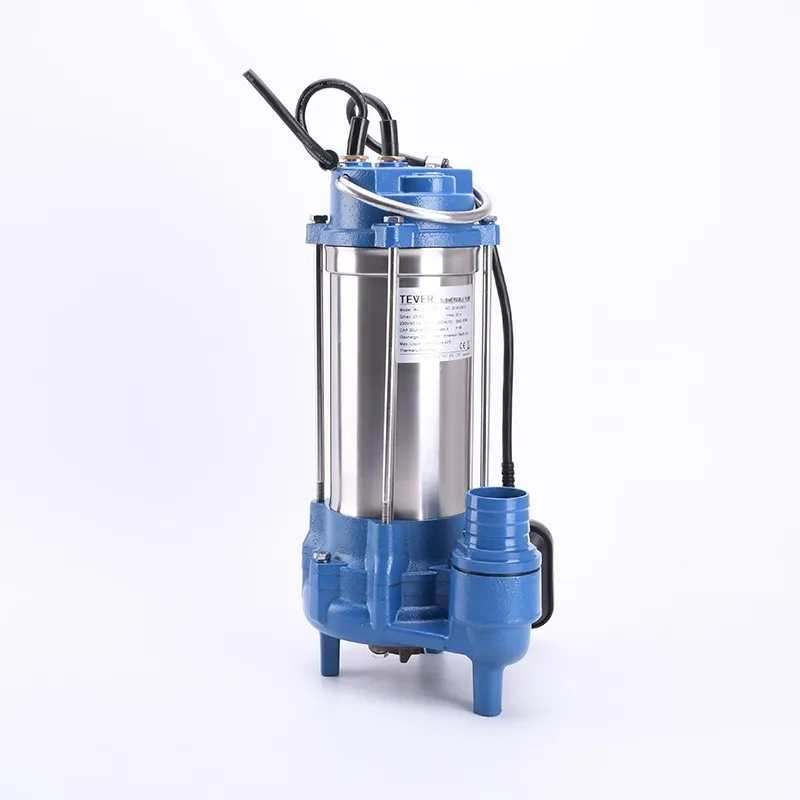

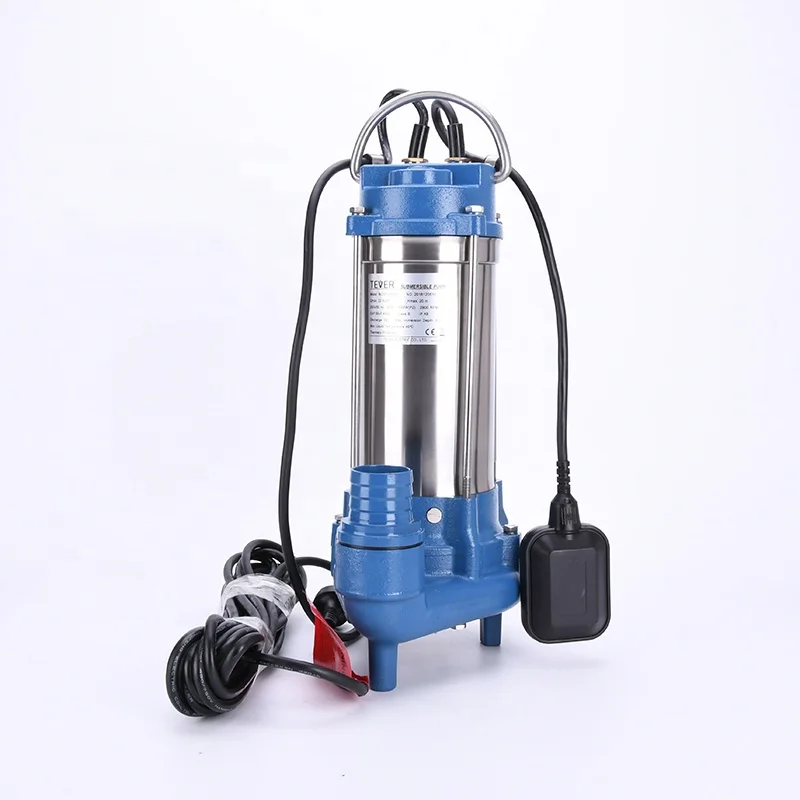

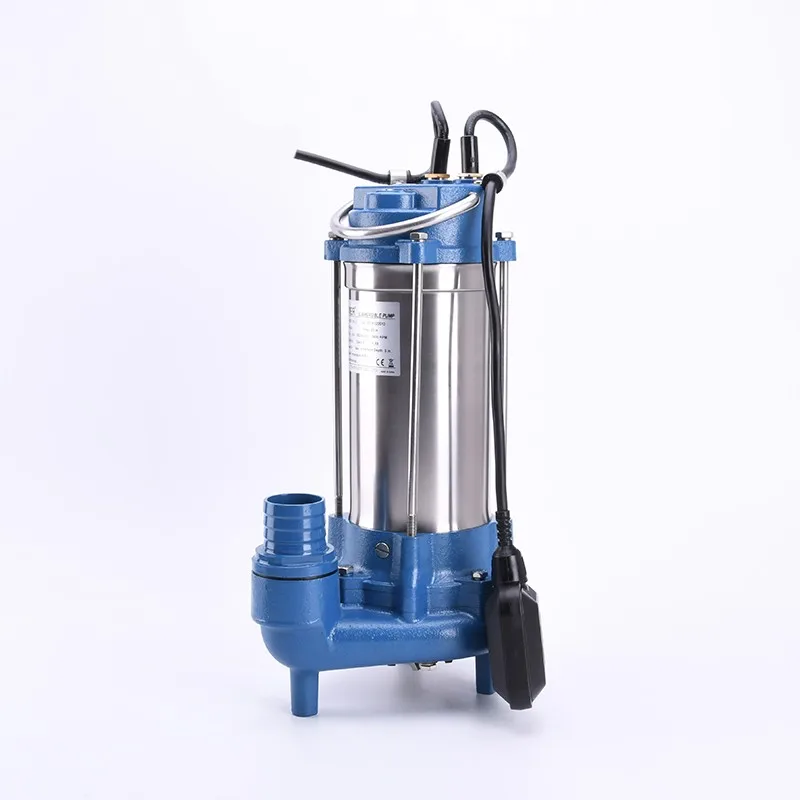

1.5kW 2hp WQD sewage grinder water pump submersible with float switch
1.5kW 2hp WQD sewage grinder water pump submersible with float switch
1.5kW 2hp WQD sewage grinder water pump submersible with float switch
1.5kW 2hp WQD sewage grinder water pump submersible with float switch
1.5kW 2hp WQD sewage grinder water pump submersible with float switch
1.5kW 2hp WQD sewage grinder water pump submersible with float switch

1.5kW 2hp WQD sewage grinder water pump submersible with float switch

Share on (60829238145):


Price:$105.00

Quantity:


Product Overview

Description



Products Description


Application

The product is a sewage pump with a cutting device for sewage transportation in industrial, agricultural and construction sites. Fit for carrying slurry, mortar, daily sanitary wastewater and sewage containing flocks, papers, mud and sand and other solid particles.Also fit for dredging.



Features

1) Automatic running
2) Excellent cutting performance
3) Overheating protection



Product Paramenters


SPECIFICATIONS

Main Performance Parameters
Max.flow
22 m3/h
Max.head
20 m


Motor
Style
Asynchronous AC motor
Input Voltage
220-240 V
Input Power
2000 KW
Rotating Speed
2900 r/min


Wet-end
Material of Impeller
Cast Iron
Material of Cutting device
SUS440C
Material of Shaft
SUS304 for wet-end
Mechanical Seal
Carbon-Silicon carbide


Working Conditions
Liquid PH
4-10
Max. Immersion Depth
7m
Max. Liquid Temperature
40 ℃
Max. Ambient Temperature
0-40℃


Details Images


Motor

Coil Winding: 100% copper

Motor Sleeve: SUS304 stainless steel, Thickness:2.0mm

Bolts: SUS304 stainless steel


The luster of stainless steel gives the product a beautiful appearance. The excellent corrosion resistance of stainless steel makes the pump suitable for liquids with different pH.

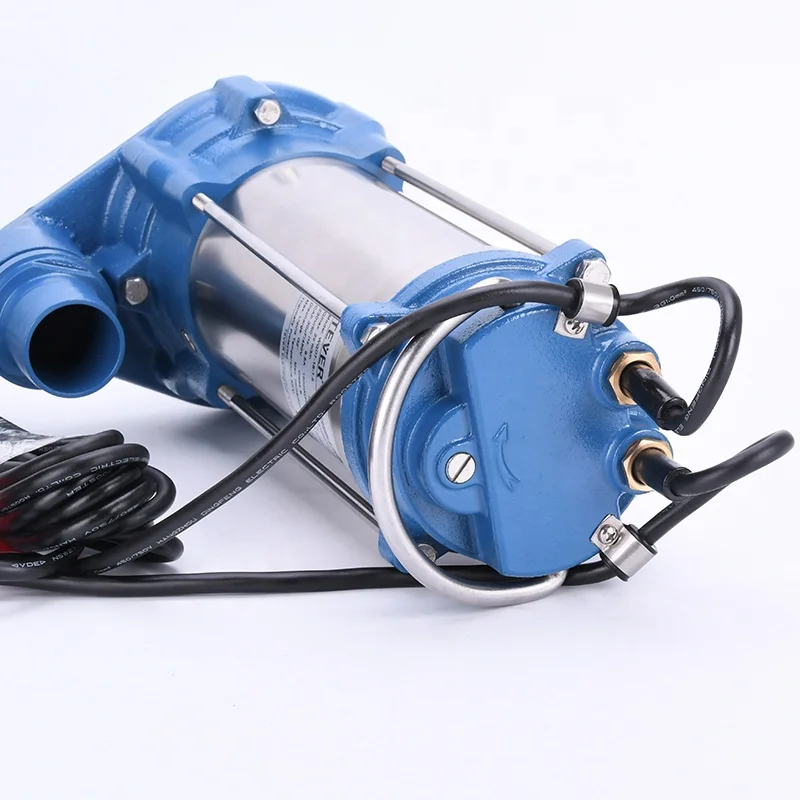

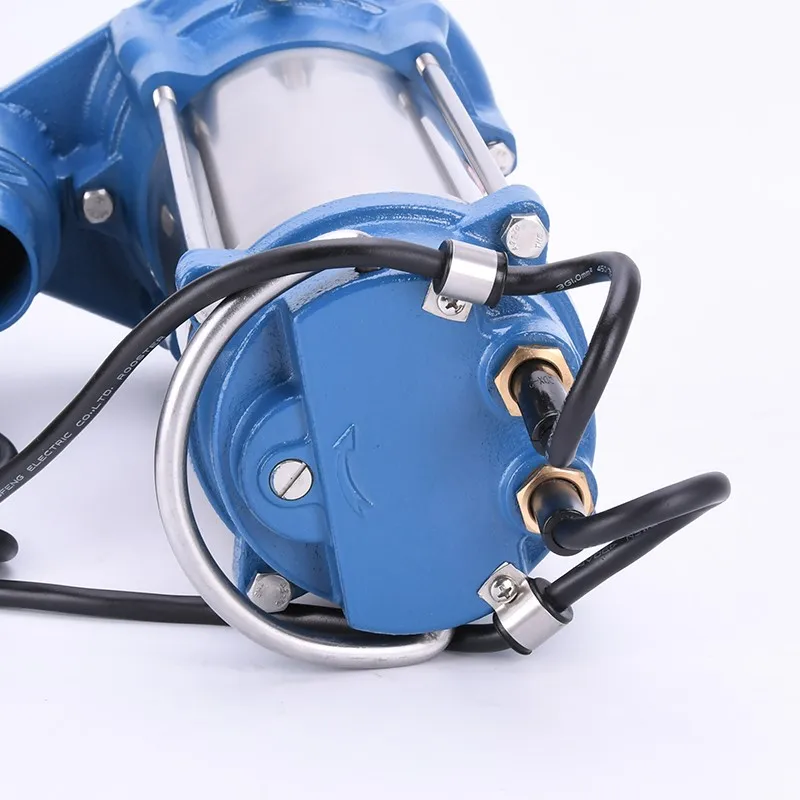

Cable Sealing Structure

The reliable sealing structure guarantees the stability of the pump for long periods of time in the liquid.



Oil Chamber Structure and Double Mechanical Seal

Oil Chamber: Keep the inner mechanical seal work in a oily condition.Extends the service life of mechanical seals
Inner Mechanical Seal: Carbon-Ceramic
Outer Mechanical Seal: Silicon carbide -Ceramic

High-quality mechanical seals and double-protected structural design, so that the motor will never burn due to water ingress

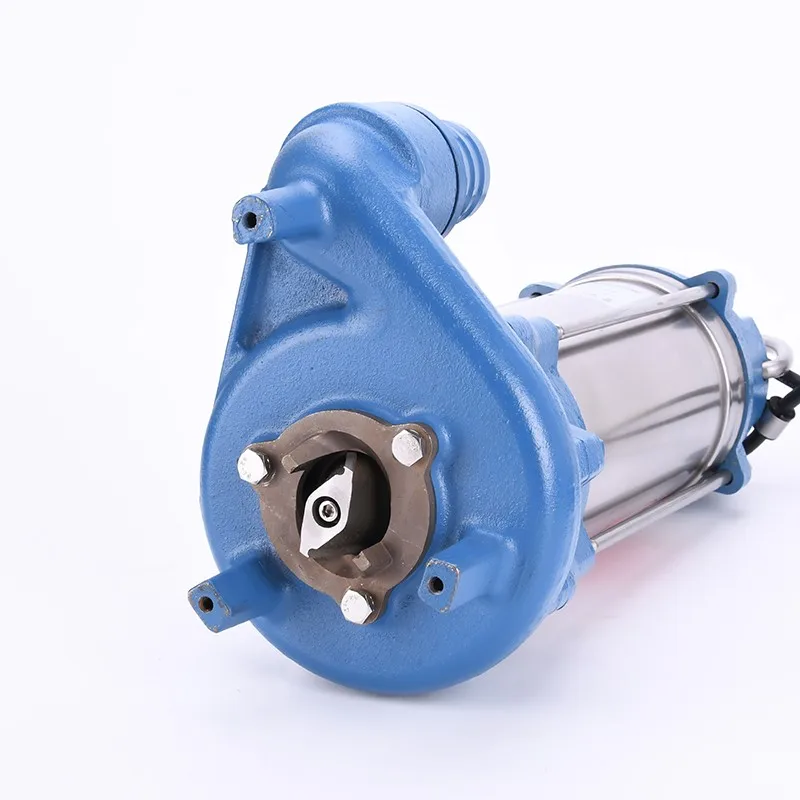

Cutting Device

Material: SUS440C

The cutting device is designed with the material of advanced cutting tools, so that the pump has excellent cutting performance, so that it will never be damaged by the impeller jamming.







Product packaging


Packaging
Size
54(L) * 27 (W) * 18 (D)CM
Weight
27 KGS



Packaging Details
The normal package is honeycomb carton.


Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the pump, training how to use the pump.

* Technology support.

* Spare parts service.

* Warranty for 13 Months.




FAQ




1. Are you a manufacturer?
Of course, we are. Our factory is located in Fu'an, Fujian.

2. How about the warranty?
We warrant the product against defects in materials and workmanship for 13 months from the date of the bill of lading. We do not warrant against normal wear and tear, nor damage casused by accident or abuse.

3. What are the payment terms?
For new clients, if the amount is less than US$10,000, 30% deposit by T/T, the rest will be paid before shipment. If the amount exceeds than US$10,000, 30% deposit by T/T, the rest will be paid as per the copy of the bill of lading. We can also accept the payment term of LC if the amount exceeds US$20,000.

4. What is the MOQ?
For a 220-240V/50Hz pump - Peripheral pumps - 200PCS Submersible pumps- 100PCSFor other voltage and frequency pumps - 200PCS

5. How about the lead time?
The goods will be ready within 45-60 days after receiving the deposit.
