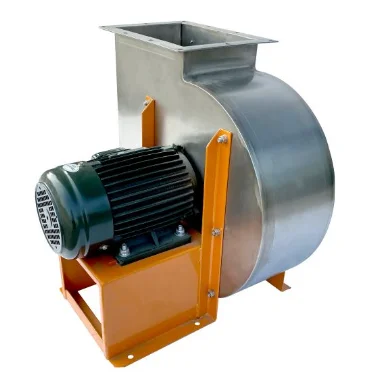

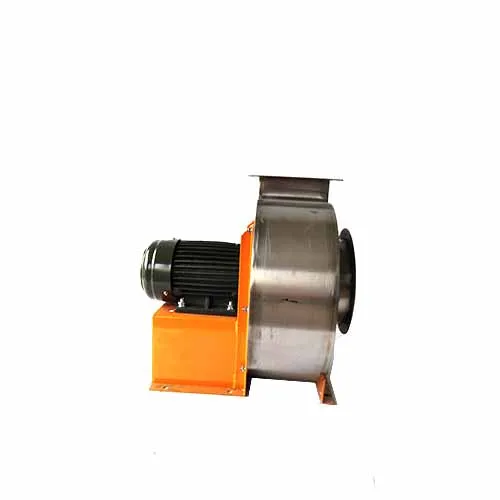

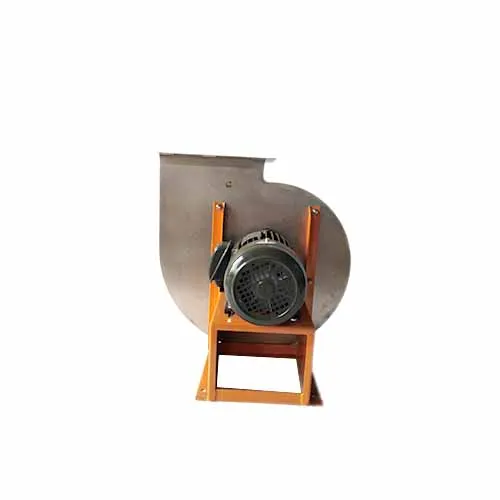

Yuton 11 62 series stainless steel Kitchen Hotel Factory Film Environment Control System Centrifugal Fan circulation blower

Product Overview

Description







High Quality Air Ventilation System



High Quality Environment Control System

1.0  GENERAL

A.  Fans is 11-62 Series Circle Air Ventilator .as manufactured by Guangdong Gaoze Ventilation Equipment Ltd Co.,of Shunde, Foshan,China.and of the size and capacity as indicated on the following specifications.

B.  Fans got CCC & CE & ISO 9001 approval.and shall be tested before shippment.

C.  All motor and blades,housing are also supplied.

D.  Fans has the profermance of high efficicency,low noise and low revolution.





2.0  FAN HOUSING

A.  Fans adopt the structure of advanced logarithmic spiral housing.

B.  Fans shall be made of superior steel by welding with enough strength and rigidity.

C.  Applying the latest muffler structure resulted in good effect of noise reduction.

D.  Fans housing could be customized to stainless steel.

E. The angle of fan outlet can be adjusted to 0 ° 90 ° &180 °.



3.0  FAN IMPELLER

A.  Centrifugal impeller shall be made of superior steel. Multd-blades & Forward curved.

B.  Centrifugal impeller feactures high aerodynamic performances

     low noise and stable running after dynamic and static balance adjustment.





4.0  FAN MOTOR AND DRIVE

A.  Motor shall be 100% copper.

B.  Voltage, Frequency & Materials could be customized.

C.  Horsepower & RPM as the following specification schedule.

D.  The fan is not appended bearing support,impeller and motor drive directly.

 5.0  APPLICATIONS

a.General Ventilation     b.Process ventilation     c.Contaminated Air Streams

d.Mining Ventilation      e. Air-conditioner          f.Fumes duct or smoke removal etc

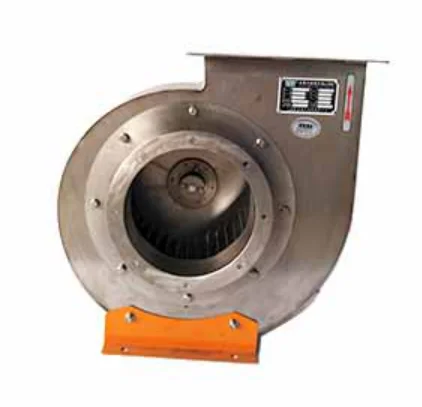

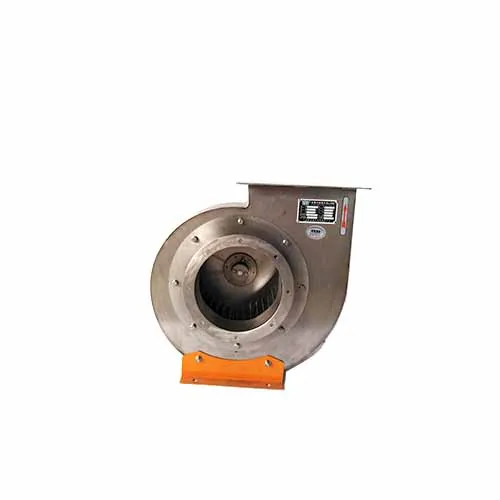

Stainless steel  Type:











This one special for lampblack for purifying:





Voltage,frequency & Material could be customized.



 11-62-A Series Muti-blades Centrifugal Fan

Model    (No.)	Impeller Diameter	Voltage	Power	Revolution	Air Flow	Pressure	Product Size
		(V)	(KW)	(rpm)	(m3/h)	Pa	(cm)
2.5A	250mm	220/50Hz	0.55	1450	950-2100	340-400	47X47X46
		380/50Hz	0.55	1450	950-2100	340-400	47X47X46
2.8A	280mm	220/50Hz	0.75	1450	1150-2500	450-480	51X53X53
		380/50Hz	0.75	1450	1150-2500	450-480	51X53X53
3A	300mm	220/50Hz	1.5	1450	1300-2800	210-270	55X57X55
		380/50Hz	1.5	1450	2000-4250	480-600	55X57X55
3.5A	350mm	380/50Hz	1.1	960	2600-4300	260-350	67X63X72
		380/50Hz	2.2	1450	3355-5355	420-730	67X63X72
		380/50Hz	3	1450	4000-6500	600-800	67X63X72
4A	400mm	380/50Hz	2.2	960	4400-9500	330-480	74X78X78
		380/50Hz	3	960	4500-9500	350-500	74X78X78
5A	500mm	380/50Hz	4	960	5300-9300	650-750	94X83X94
		380/50Hz	5.5	960	5600-9500	760-860	94X83X94
6A	600mm	380/50Hz	7.5	960	8000-15000	450-100	101X94X102
6.5A	650mm	380/50Hz	11	960	13000-21000	700-1200	124X95X122
7A	500mm	380/50Hz	11	720	9000-20000	344-724	137X96X142



This one special for lampblack for purifying:

Model    (No.)	Impeller Diameter	Voltage	Power	Revolution	Air Flow	Pressure	Product Size
		(V)	(KW)	(rpm)	(m3/h)	Pa	(cm)
2.8A	280mm	220/50Hz	0.75	1450	950-2100	400-320	51X53X53
		380/50Hz	0.75	1450	950-2100	400-320	51X53X53
3A	300mm	220/50Hz	1.5	1450	2100-3850	810-600	55X55X34
		380/50Hz	1.5	1450	2100-3850	810-600	55X55X34
3.5A	350mm	380/50Hz	1.1	960	2006-4850	495-375	67X59X72
		380/50Hz	3	1450	2850-6800	1160-600	67X59X72
		380/50Hz	2.2	1450	2700-6500	580-1060	67X59X72
4A	400mm	380/50Hz	2.2	960	2600-5500	330-480	74X64X78
		380/50Hz	4	1450	5500-7800	1650-1400	74X69X78
4.5A	450mm	380/50Hz	3	960	4100-8970	975-830	87X74X84
5A	500mm	380/50Hz	4	960	6000-11500	1060-875	94X80X94
6A	600mm	380/50Hz	5.5	960	8080-12619	1031-1270	101X94X102
