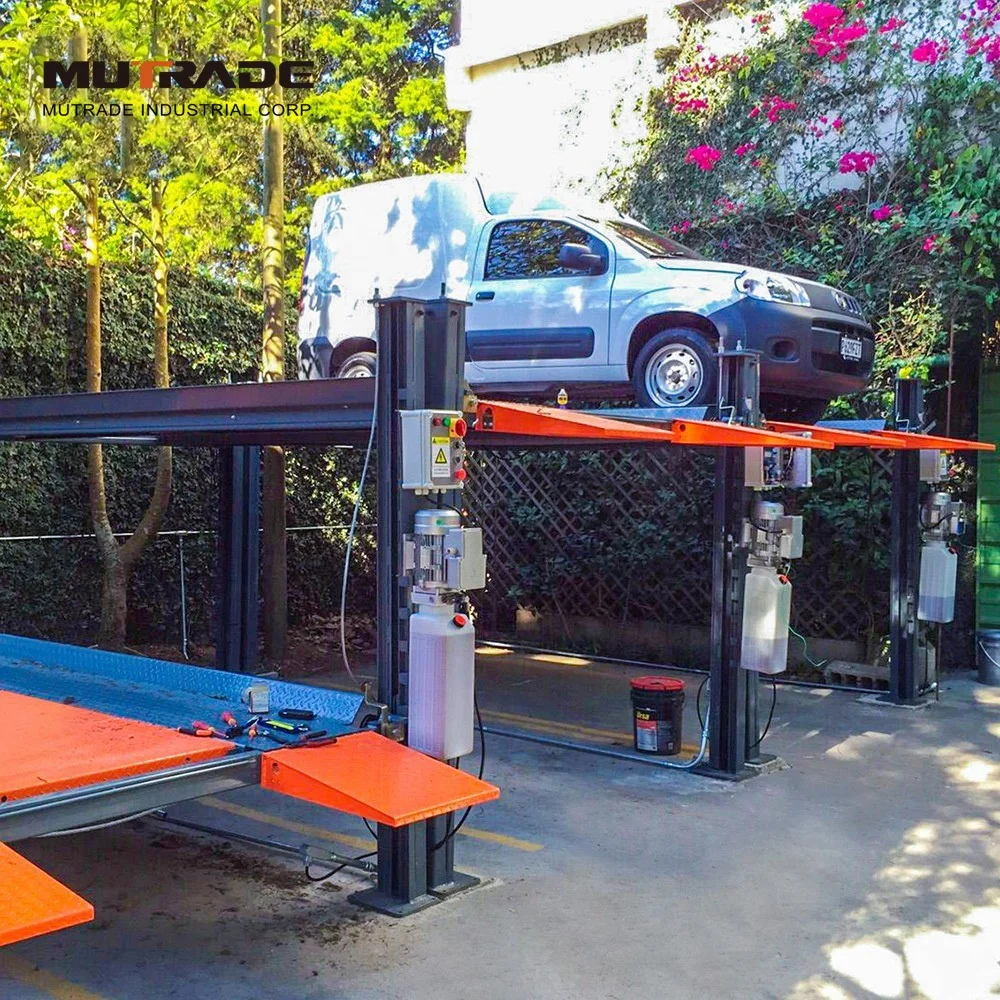

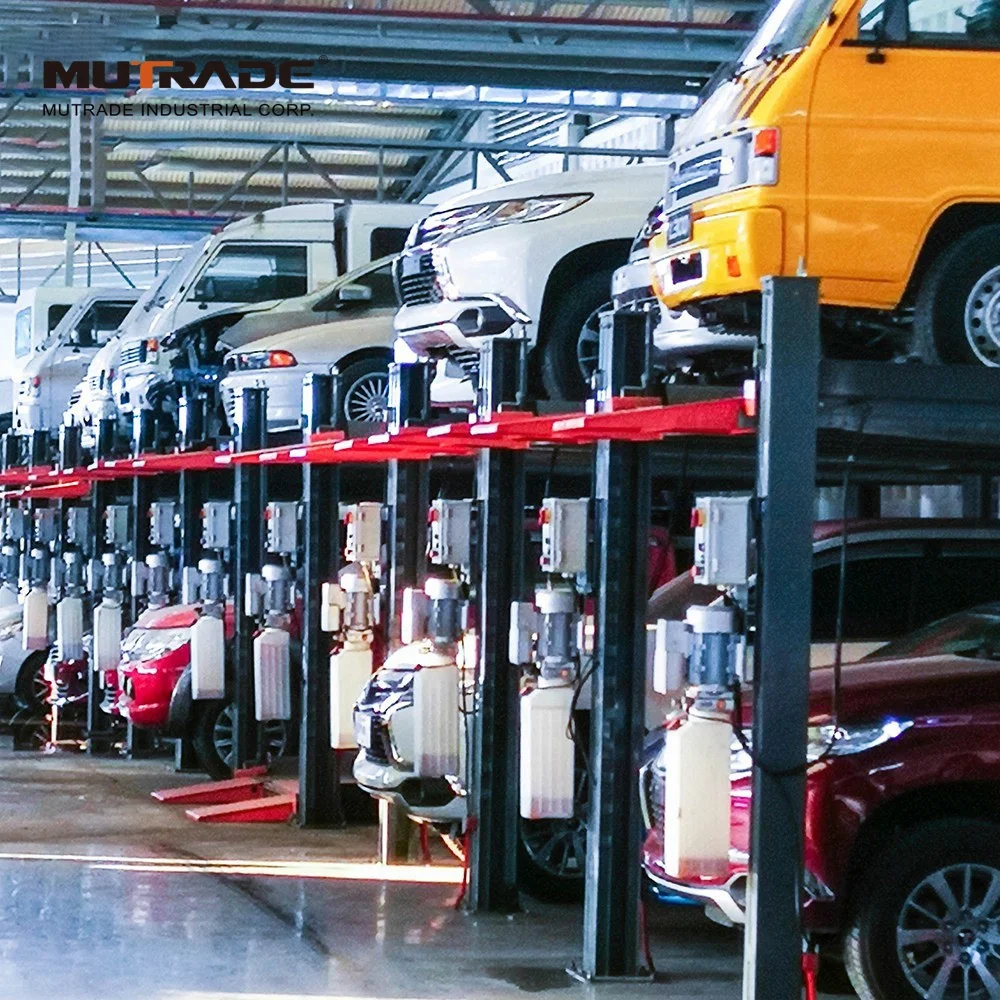

Four Column Hydraulic 4 Post Bridge car lift ramps vertical smart parking lift car stacker

Share on (60829307885):


Price:$2,300.00 - $2,400.00

Quantity:


Product Overview

Description





Product Description






Project Reference




Products Details

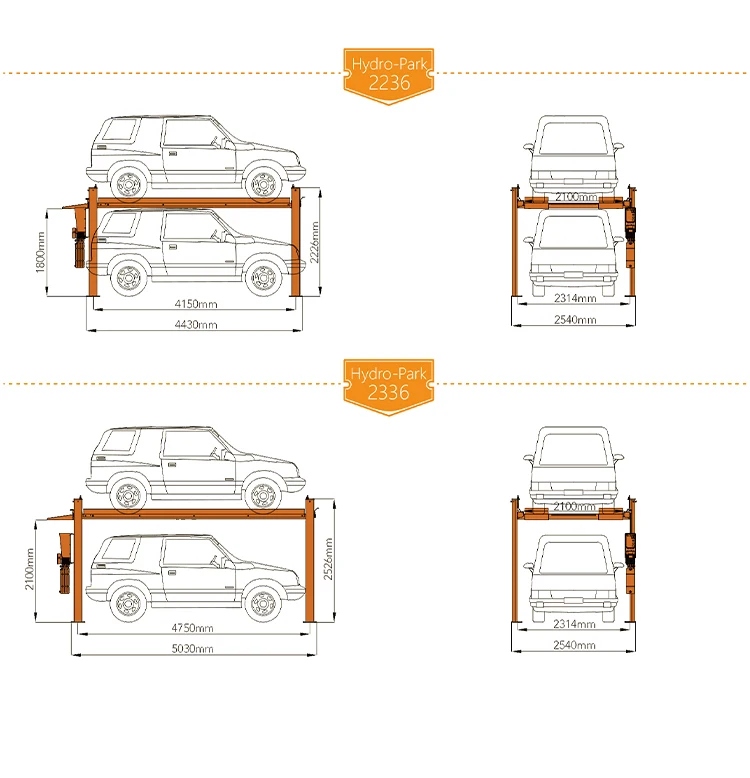

Technical Details




Mode
Hydro-Park 2236
Hydro-Park 2336
Type
Four-post
Four-post
Lifting capacity
3600kg
3600kg
Lifting height
1800mm
2100mm
Parking vehicles
2
2
Drive mode
Hydraulic cylinder + rope
Hydraulic cylinder + rope
Motor power
2.2kw
2.2kw
Power supply
110-480v, 50/60hz
110-480v, 50/60hz

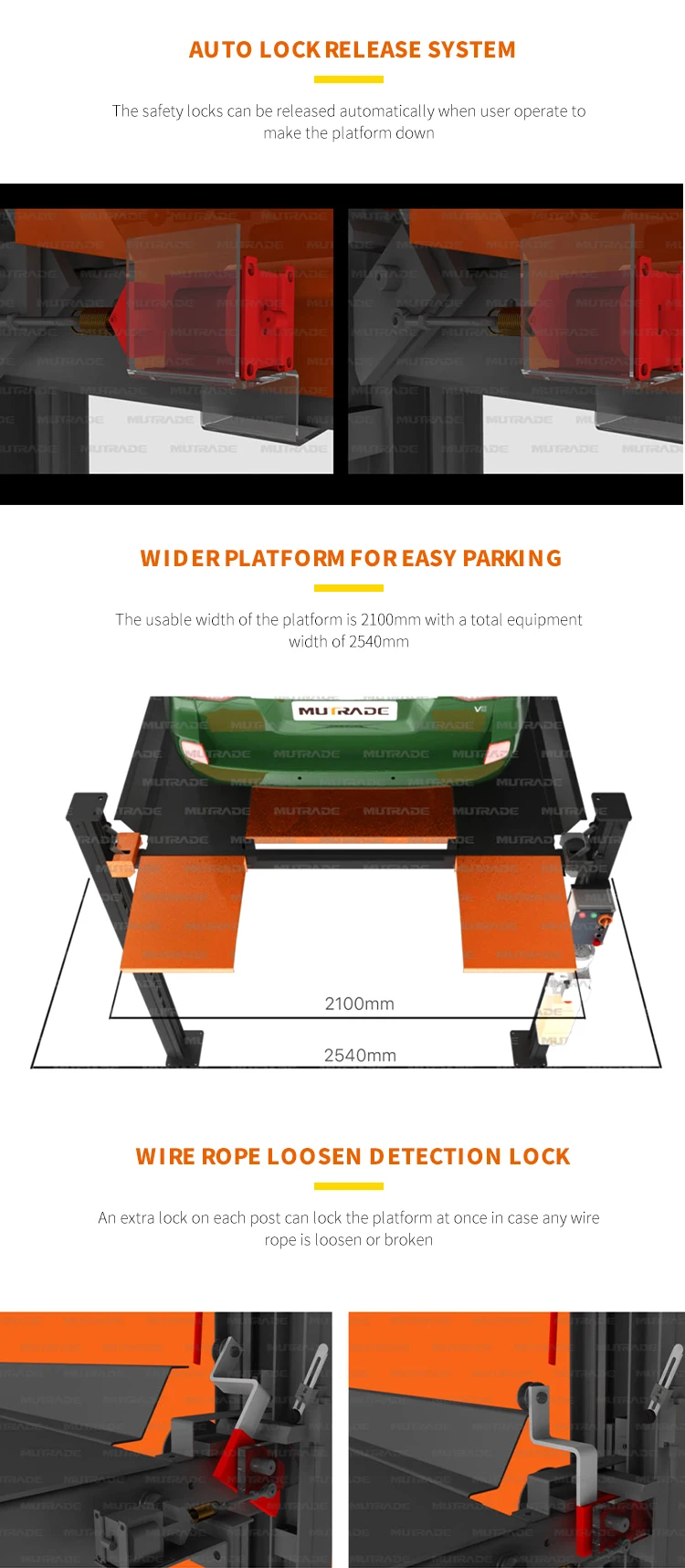

Lock release
Electric auto release
Electric auto release
Operation
Key switch
Key switch
Surface treatment
Powder coating
Powder coating
Certification
CE
CE


Related Products




Our Company






FAQ
1. How many cars could be parked for each unit?
2 cars. One is on the ground and another is on the platform.
2. Could Hydro-Park 1123 be used for parking SUV?
Yes, the rated capacity of Hydro-Park 1123 is 2300kg, and maximum capacity is 2500kg, many types can be available.
3. Can Hydro-Park 1123 be used outdoor?
Hydro-Park 1123 is capable for both indoor and outdoor use . The fnishing is powder coating and plate cover is galvanized, with rust-proof and rain-proof. When used indoor, you need consider the ceiling height.
4. What's the supply voltage?
Standard voltage is 220v, 50/60Hz, 1Phase. Other voltages could be customized according to clients' request.
5. Is the operation easy?
Yes. Keep holding the key switch to operate the equipment, which will stop at once if your hand releases.
6. Can this product still operate if electricity failure happens?
The platform can be descended even if there is no electricity. Firstly you need manually keep two electromagnetic lock retrieve to release the mechanical anti-falling lock, meanwhile the solenoid valve on the power unit can be opened manually to make hydraulic oil go back to oil tank, then the platform will descend by gravity
