Busbar Processing Machine punching dies, punch molds
US $110.00-$115.00

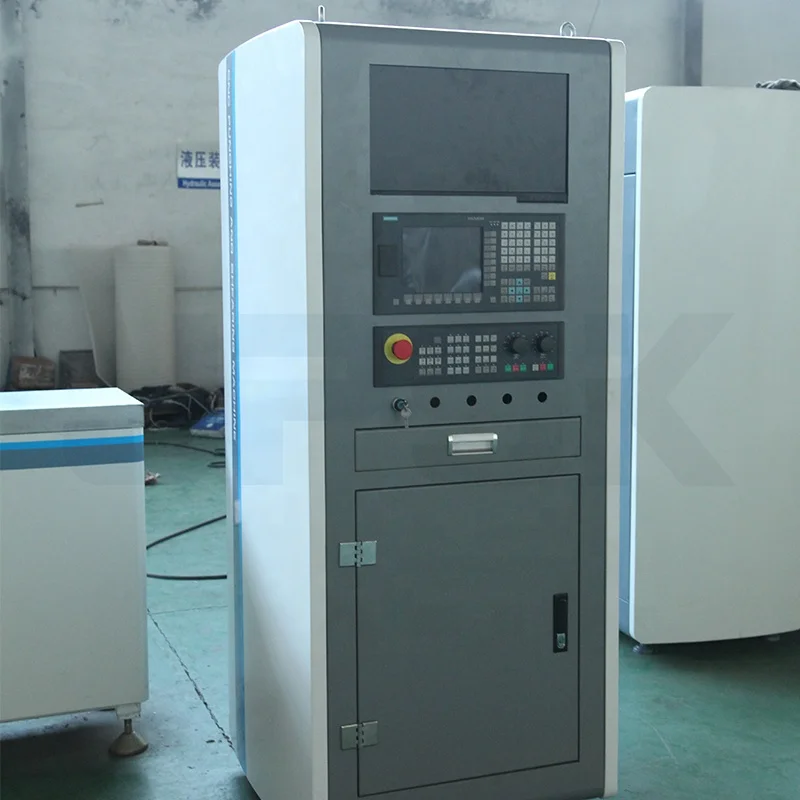

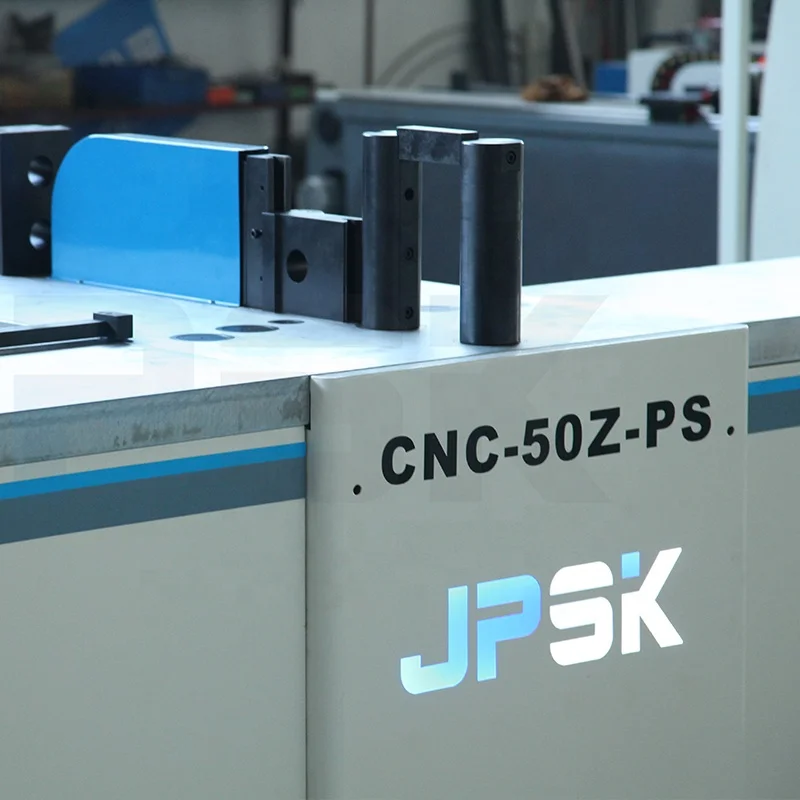

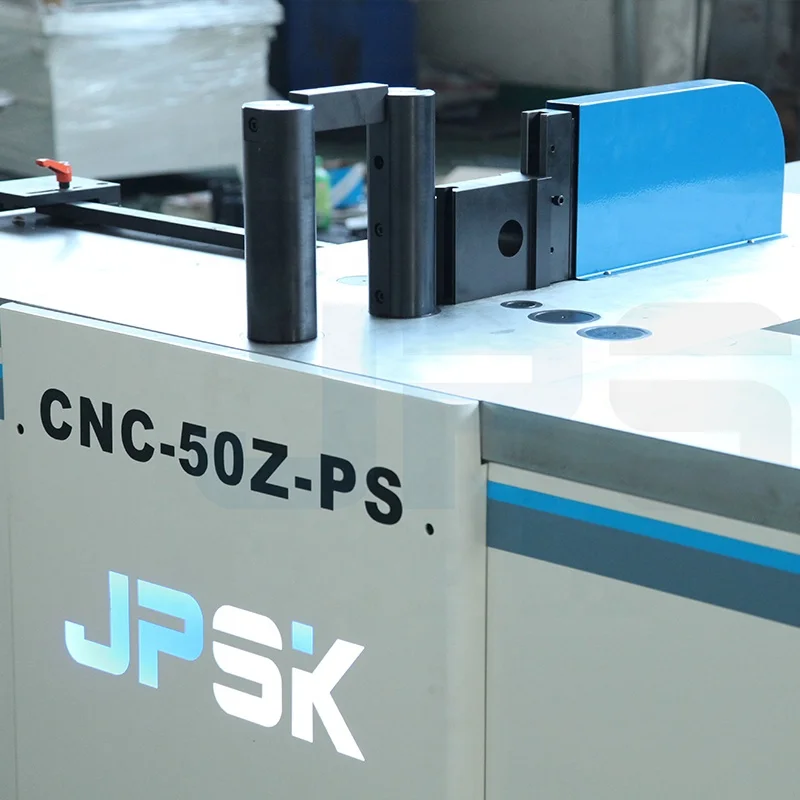

CNC 50Z PS серводвигателей c ЧПУ Типа CNC гидравлическая подъемная машина
- Category: Busbar Machine >>>
- Supplier: Jinan Jingpeng Cnc Machinery Co. Ltd.
Share on (60829326544):
Product Overview
Description
Product Description

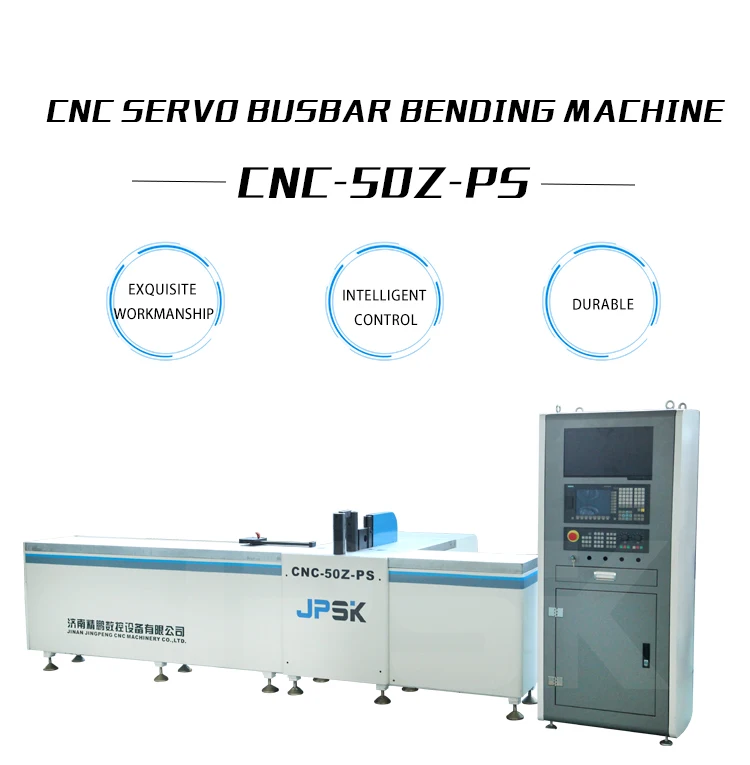

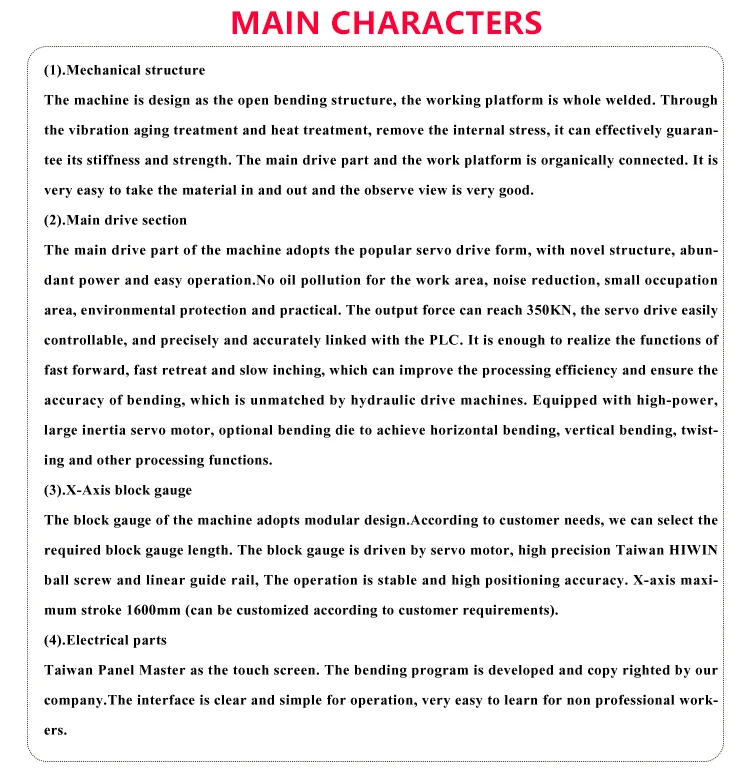

CNC-50Z-PS adopts high-power servo motor to offer power for bending, and CNC servo block system controls the length of bending workpiece, high bending precision, accurate positioning, and low noise.
Technical parameters
Item | CNC-50Z-PS | CNC-50Z-H |
Nominal force | 350kn | 500kn |
Main motor power | 5.0kw | 5.5kw |
Max. bending stroke | 220mm | 220mm |
Length of block gauge | 1600mm | 1600mm |
Precision of block gauge | +/-0.1 (1000mm) | +/-0.1 (1000mm) |
Bending precision | +/-0.5 | +/-1 |
Repeat location precision | +/-0.1 | +/-0.5 |
Max. bending size | 12×200mm | 15×200mm |
Max. speed of block gauge (X-axis) | 15m/min | 15m/min |
Speed of bending | Fast 5 m/min, slow 1.25m/min | Fast 5 m/min, slow 1.25m/min |
Power motor of block gauge | 0.75kw | 0.75kw |
Out dimension | 4200×1800mm | 4200×1800mm |
Total weight | 2600kg | 2800kg |
