Single 50k rotary switch potentiometer
- Category: >>>
- Supplier: Tong Yue Xin Commercial And Trading Co. Ltd. (Chengdu)
Share on (60829329599):
Product Overview
Description
Single 50k rotary switch potentiometer
Product Description

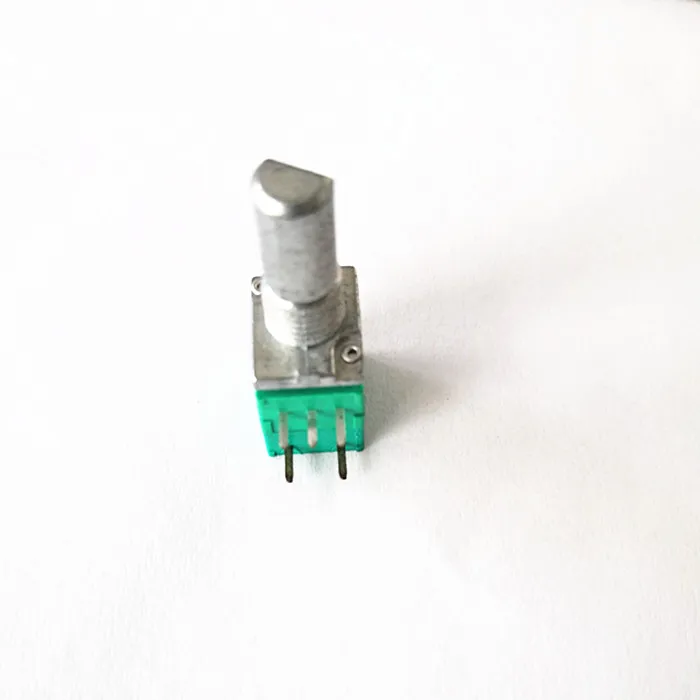

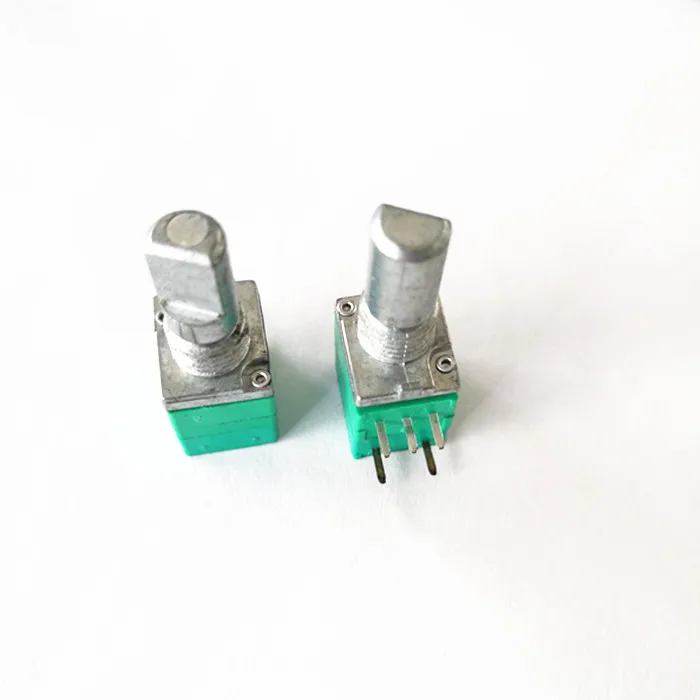

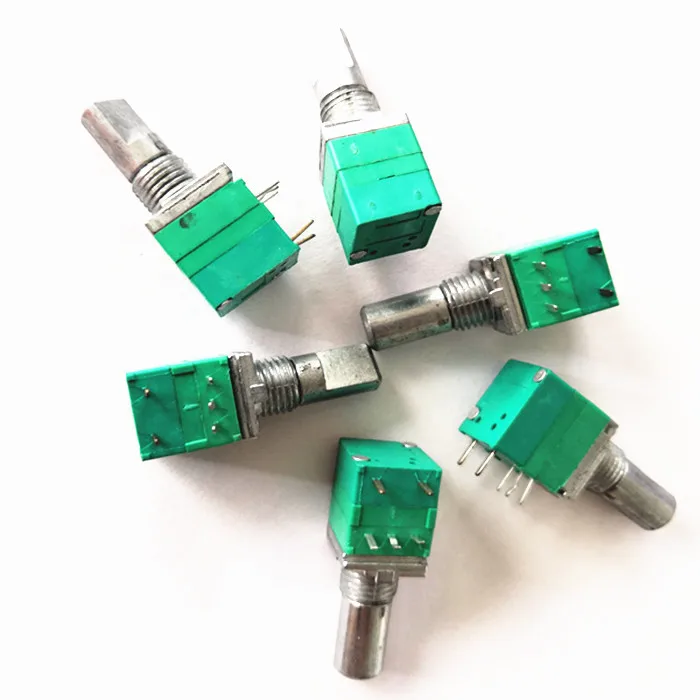

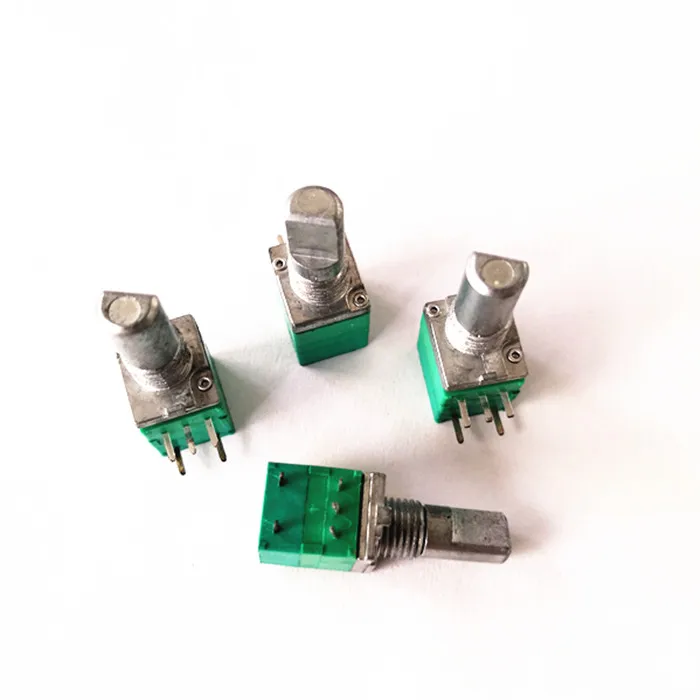

1.Picture Show:

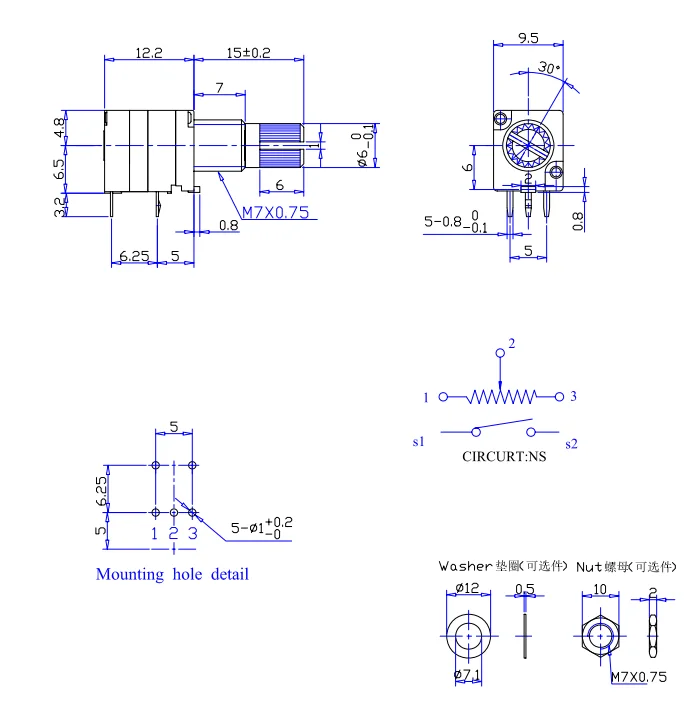

2.Shaft Type:
3.Data Sheet:
| Full resistance: | 1KΩ-500KΩ |
| Full resistance tolerance: ± 20% | ±20% |
| Impedance characteristics of the type: | A, B, C, D. |
| Maximum operating voltage | B Linear: AC 200V, Other linear: AC 150V |
| Rated Power: | B Linear: 0.05W Other Linear: 0.025W |
| Noise: | Less than 100mV |
| Insulation resistance: | More than 100MΩat DC 250V |
| Withstanding voltage: | 1 minute at AC 250 V |
| Residual resistance: | Term.1 ~ 2: Less than 10Ω Term.2 ~ 3: Less than 20Ω |
| Switch circuit: | S.P.S.T |
| Switch contact resistance: | Less than 50mΩ |
| Switch rated power: | 1.0A at AC / DC 12V |
| Full rotation angle: | 300 ± 10 (degree) |
| Rotating torque: | 10 ~ 200 gf.cm |
| Rotation stop strength: | 2.0Kgf.cm Min |
| Push and pull strength: | Push: 5.0kgf Min |
| Switch rotation angle: | 45 ± 5 (degree) |
| Switch torque: | 80 ~ 200 gf.cm |
| Spinning life: | 15000 Cycles |
4.Our Other Products :
Company Information
5.Our Company:
TongYueXin Co.,Ltd(Chengdu) is a technical factory of mainly manufacturing
and develping high power resistor,wirewound potentiometer,carbon film potentiometer,precision parts and AC power noise filter.EMI Filter.Feedthrough Capacitor.The established maxim of our company is technical innovation, keeping
improvement and meeting customer demands,Rich and varied goods is your selection guide.
High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.
Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal, Western Union are the most usual ways we are using.
3) What’s the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 5-10 days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
