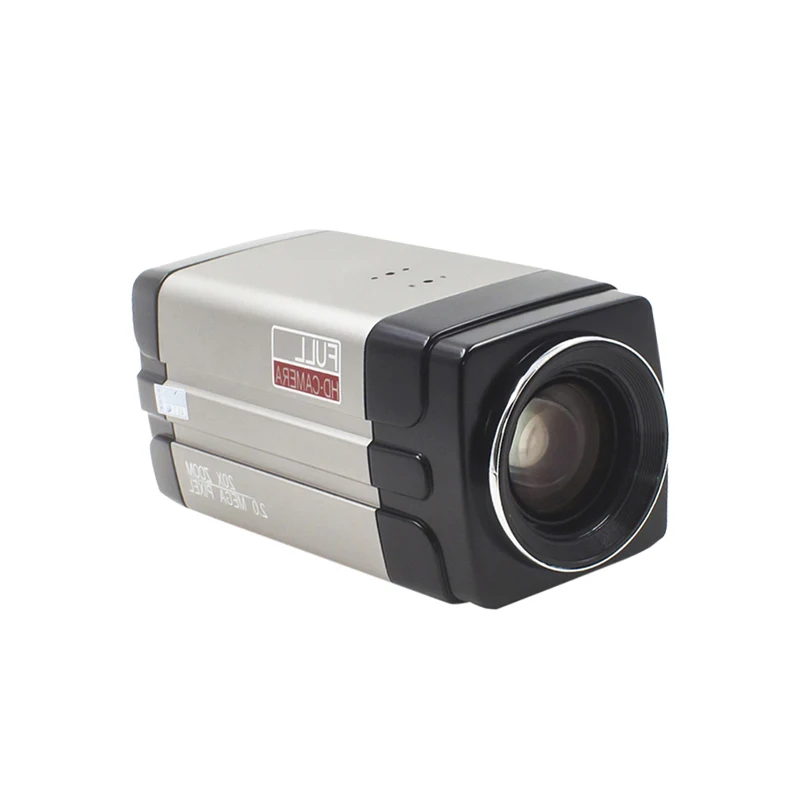

Low price HD CMOS 20X optical zoom wall mounted ip streaming cctv surveillance camera
- Category: >>>
- Supplier: TCHD Digital Video Technology Development (Beijing) Ltd.
Share on (60829334683):
Product Overview
Description
Introduction
TCHD UV8000 series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Technical Specification
Model | TC-UV8000 | |
Camera Parameter | ||
Optical Zoom | 20X optical zoom f=5.2~98mm | |
Sensor | 1/2.8 inch high quality HD CMOS sensor | |
Effective Pixels | 16: 9 2.07 megapixel | |
Video Format | 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 | |
View Angle | 5.5°(tele)—54.7°(wide) | |
Aperture | F1.6 ~F3.5 | |
Digital Zoom | 10X | |
Minimum Illumination | 0.5Lux (F1.8, AGC ON) | |
DNR | 2D & 3D DNR | |
White Balance | Auto / Manual/ One Push/ 3000K/4000K/5000K/6500K | |
Focus | Auto/Manual | |
Aperture | Auto/Manual | |
Electronic Shutter | Auto/Manual | |
BLC | ON/OFF | |
WDR | OFF/ Dynamic level adjustment | |
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
SNR | >55dB | |
Input/Output Interface | ||
Video Interfaces | HDMI ,3G-SDI,LAN | |
Image Code Stream | Dual stream output | |
Video Compression Format | H.264, H.265 | |
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps | |
5 Control Key | UP/DOWN/LEFT/RIGHT/CONFIRM keys for OSD setting | |
HD IP Interface | 100M IP port(100BASE-TX); Support VISCA protocol control through IP port. | |
Network Protocol | RTSP,RTMP,ONVIF, GB/T28181 | |
Power Interface | 5.0 Card line socket (DC12V) | |
Other Parameter | ||
Supply Adapter | AC110V-AC220V to DC12V/1A | |
Input Voltage | DC12V±10% | |
Input Current | 400mA(Max) | |
Consumption | 4.8W (Max) | |
Store Temperature | -10℃~+60℃ | |
Store Humidity | 20% - 95% | |
Working Temperature | -10℃~+50℃ | |
Working Humidity | 20%--80% | |
Dimension | 155.7mmX70mmX70mm | |
Weight | 0.7KG | |
Application | Indoor | |
Remote Operation (IP) | Remote Upgrade, Reboot and Reset | |
Accessory | 12V/1A Power supply, User Manual, Warranty card, brackets(optional) | |

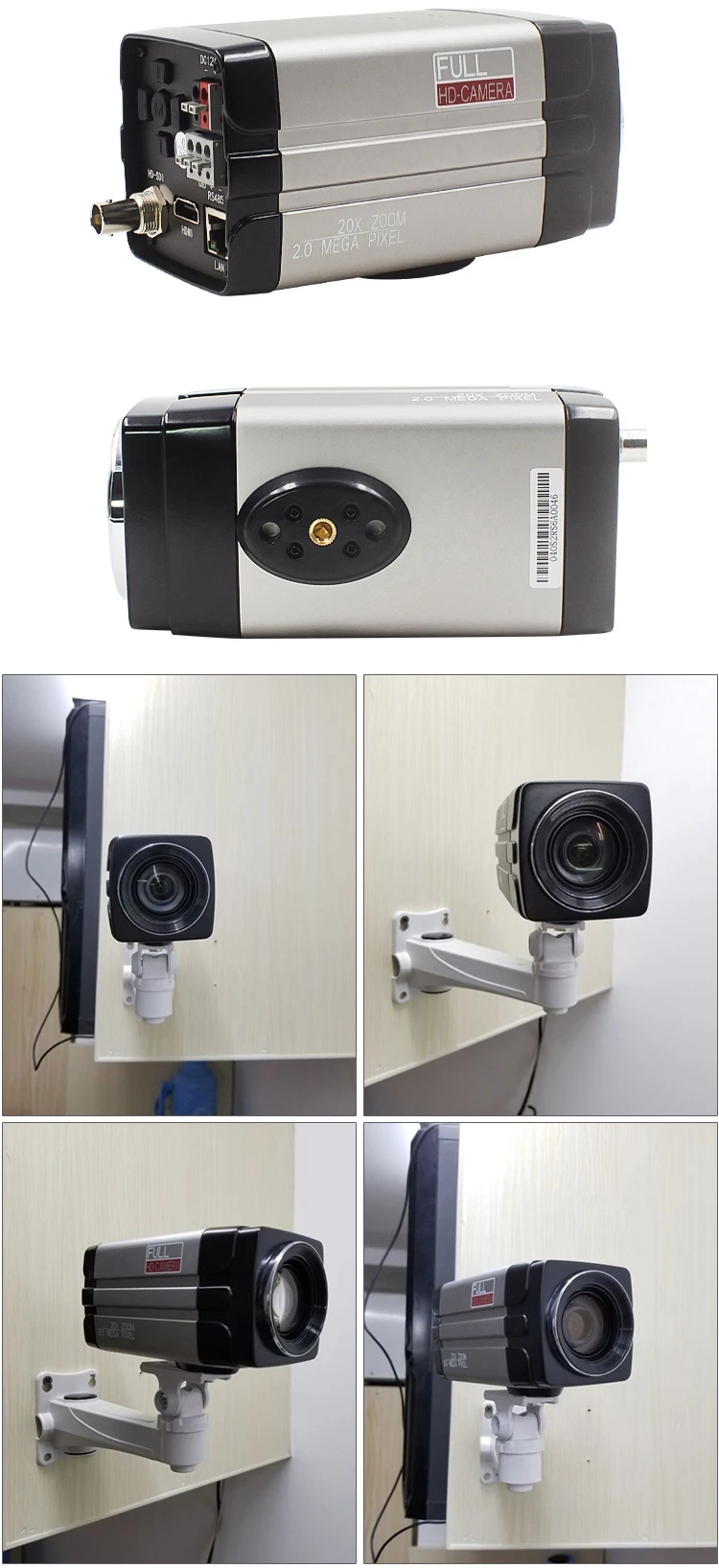

Product Display
Main Features
1.Superb High-definition Image
Employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
2.Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
3.Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

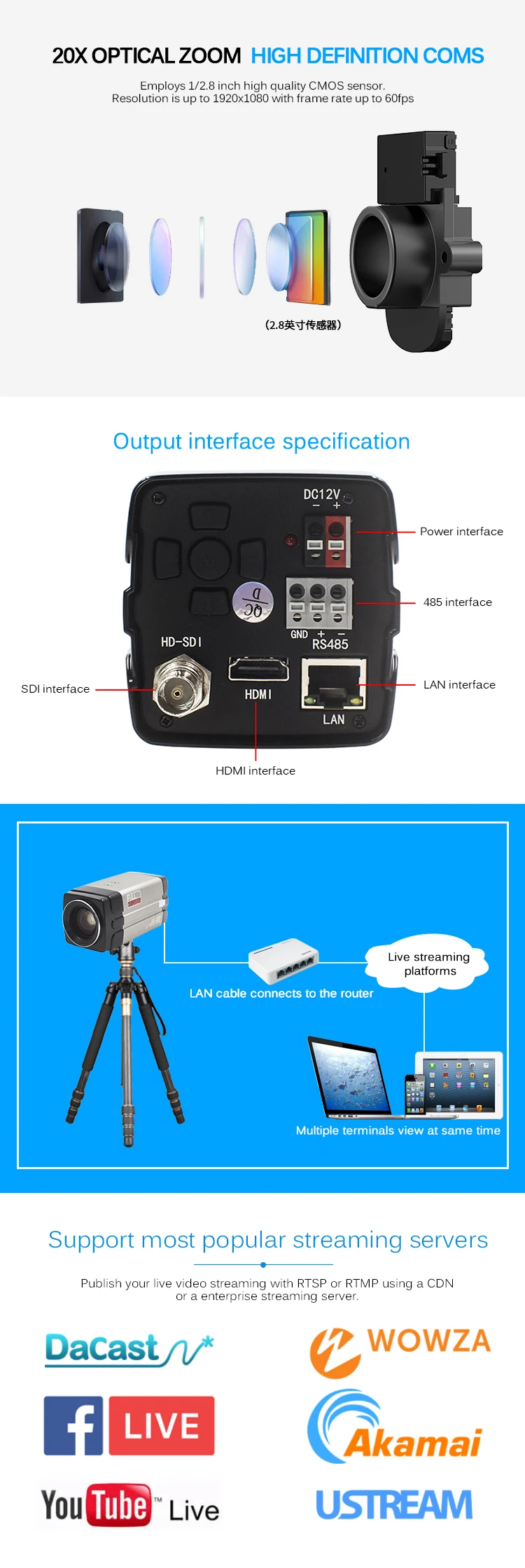

4.Multi-Format Video Outputs
Multiple interfaces include: HDMI, 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.
5.Multiple Video Compression
Support H.264/H.264+ video compression; Support compression of resolution up to 1920x1080 with frame up to 60fps
and 2 channels 1920x1080p with 30fps compression.
6.Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS)
7.Support Multiple Control Protocol
Support VISCA,PELCO-D,PELCO-P protocols which can also be automatically recognized.Support Visca protocol control through IP port.
8.Wide Application
Tele-education, Lecture, Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogationand Emergency command systems.
