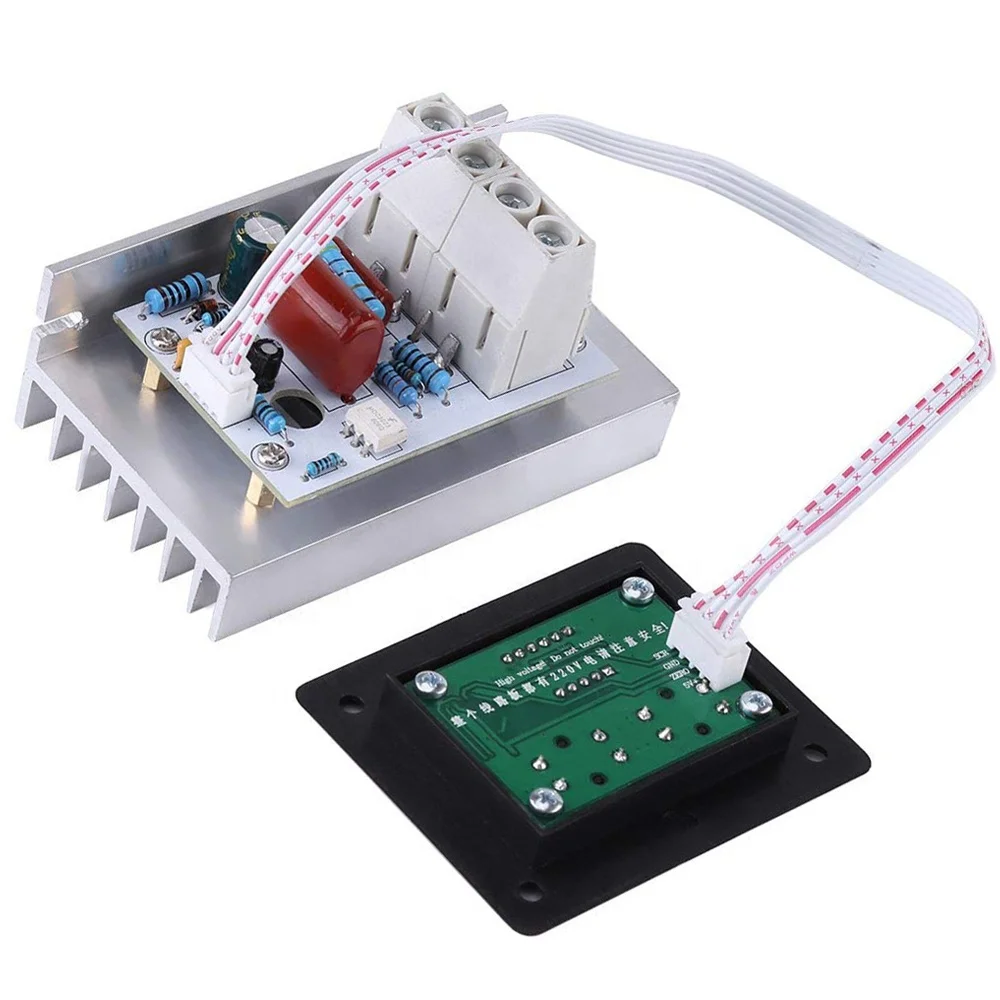

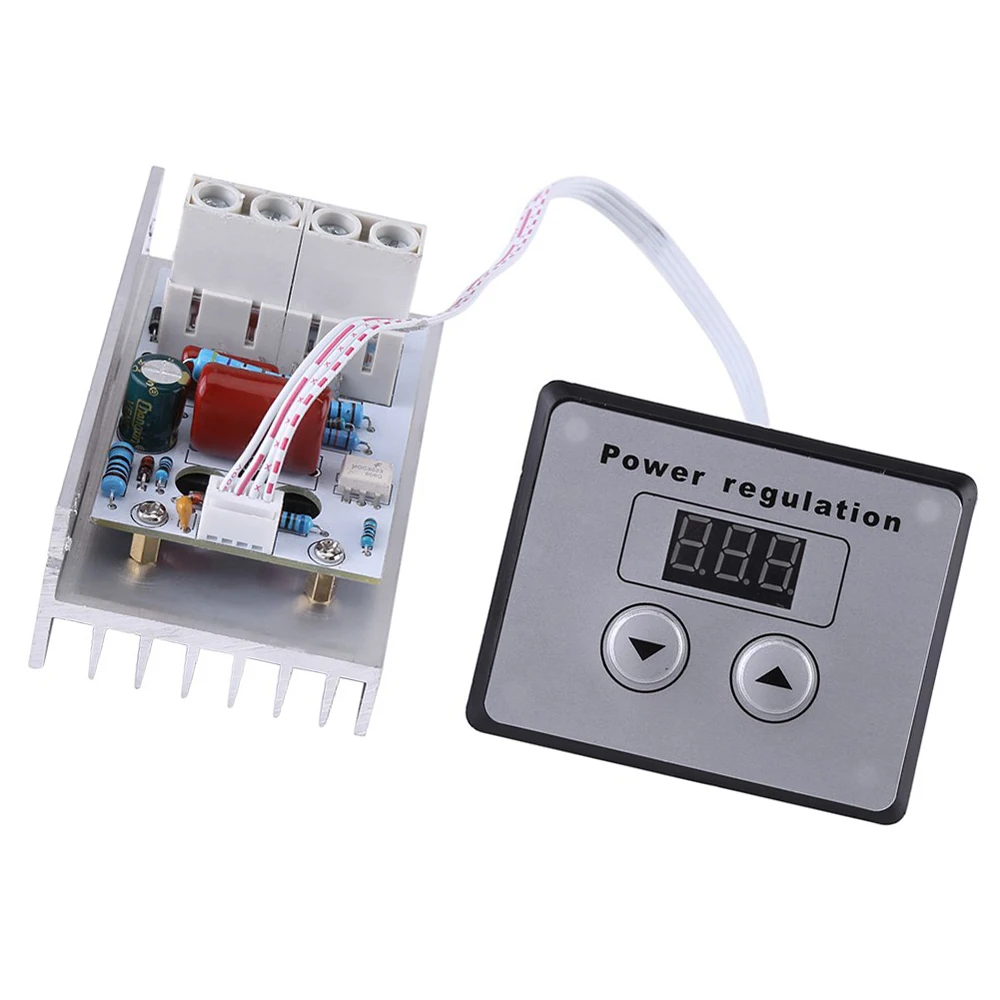

AC 220V 10000W 80A Digital Control SCR Electronic Voltage Regulator 10 220V Speed Control Dimmer Thermostat Digital Meters

Parameter:
Use voltage: AC 220V.
Max Power: 10000W (instantaneous limit power for impedance load; for long time use, 5000w or lower is recommended)
Voltage regulation: 0-100% (220 volts, 100-level adjustment, non-linear).
Features: Using the new two-way high-power SCR, max current up to 80A.
The voltage regulator with the peak voltage absorption circuit effectively protects the high-power SCR and has a longer service life.
Application: Electric furnace, water heater heating, lighting dimming, small motor speed control, electric iron temperature adjustment, etc.

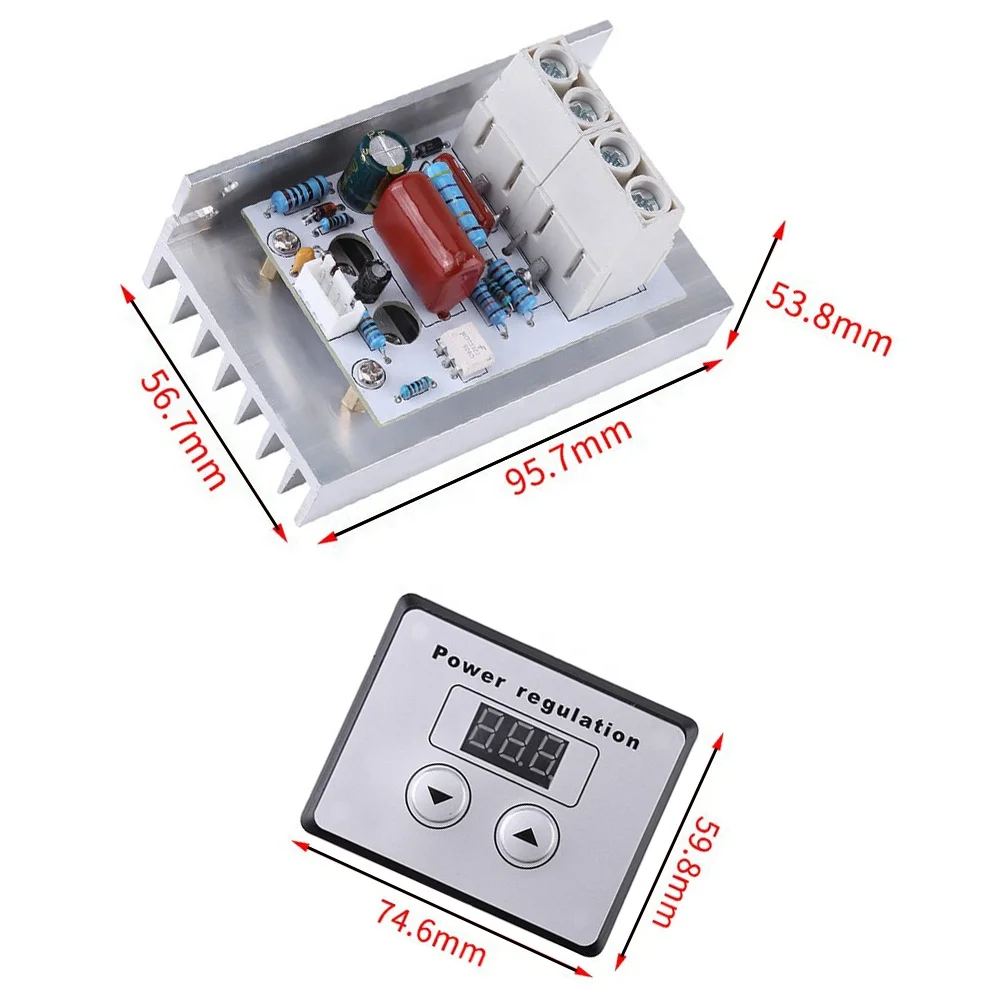

Controller Size: 95.7*56.7*53.8mm/3.76*2.23*2.11"

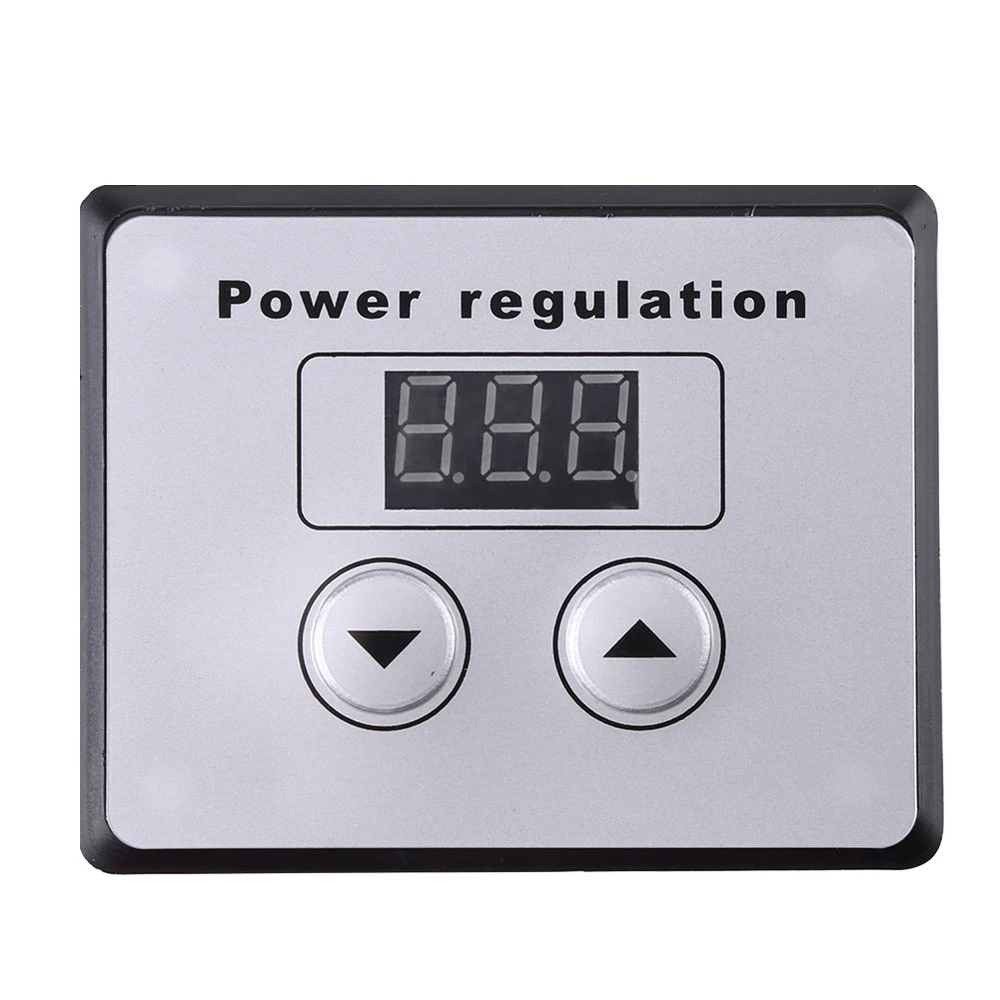

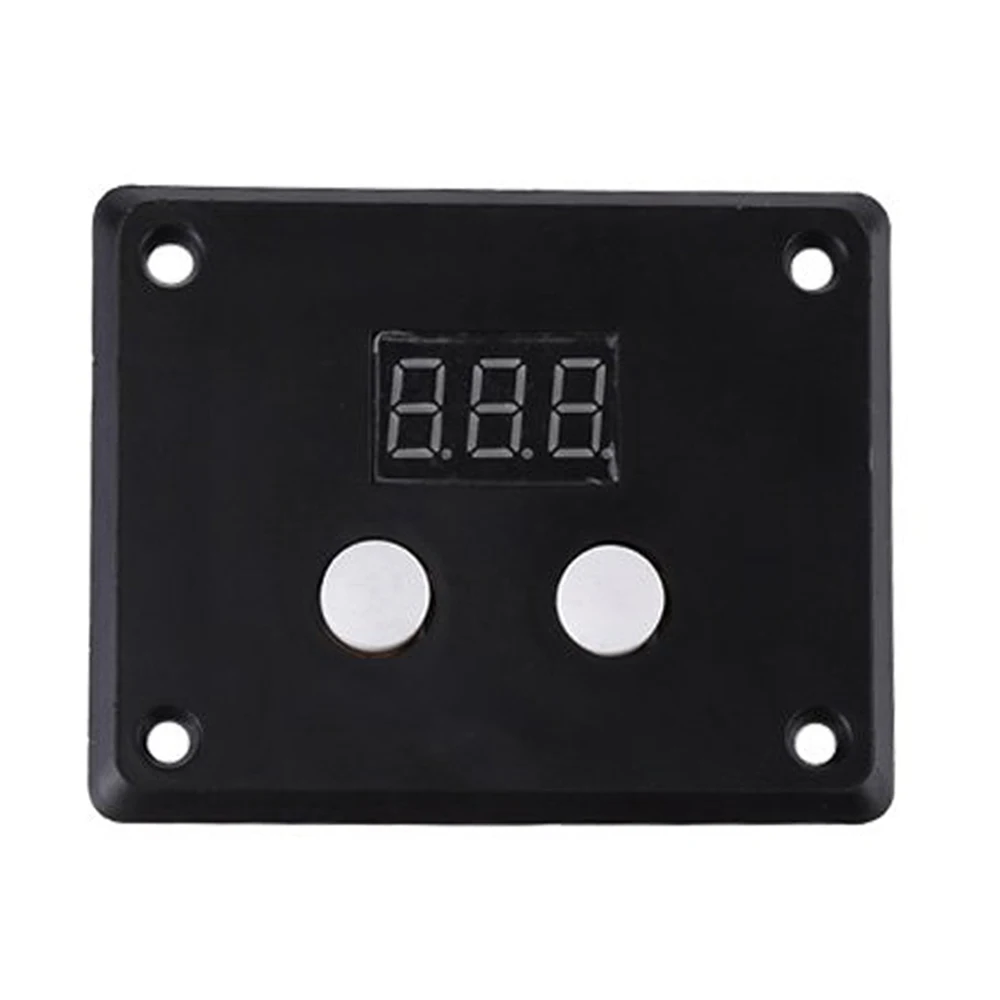

Panel Size: 74.6*59.8*2.3mm/2.93*2.35*0.09"
Cable Length: 287mm/11.3"

Specification:

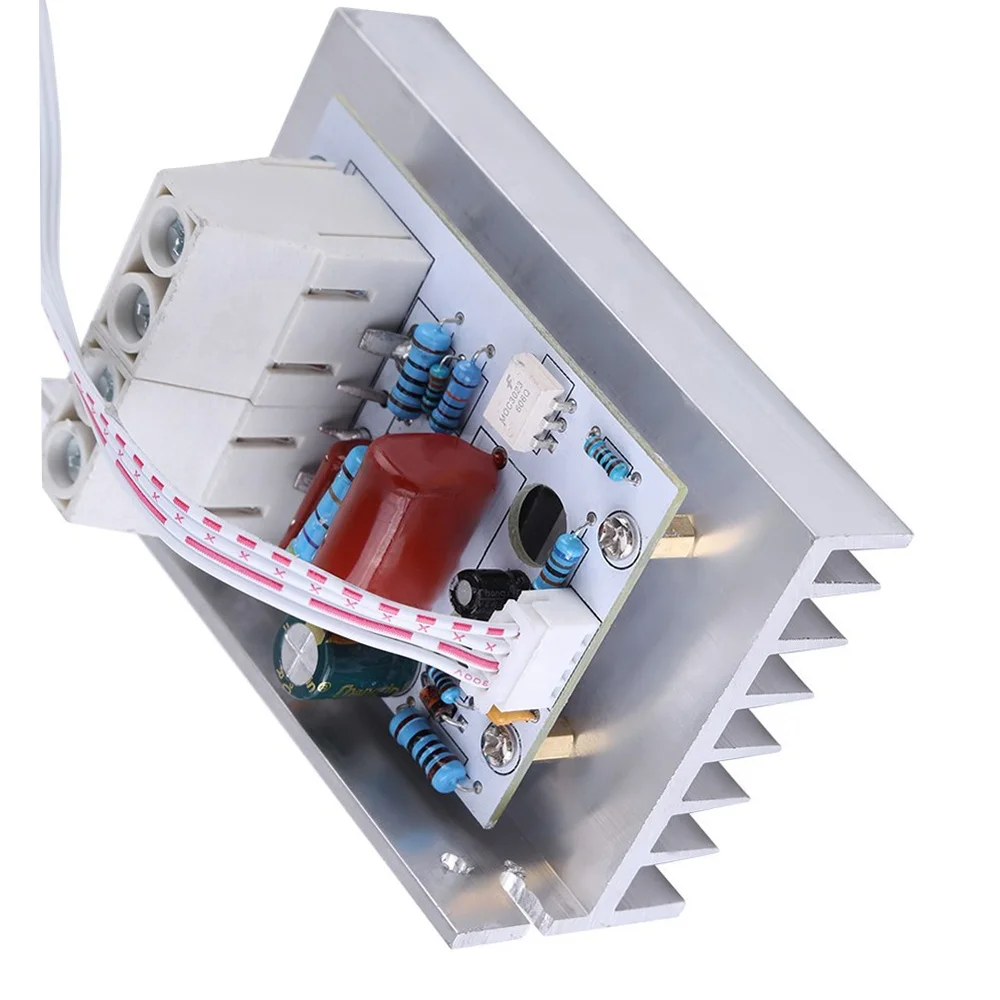

1.Built-in heat sink, thickened to increase the heat sink, good heat dissipation, easy to install.
2.57A high current terminal block, simple wiring, strong button adjustment stability.
3.Omron original tact switch, Fairchild original photoelectric coupler, all metal film resistors are stable and durable.
4.The value is automatically saved. After power-on, it will automatically start to the last adjusted value.

Application:
1.Using the new two-way high-power SCR, Max current up to 80A, a good solution to the problem of over-current electric wire in the case of cooling is too small to cause the resistance.
2.You can easily adjust the output voltage mains in any adjustment 0-100% (220V 100 adjustment points, non-linear), for the use of electrical appliances. Such as: electric furnace, water heater heating, lighting dimming, small motor speed control, electric iron temperature adjustment, etc. Thereby achieving the effects of dimming, temperature regulation and pressure regulation.
3.It can be used in large appliances with an electric power of less than 10,000 watts. Since the power has been great, so the general home appliances or small factories enough to use.(Inductive or capacitive load power should be reduced, this regulator is equipped with two-way high-power SCR, can be used without any components, it is very convenient and practical.)

Notes:
1.10000W products are not in proportion to the regulator, so called nonlinear,digits show 0-100. When digit show 1, voltage about 20V,the higher voltage, the more careful between the level and the level classification.
2.Level 180V-220V, voltage about 1-2V, 0-180V vlotage is higher, level between level is about 20V, the second level is bout 10V, the third level is bout 5V, the higher voltage, the more careful level classification, so it called nonlinearity.
3, AC input, AC output, output voltage is lower than(or equal to) input voltage; voltage can be adjusted only when connected to load; mainly used for resistive load.
4, It can not replace electric bicycles' battery charger, nor drive electric appliances which use switch power supply (such as 110V TV, speaker, refrigerator, air conditioner, rice cooker with a computer), and cannot drive induction cooker, energy saving lamp.

Package includes:
1 x SCR Controller
1 x ABS Panel
1 x Panel Sticker
1 x Cable

Packing Condition:
All goods are packed in bags or small boxes, then put into safety export standard carton box, well packed with Bubble.

Shipping Ways:
By express, air shipping or sea shipping methold.

Shipping Freight Saving Methold:

There are many different items in our stock, customers can by the insterested products in the list of one order, we will combine the products in one shipment, to save the shipping cost.

Buy more, save more!

Shipping Time:

1. We will arrange shipemnt in 1 to 5 working days after the payment confirmed.

2. Shipment will by DHL/Fedex/UPS/TNT/EMS/Aramex/SF-express etc. Please confirm the shipping methold when placing new order.

3. After shipping, we will send the tracking number immediately for tracking the shipment.
