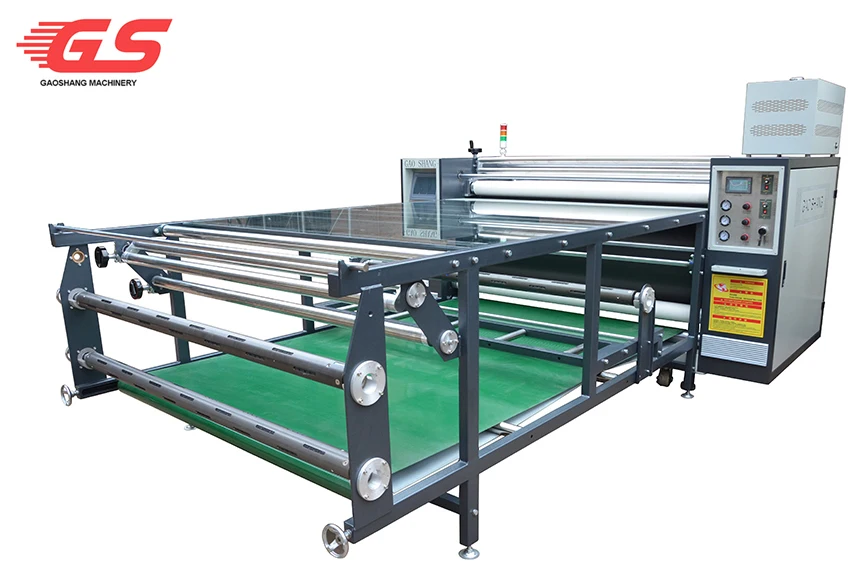

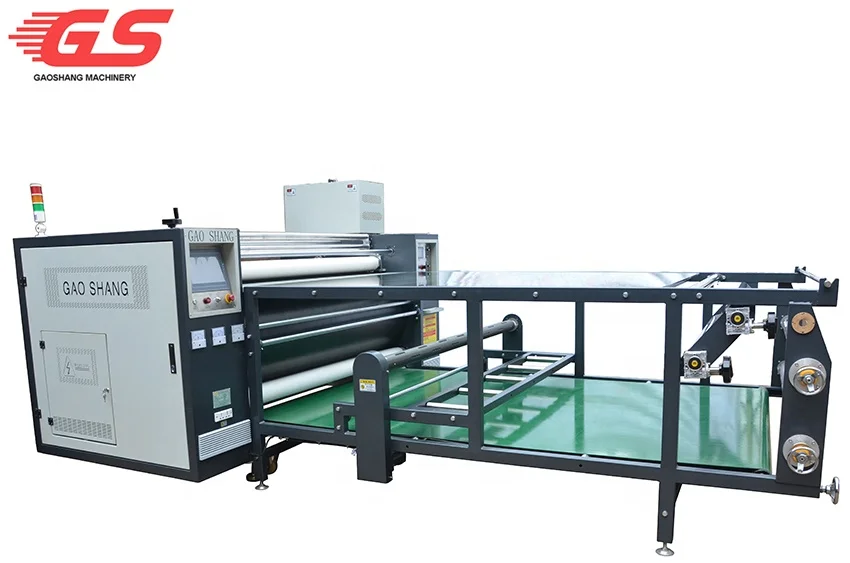

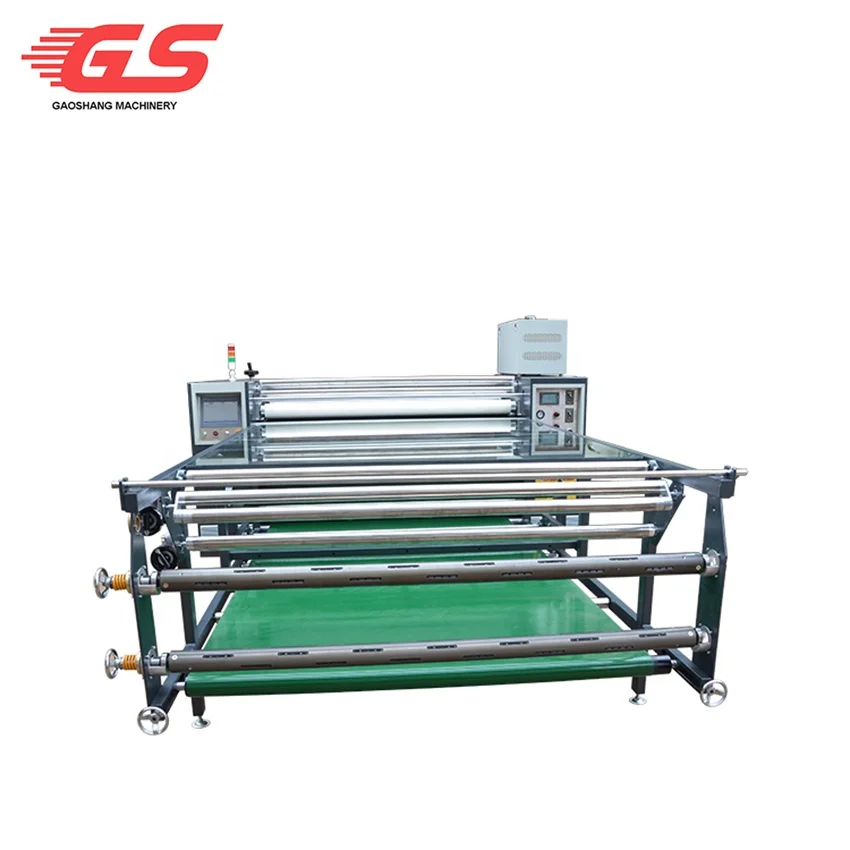

Gaoshang 1700mm Automatic blanket alignment multi functional oil drum heating digital printing sublimation heat press calandra

Technique data:

 This machine is newly developed in 2012, improved from the original model of “down delivery” to the “Up delivery”. Therefore, it is more convenient to transfer printing on clothing and cuttings with more accurate location. Using the pneumatic pressing or hydraulic press for wool blanket marks the color of the products darker, and brighter, which greatly speed up the transfer printing.

Features:

1. this SUS heating hose heats oil directly at the higher heating speed, reaching 200℃ within 45 minutes

2. it is equipped with external oil box which makes it convenient to add heat conduction oil, it has high security performance with the unique advantage of anti-explosion through automatic turn off.

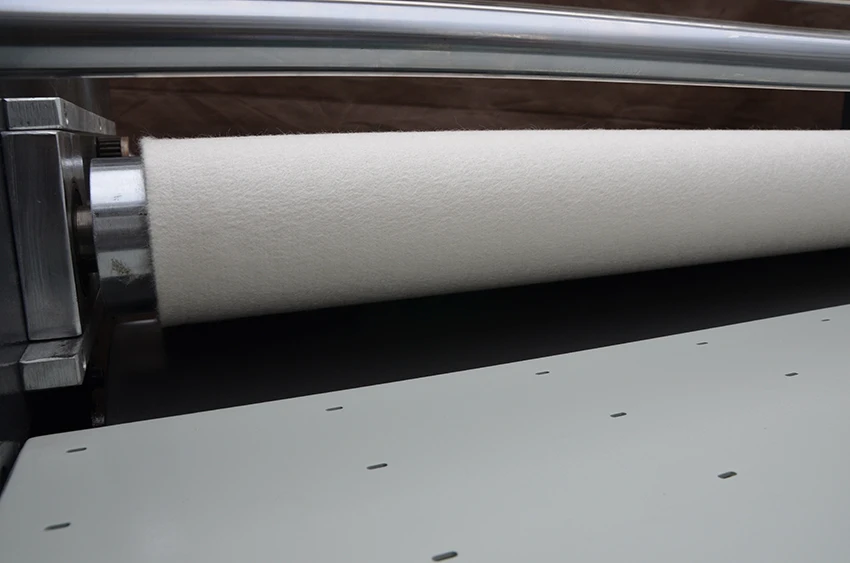

3. blanket ad belt are separated by automatic/manual model. Adopt simultaneous shaft adjustment and pressure balancing shaft to make sure the pressure on the blanket is consistent with that on the heating roller, Thus completely solve the problem of cooling the blanket while turning off the machine or while power off, and give more protection to the blanket and extend its using life.

4. use frequency conversion governor which can adjust the printing speed freely. And the transfer printing speed is more stable.

5. automatic collecting and releasing cloth system is optionally equipped.

6. the electric components of the product are imported, and it separated structure of the electric box with the body machine makes the using life of the electrical equipment longer, the digital control brings higher accuracy.

7. the hardware is with high-tech configuration. The main wall panel and rollers are all reinforced and manufacture professionally.

8. the releasing-laying system is manufactured with the body machine as a while part, thus to deliver the paper or cloth exactly parallel without deviation. It only converts a small area but it is labor-saving with high overall efficiency.

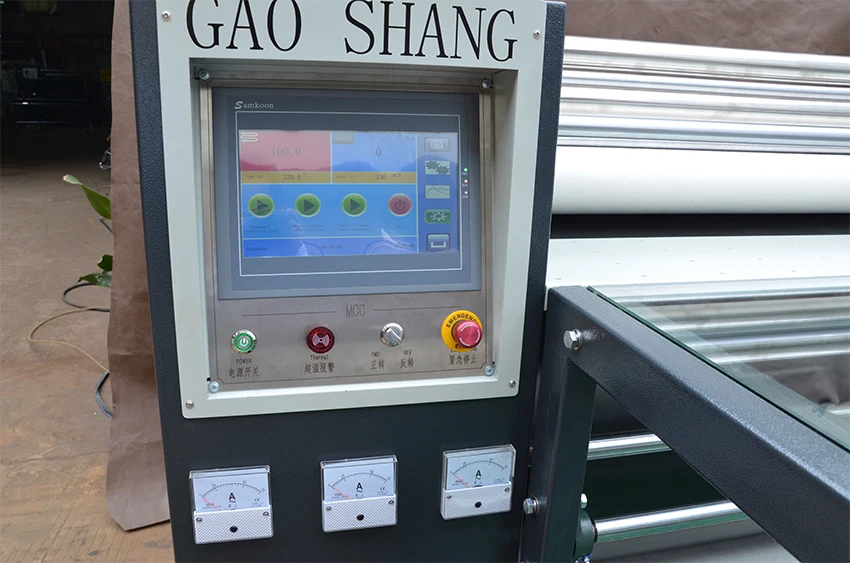

9.PLC Program system with two side touch screen,it is easy to monitor all the part on working and overcome the machine trouble.

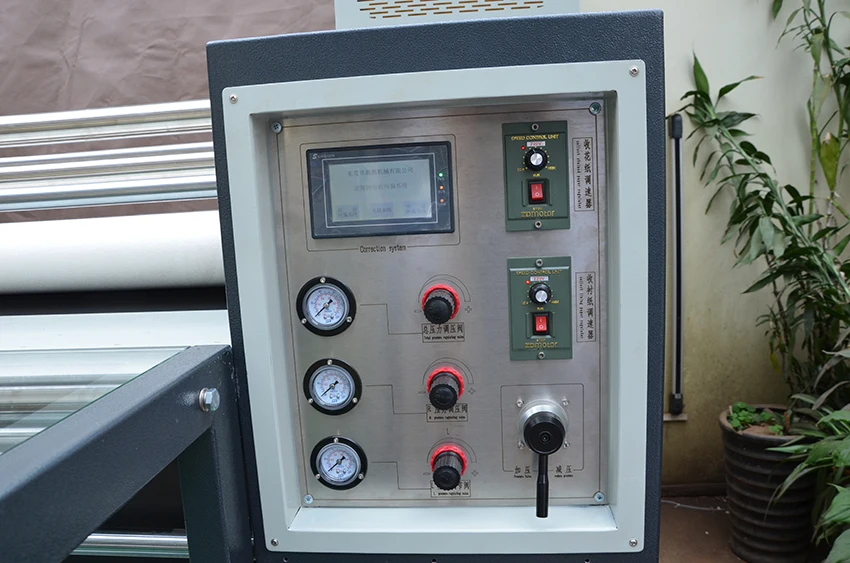

10. Automatic /manual blanket deviation rectifrying system,it make the good performance always.

Whether you own a local print shop in domestic or a t-shirt megastore oversea, we offer next-day shipping and worldwide delivery.

Product detail:

Exhibition Fair

 Export carton or wooden case

Q1:  What’s the machine size you are available?

A: For the oil drum diameter:  200mm,300mm,420mm,600mm,800mm,1000mm    For printing area, 1200mm/1500mm/1700mm/1900mm/2300mm or customized

Q2: How can I get your quotation?

A: Before quotation,please confirm the machine size,the specific requirement.Then we will quote you upon get your inquiry or email.

Q3:What’s the machine rotary speed?

A: The working speed depends on the oil drum diameter,how big the roller diameter,how fast is the rotary speed.

Diameter 200mm-----its speed 45-70m/hour

Diameter  300mm-----its speed 80-100m/hour

Diameter  420mm---its speed  110---150m/hour

Diameter  600mm---its speed  150-200m/hour

Diameter  800mm---its speed 200-250m/hour

Q4:What’s the application for the heat sublimation calander ?

A: It is work on cut piece, roll  to roll fabric,sportswear,flags,banner,t-shirt,curtain,bedsheet,carpet,textile products and more.

Q5:Do you have overseas after-sale service, including machine installment, operation training before work?

A: Sorry we don’t have overseas after-sale service now. But we can provide the machine installment video, online support.

Q6:What type of transfer machine is?

A: This machine is oil heating heat transfer type. The inner oil drum should be pour the heating oil before deliver.
