Waterproof Breathable Membrane for Roof and Wall

Product Overview

Description

Product Descrition

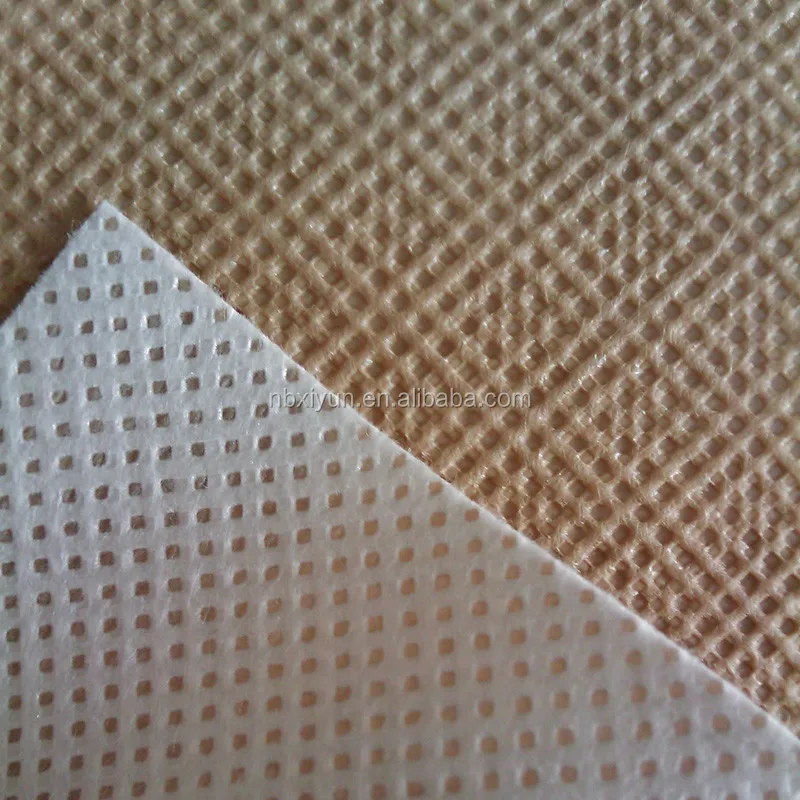

Xiyun Waterproof Breathable Membrane is 3-layer thermo-bonded: PP non woven fabric of top and bottom layer, Micro-porous PE film, between the two layers. is to form waterproof and breathable membrane, with excellent performance at water resistance(>1500/3000mm H2O) meanwhile with particular function of high vapor permeability(1800g/3000g/m2/24h), which mainly used in construction as underlay on pitched roofs or walls.

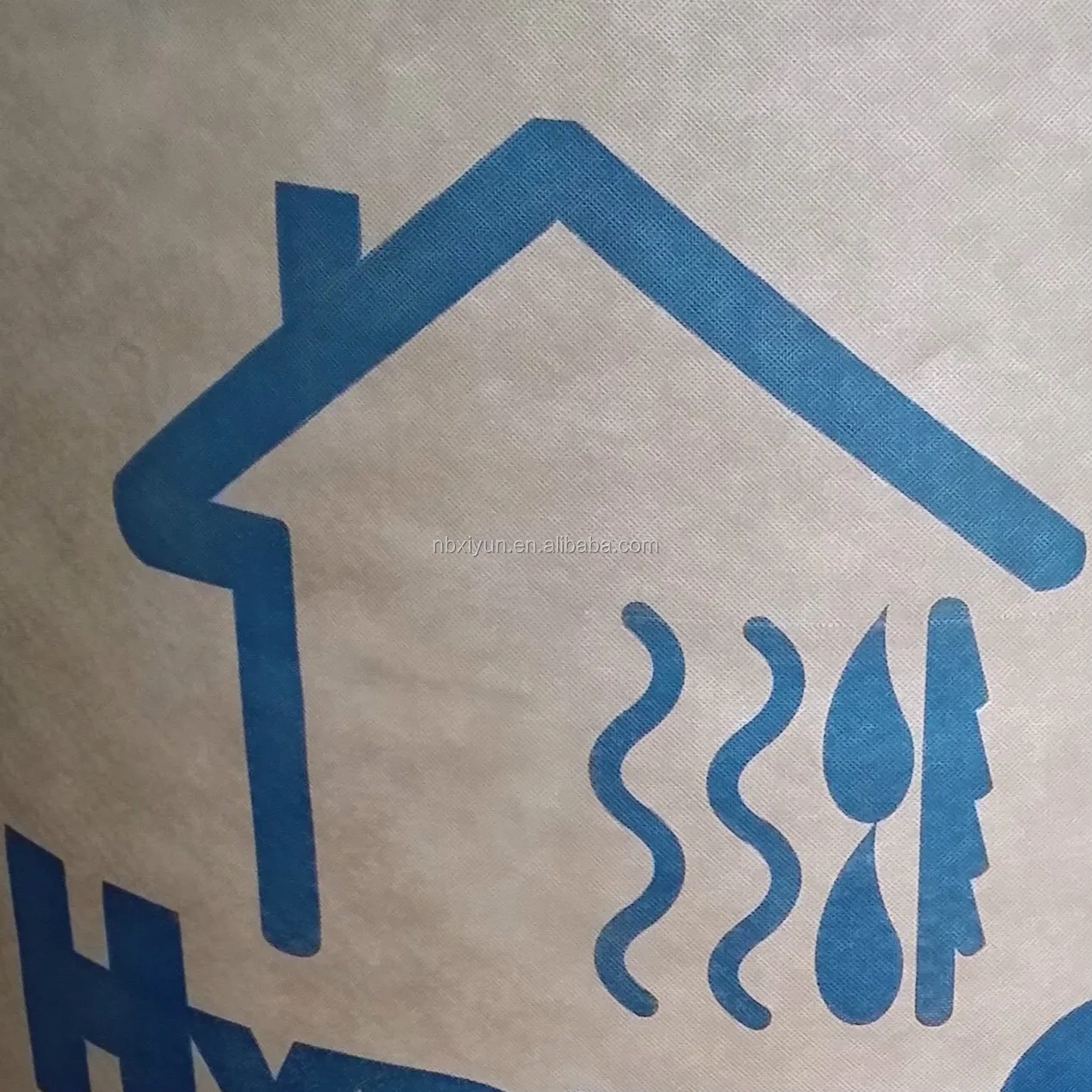

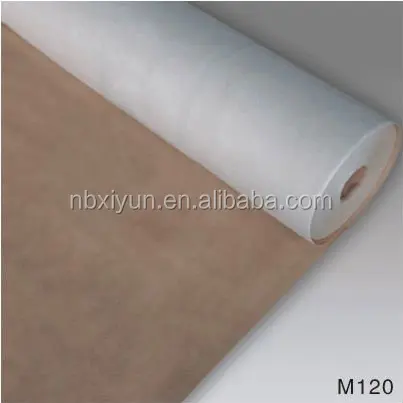

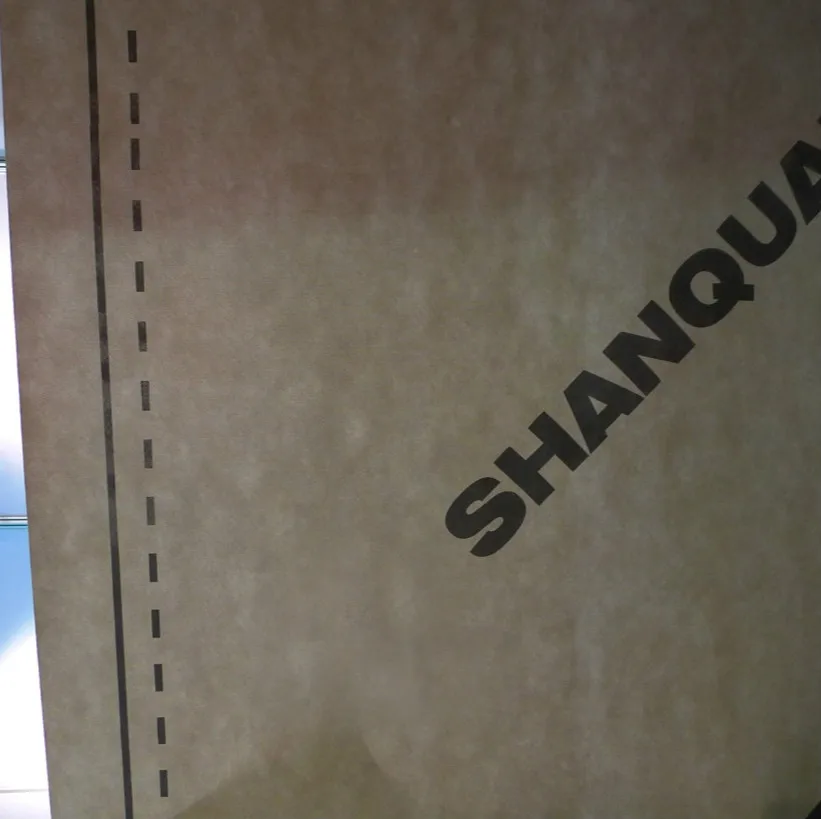

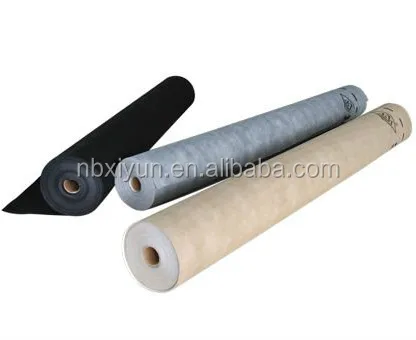

Product Show









Product Application

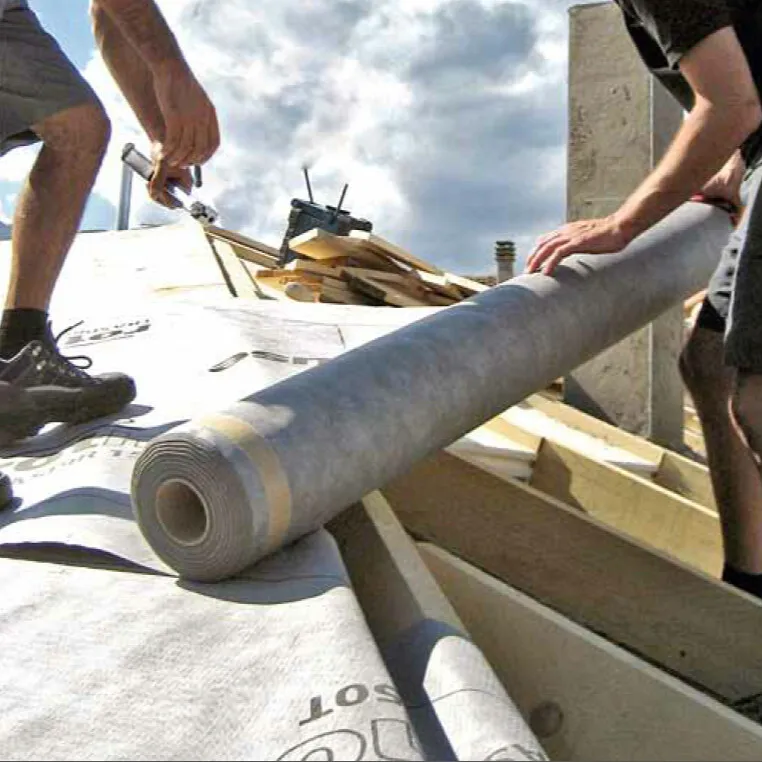

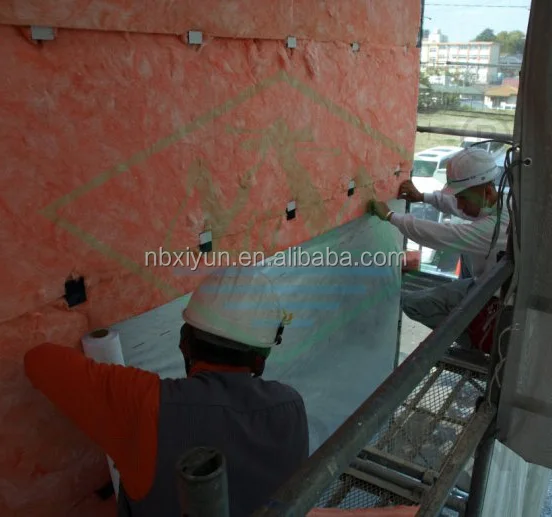

Breathable roofing underlay positioned immediately above the insulation layer in a warm pitched roof, or in a cold pitched roof (ventilated or unventilated). Breathable roofing underlay for use under tiles and sheeted roofs, over open rafters or on to fully boarded substrates. Breather membrane for timber frame wall construction.

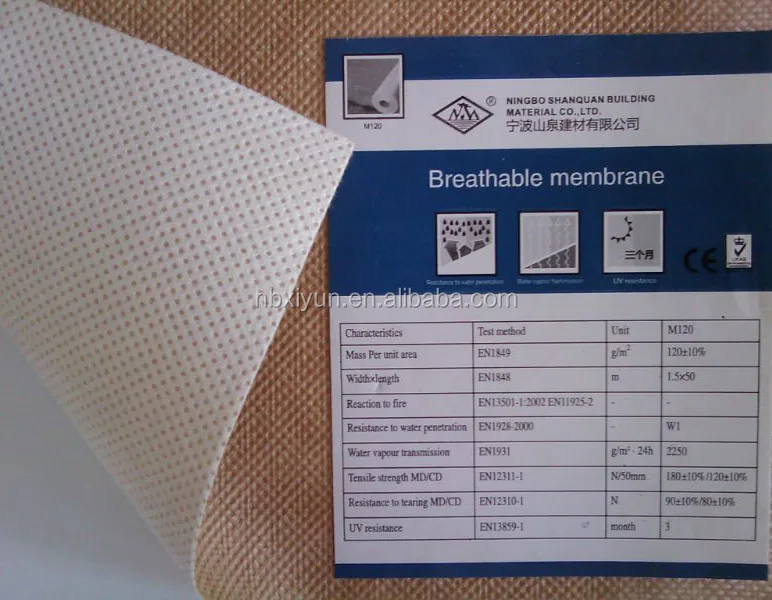

Waterproof Breathable Membrane Technical Data Sheet

Unit Area Weight	120g/m2	Color: Upper brown+Lower White
Roll Size	1.5*50m/roll or Customerized
Vapor Permeability	2250g/m2/24h
Sd Value	0.02m(-0.005/+0.015)
Water Tightness	Class W1
Tensile Strength MD/CD	180/120N50mm(+/-20%)
Tearding Strength MD/CD	95/115N(+/-20%)
UV Resistance	3 Months
Reaction to Fire	Class F
packing	pallets or bulk loading





Main Future

1) Waterproof&HIgh Breathable

2) Stable UV resistance performance

3)High Tensile strength properties

4)Superior quality with competitive price





Our company















Packing&Delivery

Packing Details  : pallets package or bulk loading

Delivery Details : 15-20 days after deposi







Our Certification



Our product have been tested according to EN13859-1 Standard for CE in European laboratories:" MFPA Leipzig GmbH" in Germany; "COBR PIB Katowice" in Poland; "Istitudo Giordano" in Italy. Meanwhile our breathable membrane also have be tested according to ASTM standard in USA and CCMC approved in Canada(by our customers)
