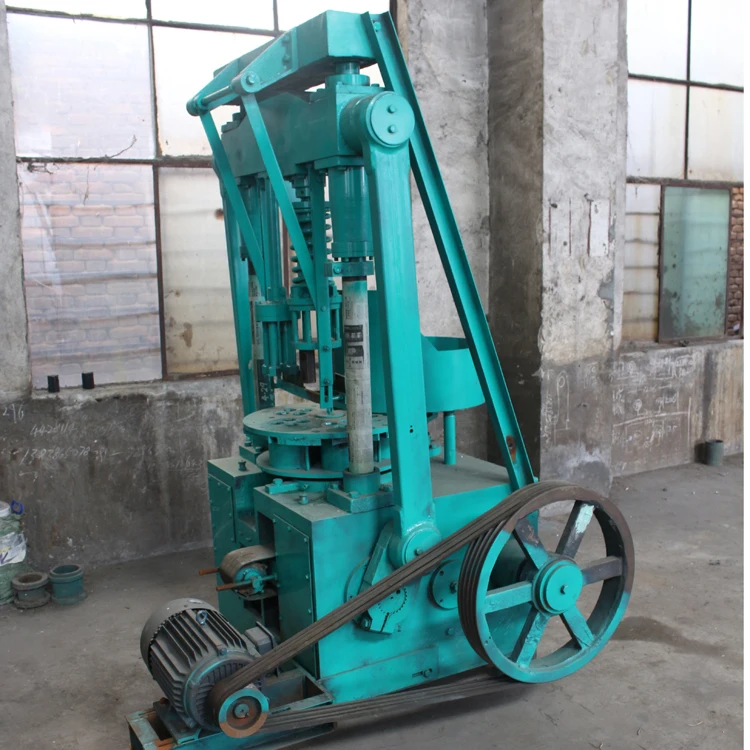

Shuliy factory honeycomb coal and charcoal briquette press machine

Share on (60829362943):


Price:

Quantity:


Product Overview

Description


Product Description

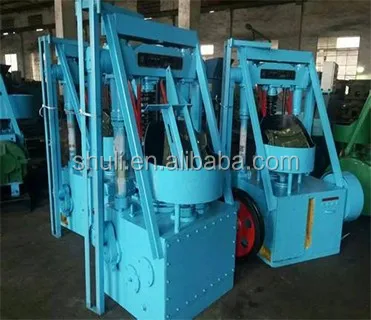

Shuliy factory honeycomb coal and charcoal


 briquette press machine



 The coal briquetting machine, also known as the honeycomb coal press machine, has been improved several times and was once mainly used for household fire, heating, and honeycomb-shaped cylindrical briquettes made of anthracite. In the past, people processed pulverized coal into spheres slightly larger than table tennis. Later, people processed pulverized coal into cylinders and put some holes in the cylinders, because this can increase the surface area of coal, so that coal can fully burn and reduce resources. waste.

Detailed Images

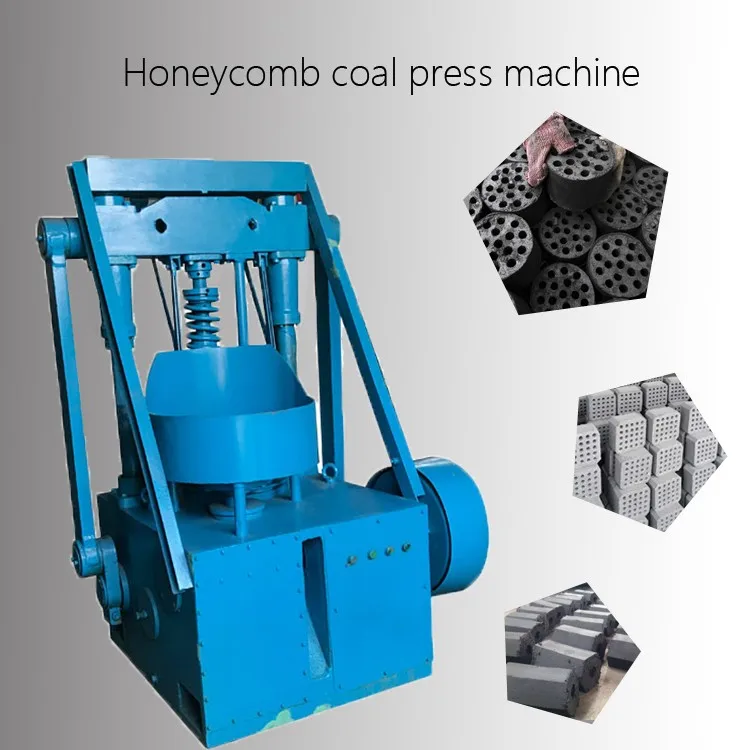

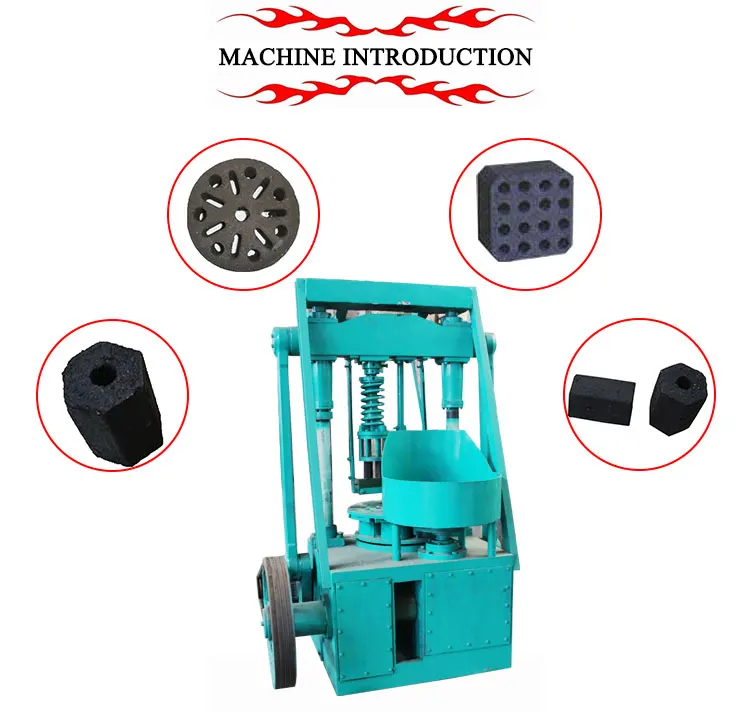

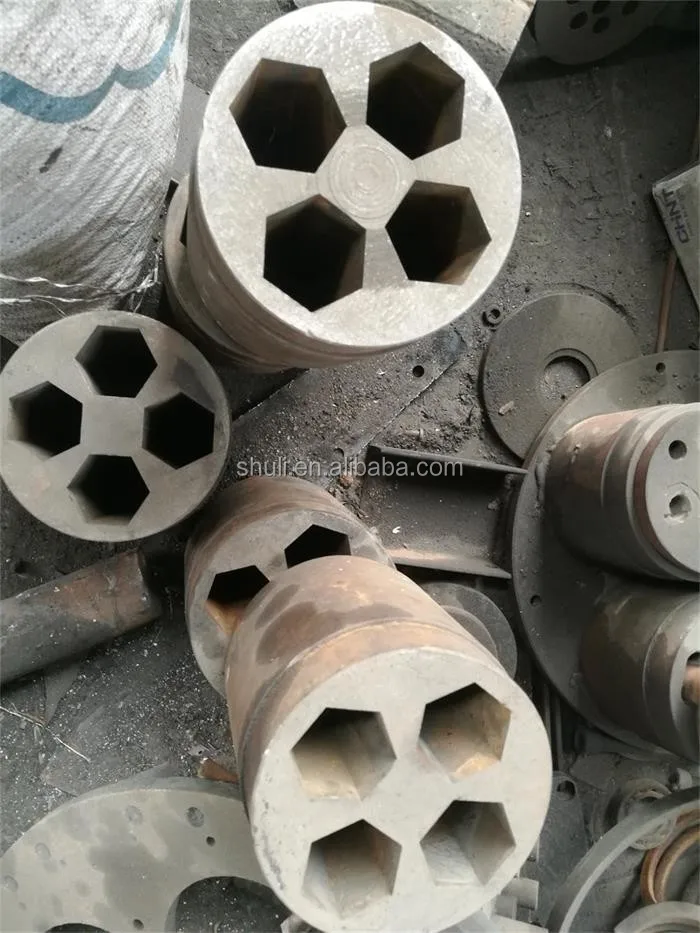

 The honeycomb coal press machine raw material is coal powder or charcoal powder.After mixing the charcoal or coal powder and the binder,Honeycomb briquetting machine can easily exchange the touch tool to produce different specifications such as diameter 90 honeycomb coal, 100 honeycomb coal, 110 honeycomb coal, 115 honeycomb coal, 125 honeycomb coal, 130 honeycomb coal, 135 honeycomb coal, 150 honeycomb coal, 180 honeycomb coal, 200 honeycomb coal, 220 honeycomb coal, etc. The machine can greatly expand the function of the briquetting machine by replacing the different shapes of the tool such as a round shape, a box shape and the like.

 The feature of the honeycomb briquetting machine

 1,Feed inlet widening and thickening,increase the work efficiency


2,The fuselage gear is closed,clean and somkeless.

3,Can be customized according to customer requirements.

4,The honeycomb briquette machine is well formed and the pressure is high.
\t

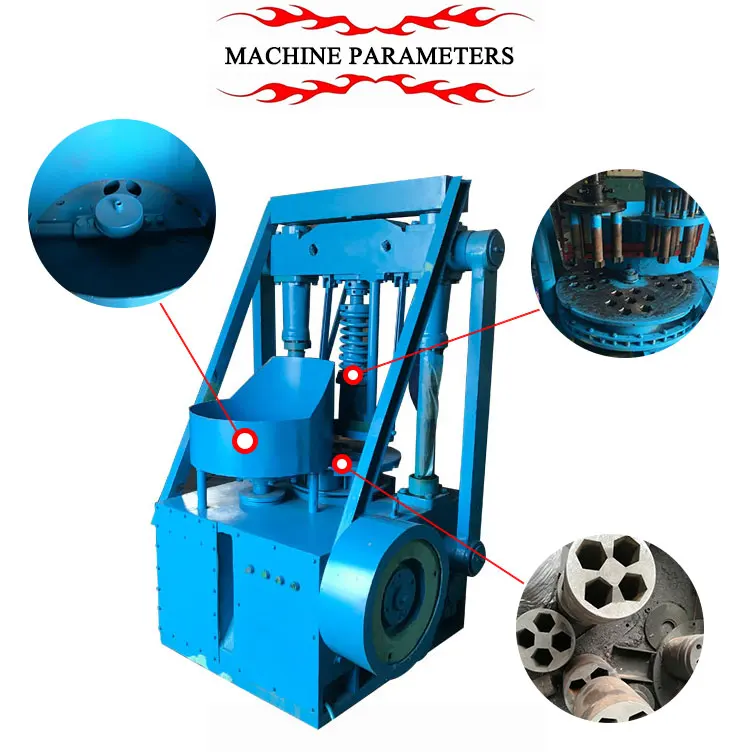

 Model
\t
Power
\t
Weight
\t
Capacity of brick shape
\t
Capacity of rod shape
\t
 SL-102
\t
4.5kw
\t
1.1t
\t
45Pcs/min
\t
90-100 pcs/min
\t
SL-120
\t
4.5kw
\t
1.4t
\t
40Pcs/min
\t
120 pcs/min
\t
SL-125
\t
7.5kw
\t
1.6t
\t
26Pcs/min
\t
90-120 pcs/min
\t
SL-220
\t
11kw
\t
3.8t
\t
26Pcs/min
\t
90-120 pcs/min

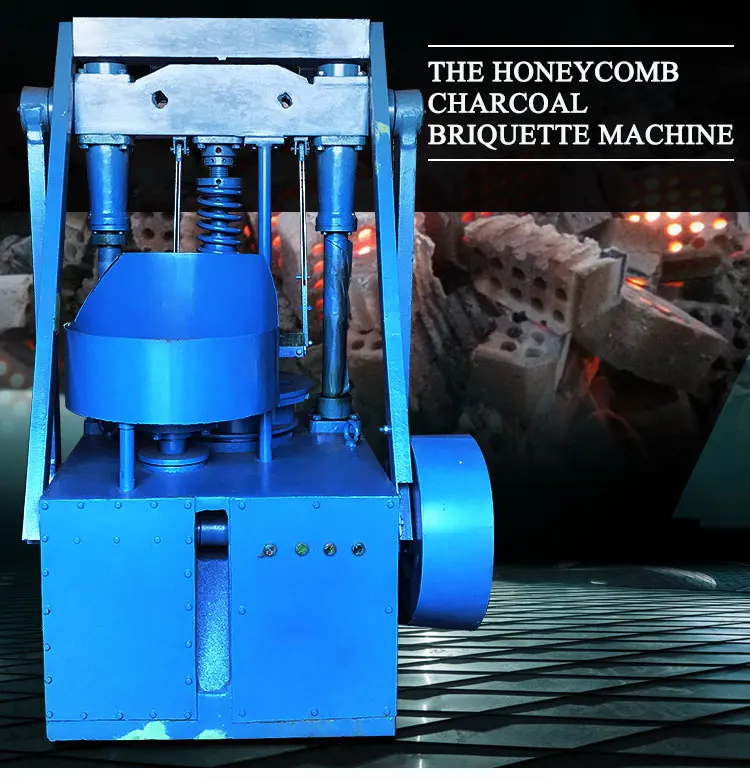

Honeycomb briquette machine structure

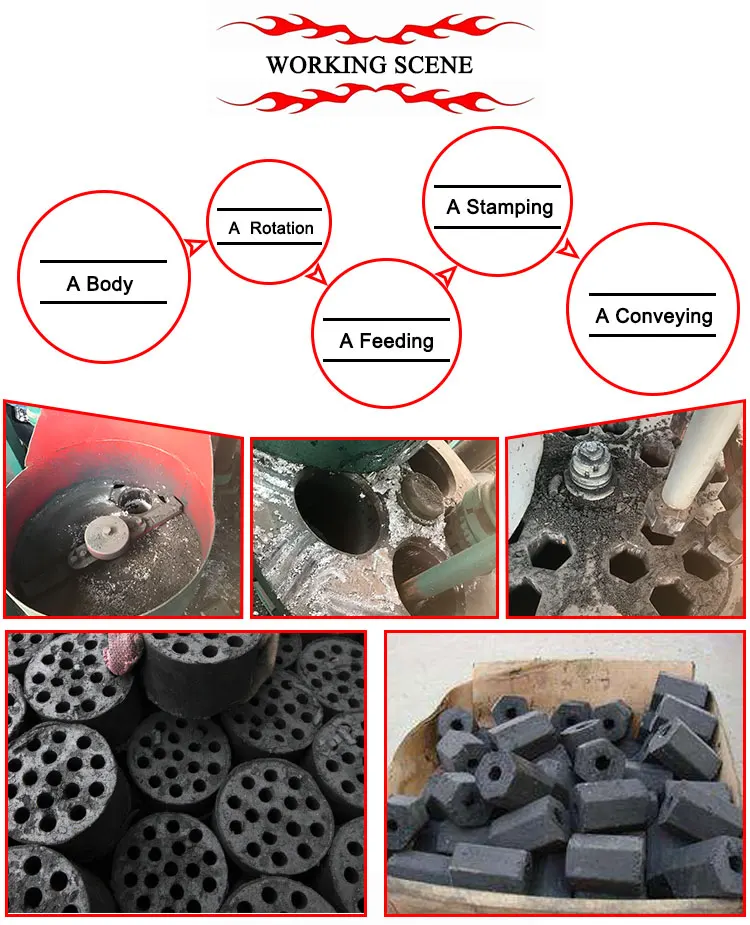

 The machine consists of frame part, driving part, feeding part, press shaping part, and finished product delivery part.

1. Frame part: platen, engine base.
2. Driving part: motor, pulley, gear, transmission shaft. The gear is driven by the pulley connect with the motor by belts. The gear movement drives the transmission shaft. The transmission shaft drives the plate.
3. Feeder parts: rotation shaft, hopper, mixer etc.

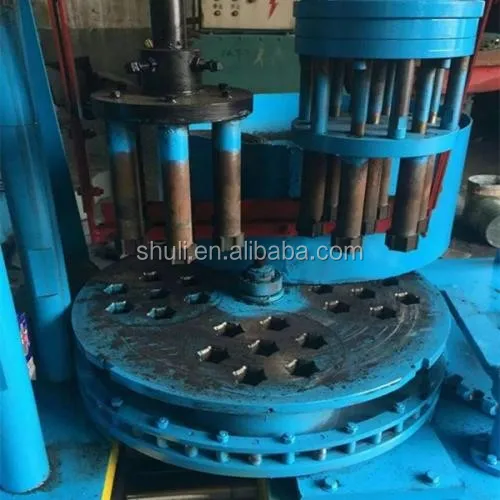

4. Briquette press part: four slide bars, punch, punch seat, platen, mold sole, spring.
5. Delivery part: delivery rack, pulley, and belt conveyor.

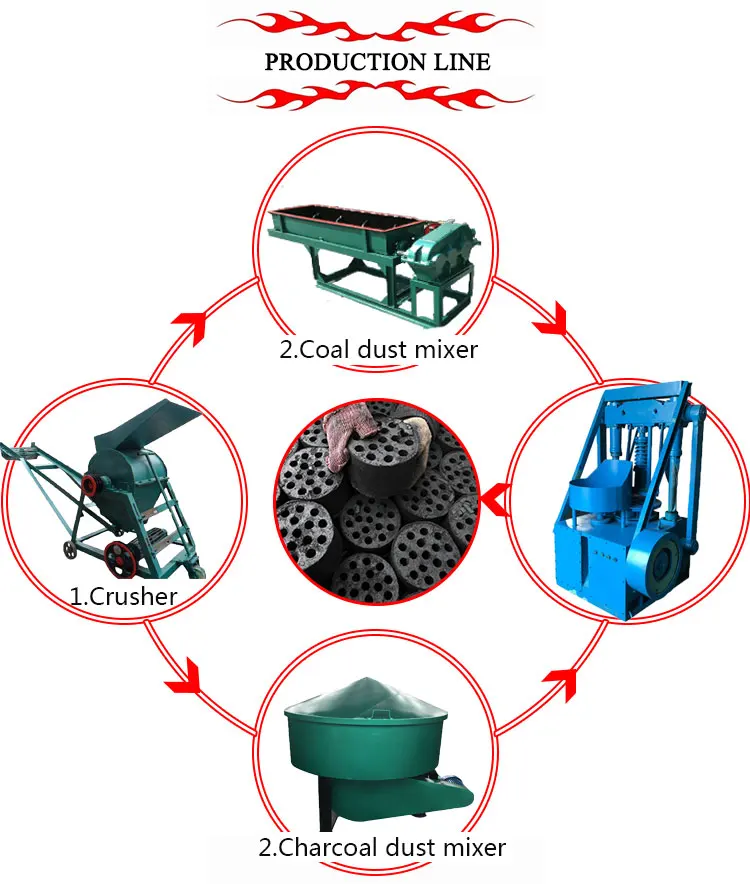

Honeycomb coal and charcoal briquetting line

(1)Coal briquette machine production line:
Coal powder---binder mixer---crusher and mixer---conveyor belt---dosing machine---briquette machine---dryer
(2)Charcoal briquette machine production line:
Carbonization furnace---charcoal crusher---binder mixer---wheel mill---conveyor belt---dosing machine---briquette machine---box dryer.
