High Efficiency Vertical Mill for Cement/Slag/Clinker/Raw Material/Coal grinding mill
- Category: >>>
- Supplier: Xinxiang Great Wall Machinery Co. Ltd.
Share on (60829379240):
Product Overview
Description

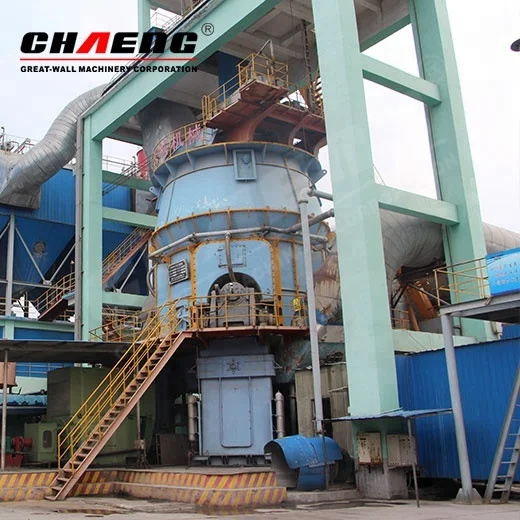

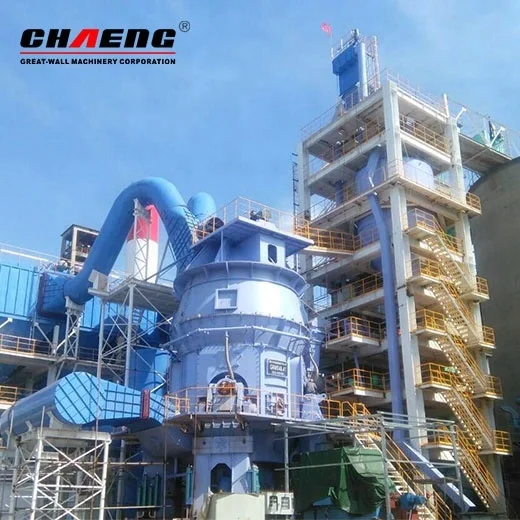

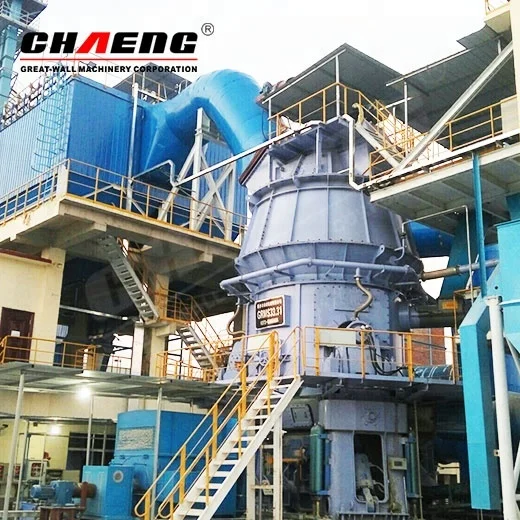

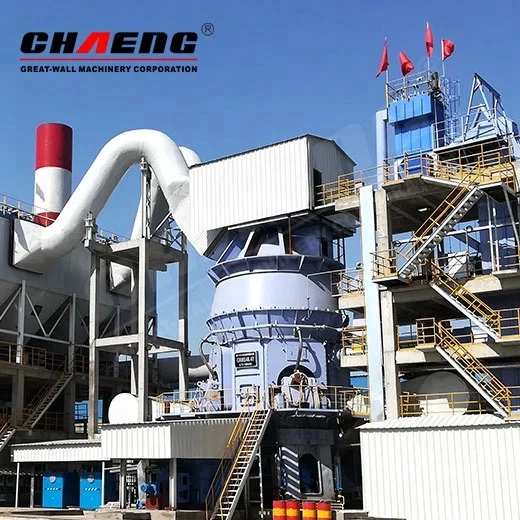

Vertical Roller Mill
Vertical roller mill is mainly used for grinding Raw meal, Clinker, GGBFS(Ground Granulated Blast Furnace Slag), iron ore, limestone, coal powder, coke powder, coal gangue, fly ash, volcanic ash, gypsum, calcite, pyrophyllite, quartz, clay, sandstone, bauxite and other processing industry related to metal and non-metal mine.
Applied to Cement Plant, Clinker Grinding Unit, Thermal Power Plant, Steel Mill, Mining, Quicklime Plant
Main Features
1) High grinding efficiency and lower energy consumption
2) Lower metal consumption per unit of product
3) Grinding on the material layer bed, minimal sound emission
4) Operation under negative pressure and minimal dust pollution
5) Simple process flow with the combination of grinding, drying and classifying in a single unit
2) Lower metal consumption per unit of product
3) Grinding on the material layer bed, minimal sound emission
4) Operation under negative pressure and minimal dust pollution
5) Simple process flow with the combination of grinding, drying and classifying in a single unit
6) Less land occupation, tight layout, light weight, lower civil works cos
Advanced grinding equipment
Integrate the functions of crushing, drying, grinding, separating and conveying. It occupies small area and can be arranged outdoors, that makes investment costs decrease.
It is equipped with PLC/DCS auto control system to realize the remote control.
Fineness of finished product can be regulated with 400~550㎡/kg to meet various requirements.
It has a low power consumption not more than 42Kwh/t.
Equipment system is in the negative pressure state, with low noise, non-dust leakage, keeping the surroundings clean.
Equipment system operates stably.
Original spare parts reduce your worries.
Metal recovery benefits from slag is high.
Spicifications
GRMR
The GRMR raw material vertical mill of CHAENG is a kind of new high efficiency, energy saving and environment friendly grinding equipment specially for cement raw material grinding system in cement plant. Its output can reach 720 t/h, power consumption is 17~20 kWh/t. It has the advantages of high grinding efficiency, low power consumption, low noise, and little dust pollution, can meet the requirements of 300-10,000 TPD cement production line.
GRMS

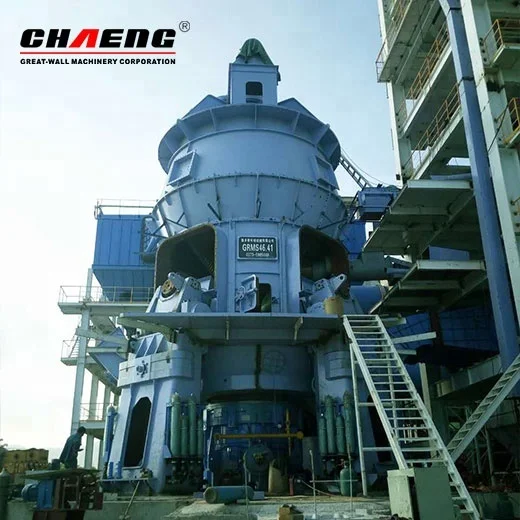

GRMS GGBS vertical roller mill is the equipment to grind Ground Granulated Blast furnace Slag (GGBFS),Nickel Slag, Manganese slag and other ore slag into small particles.
GRMK
The GRMK vertical cement mill of CHAENG adopts a new generation of cement grinding technology, which integrates grinding, drying and powder selecting functions. It can save 30% of power per ton compared with traditional ball mill. At the same time, it has many advantages, such as less auxiliary equipment, multiple functions, small occupied area and little dust pollution.
GRMC
CHAENG GRMC Vertical Coal Mill is also called the air swept coal mill. It is used for grinding and drying the coal with all kinds of hardness.
