JM 60 Peanut butter making machine / colloid mill machine

JM-60 Peanut butter making machine / colloid mill machine

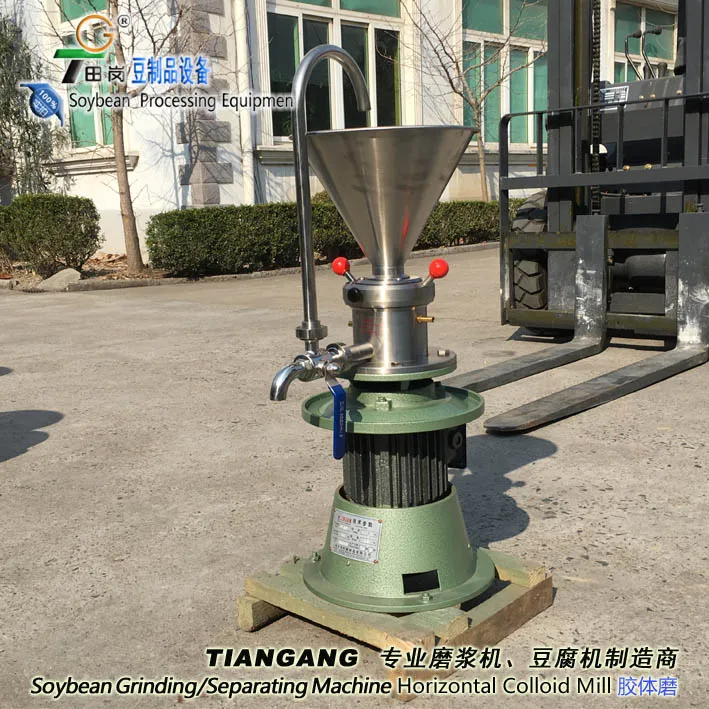

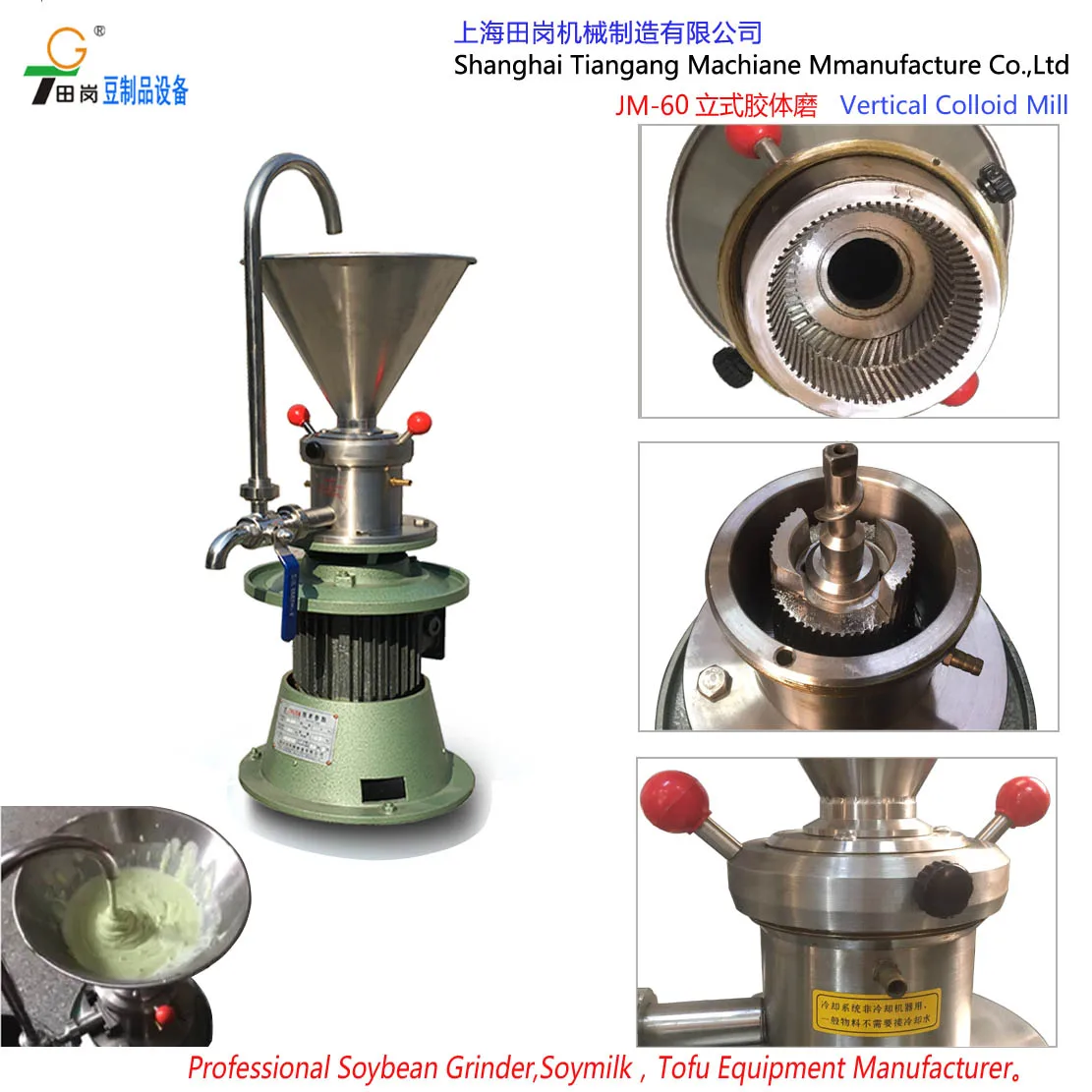

JM-60 VERTICAL COLLOID MILL MACHINE
Working principle:The working principle of the colloidal mill is that: Under the effect of centrifugal force and being run by relatively high speed between the rotating gear and the fixed gear, the liquid and the semi-liquid materials is efficiently emulsified, homogenized, dispersed and mixed during the course of being cut, milled and shocked with high frequency. After that you can get the satisfied and processed material.
Application Scope:The colloidal mill is widely applied in sorts of products of many fields by its advantage such as foodstuffs industry, medicine industry, chemical industry and everyday chemical industry etc.; the products including soybean milk, fruit jam, peanut butter, artificial corn milk, cream, perfumery compound, pigment, greasing oil, dyestuff, pant, fish live oil, pollen, honey, tooth-paste and so on.

Voltage:220V/380/50Hz;

Power:1500W;Speed:2880r/min
Thin degree:1-0.01mm;;Out put:0.05-0.5t/h (Varies According to Materials pioperteies)
Weight:45kg;Gross Weight:50kgs;

Size: 300*300*650mm;Packing size:380*360*780mm

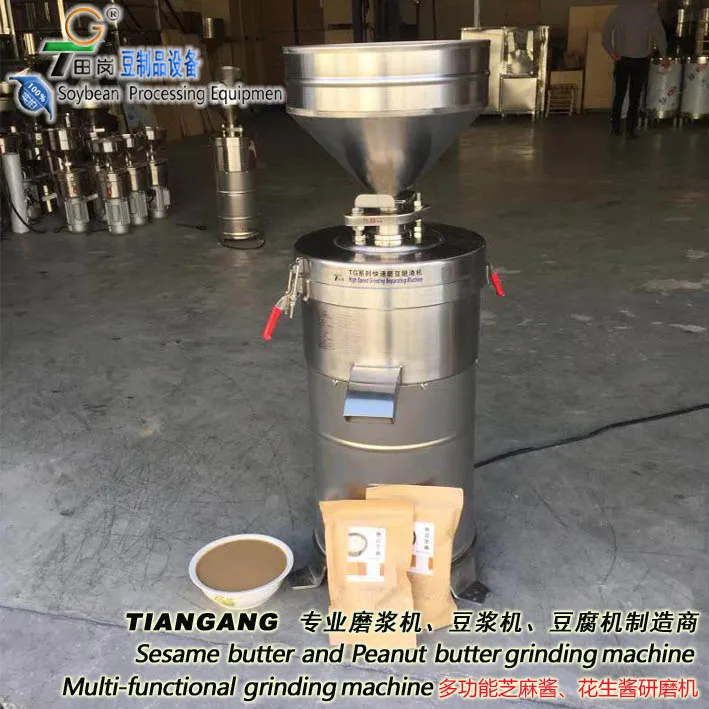

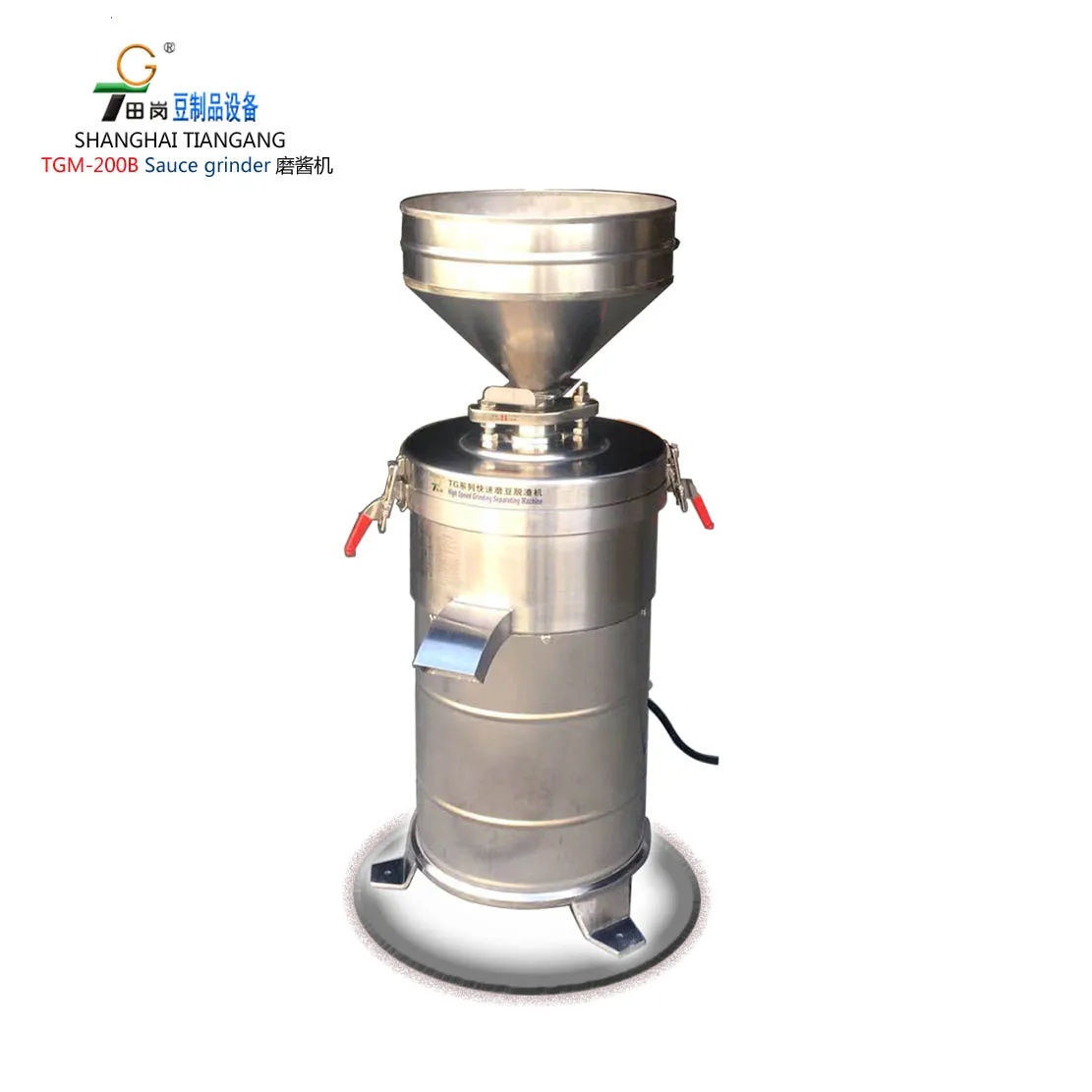

 TGM-200B multi-function food grinding machine
The device is a novel wet grinding device used for wet grinding of food materials such as sesame, peanut, pepper, rice, soybean, corn, etc., and also used for wet grinding of certain materials in medicine, food and other industries. When the fried sesame and peanuts can be directly ground into sesame sauce, peanut butter, or the materials after pretreatment such as cleaning and soaking, the materials are ground and grinded under the action of centrifugal force to enter the relatively moving upper and lower sand discs to make the materials. Grinding is carried out from the inside to the outside along the plane of the sand disc from coarse to fine.
Features: 1, can be customized according to the nature of the material, process requirements of the grinding stone and feed structure.
 2, carefully designed special waterproof and drainage design, easy to clean.
 3, practical unique thickness adjustment mechanism, using 304# stainless steel structure.
Uses: Make sesame sauce, peanut butter, chili sauce and soy milk, rice syrup, and other foods soaked in soft items.

Technical Parameters
Power supply: 380V/50Hz; power: 4KW; speed: 1430 R.P.M
Production: 80-150kg / hour; grinding wheel diameter: 200mm
size: 480*520*1150mm, package size: 530*480*1250mm
Weight: 96kgs; gross weight: 105kg

Shang hai Tiangang Machine Manufacture Co.,Ltd was professional in making soya bean machine over 12 years with a good reputation at home and abroad.We can apply the best good for everyone.
