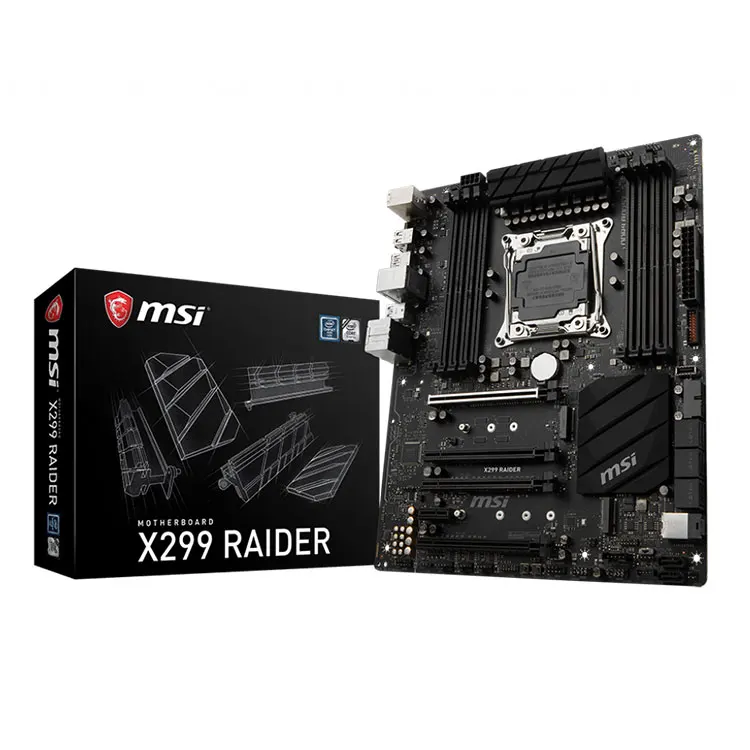

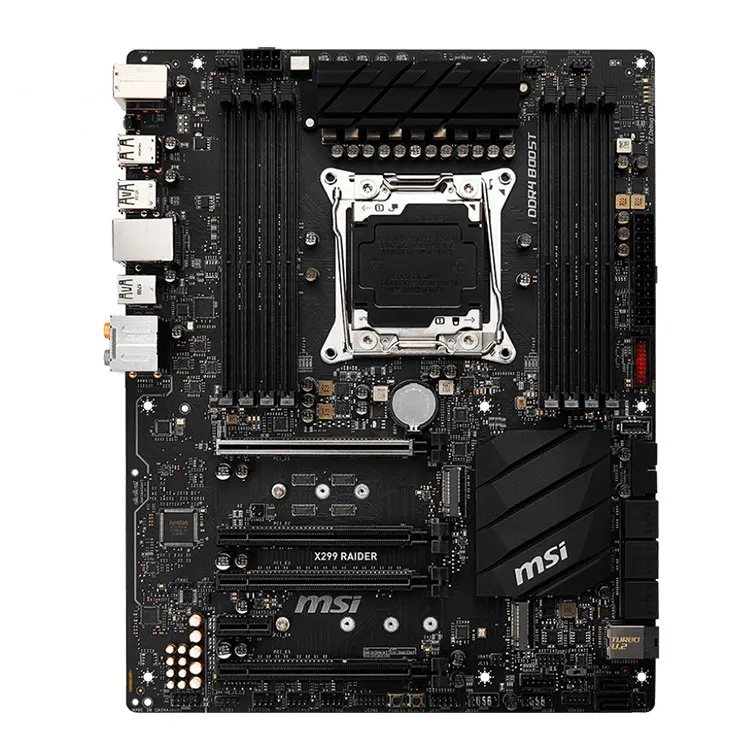

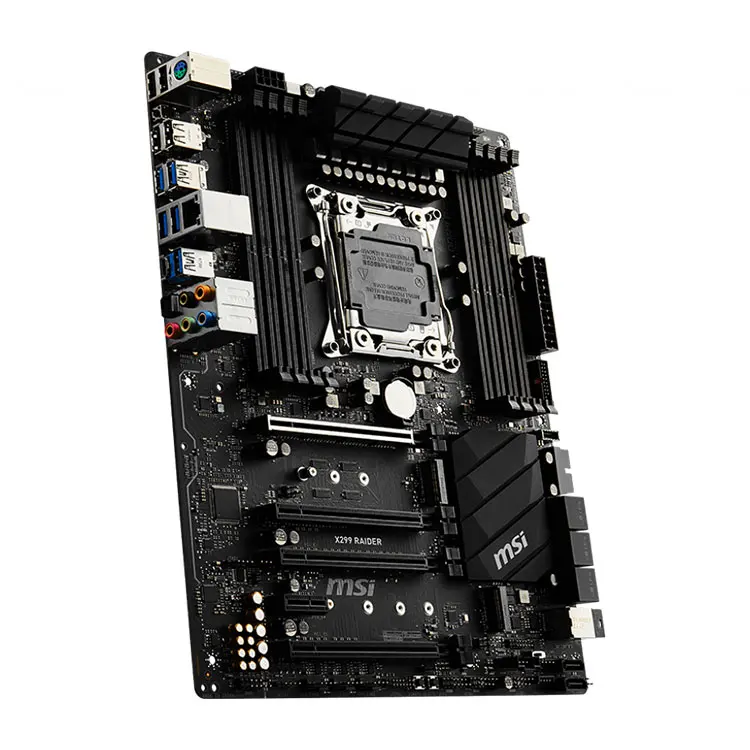

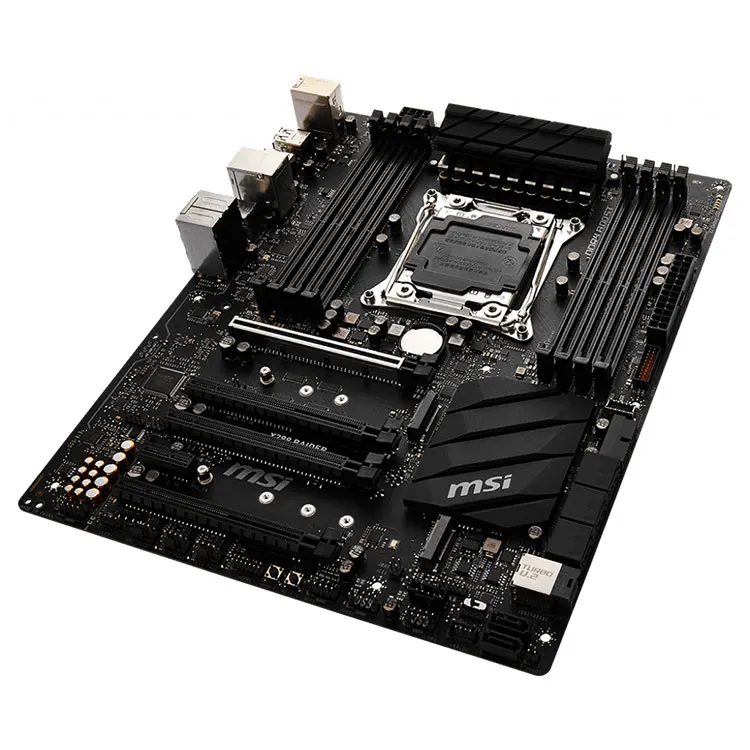

MSI Intel X299 RAIDER 128GB DDR4 LGA2066 ATX Desktop Gaming Motherboard

Product Overview

Description

MSI Intel X299 RAIDER 128GB DDR4 LGA2066 ATX Desktop Gaming Motherboard

Supports New Intel® Core™ X-series Processor Family for LGA 2066 socket

Support Quad Channel DDR4-4133(OC)+, Dual Channel DDR4-4500(OC)+

DDR4 BOOST: Give your DDR4 memory a performance boost.

TWIN TURBO M.2 and Intel® Optane Memory Ready: NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4

TURBO U.2 with Steel Armor: The U.2 connector, featuring Steel Armor, allows connecting of the fastest NVMe based SSDs.

Lightning USB 3.1 GEN2: Powered by the ASMedia ASM3142 USB 3.1 Gen2 controller, Lightning USB offers the fastest USB speeds.

Military Class 6: Latest evolution in high quality components for best protection and efficiency

Intel® LAN: Great online experience through hardware design and bandwidth management offering the lowest latency.

Audio Boost 4: Reward your ears with studio grade sound quality for a true HI-FI experience.

EZ DEBUG LED: Easiest way to troubleshoot.

MULTI-GPU: With STEEL ARMOR PCI-E slot. Supports 3-Way NVIDIA SLI™ & 3-Way AMD Crossfire™

Clear CMOS & Dual BIOS: Easy BIOS reset and recovery tools to ensure a booting system, no matter what.

SOCKET:LGA2066

CPU (MAX SUPPORT):X-Series

CHIPSET:Intel® X299 Chipset

DDR4 MEMORY:Intel® Core™ X-series Processors (6-core above 78XX/79XX) - Quad channel memory support DDR4 4133+(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz* Intel® Core™ X-series Processors (4 core i7-7740X/i5-7640X) - Dual channel memory support DDR4 4500+(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz*

MEMORY CHANNEL:Quad

DIMM SLOTS:8

MAX MEMORY (GB):128

PCI-E X16:4

PCI-E GEN:Gen3

PCI-E X1:1

SATAIII:8

M.2 SLOT:2

U.2:1

RAID:0/1/5/10

TPM (HEADER):1

LAN:10/100/1000*1

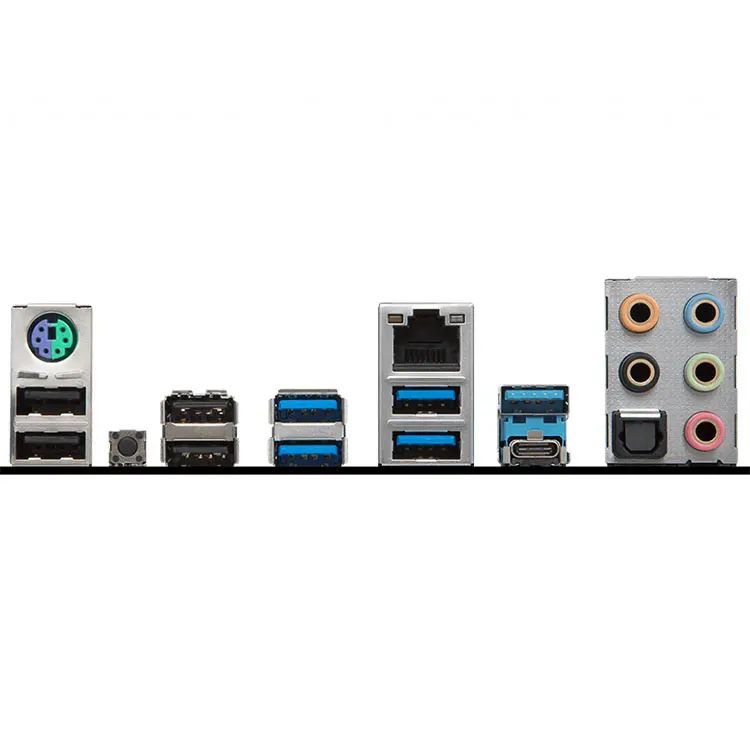

USB 3.1 PORTS (FRONT):1(Gen2 ,Type C)

USB 3.1 PORTS (REAR):2(Gen2 ,Type A+C)

USB 2.0 PORTS (FRONT):4

USB 2.0 PORTS (REAR):4

AUDIO PORTS (REAR):Realtek® ALC1220 Codec

FORM FACTOR:ATX

SLI:Yes

CROSSFIRE:Yes
