Product Overview
Description
Product

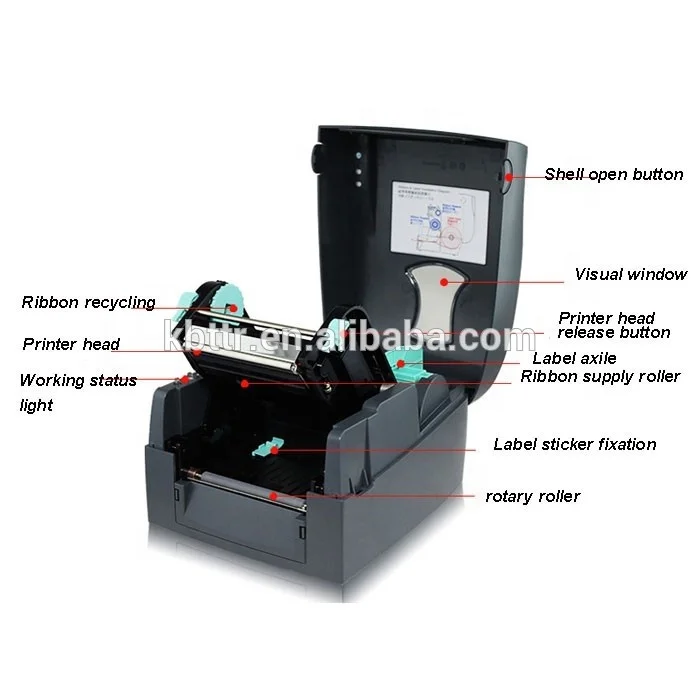

self adhesive label sticker label printer G500 G530 USB shipping printer transfer printing
There's main four types material printer ribbon use on barcode printer, divide into wax, wax resin, resin and wash resin.
Wax mostly suits for rough coated paper label material, wax resin suits for adhesive paper sticker and BOPP, but its anti-scratch is much better than normal wax ribbon; Resin suits for synthetic label material like pp, bopp pvc plastic, Polyester PET, synthetic paper ; another special ribbon type is wash resin suits for many kinds garment/ clothing wash care label with waterproof, washable and durable features after washed or in severe environment.
Wash ribbon is one type of durable material designed for printing on wash care labels that made of polyamide nylon taffeta, polyester fabrics satin ribbon, tyvek, iron on label, tpu and others types. Mainly used for garment, shoes, bag, present fields, with high washability and superior resistance to dry cleaning, sweat, heat and waterproof.
Applications fields:
Wide use in logistic industry , warehouse industry , Garment industry, retailer supermarket, factory , garment processing,
Hotel management, Home appliances digital products, Pharamaceutical industry etc.
Printer model | G500-U |
Printer method | Thermal transfer printing/ direct thermal sensitive |
Resolution: | 203dpi / 8 dots |
print speed: | 5 inches/ sec (127mm/ sec) |
print width: | 108mm |
print length: | 4mm to 1727mm |
Memory: | Flash: 8MB Flash (and 4 MB is for user use) SDRAM : 16 MB |
Sensor type: | reflective sensor: removable penetration sensor: middle site location fixation ( dual sensor) |
Label sticker specificaitons: | Series: Continous , black mark label sticker, perforated label,normal common paper sticker width: 25.4mm to 118mm thickness: 0.05 mm to 0.25mm roll diameter: 127mm roller core : 25.4mm/ 38.1mm/ 76.2mm |
Ribbon dimension: | Material:wax, wax resin, resin, wash resin length: 300m width: 30mm-110mm diameter: 68 mm core: 25.4mm |
Program language: | EZPL, GEPL , GZPL |
Edit software: | Label editor software : Q label IV ( apply on EZPL language) DLL : WIndows 2000 , XP and VIsta, 7 |
In-built typeface: | Windows dot matrix : 6,8 ,10,12,14,18,24,30 16* 26 and OCR A&b Dot matrix typeface can 90 180 , 270 rotary, single typeface 90, 180, 270 rotary Dot matrix typeface horizontal , vertical amplify 8 time vector typeface: 90, 180 270 rotary |
Downloadable typeface: | Dot matrix typeface can 90 180 , 270 rotary, single typeface 90, 180, 270 rotary Dot matrix typeface horizontal , vertical amplify 8 time vector typeface: 90, 180 270 rotary |
barcodes series: | Code 39, Code 93, Code 128 (subset A, B, C) UCC/ EAN -128 K-Mart, UCC/ EAN -128, UPC A/E( add on 2&5) I 2 of 5, I 2 of 5 with shipping Bearer Bars, EAN 8/ 13 ( add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI ( 1 Mod 10) , Ramdom Weight, Telepen, FIM, China postal Code, RPS 128 and GS1 DataBar 2-D code: PDF 417, Datamatrix code, Maxicode, QR code and Micro QR codes |
Character code: | Code page 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737, Windows 1250, 1251, 1252, 1253, 1254,1255 Unicode (UTF8, UTF 16) |
Graphic treatment : | Support for single color PCX, BMP other picture document can controlled by software |
Interface: | USB 2.0 |
Control panel: | Two color LED button: Ready , Status One group function control button: FEED |
Power supply: | Power supply: -240V AC: 50-60 Hz |
Working environment: | Operation temperature: 5c to 40c ( 41 F to 104 F) Storage : -20c to 50C ( -4F to 122 F) |
Humidity : | Operation : 30- 85% relative humidity , uncondensed storage: 10-90. relative humidity , uncondensed |
Printer body dimension: | 285 (L) * 171 mm( H)* 226 mm( W) |
Print weight: | 2.8KG ( Net weight exclude the printer consumables) |
alternative spare parts : ( for purpose) | External hanger ) suits for diameter with 250mm label roll putting Label rewinding machine |
Product Description
Feature of printer consumables/ printer ribbon:
* 203 dpi printer with high speed 5 inches/ sec which is an idea option applied in vairous fields.
* High resolution suitable for printing standard and rotation barcode.
* Satisfy printing demands for different label material, shipping label, jewelry label, goods shelf, hang tags, Textile care label printing.
* High sensitivity to ensure the great printing results.
*Anti-static back coating technics for print-head protection.
Other printer option
Various color ribbon
Customize for any size, 1 inch core or 1/2 inch.
Ribbon die-cutting to any dimension.
Printsout of color ribbons
It has a widely application for clothing/ garment care label printing, for shoes, bag and apparel.
Label rewinder
if use for label sticker or roll garment care labels , one kind rewinder would work same speed with the printer for rewinding, largely increase the working efficiency, and keep every printed labels in order going .
Barcode labels
Wash resin ribbon especially applied in garment care label, like for nylon taffeta satin fabric, iron on name label etc.
How to use it:
1. first, put the ribbon on convey spindle, barcode labels on lable roll spindle, especially notice that the ribbon or label must be in the middle of the spindle, and aligned.
2. Be sure that the inking side of ribbon will be contact with labels.
3. Ribbon material must match with label used, otherwise it can't show perfect printing images.
4. Ribbon must be a little bit wider than care labels for the protection of print head.
Customers Feedbacks
Pursure for continous development and always provide the high and qualified products to customers!
1. Quick response rate to any of your inquiry within 24 hours .
2. Can meet your small amounts moq .
3. Fast response after-sales services to make sure the issues occurs on you can be solved in time.
4. Truly suggestions for the products selection, usage and tips for shipment.
4. Truly suggestions for the products selection, usage and tips for shipment.
Exhibition
Packing & Delivery
Busniess term:
EXW WORK, FOB, CFR, FCA, CIF incoterms.
Package:
Carton size: 51*37*37 CM
Net weight: 5.5KG
Gross weight : 7.6kg
Delivery:
By express: FEDEX, DHL, TNT, UPS, EMS We will choose the preferabel, cost-efficient way for you.
By sea: Please provide the specific seaport near your address.
By air: Please offer me the international custom airport for me to confirm.
Lead time:
Generally 3-5 working days, mass production for 7-10 working days, color ribbon needs take longer.
our company
Dongguan Kebao Barcode Technology Co.,ltd
Our company with 7 years experienc in this field, strives to provide you a wide range of TTR, hang tag, labels, barcode printer, hot stamping foil, franking machine T1000, ID card printer ribbon, etc, which are hot and appeal to different taste for worldwide, definitely we are meant to show you our professional technican and great pre-services and after-sale-service.
We are committed to expand our type series, species introduction of material for processing to satisfy every of you request with up-date items. With professional knowledge, meticulous services, and competitive price, we believe we are very qualified to be your qualified partners in the future by supporting you to open up a new market.
Why Choose Us
> Completely and careful double check before shipment.
> Take great pains for every of you with highly patience to solve any questions and issues.
> Our products with high quality guranteed the quality for 2 years or above.
> Machine installing and worker training service; whole life free tecnical support; regular onsite routine inspection.
> We put service premiumly, your satisfaction is our perpetual persuit.
> We have proffesional and corporately team.

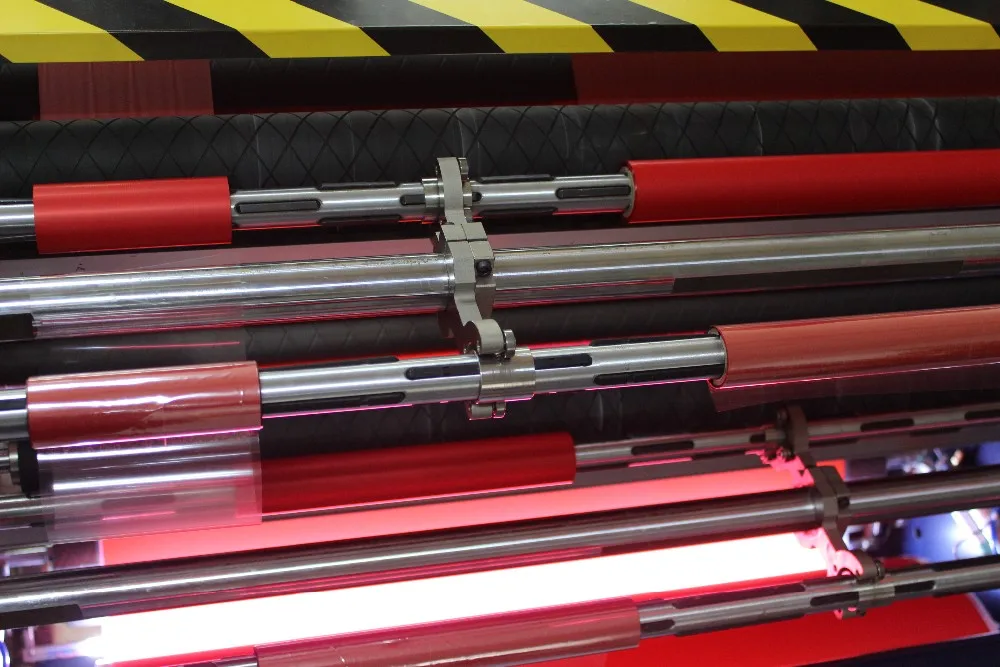

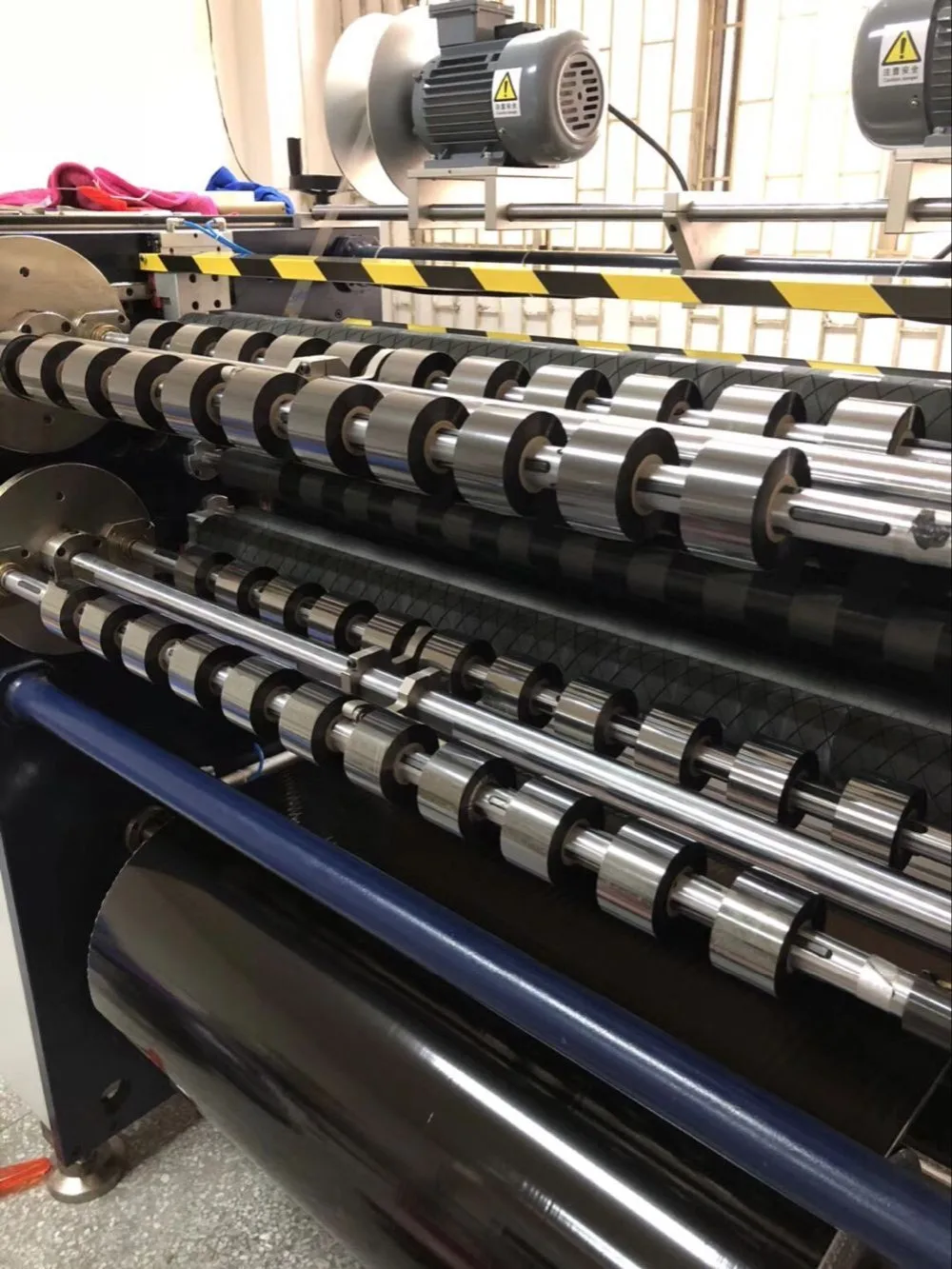

Slitting machine ( customize for any sizes ribbon)
