Цифровой алкотестер AT 868FP с датчиком топливных ячеек, анализатор алкоголя, анализатор дыхания, тестер спирта с принтом

Product Overview

Description

AT 868FP Fuel Cell Sensor breathalyzer digital wine alcohol tester breathalyzerdigital breath analyzer print alcohol tester

The introduction of product

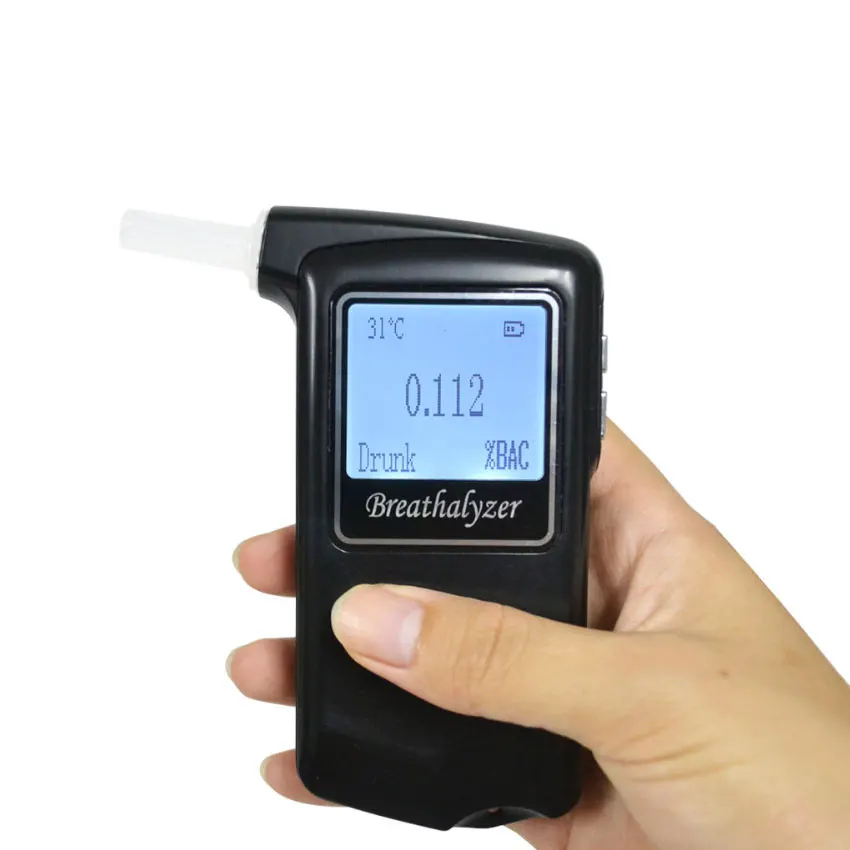

AT-868F is an advanced portable Breath Alcohol Tester. Its core component adopts new high-tech Fuel Cell Sensor with complete independent module which can measure accurately concentration of the breath alcohol, with high accuracy,high sensitivity,high steady and strong anti-jamming ability. The admirable human-device interface makes operation more concise and convenient, the white color LCD makes interface more clear and beautiful.

Main functions and futures:
1.With high accuracy ,high sensitivity fuel cell sensor which assure stable performance and testing accurately .
2.2.0’ lattice black and white LCD display , wide operating temperature range

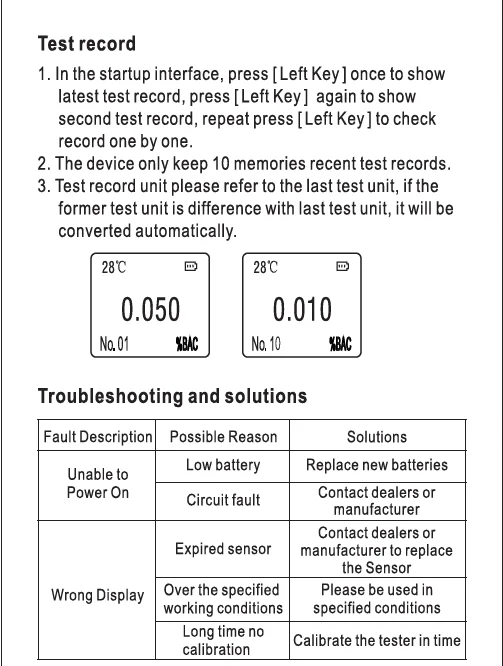

3.Store 10 test records
4.Test times display

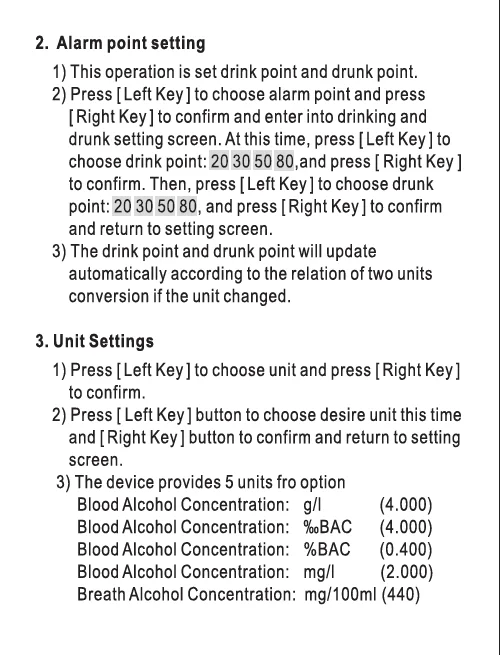

5.Two alarm points for option : drinking,drunk
6.5 test units (%BAC, ‰BA C, mg/L)

*Blood Alcohol Concentration: g/l (4.000)
*Blood Alcohol Concentration: ‰BAC (4.000)
*Blood Alcohol Concentration: %BAC (0.400)
*Blood Alcohol Concentration: mg/l (2.000)
*Breath Alcohol Concentration: mg/100ml (440)

7.Low battery alarm and power off automatically

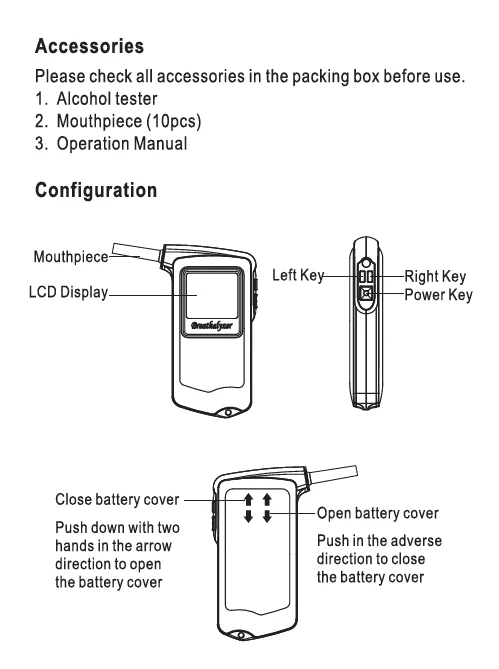

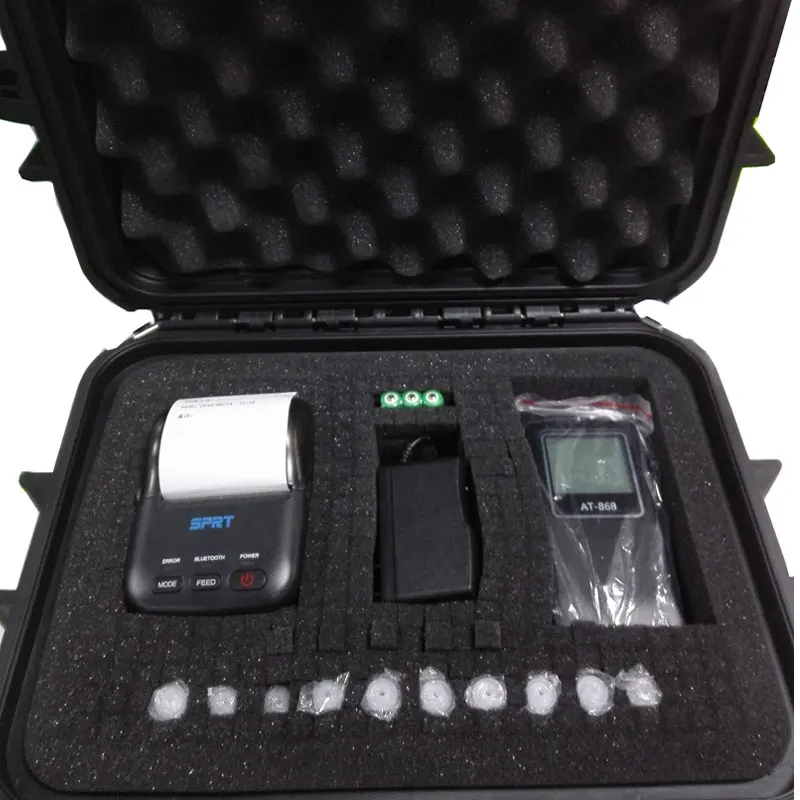

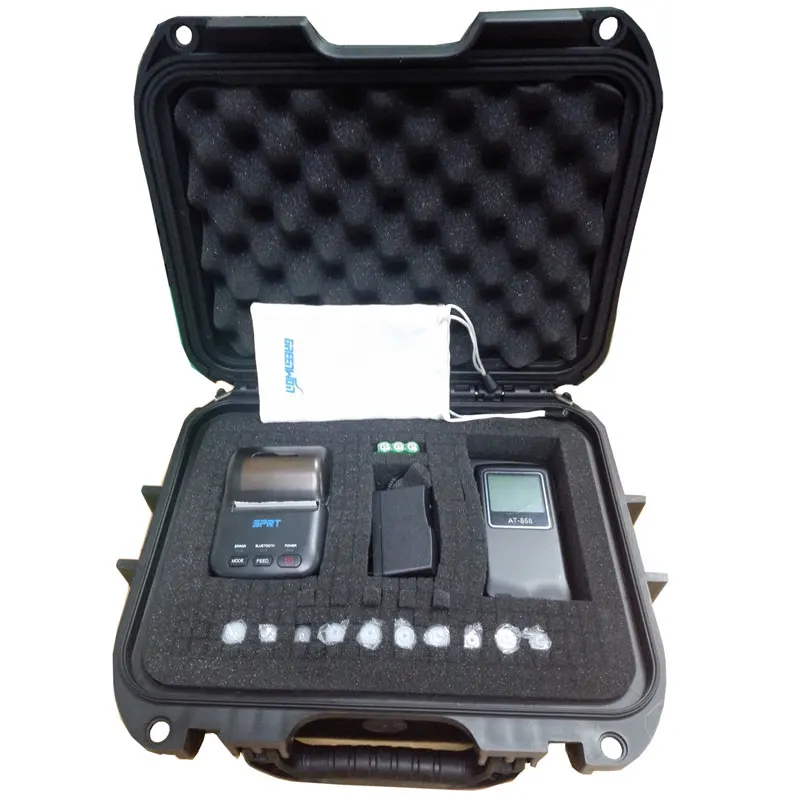

Accessories:
Please check all accessories in the packing box before use.
1.Alcohol tester

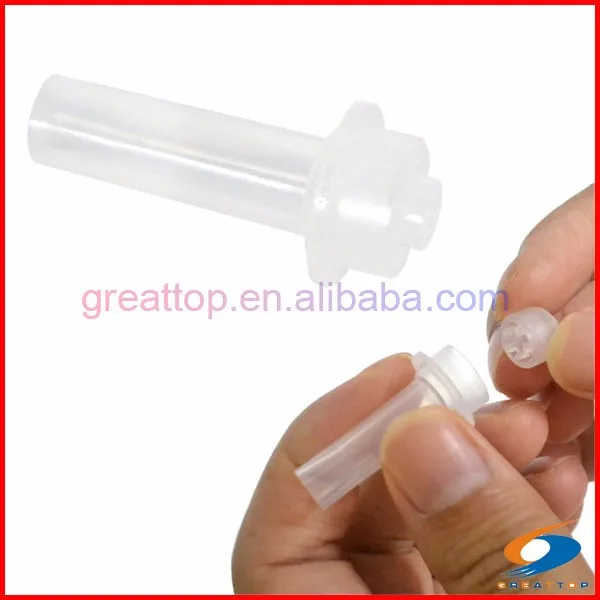

2.Mouthpiece (10pcs)
3.User Manual

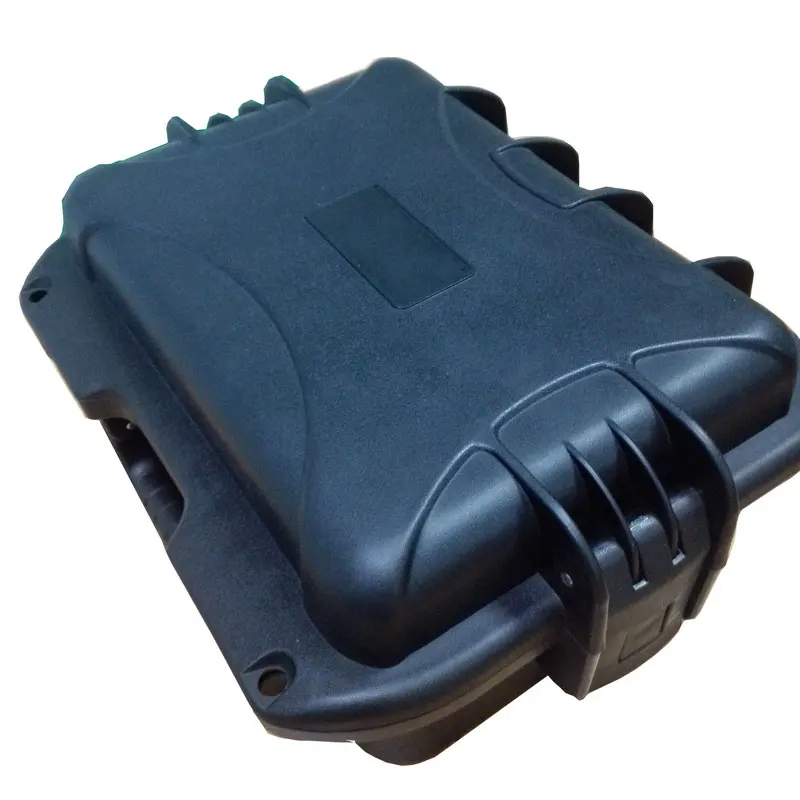

4.bag

Precaution:
1.In order to assure the actual test result responsing to alcohol concentration in blood, Please get your testing after 15 minutes when drinking .
2.Please do not blow smoking to the tester directly, otherwise the sensor will be damaged.
3.Avoid using the tester when environmental temperature exceeds its specified range.
4.Avoid any high crashing or strenuous vibration.

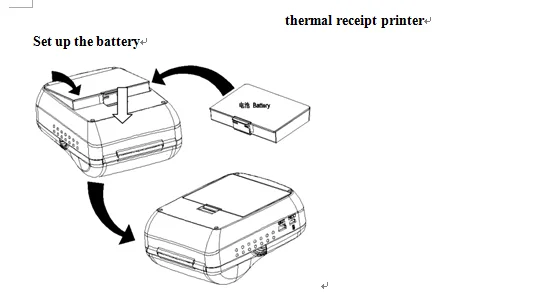

Starting up

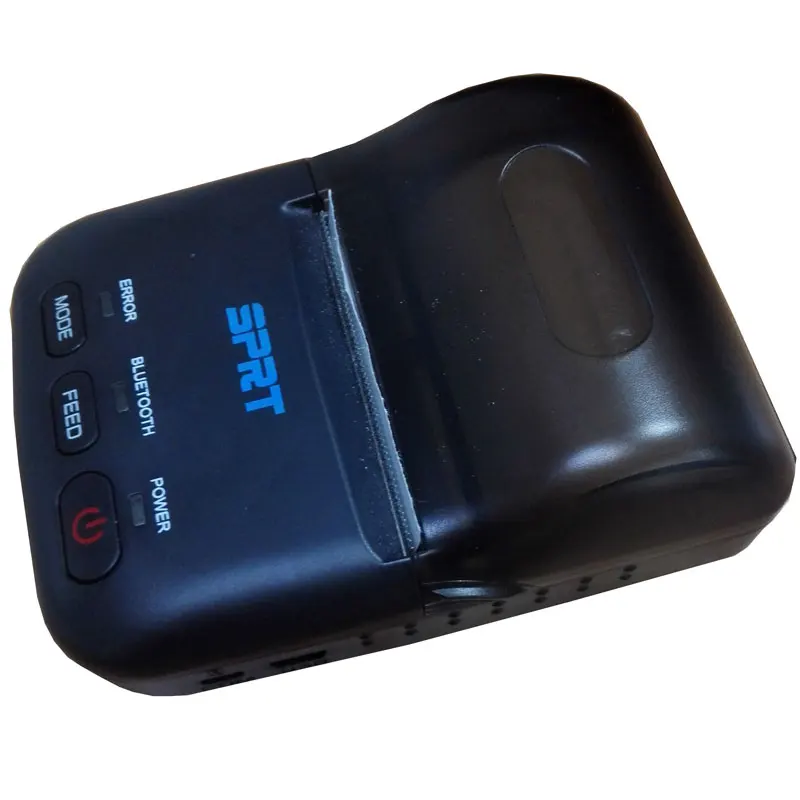

When the machine is off, press the power button for 1 second and the printer is in working state

Source light on (green).

Note: if the printer's power light is red, the printer's power will be on

Run out, if you want to continue to use, please replace the battery or charge as soon as possible



Power off

When the machine is on, press the power button for 1 second and the printer is off

Put out



Self-inspection

After the user gets the printer, the printer can be checked at any time

The current Settings and state of the printer.The method of self-check is as follows: shut down (if printed

If the machine is on,), then hold down the FEED key first, then

Power on (press the power button), then release the [FEED] button, and the printer will print

Output current status and printer Settings



Paper feed

When the printer is in normal operation, press the "FEED" button to print the printer start walking the paper. Release the FEED key and stop the paper.In black label mode,Press the "FEED" button, and the printer starts to go to the black mark and stops.

If it is not black label paper, it will stop after 30cm.
