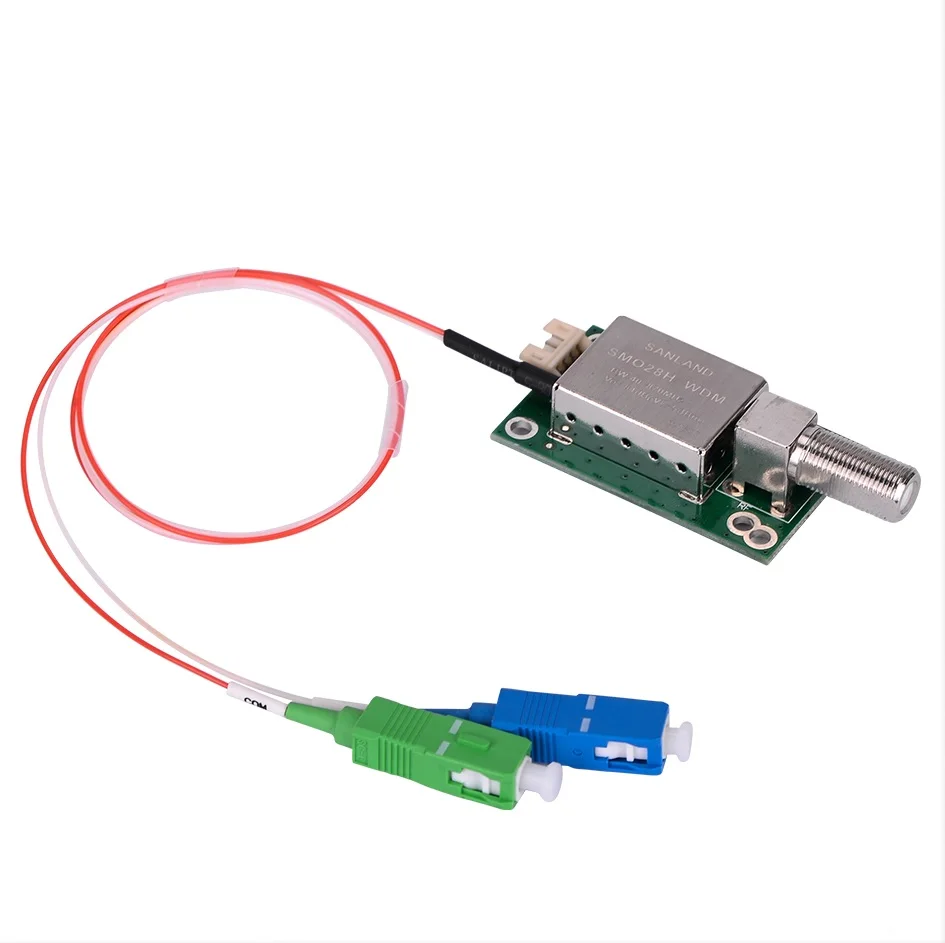

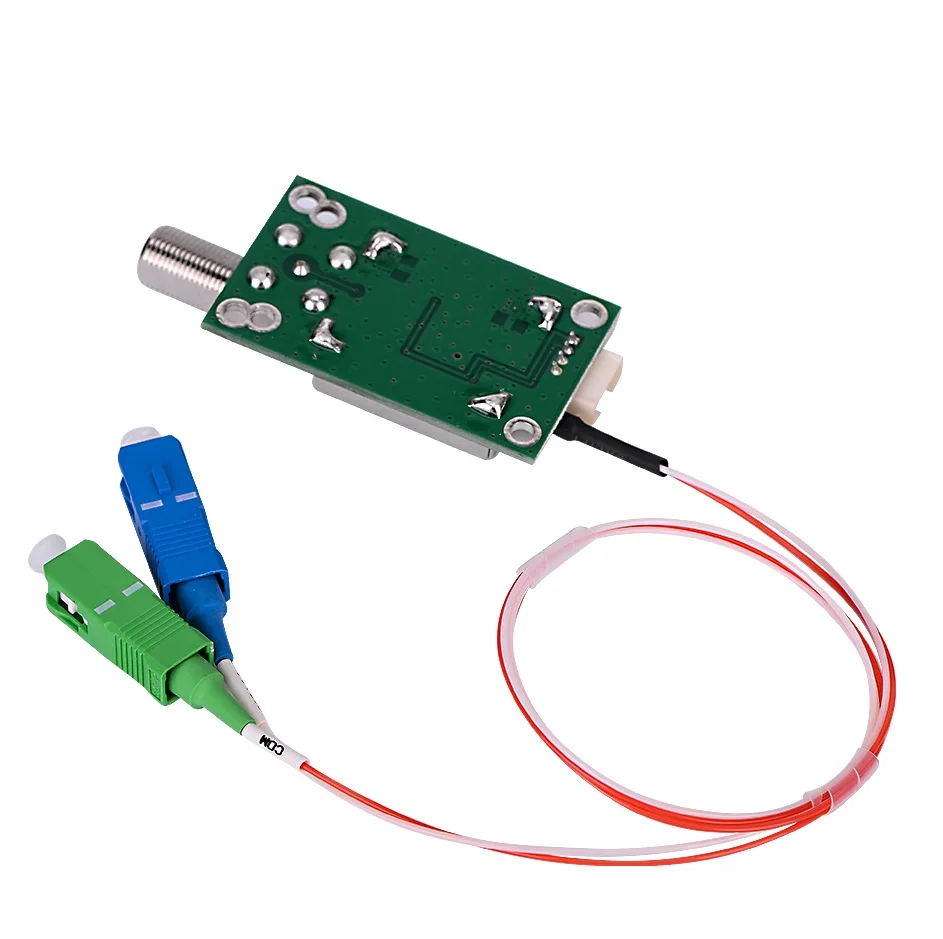

SANLAND High Realiability WDM 870MHz 84dBuV CATV Optical Receiver Module in FTTH ONU
- Category: >>>
- Supplier: Shenzhen Sanland Technology Co. Ltd.
Share on (60829513895):
Product Overview
Description
Products Description
output having a characteristic impedance of 75Ω.
● Excellent Linearity
● High Optical Input Power Range
● Excellent Flatness
● Optimal Reliability
● Low Noise
● FC/APC SC/APC
● High Optical Input Power Range
● Excellent Flatness
● Optimal Reliability
● Low Noise
● FC/APC SC/APC
Specification
Symbol | Parameter | Unit | Min. | Typ. | Max. | Conditions |
F | Frequency Range | MHz | 40 | - | 870 | |
S | Responsivity | V/W | 850 | - | - | λ=1300nm |
FL | Flatness | dB | - | - | ±0.75 | f=40-870MHz |
Vo | Output voltage | dBuV | - | 84±1 | - | 60 channels flat; measured at 543.25 MHz; Optical power receiving at – 5dBm |
CTB | Composite Triple Beat | dB | - | - | -65 | PAL 60 channels flat Vo=44dBmV |
CSO | Composite Second Order Distortion | dB | - | - | -60 | |
CNR | Carrier to noise ratio | dB | - | 49 | - | |
S22 | Output Return Loss | dB | 12 | - | - | f=40 to 870MHz |
ltot | Total Current Consumption | mA | 200 | - | 235 | V=+5V |
About Sanland
Specialized in the CATV & FTTH 19+years already!
>Founded in 2002 with own ability in design/production/sales>Certified with ISO9000 & ISO14001 in 2005
>Was listed in the NEEQ in 2016, with the stock code: 837305
>ODM/OEM service support
>Lead Time can be as short as customer request
>Price advantages is promised
>Strict QC process is executed from the raw materials to end product
>After-sales service is promised
>Was listed in the NEEQ in 2016, with the stock code: 837305
>ODM/OEM service support
>Lead Time can be as short as customer request
>Price advantages is promised
>Strict QC process is executed from the raw materials to end product
>After-sales service is promised
Our Exhibition
Our Customers
Product packaging
FAQ
Q1: Are you a manufacturer or trader?A: We have our own factory to make sure the product quality/lead time/price advantage
Q2: What's your MOQ?
A: The MOQ based on different product series is different actually(100~1000pcs), send your inquiry to the sales for the exact
feedback
Q3: Can you offer free samples?
A: Yes the free samples are available for the product verify, don't hesitate to ask for it!
Q4: How about the lead time?
A: 2-4 weeks for the regular order qty ≤5k pcs. The stock can be prepared in advance based on long-term partnership!
Q2: What's your MOQ?
A: The MOQ based on different product series is different actually(100~1000pcs), send your inquiry to the sales for the exact
feedback
Q3: Can you offer free samples?
A: Yes the free samples are available for the product verify, don't hesitate to ask for it!
Q4: How about the lead time?
A: 2-4 weeks for the regular order qty ≤5k pcs. The stock can be prepared in advance based on long-term partnership!
