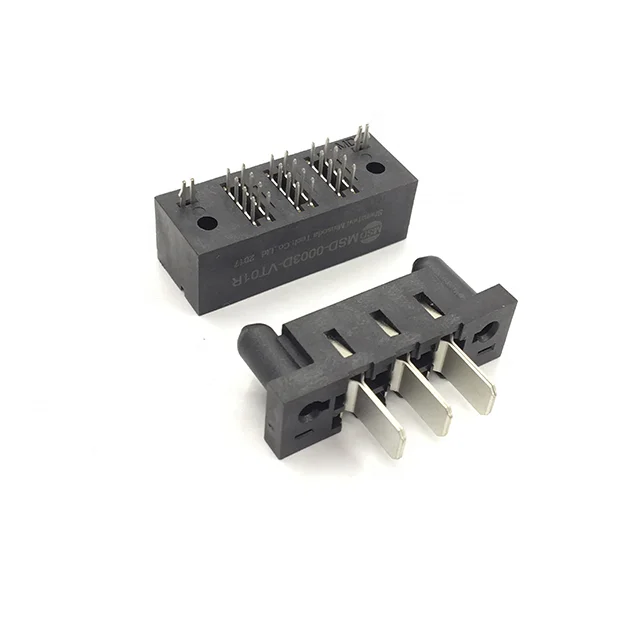

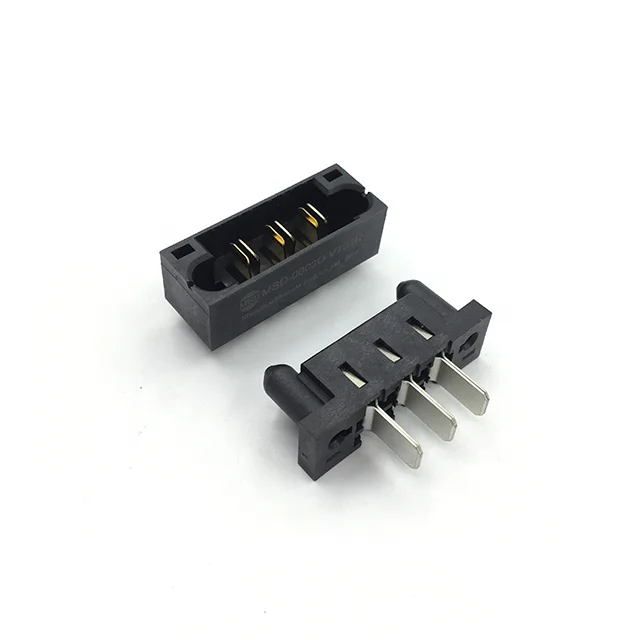

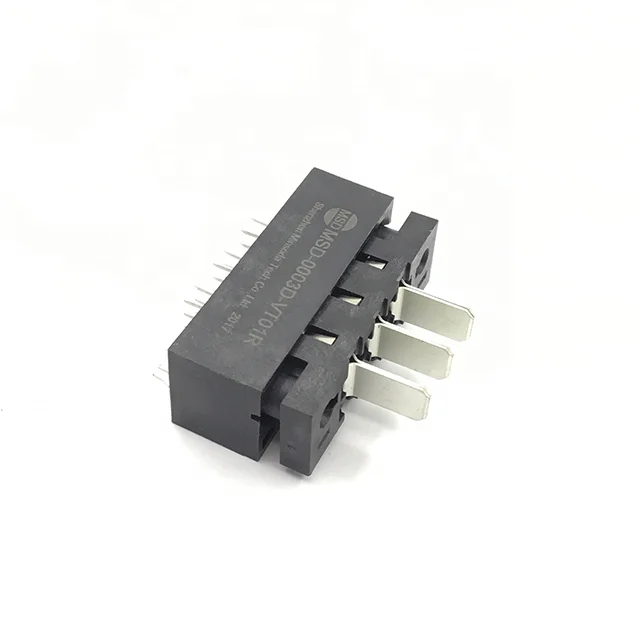

3 Pin 6.35mm Pitch 40A WireTo Board Steckverbinder AMP connector
- Category: >>>
- Supplier: Qianhai Misa (Shenzhen) Technology Co. Ltd.
Share on (60829522533):
Product Overview
Description
3 Pin 7.62mm Pitch 40A Wire to Board solder type Rectangle High Current DC Blade Power Connectors
Product Description
Specifications
| Attribute | Value |
| Component Type | Power Supply Connectors |
| Gender | Receptacle/Pulg |
| Header Pin Pattern (Left to Right) | Power |
| Number of Contacts (Power) | 3 |
| Number of Rows (Power) | 1 |
| Orientation | Right Angle-Vertical |
| Pitch (Power) | 6.35mm (0.250in) |
| Current Rating | 40A max. for One Powered Contact |
| Resistance (Contact) | Maximum for mated pair is 2mΩ |
| Dielectric Withstanding Voltage | 2500V DC for signal |
| Voltage Rating | 300V |
| Color - Housing | Black |
| Operating Temperature Range | -40°C to +125°C |
| Material Housing | PPA, glass fiber reinforce, UL94V-0 |
| Durability (Mating cycles) | 250 Mating Cycles |
| Solder process | High Temp Solder Process |
| Plating Contact area | 0.76μm (29.921μin) Gold |
| Tail Plating (Power) | 1.98μm (78μin) Tin |
| Guide Feature | Guide Pin Pocket |
| Packing | Cartons or Tray |
Our Products Features And Advantage:
1.High temperature resistant, glass fiber reinforced and flame retardant polyester are used as insulating materials.
2.A copper-gold alloy with high conductivity is used as a conductor and gold plating is used in the contact area of the conductor.
3.The center distance of power contact parts is 5.08mm, 6.35mm and 7.62mm Three sizes are available
4.Power rated current 45A. signal rated current 2.5A
5.Use shrapnel structure contacts, with the characteristics of integrated, small size,.carrying current, plug soft, can be inserted blindly, guided by their own orientation, high dynamic contact reliability, ect.
6.This series of products can be interchangeable with the POWERBLADE FCI, TYCO's MULTI -BEAM series of products.
Our products series
MSIA CONNECTOR is also quite experienced on ODM&OEM cooperation with customers for personalized products,all new ideas are welcome here.
Company Information
A Company You Can Trust
Shenzhen Misa Technology Co.,Ltd. are one of the greatest supplier of Power Connector in Shenzhen China.Drawer power connector,Blade power connectors, Battery connector,Connector Terminal and all kind of Insulator are our core competence.
OUR ADVANTAGE
With a great experience to work with OEM & ODM project, we provide clients with a One-Stop Solution - from design & prototype, mold development to injection - with our team of experienced engineers, who are focused on speedy development and punctual delivery. And we respect very much on the confidential of each project definitely. As our client, you will benefit from our vast experience, which enables to provide and give you efficient service most important high quality control standards fit to your needs.
How to Ensure the quality?
1.Shenzhen Misa Technology Co.,Ltd. launched over 6 series of Power connector onto There are more than a few hundred customer verifications.In the future, we will provide more customized products to power connector users around the world.
2.Factory manager Mr.Zhang has 11 years power connector production experience. Factory R&D and QC team are rich experienced in connectorproduction line.
Packaging & Shipping
1.Our enterprise will strictly follow the connector specificatios and deliver the products in due time as required by the contract .
2.MISA will provide power connector technological maintenance and guarantee within one year if any quality problem happens to our product.
3.Professional personnel will provide product specifications,product choice suggestions and installation methods 4.Zero-distance service and phone number for around-the-clock service.
Personalized Service
If you have any idea of the products or want to made your special products, welcome dream team! We have our own developing and designing team, which ensure our own technological and innovative products for customers. We will help you realize your dreams.
Transportation Service
We directly cooperate with DHL, you can get goods faster and save your shipping cost.
Other optional express: FedEx,UPS,EMS.
If the quantity is large, we can also transport the goods to you by sea.
FAQ
1. Any problem, requirement and suggestion, please contact us freely, we'd be very pleased to be at your side.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q. How often does your company update the product ?
A. We never ever stop developing new products. We will design a new product according to the market demand.
Q. Can I place sample order for testing before placing regular order?
A. Yes, trial order is acceptable..
Q. What payment methods your company accepts?
A. We accept T/T (Bank Transfer), Paypal , Western Union, Cash, L/C and Alibaba Trade assurance.
Q. How about your after-service?
A. We offer 12 months warranty for all products.
