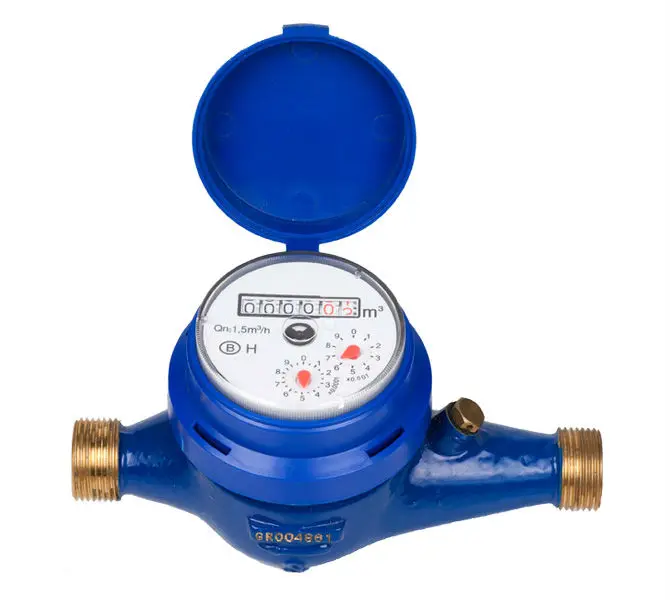

Rotary type multi jet water meter

Product Overview

Description

Specifications

Multi jet dry dial water meter
1, Rotary head mechanism
2, Multi jet
3, Dry-dial
4, Class B accuracy

Description:

Feature
1.Dry-dial,Magnetic drive,Resistance to exterior magnet interference
2.Multi-jet
3.Selected high quality materials for steady & reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
6.Universal use.Easy for interchange & maintenance

Description
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit,passing through the pipeline.

Working condition
Cold water temperature: ≤40 degree , Hot water temperature: ≤90 degree
Water pressure:≤1Mpa

Main technical data



Meter size	Class	Qs Overload  Flow	Qp Nominal  Flow	Qt Transitional  Flow	Qmin Min  Flow	Min Reading  Lectura	Max Reading  Lectura
Dia DN  (mm)		m3/h		1/h		m3
15	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50
25	A	7	3.5	350	140	0.0001	99999
	B			280	70
32	A	12	6	600	240	0.0001	99999
	B			480	120
40	A	20	10	1000	400	0.001	99999
	B			800	200
50	A	30	15	1500	600	0.001	99999
	B			1200	300



Dimensions and weight



Meter size	L	B	H	Connecting Thread	Weight
	length	Width	Height
Dia DN(mm)	mm			D	kg
15	165	90	104	G3/4"B	1.3
20	190/195	99	106	G1"B	1.5
25	260/225	103	114	G11/4"B	2.3/2.1
32	260/235	104	117	G11/2"B	2.5/2.4
40	300/245	124	147	G2"B	5.0/4.5
50	300	125	155	G21/2"B	7.2
	280	165	175	Flange connecting conform to	11.5
				GB4216.4
				D=165
				D1=125
