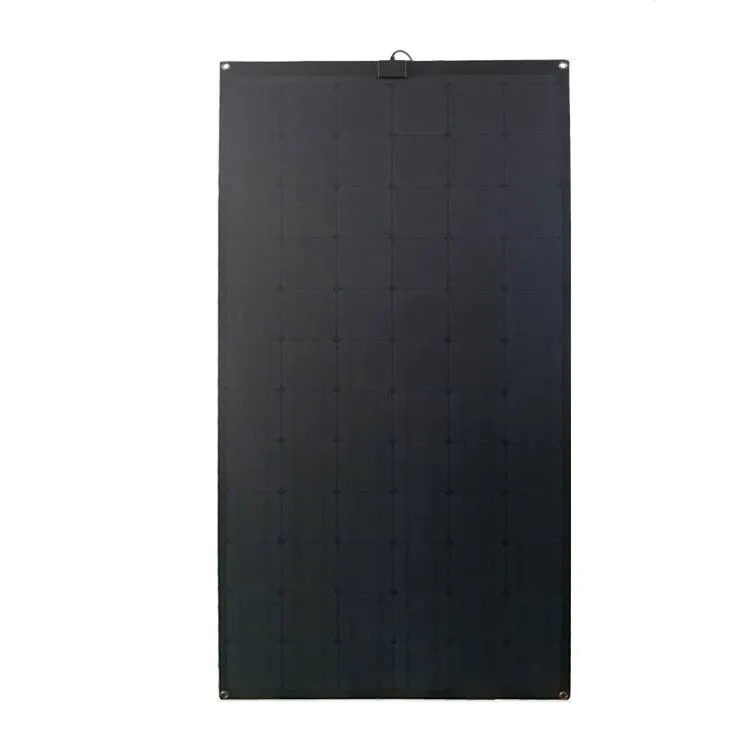

200w flexible solar panel made with pv moncrystalline solar cell with ce/rohs/tuv
- Category: >>>
- Supplier: Guangzhou Ocean Solar Power Technology Co. Ltd.
Share on (60829563690):
Product Overview
Description
Product Description
Product's Description

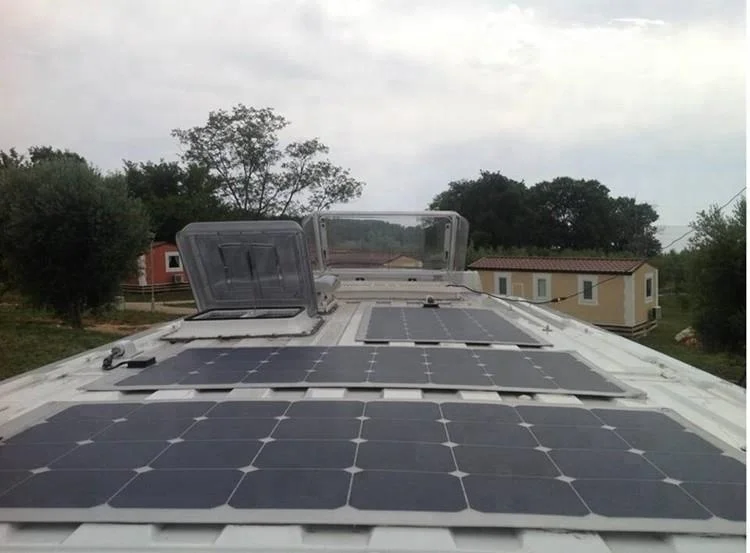

This 200W semi flexible solar panel can be widely used on yacht, boat, RV roof and so on. Our 2nd generation newest product main advantage is higher efficient in producing power, more light in weight and more water proof and durable in long use
Mechanical Data
1).Flexible Angle : up to 20 degree
2).Back Sheet: aluminum or fiberglass (PCB)

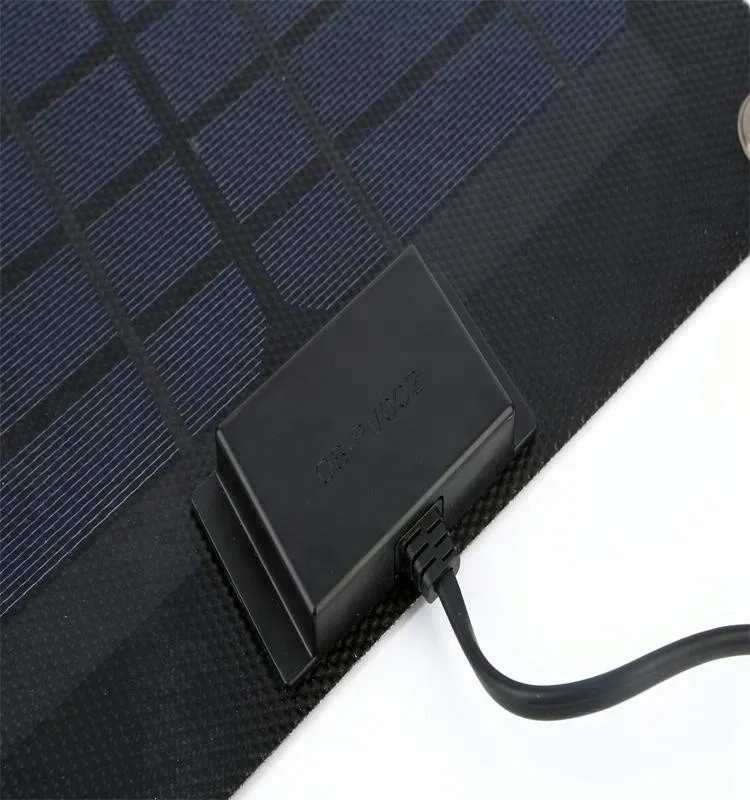

3).J-Box: IP 67 rated
4).Thickness of ETFE: 0.025mm
5).Thickness of solar panel: 2.5mm or 3mm
6).Cables/Connector: 0.9meters, 2*1.5mm2 cable with MC4 connectors
7).Type of Solar Cells: 125 Monocrystalline silicon cells.
8).Eyelets: 4pcs in the corners
Technical Parameter
2).Back Sheet: aluminum or fiberglass (PCB)
3).J-Box: IP 67 rated
4).Thickness of ETFE: 0.025mm
5).Thickness of solar panel: 2.5mm or 3mm
6).Cables/Connector: 0.9meters, 2*1.5mm2 cable with MC4 connectors
7).Type of Solar Cells: 125 Monocrystalline silicon cells.
8).Eyelets: 4pcs in the corners

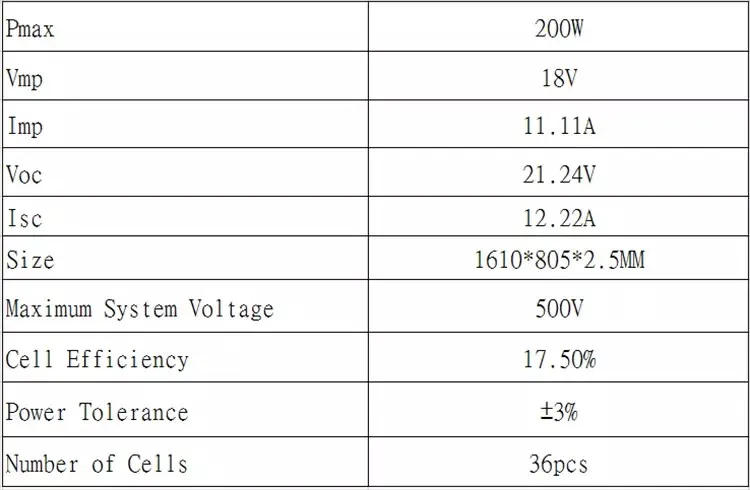

Technical Parameter

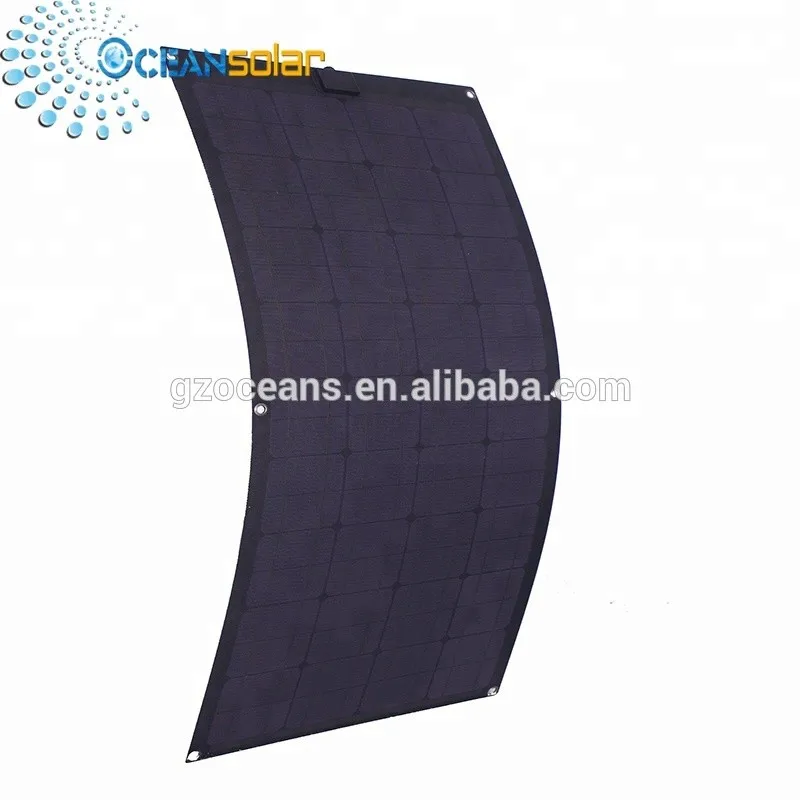

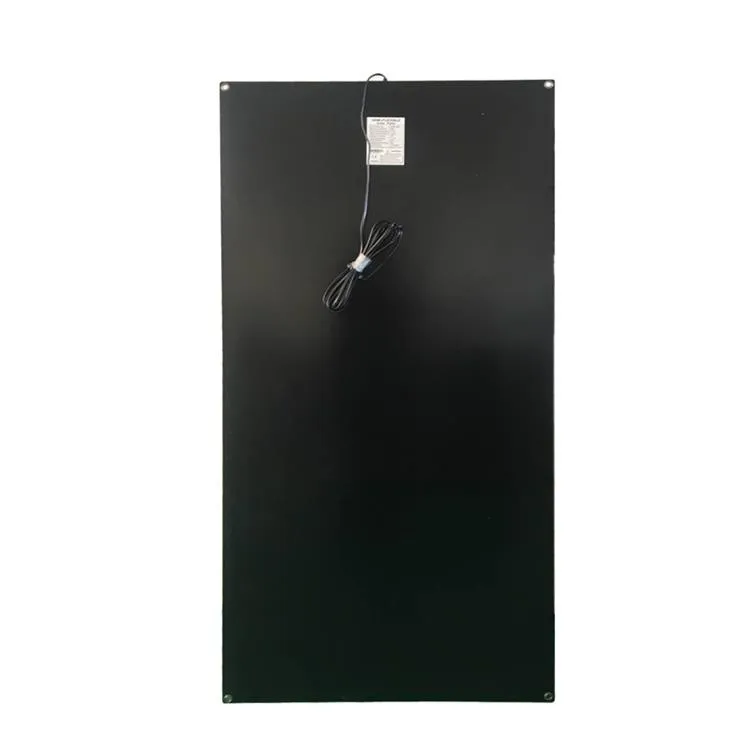

Detailed Images

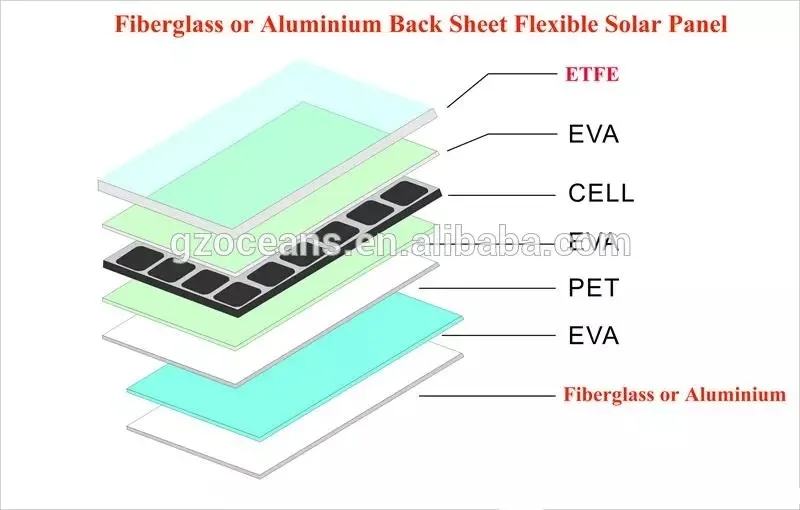

Production Process

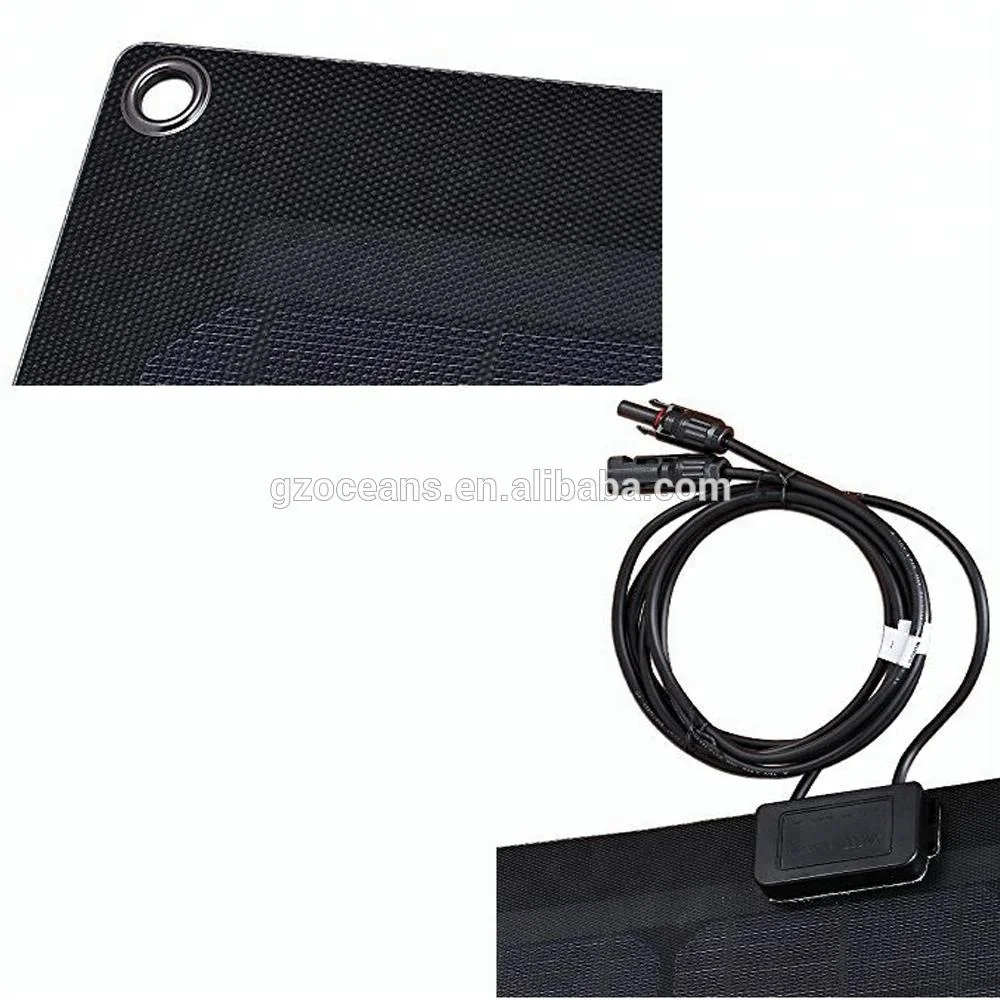

Connection
Package & Delivery

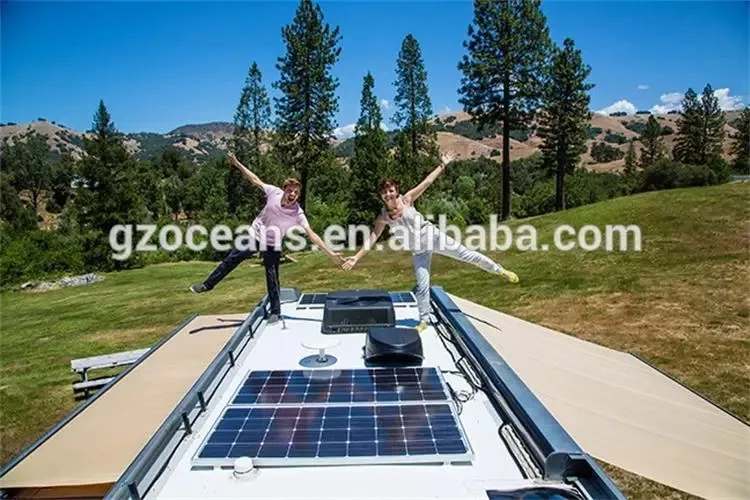

Application
Certifications
Why Choose Us
