433mhz 30meters wireless door access control wiegand26 34 IC card reader
- Category: >>>
- Supplier: Shenzhen Crypton Electronic Co. Ltd.
Share on (60829574356):
Product Overview
Description

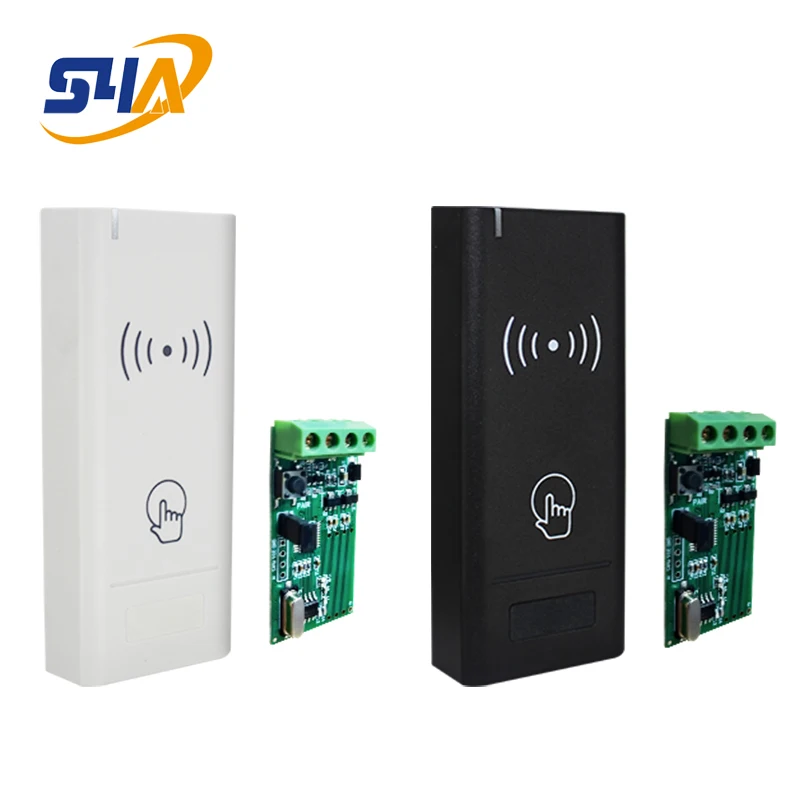

433mhz 30meters wireless door access control wiegand26-34 IC card reader
| Introduction for wireless card reader | |||

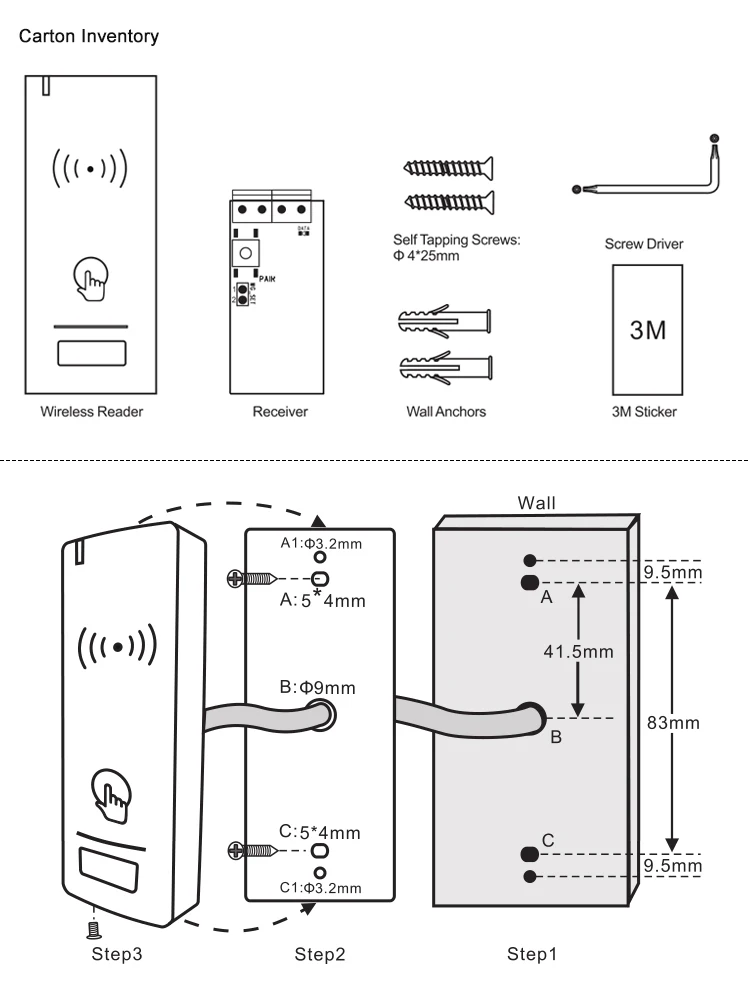

| S4A wireless Reader Kit includes a Wireless Reader and a Receiver. 433MHz Rolling Code of encryption algorithm guarantees higher-secure, programmble Wiegand output of the Receiver makes it can work with most Wiegand controller in the world. Super strong 3M stickers provide a simple way for installing the Wireless Reader. |
| Features for 433mhz wireless card reader | |||
| 433MHz Rolling Code technology | Card type: 13.56MHz Mifare card | ||
| Programmable Wiegand output of the | Receiver: 26 bits or 34 bits | ||
| Receiver: 26 bits or 34 bits | Communication distance: 30m maximum | ||
| Ultra low power consumption | Waterproof, conforms to IP65 | ||
| Specifications for WR-1 access control wireless card reader | ||
| Wireless Reader | Card Type | 13.56MHz Mifare card |
| Operating Voltage | 3 units of AAA batteries | |
| Idle Current | ≤5uA | |
| Working Current | ≤35mA | |
| Reading Distance | ≤3cm | |
| Communication Frequency | 433MHz | |
| Communication Distance | 30m Maximum | |
| Operating Temperature | -20’C ~ +60’C (-4'F ~ +140'F) | |
| Operating Humidity | 0% ~ 86% | |
| Index of Protection | IP65 | |
| Color | Black, White optional | |

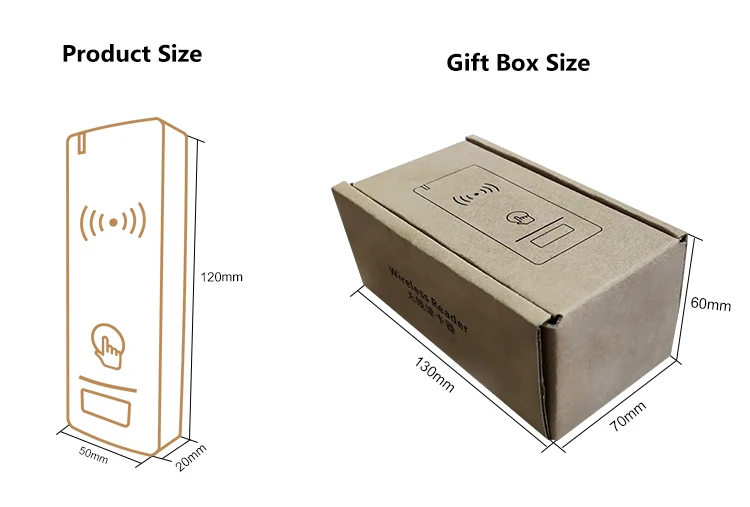

| Dimensions | L120 * W50 * H20(mm) | |
| Net Weight | 88g | |
| Receiver | Operating Voltage | 12V DC |
| Working Current | ≤15mA | |
| Communication Frequency | 433MHz | |
| Wiegand Output Format | 26 bits Or 34 bits (Default is 26 bits) | |
| Operating Temperature | -20’C ~ +60’C (-4'F ~ +140'F) | |
| Operating Humidity | 0% ~ 86% | |
| Dimensions | L25 * W50(mm) | |
| Net Weight | 10g | |

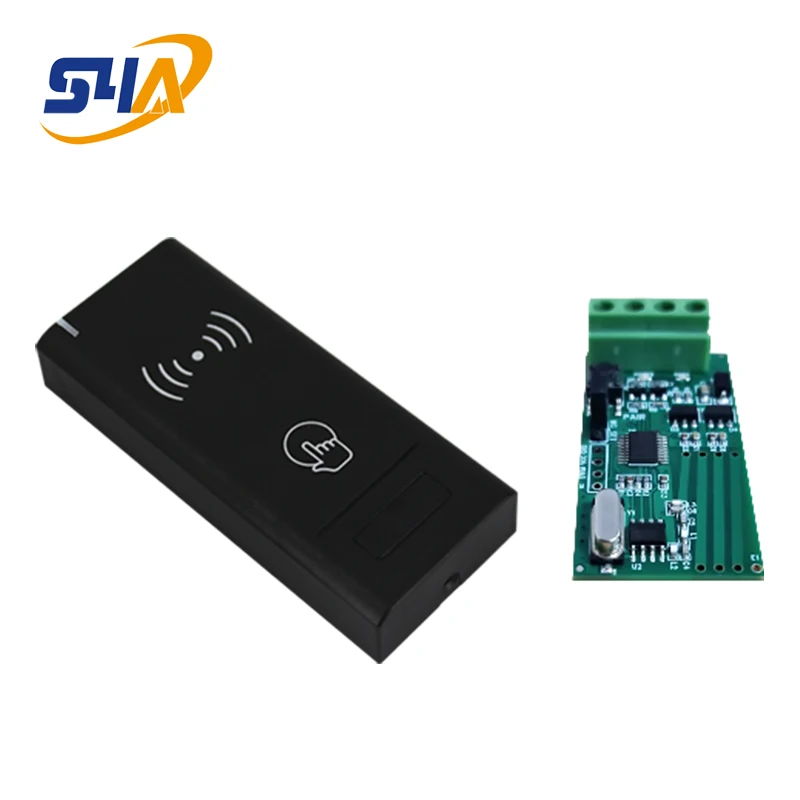

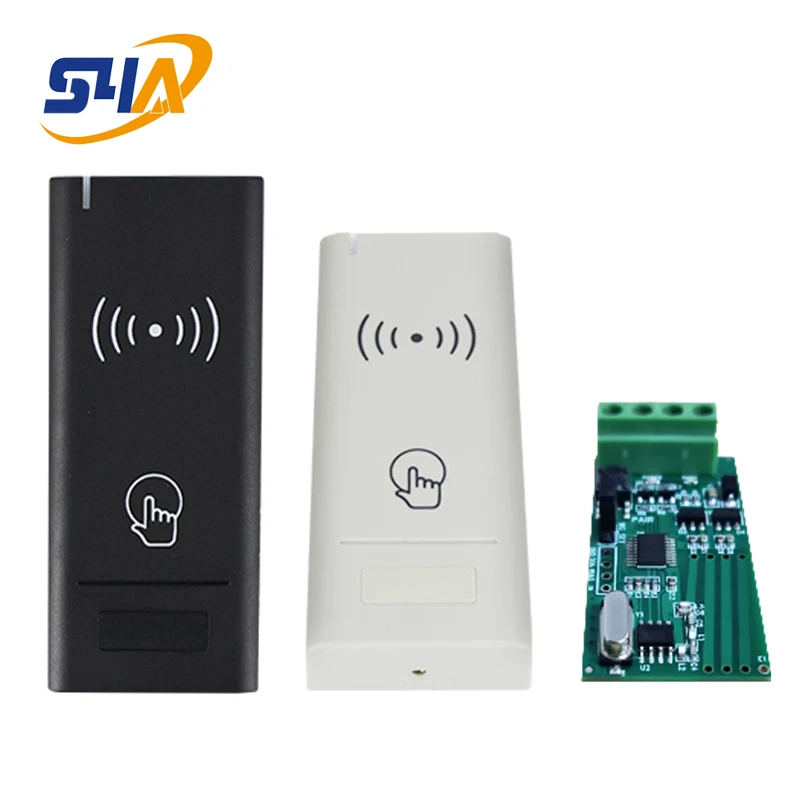

| Photos for wireless card reader | |||
|
| FAQ for wireless access control card reader | |||
| 1: what is the communication distance between reciever and transmitter? | |||
| The communication distance max is 30 meters | |||
| 2: how many reader can connect to a reciever? | |||

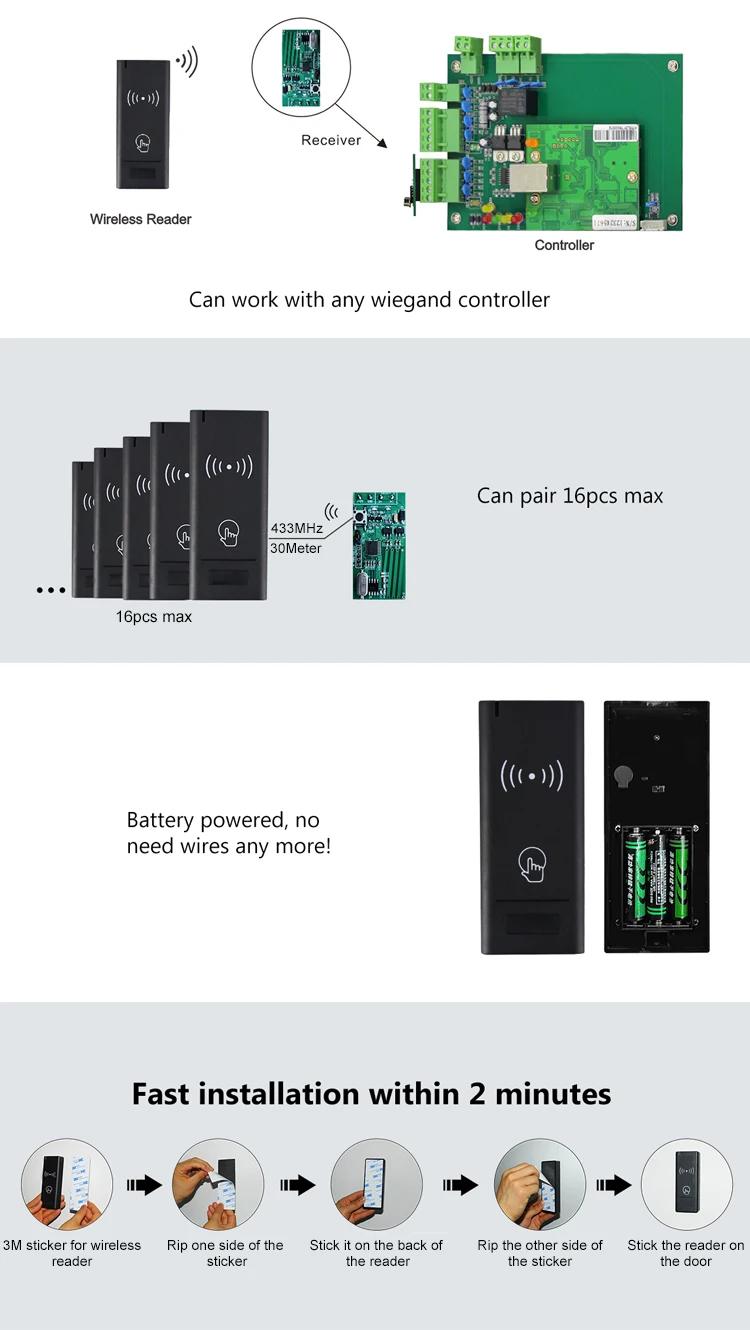

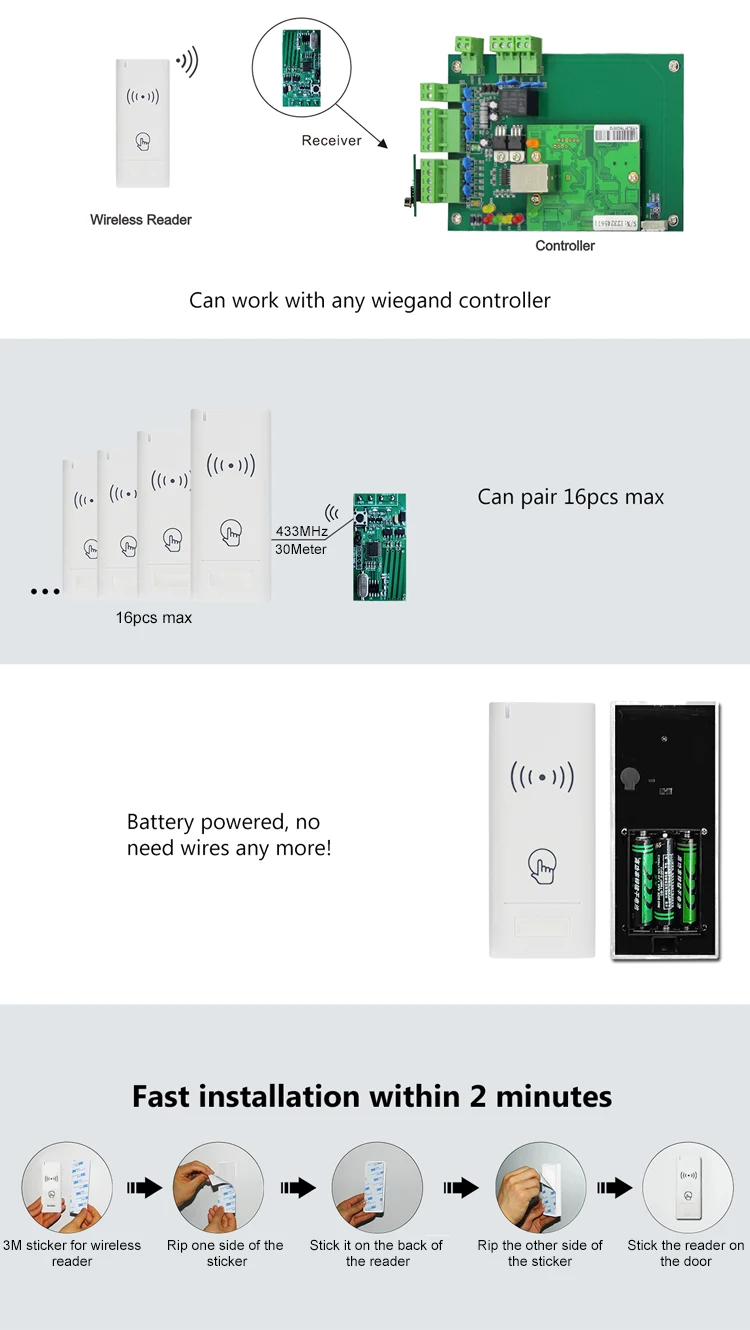

| Max 16 readers to one reciever | |||
| 3: What is the reader output | |||
| It is wiegand26 and wiegand36,we can adjust on the reciever | |||
| 3: What kind of access controller should I use? | |||
| S4A ACB-001 002 004 recommended,you can also buy from our agent. | |||
| 3: what is the warranty | |||
| within 1 year,any quality issue,we will do repacement,if any cost occuring,we will pay for all. |
| Related products for wireless card reader | |||
 |
| Why Choose Crypton & S4A? | |||
| Crypton obtained more than 9years experience in Door access control systems and solutions, we did many project in local market, if you need diagram or wiring, just email or call us back at anytime. we will send relevant according to your request. In shenzhen ,we have 2office, as :Crypton Electronic Co.Ltd S4A Industrial Co.Limited Also we have 1branch office in Doha-Qatar, also selling door access control systems and provide technicial support. if you need local installation, we are happy to serve you.. | |||
| Our service - NO EXCUSE | |||
| All technical issues must be solved within 12 hours. | |||
| All emails must be replied within 1 hour at working time, and it must be replied within 12 hours at non-working time. | |||
| Contact us - Vivian | |||
 | |||
| Send your Inquiry Details in the Below, Click "Send" Now! Free samples are available to test and check... |
