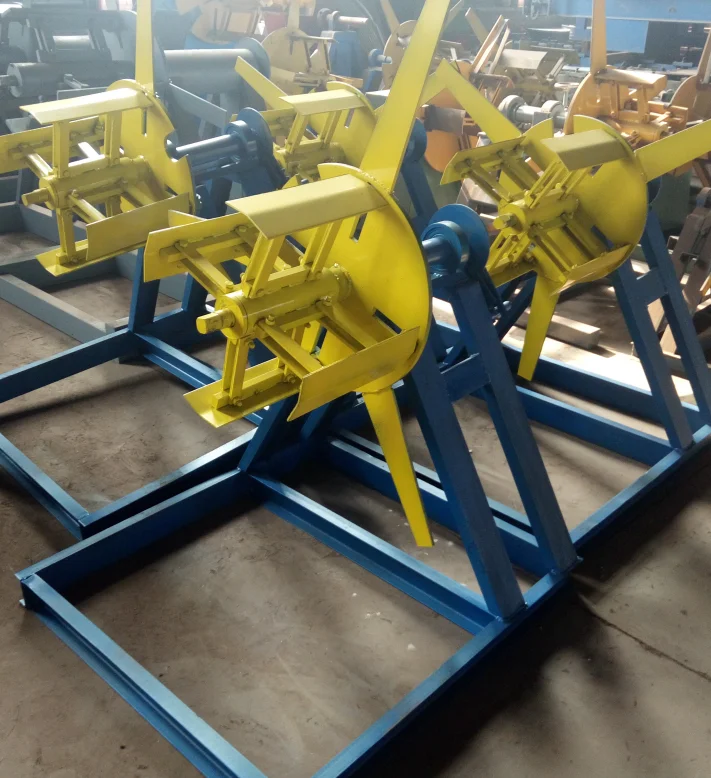

Width of material sheet: 50-1000mm, Thickness of material sheet: 3 mm Inner diameter: 508mm
Range of expanding: ф480-520 mm Maximum outer diameter: φ1300mm
Loading: ≤5T

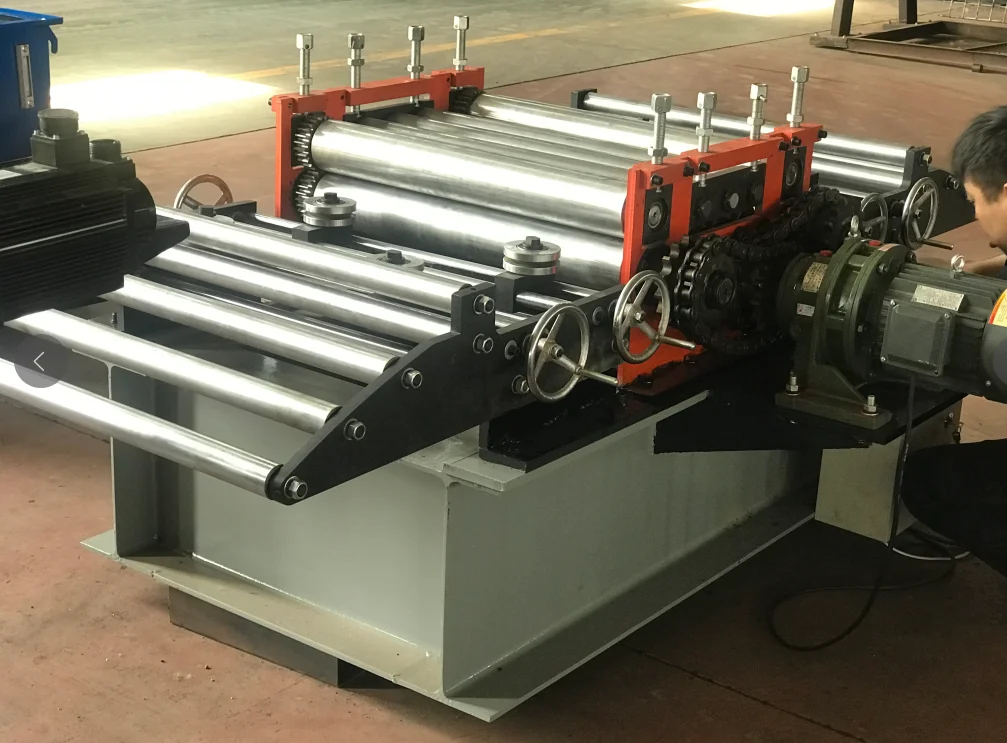

Leveling machine
Working roller: nine rollers type leveling machine

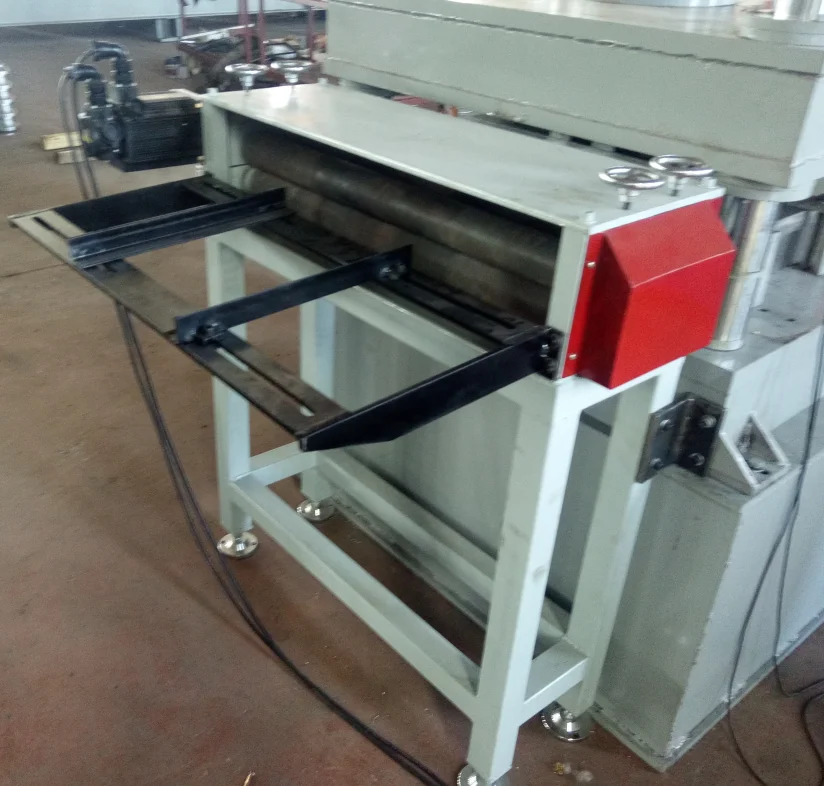

NC1250 servo feeding machine
Function: material feeding

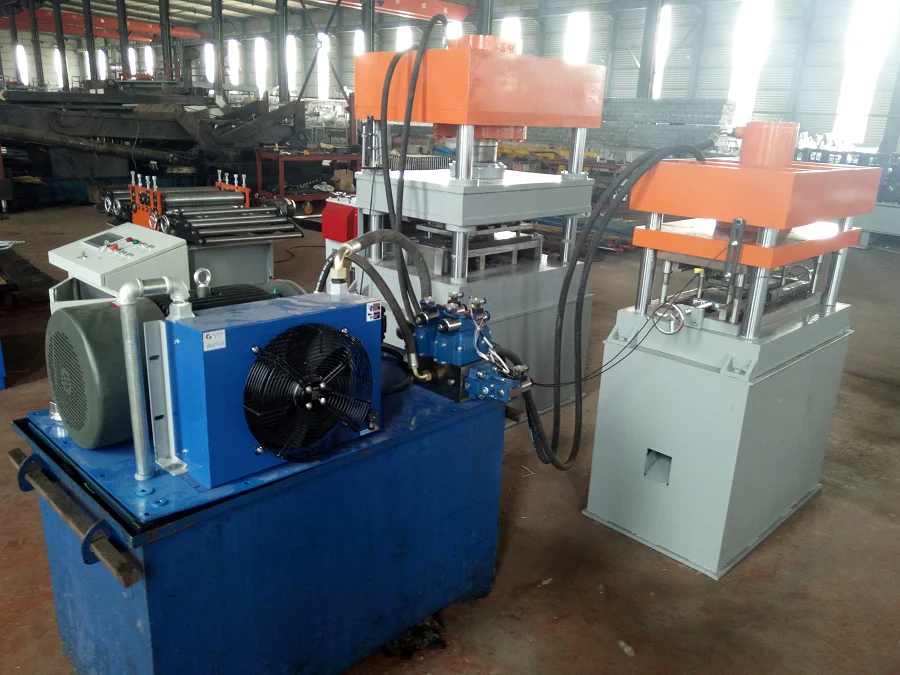

Punching press
Type of punching press: JF21-200 Mould : 1 set

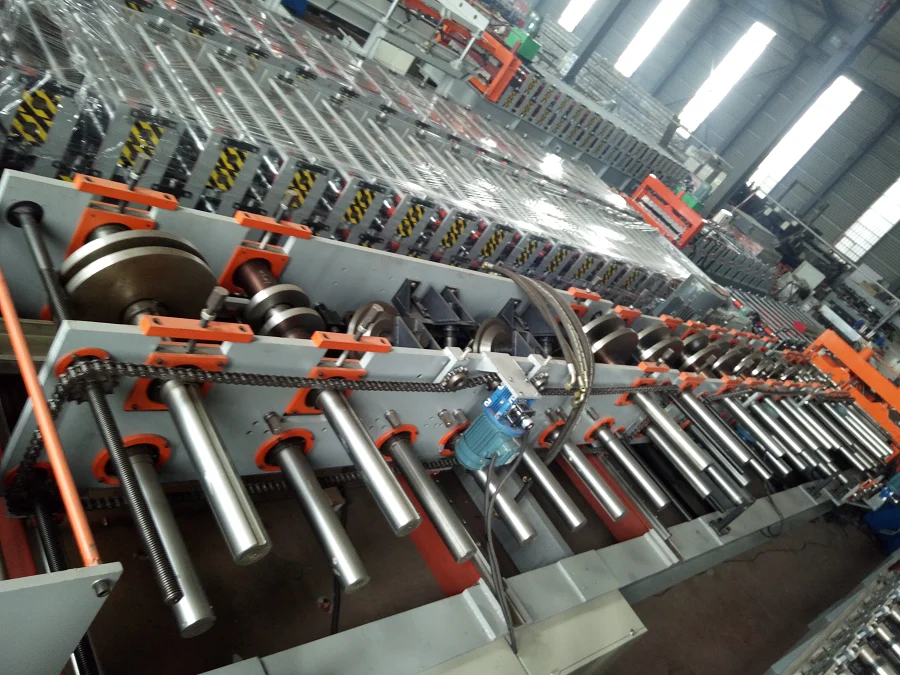

Main forming machine
Type: Forming width is adjusted by automatic forming wall moving, it also can adjust height quickly. Bearings diameter of forming mould: 95mm Production speed: 3-6m/min
Size Information
Size Chart of This Design
Area of production line
length 38m x width 3.5m x height 5m
Feeding direction
from left side to right side
Power
380V, 50Hz, 3 phase or as your requires
Pneumatic station
pressure 0.-0.7MPa.,0.5M3/min.
Hydraulic oil
46# Hydraulic oil
Gear oil
24# gear oil
Related Products
Packing&Shipping
We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.
After Sales Service
After sale service
Professional technical support and product quality assurance.
