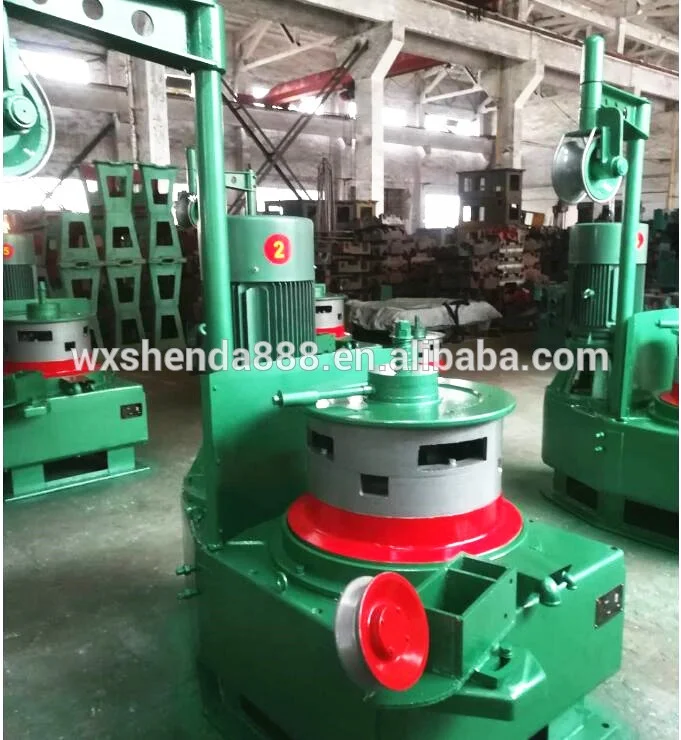

Steel Koch Wire Drawing Machine for Wire Drawing Line
- Category: >>>
- Supplier: Wuxi Shenda Nail Machinery Factory
Share on (60829609615):
Product Overview
Description
Steel Koch Wire Drawing Machine for Wire Drawing Line
My contact way
Contact: Echo Shi
Our Factory
Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995.
Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.
Our engineer travels too many countries to assist customers to install the nail production line if necessary.
Time proves we are a professional factory with stable quality and competitive price.
We provide one-stop service from design to installation.
Koch Wire drawing machine
It can automatically change wires with different dias from wire rods. We can match wire drawing die according to your demands,this machine is very popular in nail making,wire binding,etc.
It is widely used in wire steel factory, metal mesh factory and nail making factory.
Data of the solder wire drawing machine:
Specifications of wire drawing machine:
Item | Continuous Multi-block Type | ||
Model | LW- 1-6/ 560 | LW-1-7/450 | LW-1-6/350 |
Tensile strength of wire rod | 110kg/mm2 | 128/mm2 | 140/mm2 |
Max. dia. of wire rod | 6.5mm | 3.4mm | 2.5mm |
Min. dia. of wire wire | 2.5mm | 1mm | 0.75mm |
Typical configuration | LW1- 6/560 | LW1-7/450 | LW1-6/350 |
Max. average reduction | 30% | 20% | 21% |
Designed total reduction | 78-88.5% | 77.9% | 78% |
Max. speed of block | 245 m/min | 346.9 m/min | 200 m/min |
Total power | 18.5-30kw | 7.5-11kw | 7.5-11kw |
Weight | 2000 | 1500 | 1000 |
Overall dimensions(LxWxH) | 170x115x175cm | 152x81x170cm | 140x80x150cm |

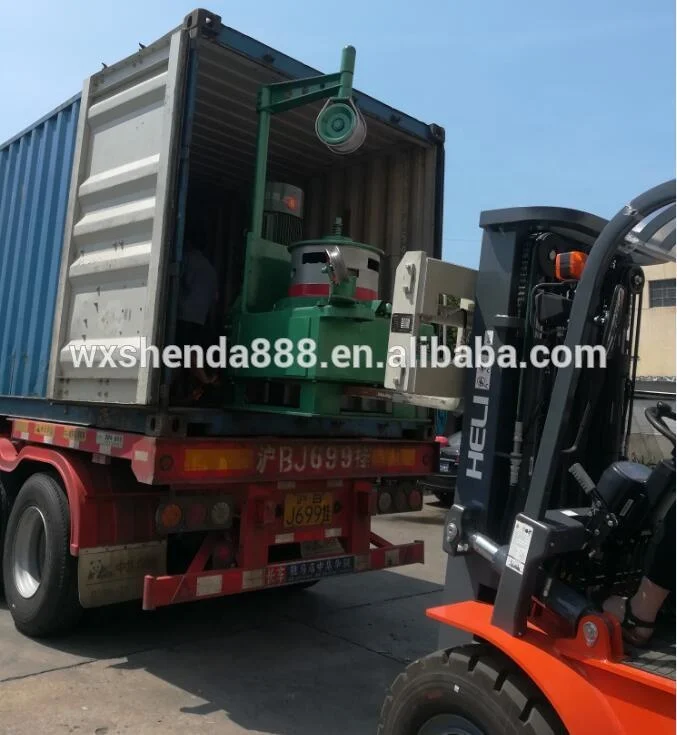

Packing and delivery of koch wire drawing machine:
Our service:
Your concern is our concern!Your win is our win! We expect double-win!
Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
After-sales service:
1 years quality guarantee, Life-long Maintenance
Freely provide project designing, Professional suggestions, Quicky Response!
Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
After-sales service:
1 years quality guarantee, Life-long Maintenance
