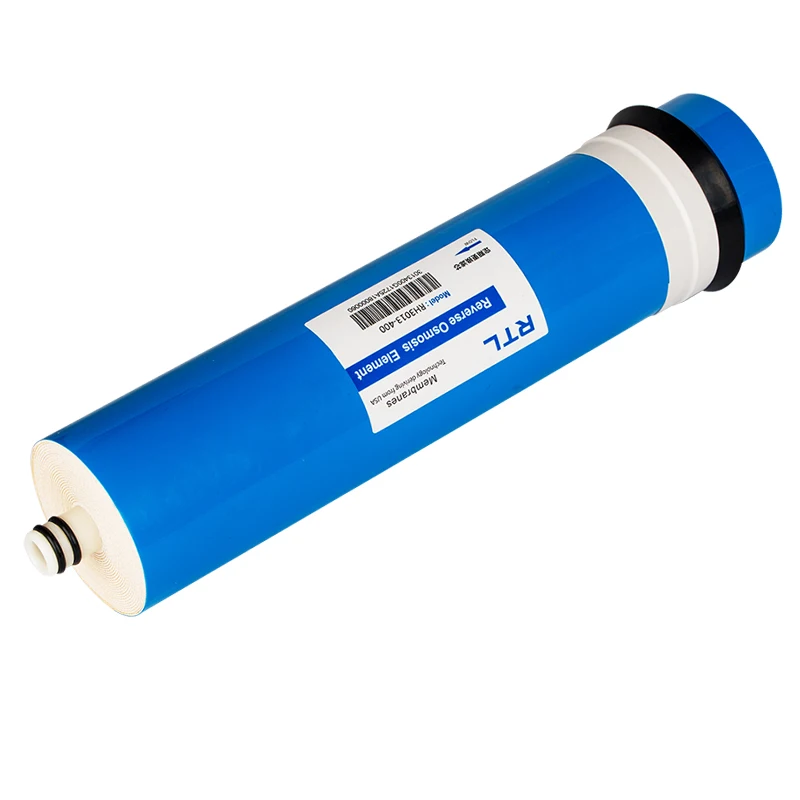

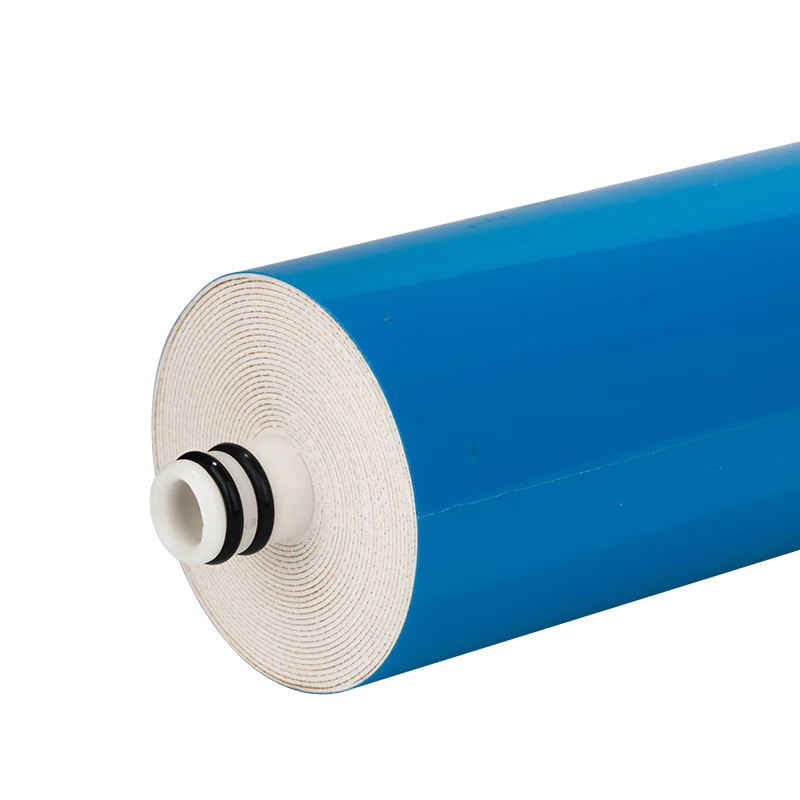

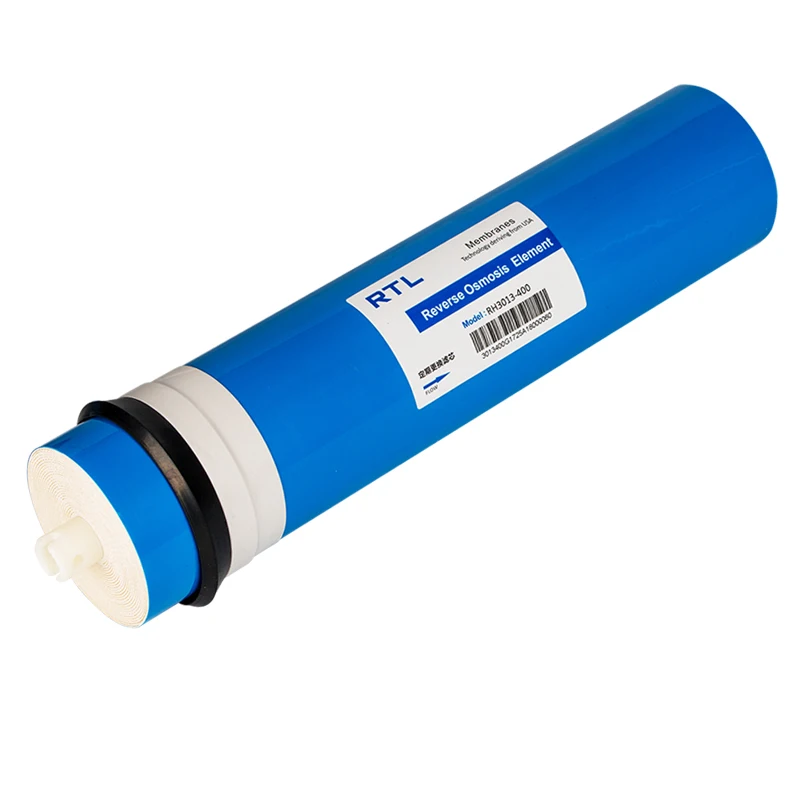

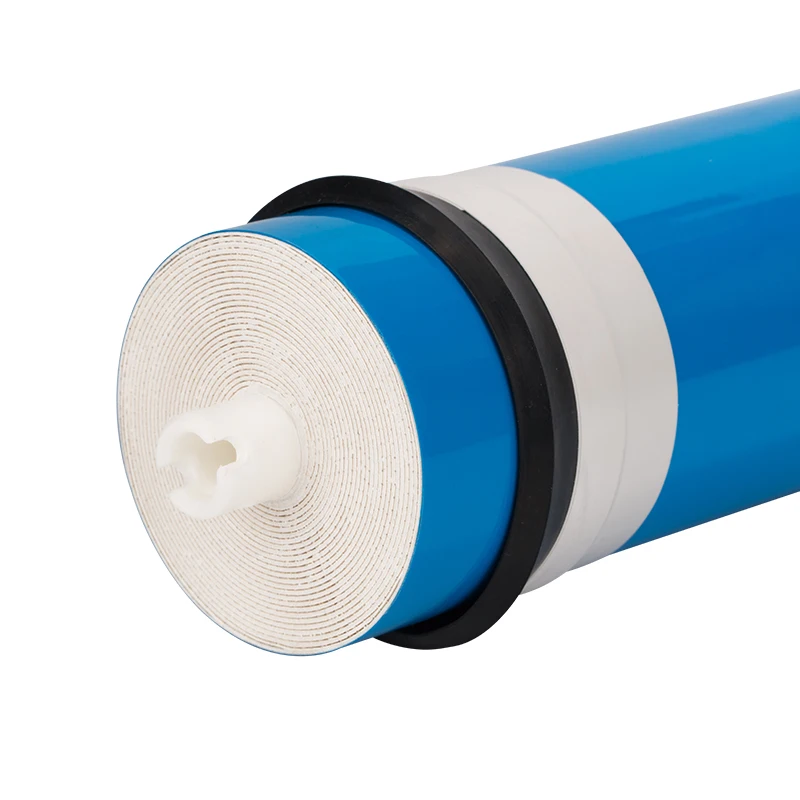

China Manufacturer 3013 400 GPD Ro Membrane For Reverse Osmosis Machine

RTL Residential Reverse Osmosis (RO) membrane elements is made by the most advance technique polyamide RO membrane sheets and combined with experience on the process of rolling membranes for years.

The Ro element is designed for threatment of Low-salinity water resources such as tap water, Well Water, etc. Working under extra low pressure, it is applicable to water purifying devices for residence, hospital and laboratory.

Features

High Level Of Salt Rejection

High Water Flux

Stable Performance

Universal Standard Size

Long Life Use

Series	Model No.	Permeate Flow (GPD)	Minimum Rejection %	Stabilized Rejection %	Test Pressure         Psi
RH	1812-50	60	95	96	72
	1812-75	90	95	96	72
	2012-100	120	95	96	72
	2012-150	170	95	96	72
	3012-400	400	93	95	90
	3013-400	400	93	95	90
	3013-600	600	93	95	90
RHD	1812-50	50	97	98.5	72
	1812-75	75	97	98.5	72
	2012-100	100	97	98.5	72
	2012-150	150	97	98.5	72
	3012-400	400	96	97	90
	3013-400	400	96	97	90

The Stated performance is for the initial data taken after 30 minutes of operation, based on the following testing conditions:

250 ppm Nacl Solution

35% Permeate Recovery

25℃ Operating Temperture

6.0 - 8.0 PH Range

Application Limits:

Maximum Opreating Temperture: 45℃

Maximum Opreating Pressure: 150psi(1.03Mpa)

PH Range, Continuous Opreation: 3-10

PH Range, Short-Term Cleaning: 2-12

Maximum Feed Silt Density Index(SDI) : 5

Free Chlorine Tolerance: <0.1 ppm

Model	A Inch (mm)	B Inch (mm)	C Inch (mm)	D Inch (mm)
1812	11.7(298)	0.82(21)	0.68(17)	1.8(44.5)
2012	11.7(298)	0.82(21)	0.68(17)	2.0(48.2)
3012	11.7(298)	0.82(21)	0.68(17)	3.0(76.2)
3013	12.9(328)	0.75(19)	0.68(17)	2.7(68)

RO MEMBRANE ELEMENT REVERSE OSMOSIS SYSTEM FOR WATER PURIFIER AND FILTER FOR RESIDENTIAL

Company Info

Ningbo RXHL Technology Co.,Ltd.

Is an ISO9001 Certified Productive Enterprise, With The Head Office In Ningbo, Specialized In Designing & Manufacturing Reverse Osmosis(RO) Membrane Sheet And RO Elements Since 2016, Own Brand RTL.

Over 35000 Sqm Workshop, 2 Lines Of Automatic Membrane Sheet Produce Line, 10 Lines Of Membrane Rolling, Daily Capacity can reach 5,000 Pcs.

Quality Is RTL's Core-Competitiveness, Each Step is Strictly Inspected in Factory, and Complies to ROHS & FDA Standards.

Contact Us

FAQ

WHAT IS THE EXPECTED LIFE OF THE MEMBRANES?

Generally, the life of the membranes depends on the water quality but in normal cases or under standard parameters, you can expect 1.5 to 2 years for domestic and approximately, 3 years for commercial and industrial elements.

HOW TO PROCURE YOUR MEMBRANE?

We have different channel partners and worldwide set up of our dealer network but we suggest you to contact our direct representatives to guide you to the proper channel, to have you find your value procurement.

WHAT ARE THE DIFFERENT SIZES MANUFACTURED BY HI-TECH?

We manufacture every range of wet and dry membrane elements flow rate from 50-600 GPD for residential.

HOW IS RTL MEMBRANE DIFFERENT FROM OTHERS?

We offer value against your money, prices which are comparatively lower, performance equivalent to best membranes available and with higher longevity.
