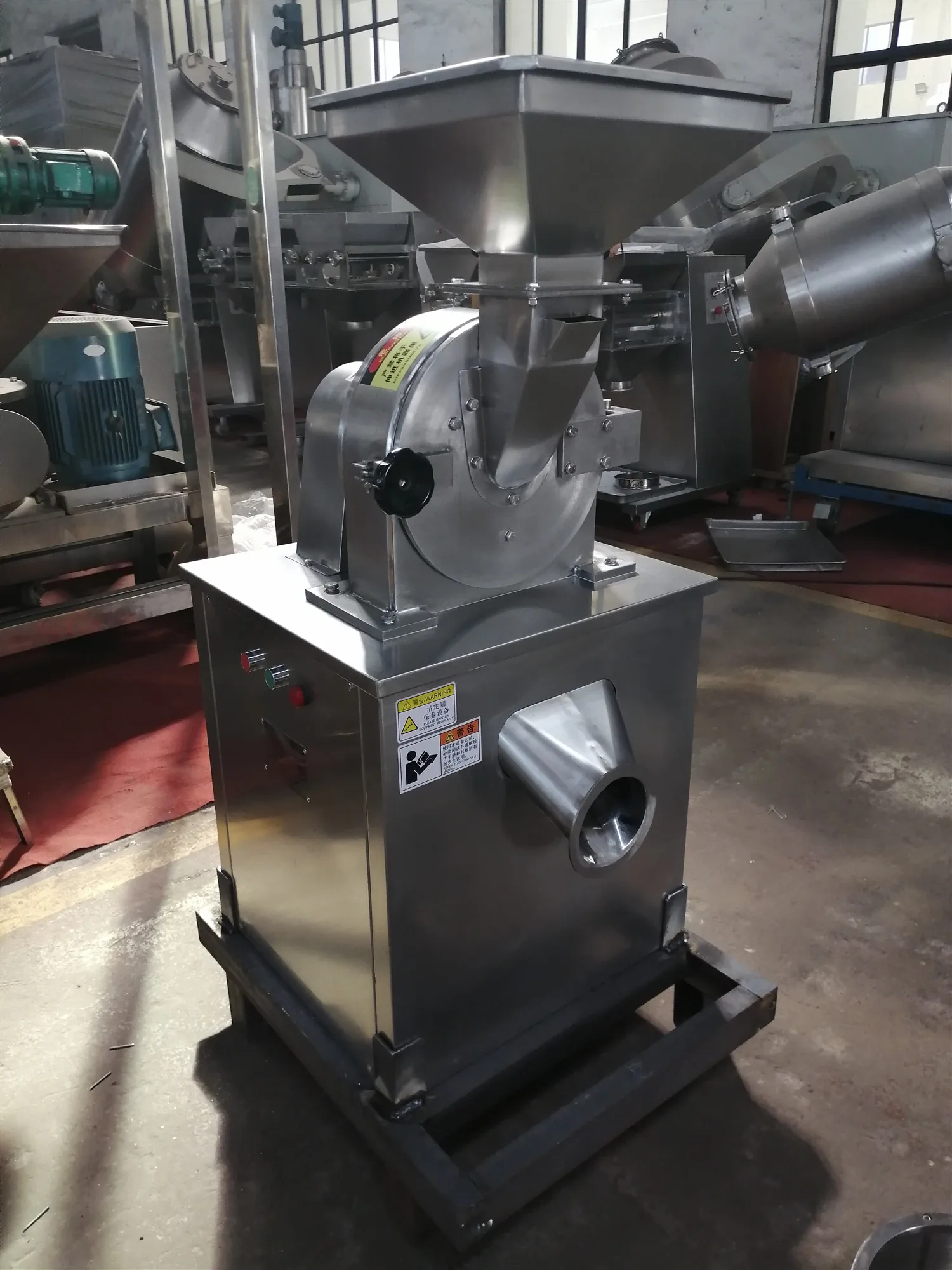

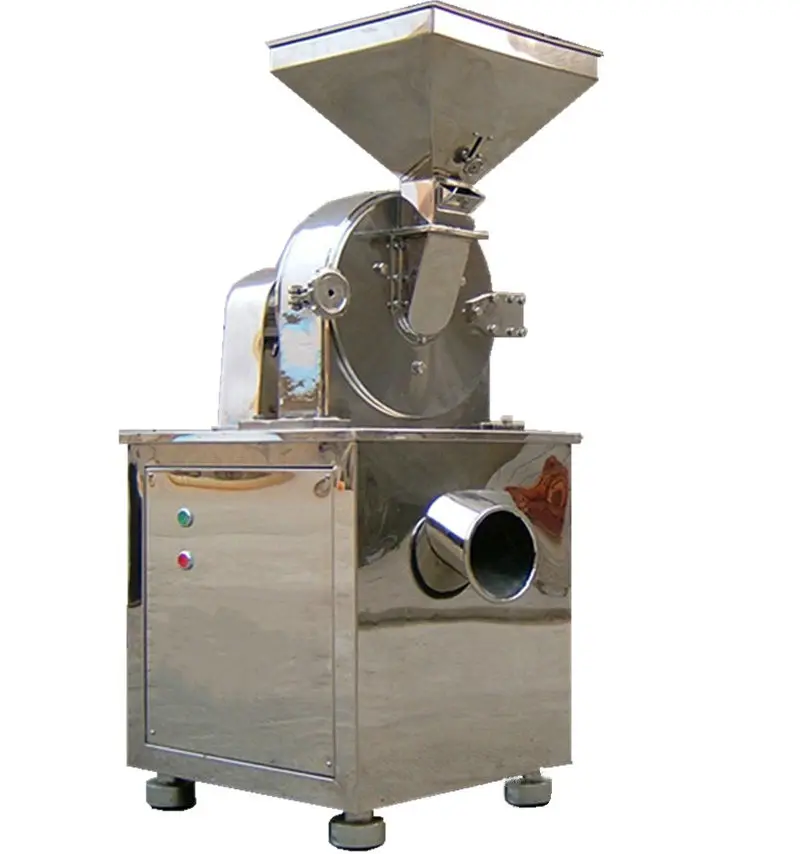

Wanda Industrial Icing Sugar Powder Black Pepper Herb Grinding Machine
Product Description
Wanda Industrial Icing Sugar Powder Black Pepper Herb Grinding Machine has wide application and is widely used for pharmaceutical industry,chemical industry, pesticide industry, foodstuuf industry, grain industry and so on. Using the relative motion between movable and fixed teech disc, the raw materials can be crushed undertaking the comprehensive actions such as impacted by teech,friction, impacted between raw materials, and finally the raw materials are crushed.
The comminuted material can be discharged directly from the grinding chamber, and the particle size is determined by changing the screen mesh with different mesh numbers.(The screen in the machine is available with the following apertures: 3.0, 2.5, 2.2, 2.0, 1.8, 1.5, 1.2, 1.0, 0.8, 0.7, 0.6, 0.5mm)
Model | WF-180 | WF-20B | WF-30B | WF-40B | WF-50B |
Capacity(kg/h) | 20-30 | 60-150 | 100-300 | 160-800 | 300-1500 |
Spindle rotation speed(r/min） | 5300 | 4600 | 3800 | 3400 | 2900 |
Feeding granularity(mm) | ≤6 | ≤6 | ≤10 | ≤12 | ≤15 |
Crushing granularity(mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Crushing motor(kw) | 2.2 | 4 | 7.5 | 11 | 18.5 |
Dimensions(mm) | 520x510x1000 | 650x570x1240 | 700x670x1370 | 900x800x1550 | 1150x850x1900 |
Details Images

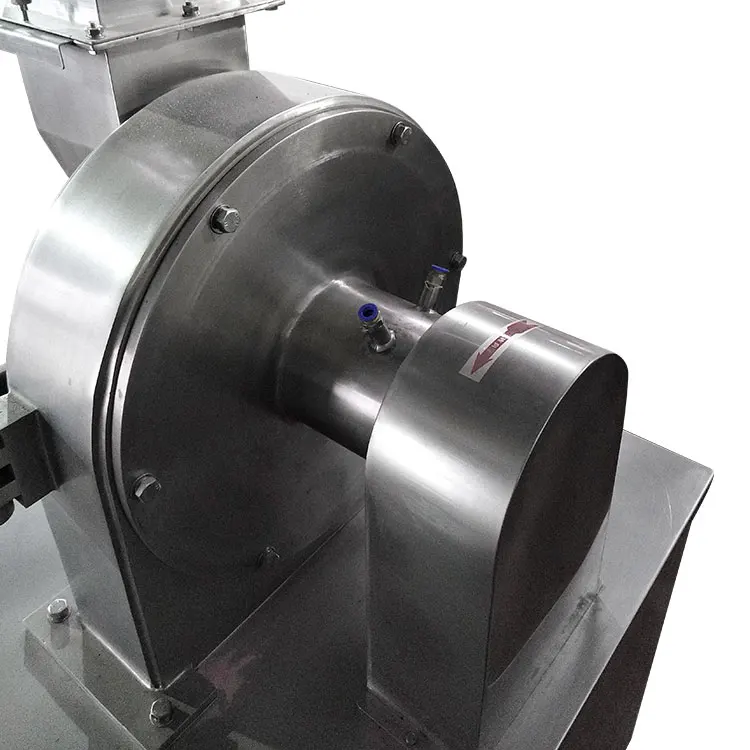

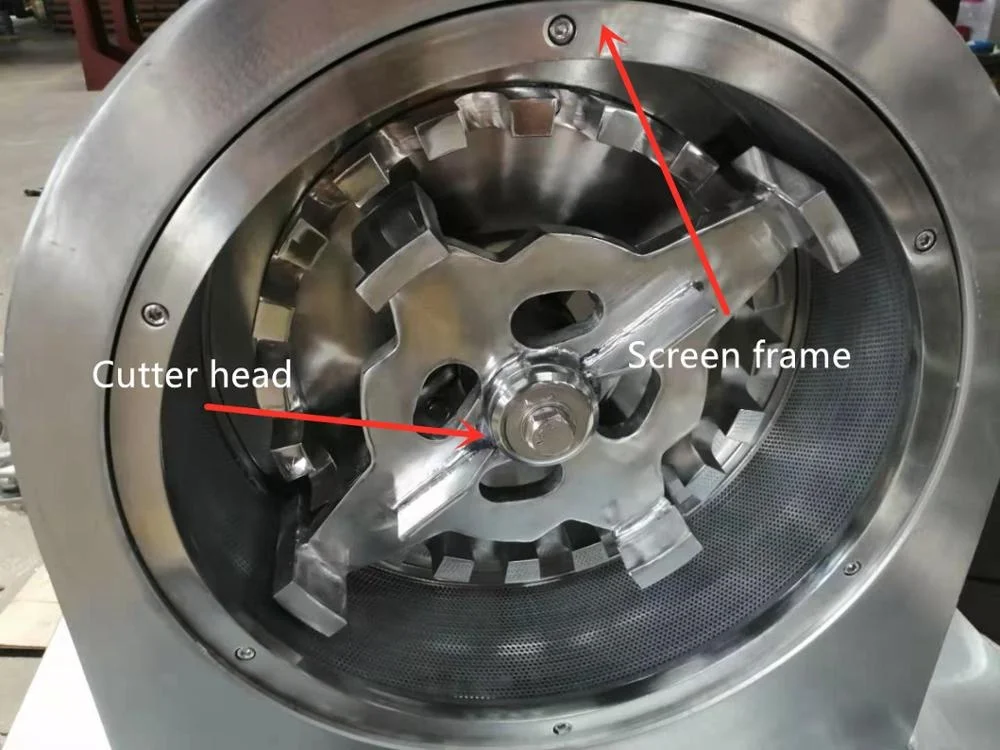

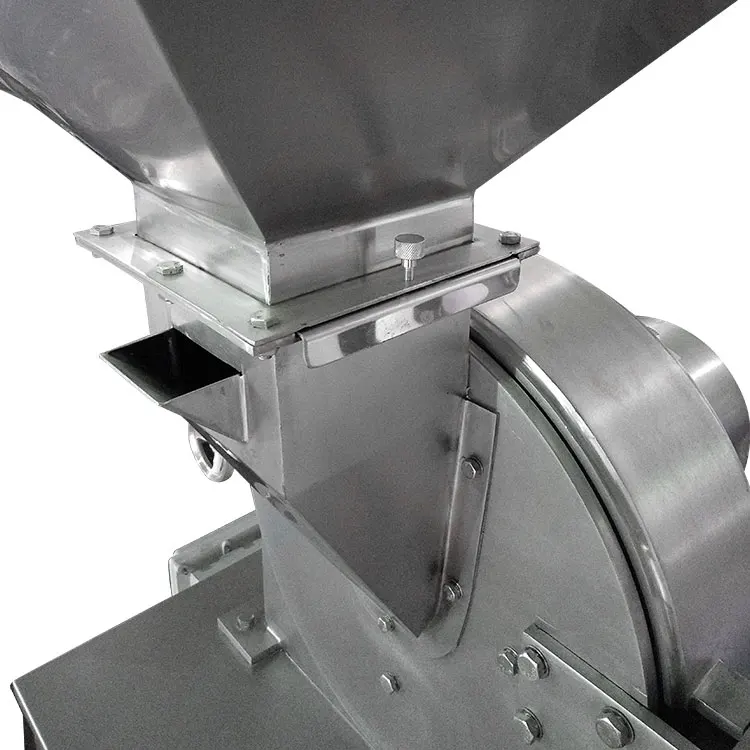

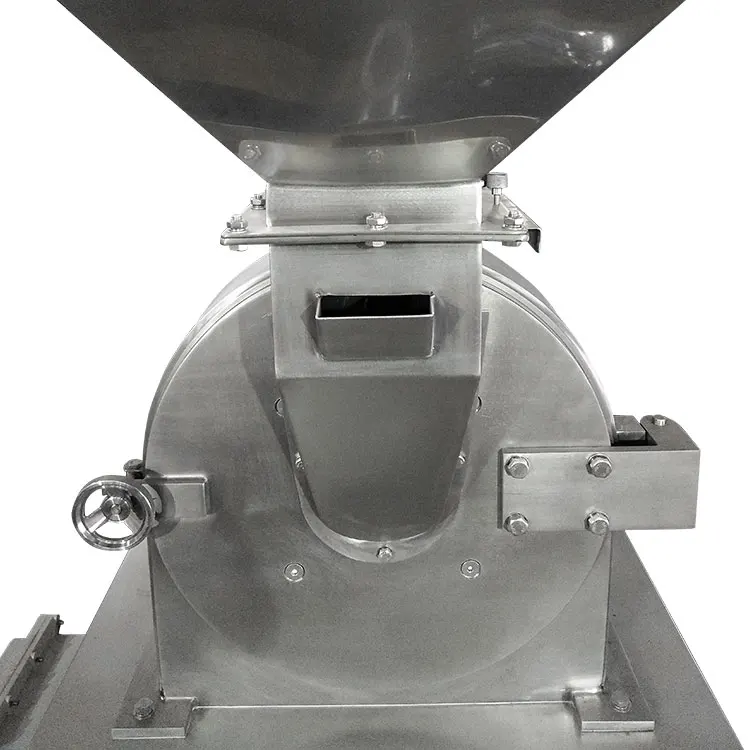

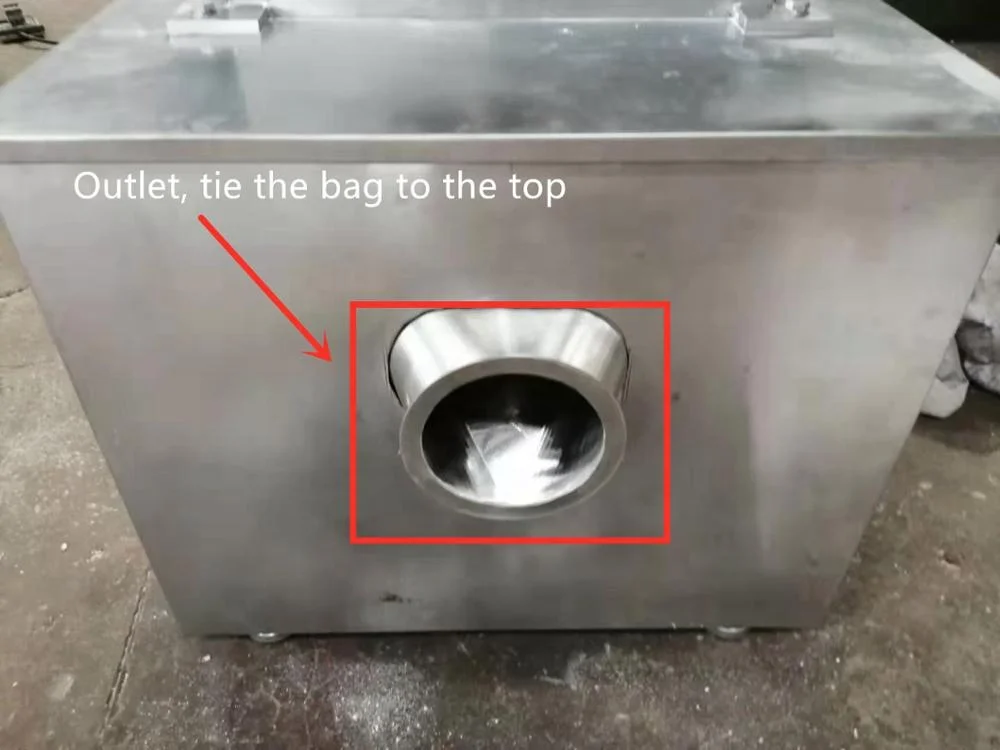

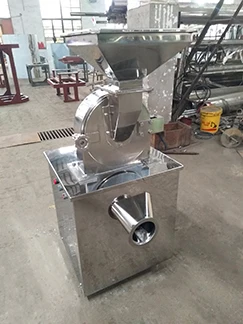

Cutterhead high-speed rotation shear grinding.There is a screen outside the cutter head for filtration. After crushing, the powder passes through the screen and enters the discharge port.
Change the mesh size ，then change the powder size.The screen in the machine is available with the following apertures: 3.0, 2.5, 2.2, 2.0, 1.8, 1.5, 1.2, 1.0, 0.8, 0.7, 0.6, 0.5mm

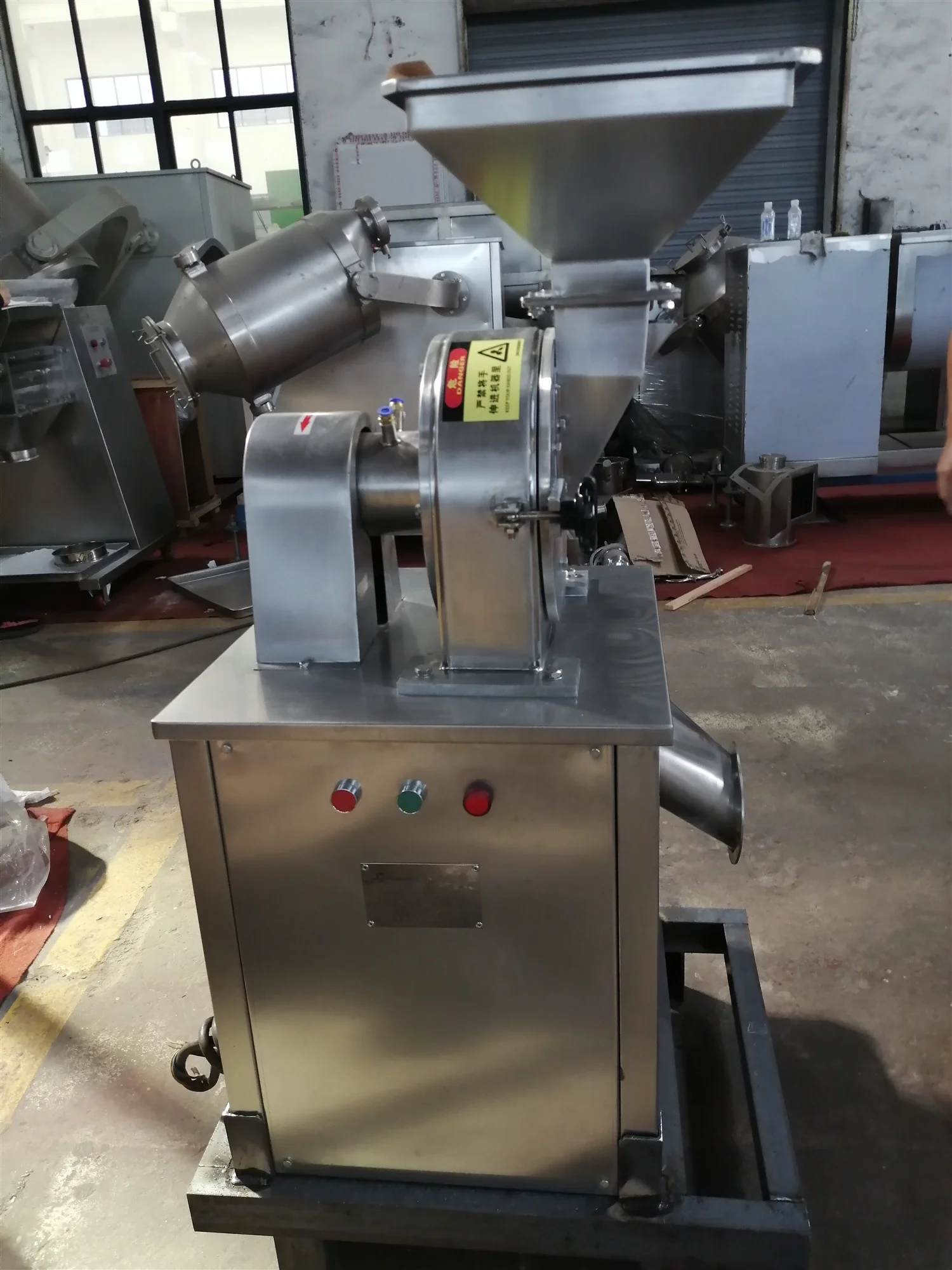

The machine is suitable for crushing spices, rice, dried peppers, grains, Chinese medicinal materials, sugar and salt.
Recommend Products
Why Choose Us

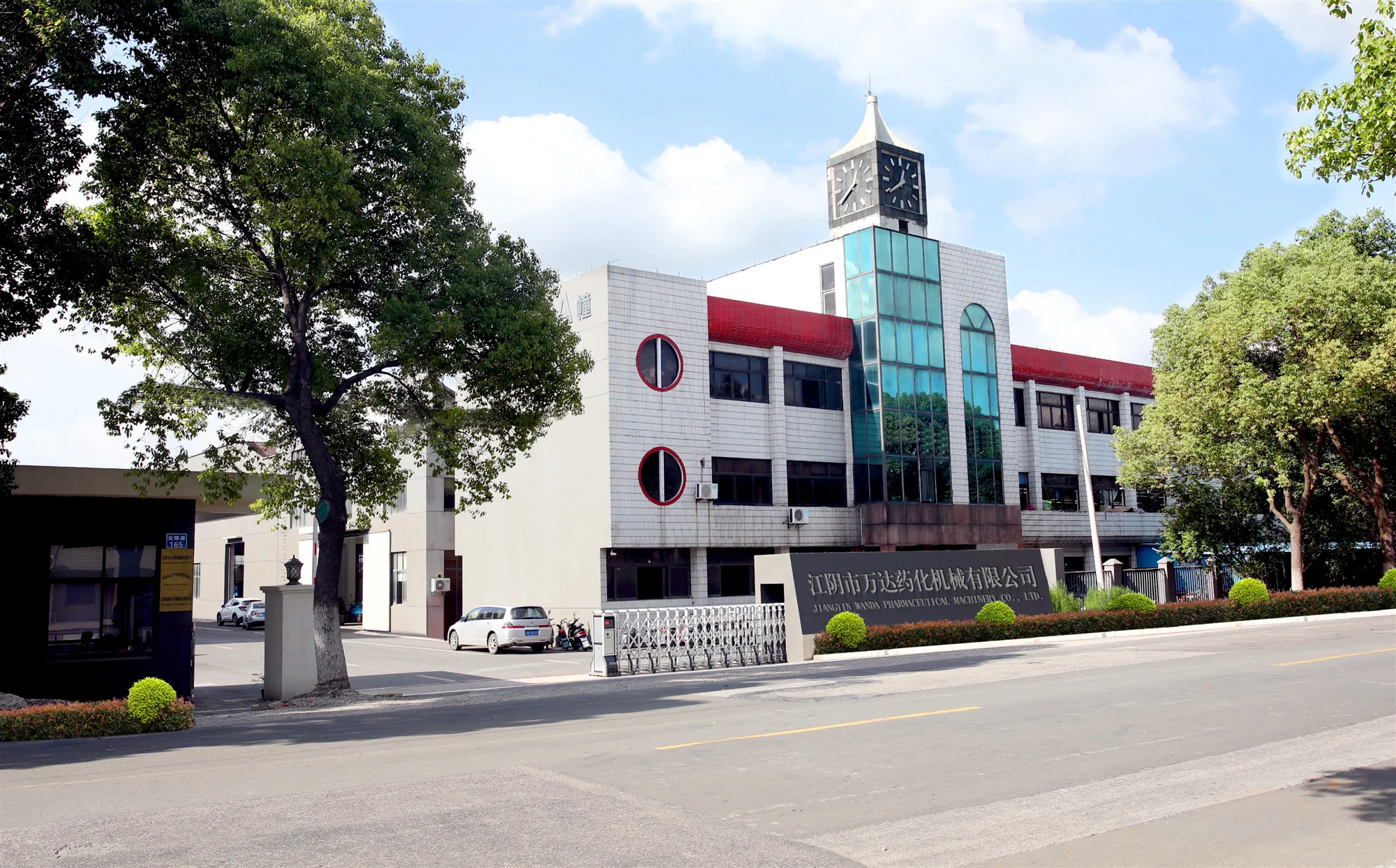

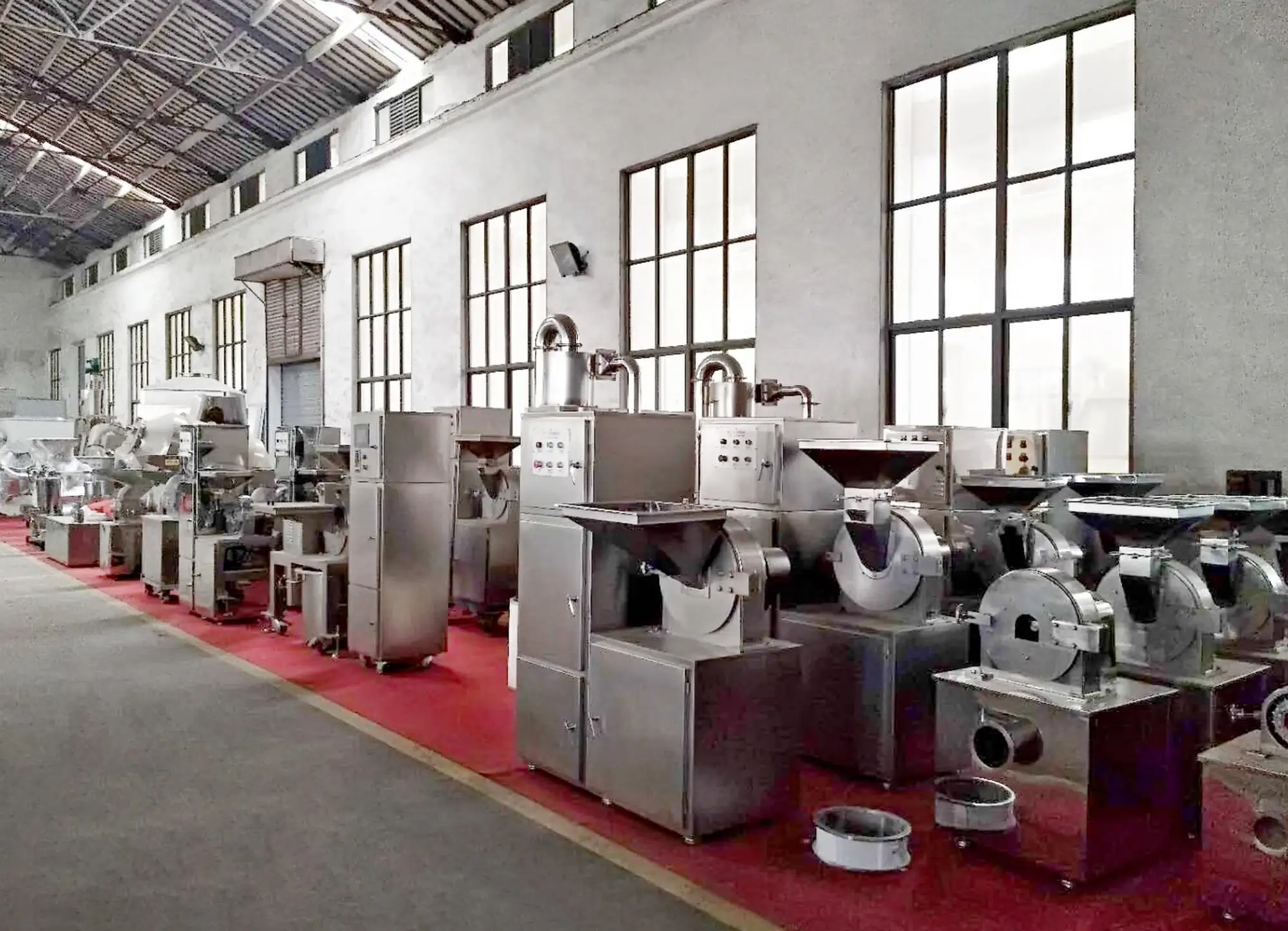

Jiangyin Wanda Pharmaceutical Machinery Co., Ltd. is a production-type enterprise from China, specializing in the production of crushers, mixers, granulators. The company has been established for 15 years and exported all over the world. We have a quality inspection department, and the machine will be tested before shipment. We have a good after-sales department. After the machine is issued, we follow up with the customer and maintain communication with the customer.
Customer Photos
Product packaging
First, pack the machine with plastic protective film
Then, it's packed in wooden cases
Finally, the wooden boxes were transported by truck to the port
Our Service
1) Our engineers are able to go abroad to install the machines
2) One year quality assurance
Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will
be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error.
3) 24-hour on line service
Any questions will be replied within 24 hours
4) Our company can agree payment by T/T, L/C,Cash.
5) Our company has our own exporting right and forwarder.
2) One year quality assurance
Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will
be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error.
3) 24-hour on line service
Any questions will be replied within 24 hours
4) Our company can agree payment by T/T, L/C,Cash.
5) Our company has our own exporting right and forwarder.
FAQ
If you want to send inquriy to me about our Wanda Industrial Icing Sugar Powder Black Pepper Herb Grinding Machine,could you please tell me?
1) What capacity you expect by Wanda Industrial Icing Sugar Powder Black Pepper Herb Grinding Machine? (kg/h)
2) What mesh or mm or micron(size) of the powder you want?
3) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
4) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
1) What capacity you expect by Wanda Industrial Icing Sugar Powder Black Pepper Herb Grinding Machine? (kg/h)
2) What mesh or mm or micron(size) of the powder you want?
3) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
4) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
