DPP 80 Automatic Blister Packaging Machine
DPP-80 Automatic Blister Packaging Machine
DPP-80 Automatic Blister Packaging Machine
DPP-80 Automatic Blister Packaging Machine
DPP-80 Automatic Blister Packaging Machine
DPP-80 Automatic Blister Packaging Machine
DPP-80 Automatic Blister Packaging Machine

DPP 80 Automatic Blister Packaging Machine

Share on (60829650601):


Price:

Quantity:


Product Overview

Description


Product Description

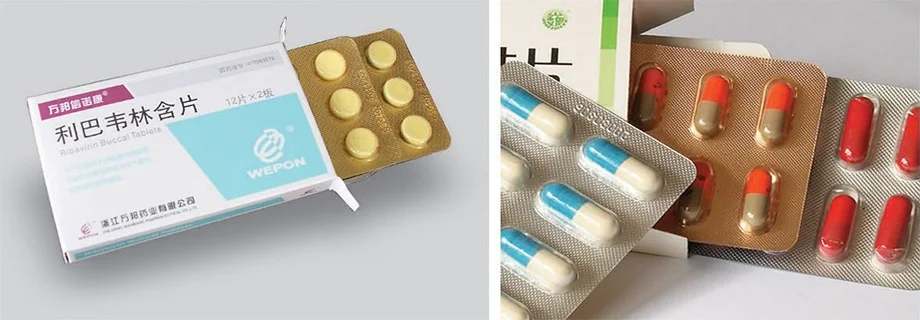

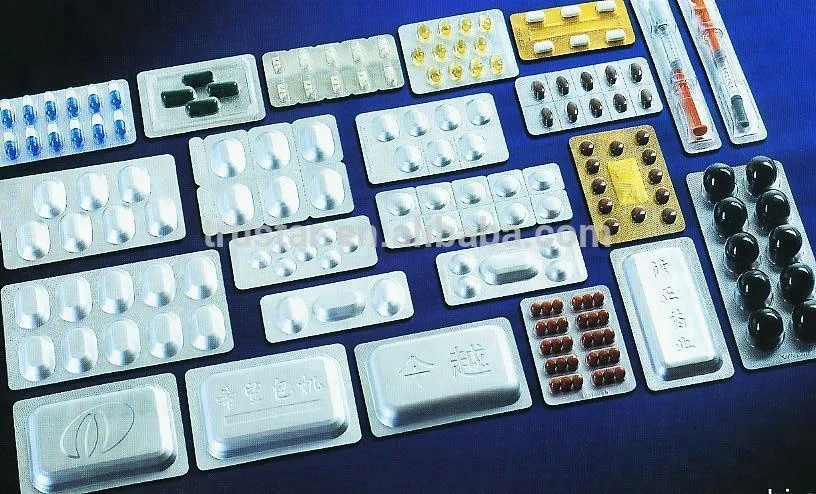

Product Application

This blister packing machine is special designed for dosage room of hospital, middle or small pharmaceutical and nutrition products factory. It has following features: small machine-body, flat structure mould, easy to operate and change the mould, multifunction, travel can be adjustable, durable in use. It's widely used in pharmaceutical, foodstuff, hardware industry with alu-plastic packing. It's the ideal packing equipment for variety and small batch products packing.

SPECIFICATIONS ABOUT DPP-80
Model
DPP-80
Capacity (80mm*57mm sheet)
100-400 capsules/tablets per min
Punch Frequency
10-40 times/min
Max. Forming Area and Depth
70mm*100mm*26mm
Travel Range
20-70mm (optional)
Air Pressure
0.6-0.8 Mpa
Main Motor Power
0.75kw
Total Power
380V/220V 50Hz 1.8 kw (optional)
PVC Material
0.15-0.50*80mm
PTP Alu Foil
0.02-0.035*80mm
Dialysis Paper
50-100g*80mm
Mould Cooling
Running Water(self) or Recycle Water(optional)
Noise Index.
Less than 75dBA
Machine Dimension
1400mm*460mm*950mm
Machine Weight
450Kg
Detailed Images





Assembly Workshop

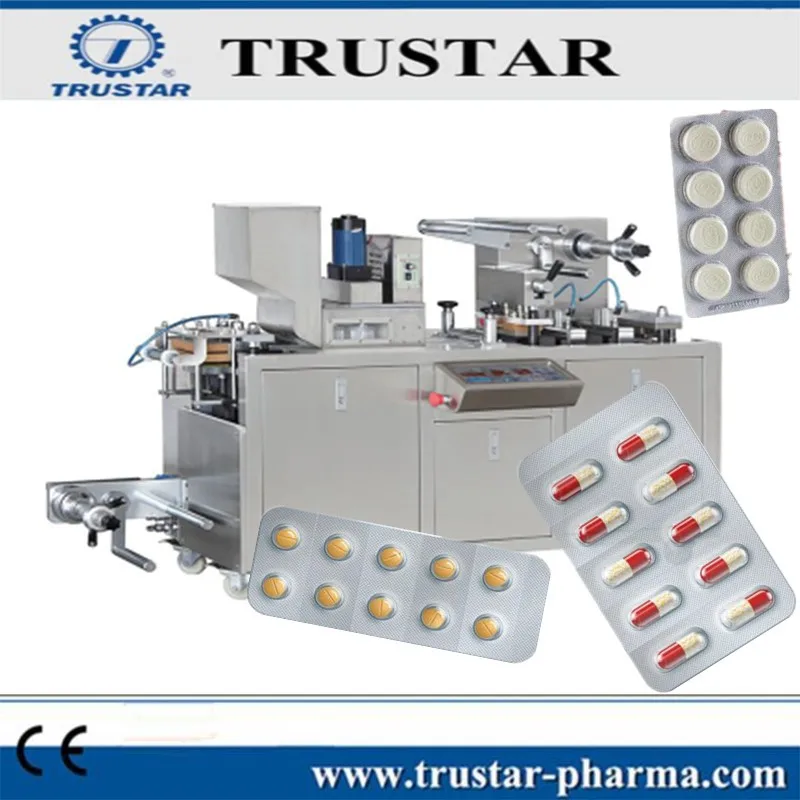

Machine Structure






Machine with Organic Glass Cover





Forming and Feeding Stations





Sealing and cutting stations

Our Company
Exhibitions
