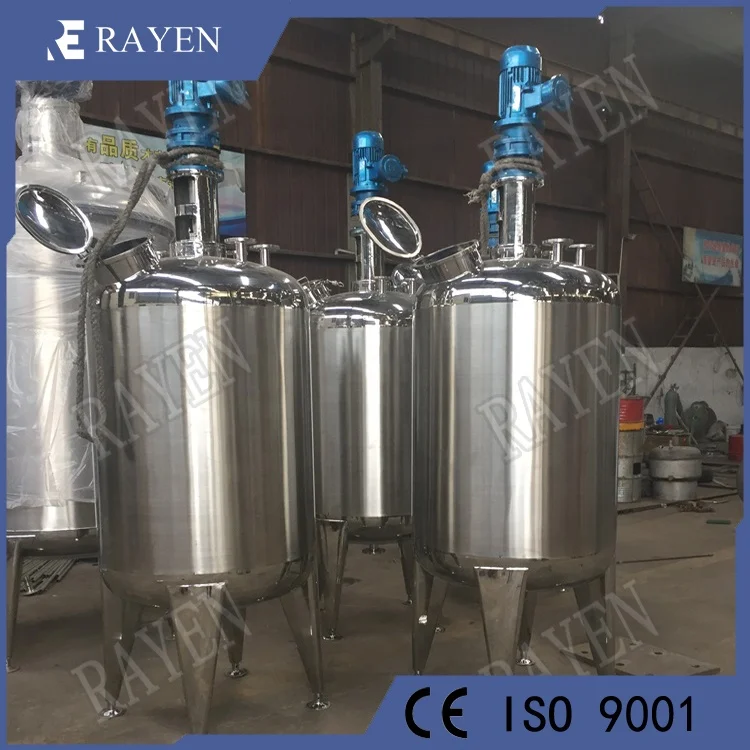

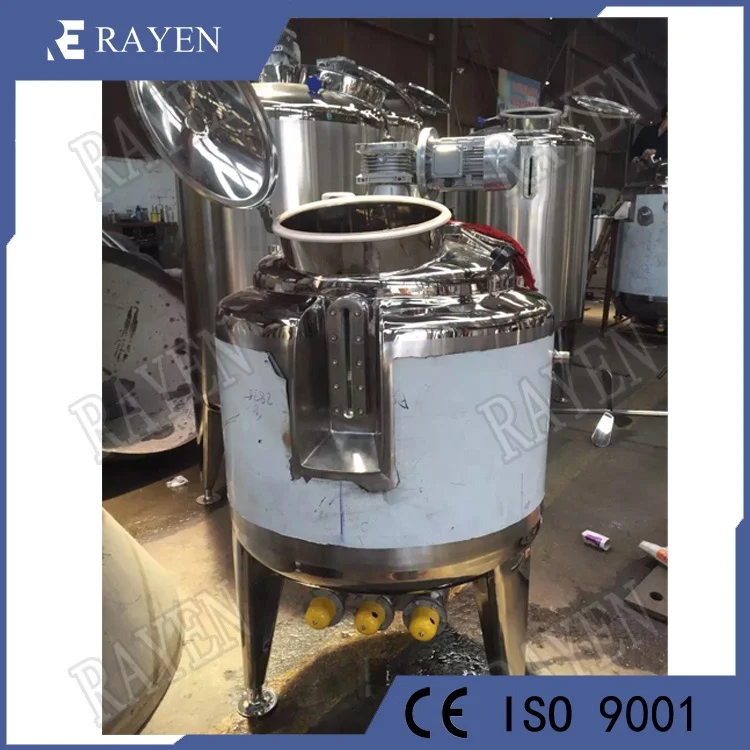

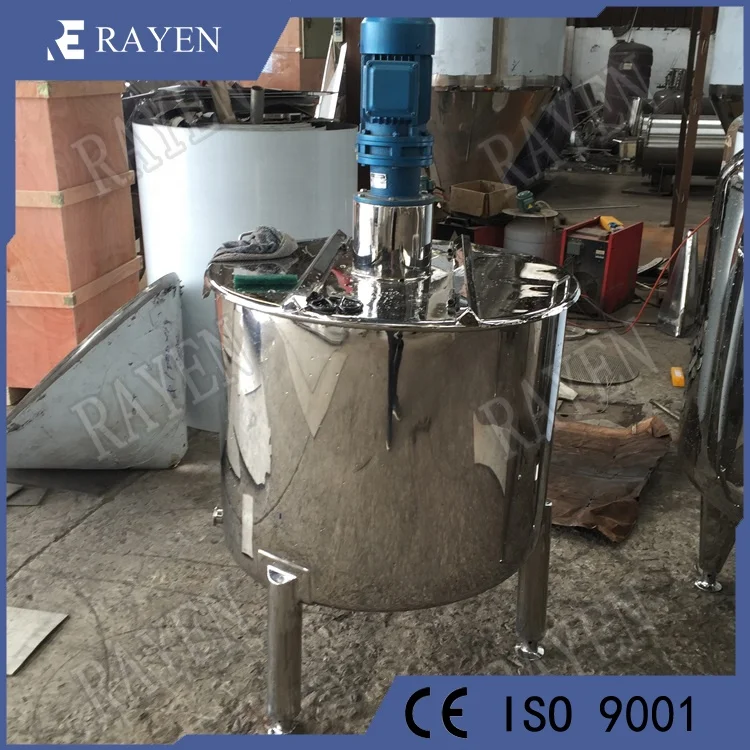

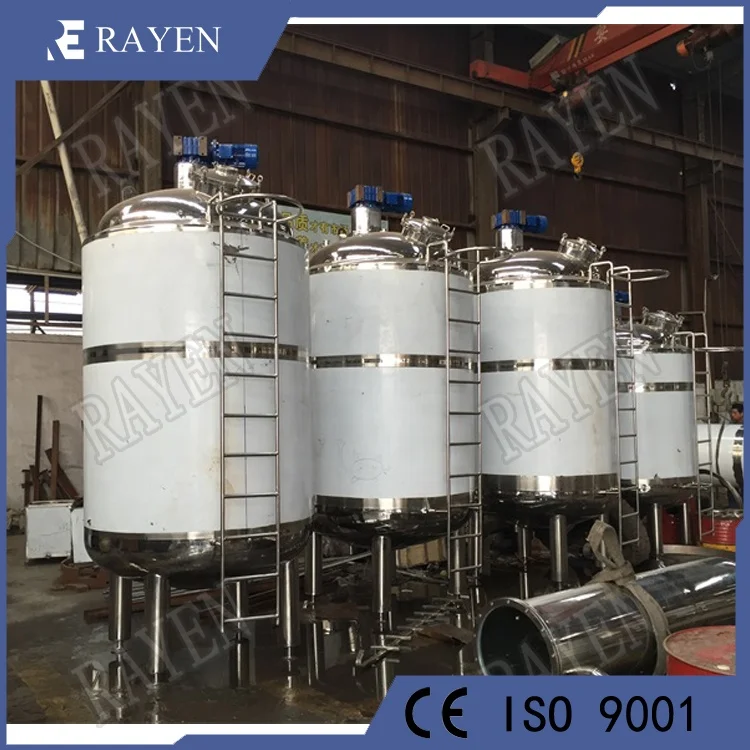

Food Grade Staingless Steel Soap Making Machine Mixing Tank Soap Mixer

Product Overview

Description

Alibaba Leading Company TOP10  Supplier

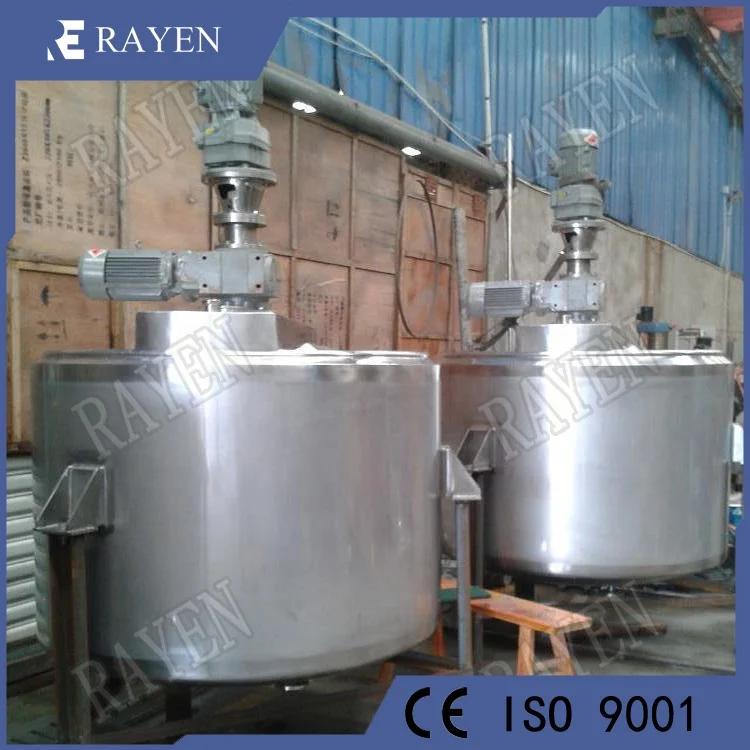

Food Grade Staingless Steel Soap Making Machine Mixing Tank Soap Mixer

Can be used as liquid storage tank, liquid mixing tank ,liquid heating or cooling tank and so on.It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
Finish:Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)
4. Design work temperature:-4~~+150C
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Certification: CE ISO9001:2000.

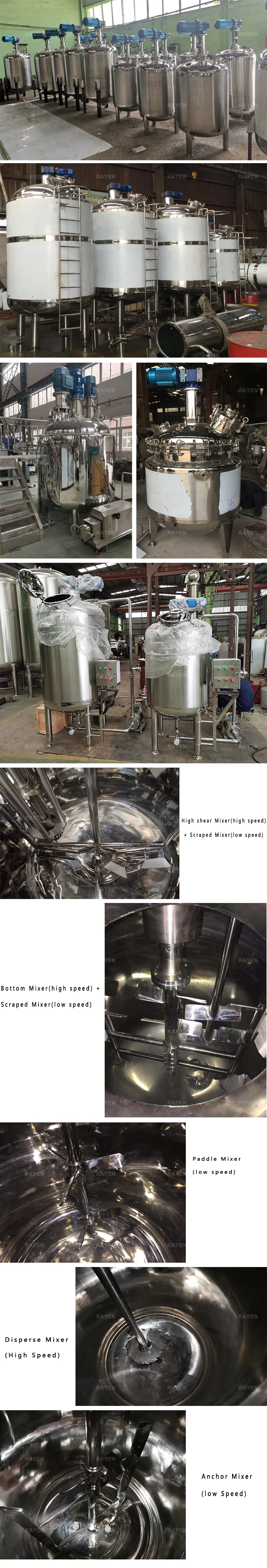

Have different kinds of agitators:
1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.
2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc.
4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.



Model	Equipment Volune(L)	Dimension Of Tank(MM)	Motor Power (KW)	Agitator Peed(R/Min)	Outine dimension
					Length	Width	Height
RTS500	500	Φ800×900	0.55	63r/min (According to customer requirements)	800	800	1700
RTS1000	1000	Φ1000×1220	0.75		1000	1000	2100
RTS2000	2000	Φ1200×1500	1.5		1200	1200	2500
RTS3000	3000	Φ1600×1500	2.2		1600	1600	2600
RTS4000	4000	Φ1600×1830	2.2		1600	1600	2900
RTS5000	5000	Φ1800×2000	3.0		1800	1800	3150
RTS6000	6000	Φ1800×2400	3.0		1800	1800	3600
RTS8000	8000	Φ2000×2400	4.0		2000	2000	3700
RTS10000	10000	Φ2100×3000	5.5		2100	2100	4300

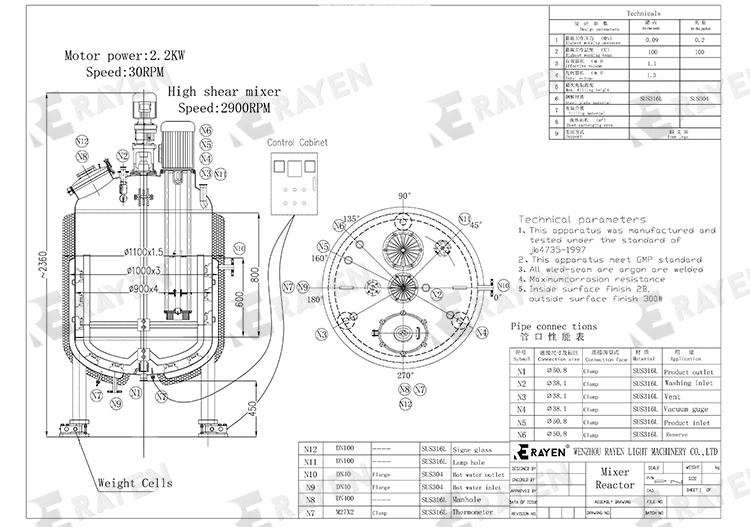

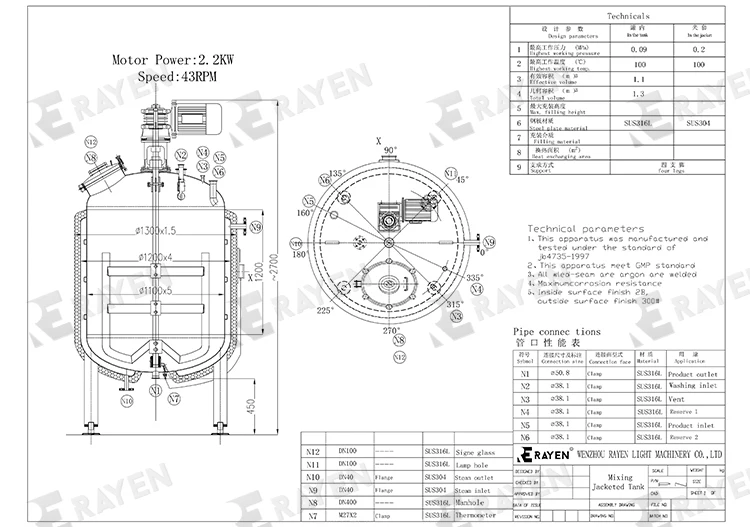

We Can Design Drawing According To Your Requirement.



1.Q: Are you manufacturer or trading company?

A: RAYEN is a professional manufacturer.

2.Q: How could we confirm the details of the products?

A: RAYEN will provide the detail drawings for you to confirm.

3.Q: How long the warranty will be?

A: 1 Year warranty.

4.Q: Do you take L/C?

A: Yes, we accept Western Union, T/T and irrevocable L/C payable

5.Q: Can  we  become  your distributor in our country?

A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
