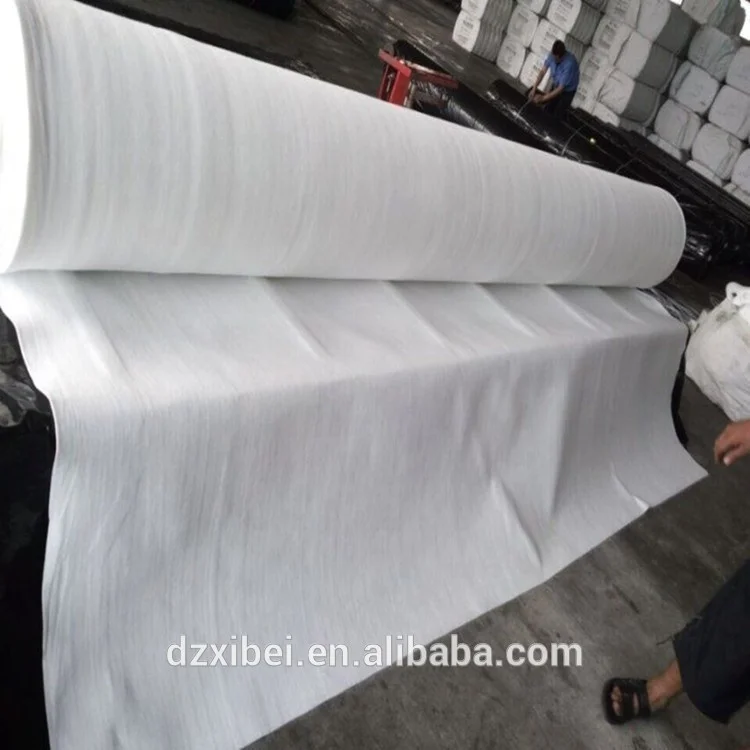

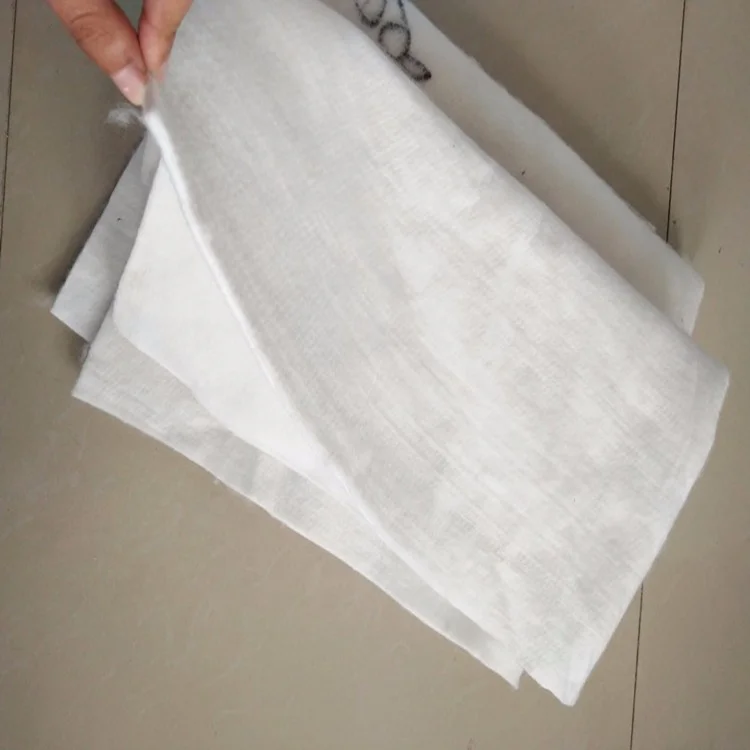

Polyester Non Woven Geo Textile Fabrics with Uv Resistance

Share on (60829671612):


Price:$0.66

Quantity:


Product Overview

Description


Product Description

Short fiber polyester nonwoven geotextile is made of polyester staple fiber as the main raw material, through the production process of non-woven production equipment, such as opening, combing, mixed (short fiber intertwined), laying net (normalized entanglement and fixing), needling punched, etc. Process made of geotextile.
Short fiber polyester nonwoven geotextile is used for reinforcement of railway subgrade, maintenance of highway pavement, sports hall, protection of dyke, isolation of hydraulic building, tunnel, coastal beach, reclamation, environmental protection and other projects.

\t

Specification of Short fiber PP nonwoven geotextile

(1)Mass per unit area is from 100g/m2 to 1500g/m2
(2). Width per roll is 2m to 6m, the length is from 50m to 100m or as your request.
(3). Regular Color: White, black , gray
\t
                                                      Parameter for short fiber polyester nonwoven geotextile
\t
Breaking strength
\t
≥3.0
kN/M
\t
≥5.0
kN/M
\t
≥8.0
kN/M
\t
≥10.0
kN/M
\t
≥15.0
kN/M
\t
≥20.0
kN/M
\t
≥25.0
kN/M
\t
≥30.0
kN/M
\t
≥40.0
kN/M
\t
Burst
strength
\t
≥0.6kN
\t
≥1.0kN
\t
≥1.4kN
\t
≥1.8kN
\t
≥2.5kN
\t
≥3.2kN
\t
≥4.0kN
\t
≥5.5kN
\t
≥7.0kN
\t
Tear strength
\t
≥0.10kN
\t
≥0.15
kN
\t
≥0.20
kN
\t
≥0.25
kN
\t
≥0.40
kN
\t
≥0.50
kN
\t
≥0.65
kN
\t
≥0.80
kN
\t
≥1.00
kN
\t
Sieve size
\t
                                                                               0.07~0.20mm
\t
Permeability
\t
                                                                          K x(10-1~10-3) , K=1.0~9.9
Function

Schiebel nonwoven geotextiles provide excellent filteration and  features a strong three-dimensional structure with high elongation. Schiebel nonwovne geotextiles also have a high melting point and high UV resistance.

\t
Drainage

Schiebel nonwoven  geotextiles have a three-dimensuonal structure designed to inprove drainage performance. Ideal for use in subsoil drainage systems, Schiebel geotextile will assist in removal of water from road and railway works, sports fields and behind retaning walls.

\t
Separation

Schiebel nonwoven geotextiles are used in the construction of road, railways and emabankments where the ground is soft and unstable. Using a layer of geotextile to separate the soft ground from the fill material will reduce the amount of fill required, increase the life span of the road or rail structure and cut long-term maintenance costs.

\t
Filtration

Schiebel nonwoven geotextiles are highly porous, allowing water to pass thriugh white preventing soil migration. when used in revement and subsoil drainage projects, Schiebel geotextiles are more coas effective than natural filters.

\t
Protection

Using heavy weight Schiebel nonwoven geotextiles in landfills extends the life of the lining system by protecting it from punctures and excessive deformation. The geotextile acts as a cushionning and stress relieving layer, minimising the chances of leakage in the long term. Needle punched geotextile are commonly specified in landfill and containment application to prevent damage to the underlying liner.

Installation and redyce the risk of long term stress cracking of the geomembrane. Research has shown that Schiebel geotextiles can significantly reduce forces placed on the impermeable liners, protecting them in both the short  and long term. Neddle puncehd geotextile is commonly specified in liner protection application to help prevent damage to the liner.

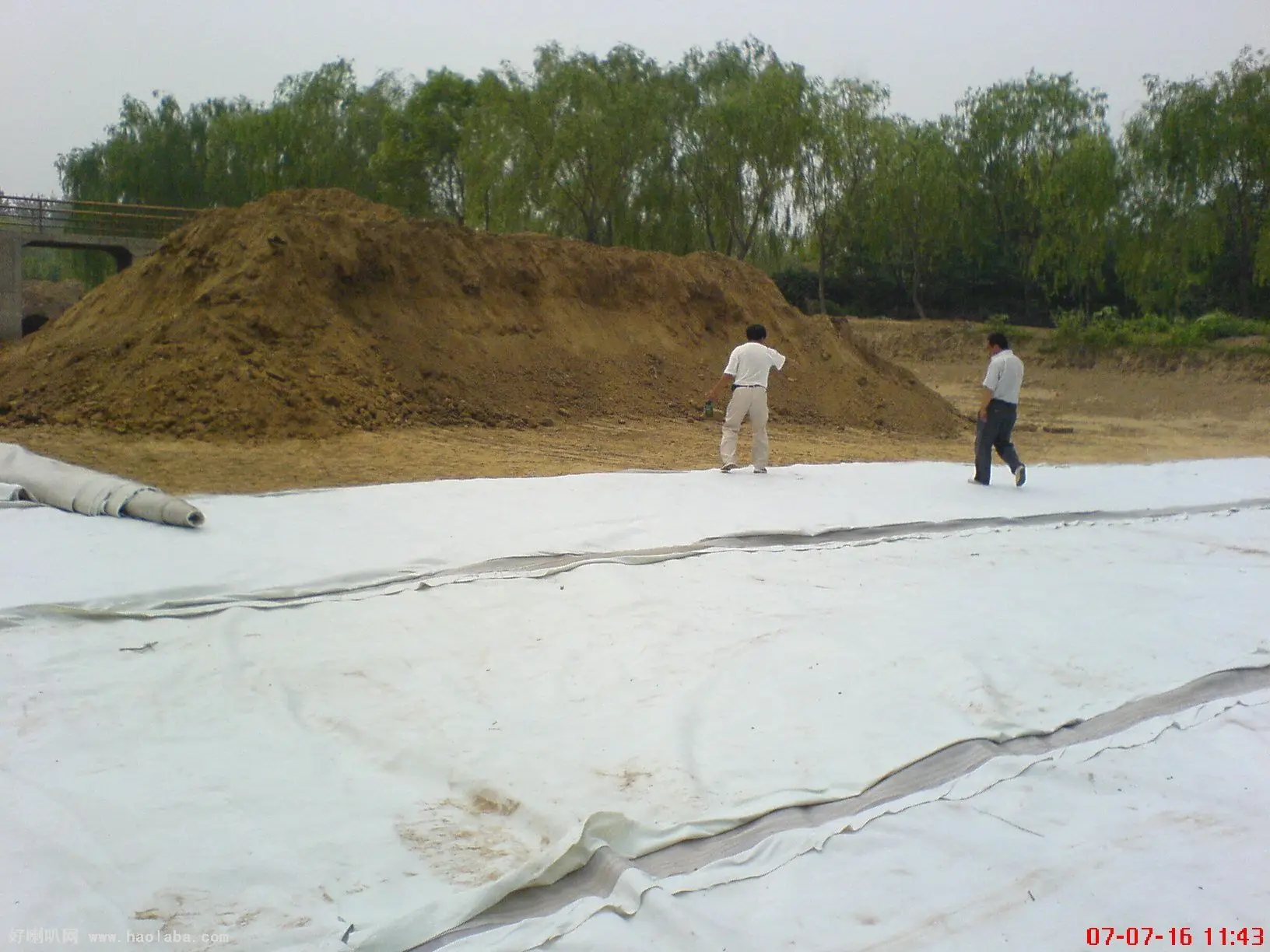

Application
\t
Short fiber PET  nonwoven geotextile used in road construction.
Nearly every road built today uses a nonwoven geotextile such as Schiebel geotextiles,  to provide separation and filteration under road formation.
\t
Short fiber PET nonwoven geotextile used in water conservancy project and hydropower project.
\t
Short fiber Polyester nonwoven geotextile used in railaway .
Schiebel geotextiles are commonly used in the rail sector to separate the capping layer form the balladt layer, providing separation and filtration. The rail industry typically demands bespoke schiebel grades due to the nature of their aggregates and applied load.
\t

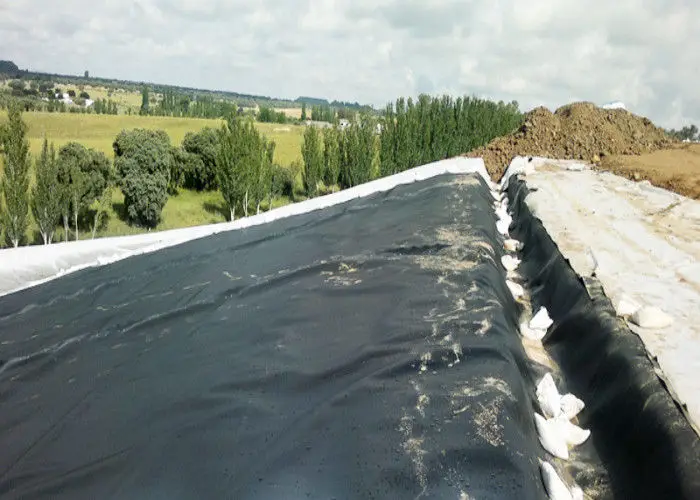

Short fiber Polyester nonwoven geotextile used in  liner protection.
heavy duty geotextile are used to prevent damage to impermeable liners designed to contain harmful liquors in lanfill and minning application; the design of the liner system needs to limit the chance of punctures during installation and reduce the risk of long term stress cracking of the geomembrane. Research has shown that Schiebel geotextile can significantly reduce forces placed on the impermeable liners, protecting them in both the short or long term. Needle nonwoven goetextile is commonly specified in liner protection applications to help prevent damage to liner.

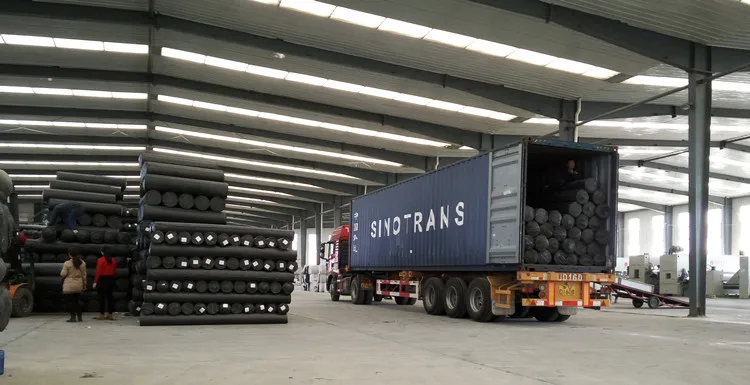

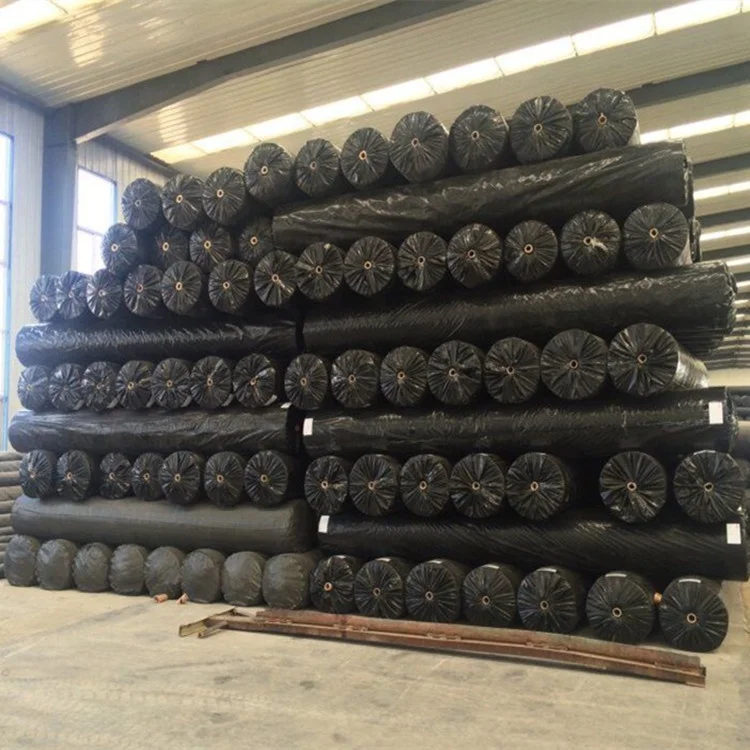

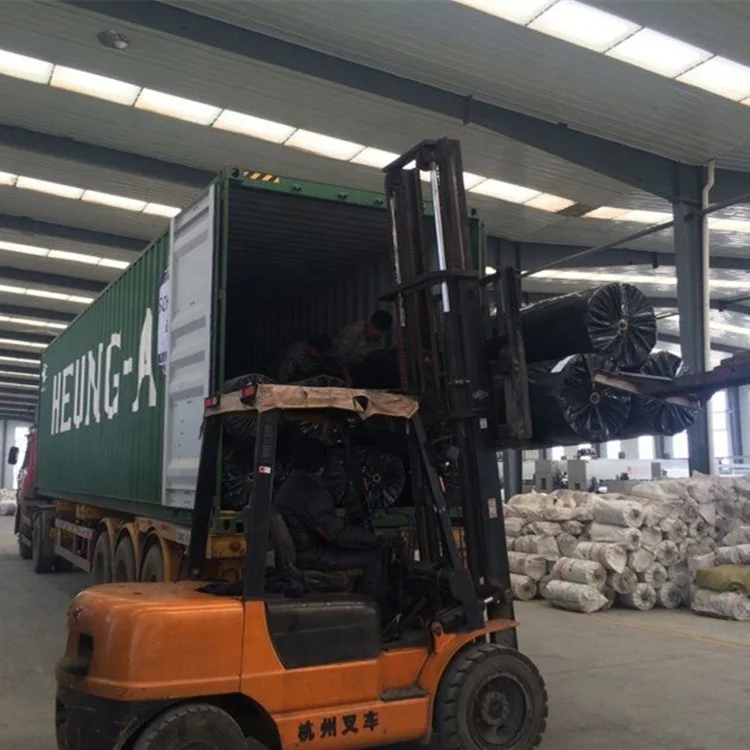

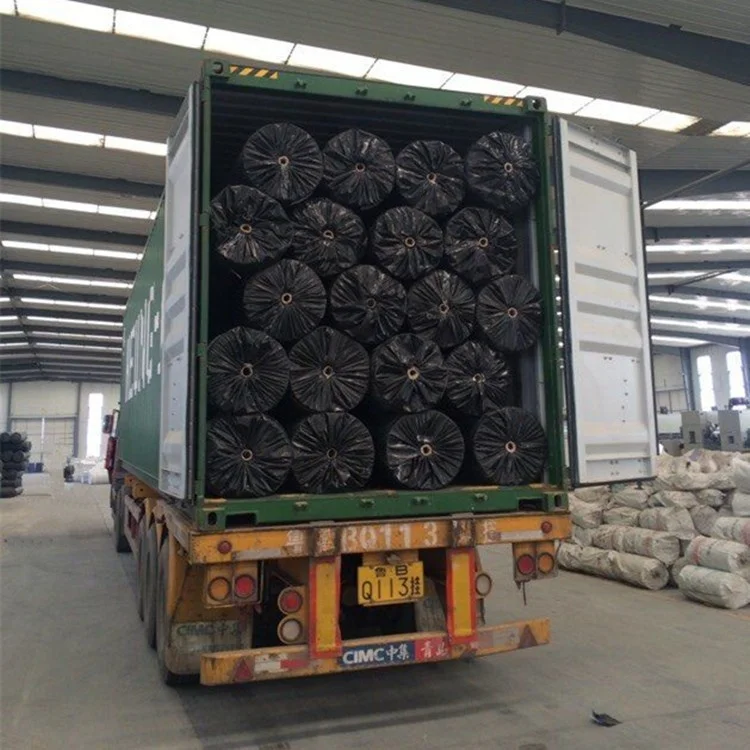

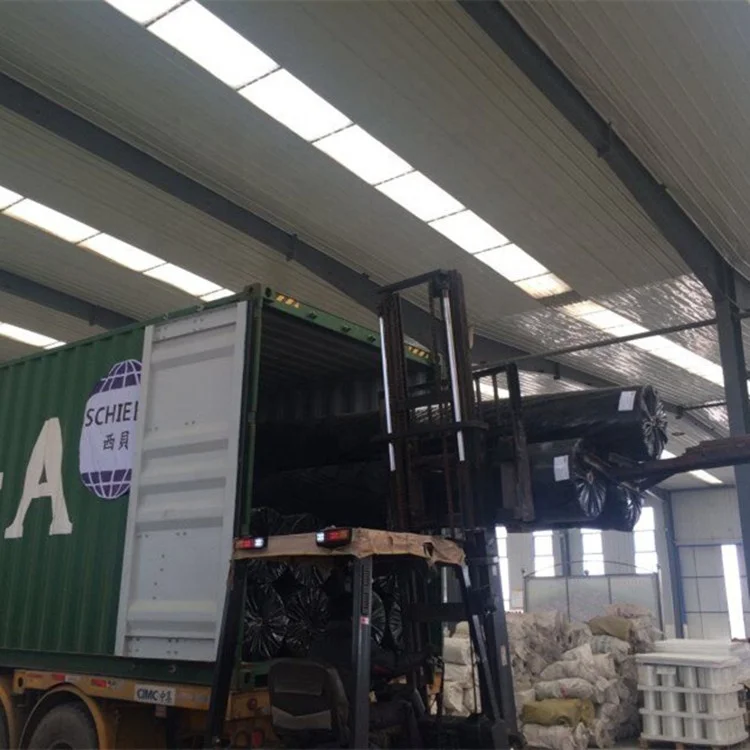

Packing & Delivery
\t
Package is PP woven geotextile.
\t
Delivery is 15 days~20days.

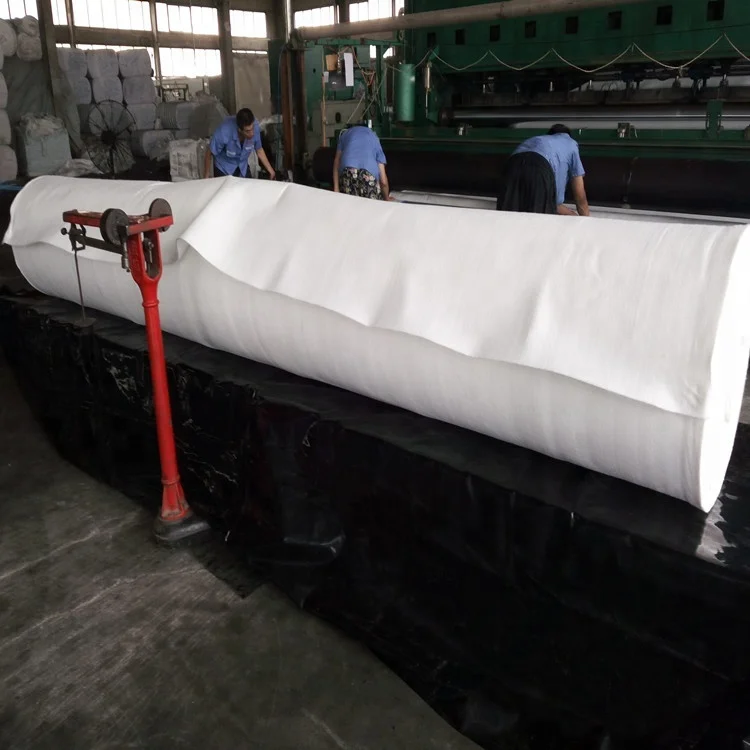

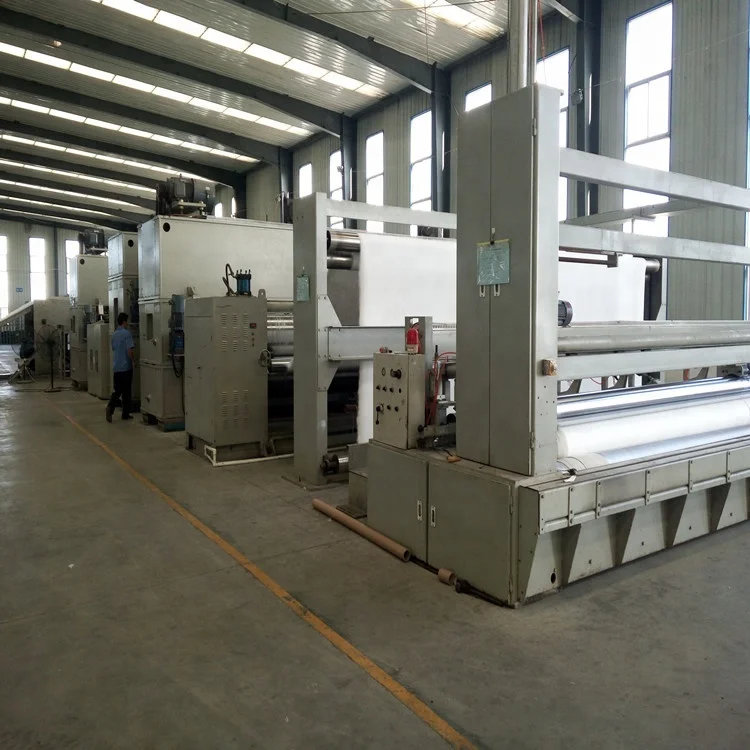

Workshop
Our Company

DEZHOU XIBEI NEW MATERIAL CO., LTD was established in August ,2014. it is a trading company, specialize in geosynthetics for more than 7 years. The company adheres to survive on Quality, to open up the market by word-of-mouth communication, to win the development by reputation. And XIBEI set up offices in China geosynthetics factory and independently research and development and control of production process and ensure product quality.The company's core team members have more than 15 years of sales experience in geosynthetic field. At the beginning of its establishment, the company relied on its strong professional background, rigorous sense of risk control and strong integration of product resources so that our products have been exported to Russia, the United States, France, HongKong, Australia, Georgia,Tanzania,Thailand, Laos, Myanmar,Uruguay, Mongolia and Other countries.

DEZHOU XIBEI NEW MATERIAL CO.,LTD is committed to become China's best geosynthetics suppliers.

FAQ

Q: Are you trading company or manufacturer ?

A: We are trading company.

Q: How long is your delivery time?

A: Generally it is 10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
