High speed toilet roll paper production line price XY-TQ-A-D
Product Application
This production line consists of Wall Type Automatic Rewinding Machine, Automatic Wrapper , Log Accumulator, Double Channel Log Saw and Semi-automatic Packing Machine. From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It's best choice for the producing hygienic paper products.
Video Link: https://youtu.be/hSpFOJYgueA
https://youtu.be/9-wAJXp5inw
https://youtu.be/yDsOgOD_eps

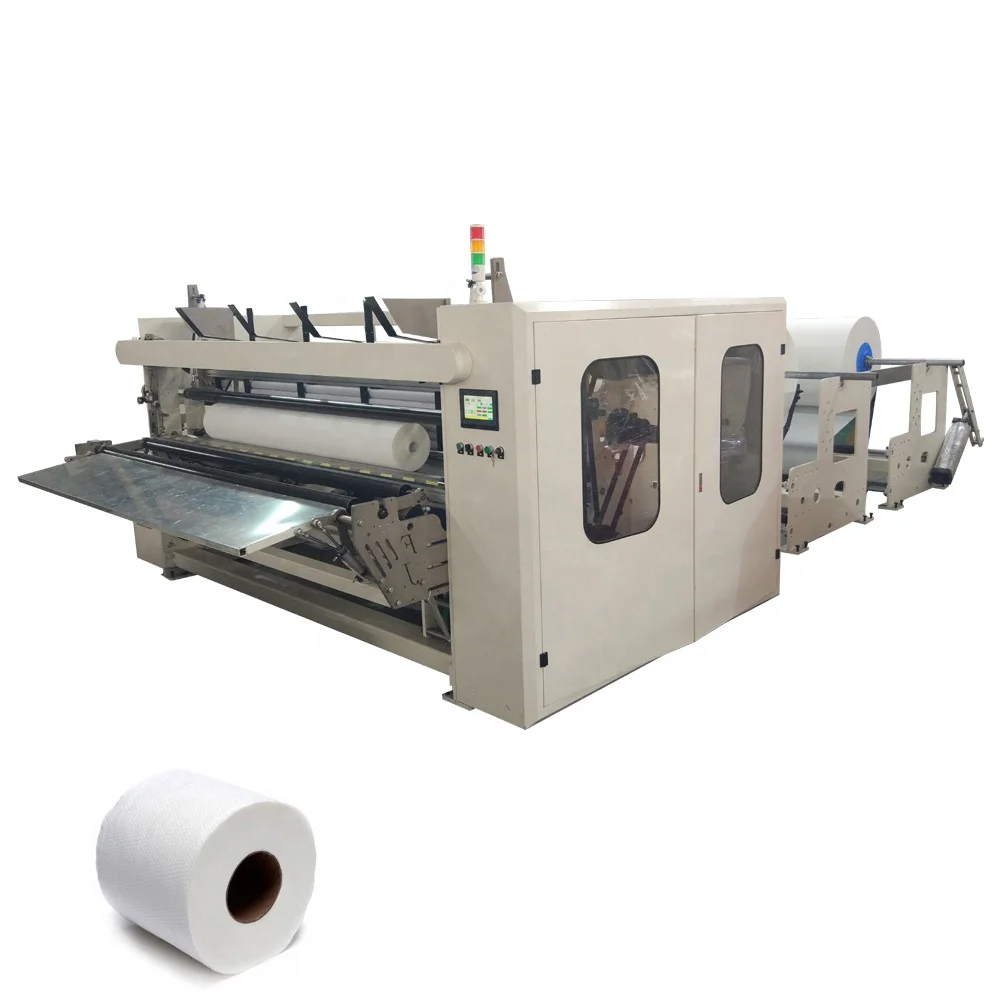

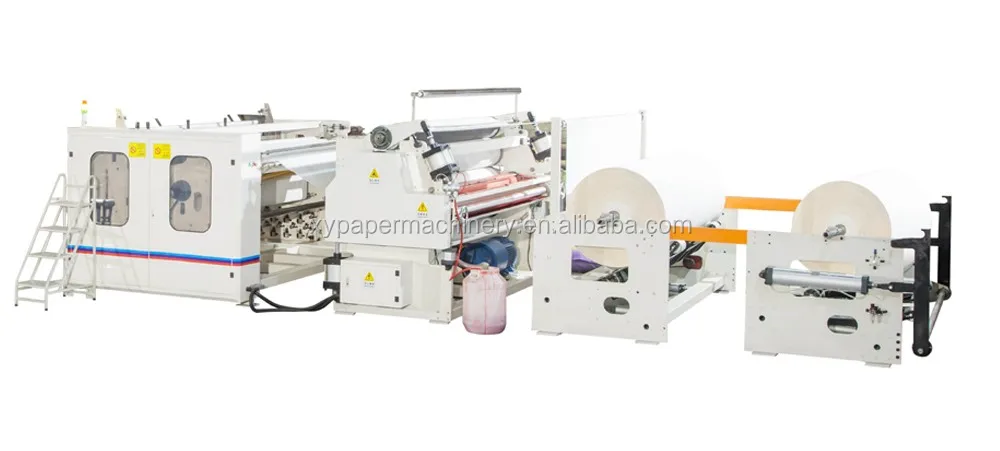

XY-TQ-2800B Wall Type Automatic Rewinding Machine
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless. 2. Perforation distance is adjustable to meet different distance needs. 3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again. 4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost. 5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen. 6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range. 7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently. 8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Video Link: https://www.youtube.com/edit?o=U&video_id=cWHwPN8akos
Jumbo Roll Width
2800mm (Other size can be specified)
Jumbo Roll Diameter
Φ1200mm(Other size can be specified)
Jumbo Roll Inner Core Diameter
3inches(76.2mm) (Other size can be specified)
Perforation Distance
4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter
Φ80~φ140mm
Finished Product Inner Core Diameter
φ38~φ76mm
Production Speed
0~230m/min
Jumbo roll paper stand
1 or 3 Stands(Need to be specified
Pneumatic System
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Power
14Kw 380V 50Hz
Overall Dimension(L*W*H)
7000*4000*1900mm
Weight
About 7T
XY-CR Automatic Log Wrapper
Functions and Features This machine is to seal packaging paper to roll's surface. This version is new upgrade model. Its design base on old style Log Wrapper, combined with our own independent technology innovation. The machine body is made of high qualified steel, with compact and reasonable structure . Cooperate with the domestic well-known brand of high quality mechanical parts, such as cylinder, belt and so on, these all make the machine with excellent mechanical properties. Electrical control aspect, this machine use the Japanese Mitsubishi programmable logic controller (PLC). This machine with stable production, simple and convenient operation, energy saving province material saving, is your best choice.
Raw Material Diameter
Φ90-Φ180mm
Packing Length
1800-2900mm
Packing Size Requirement
Paper circumference+20mm
Speed
8-10 logs/min
Air Pressure
2~3kgf/cm²
Power
2 KW three-phase 380 V, 50 HZ
Overall Dimension(L*W*H)
3000*4000*1500mm
Weight
2T

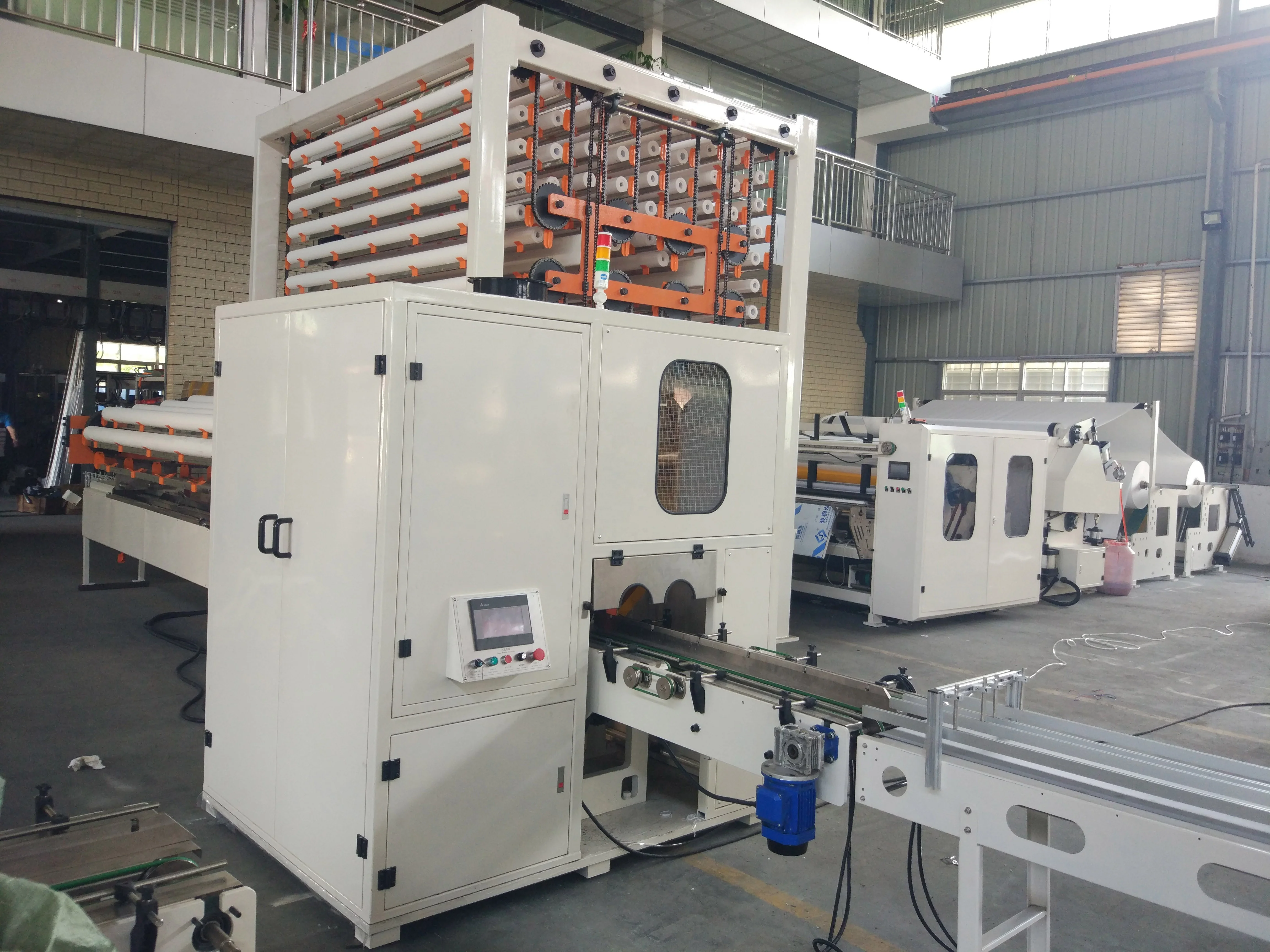

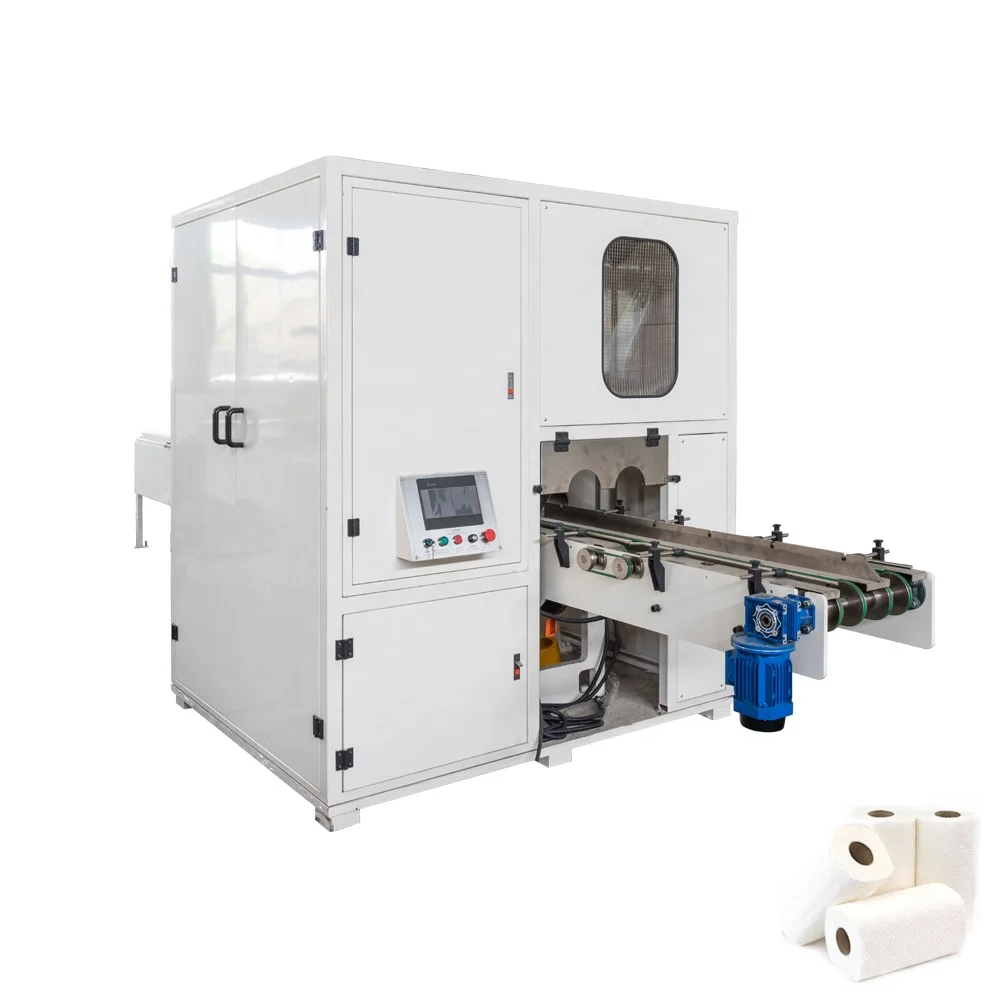

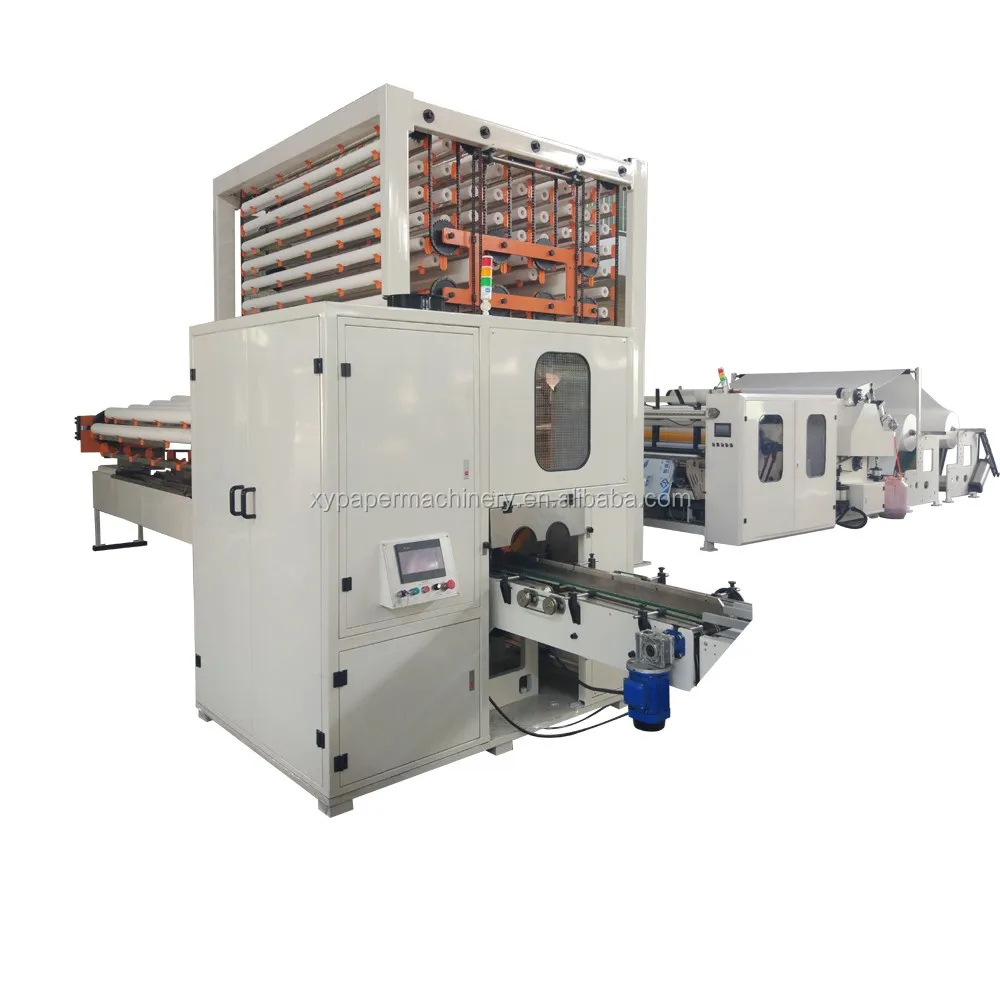

XY-TQ-280 Full Automatic Double Channel Log Saw
Functions and Features XY-TQ-280 Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it's with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.
Video Link: https://www.youtube.com/edit?o=U&video_id=eLqnUEi8KJ8

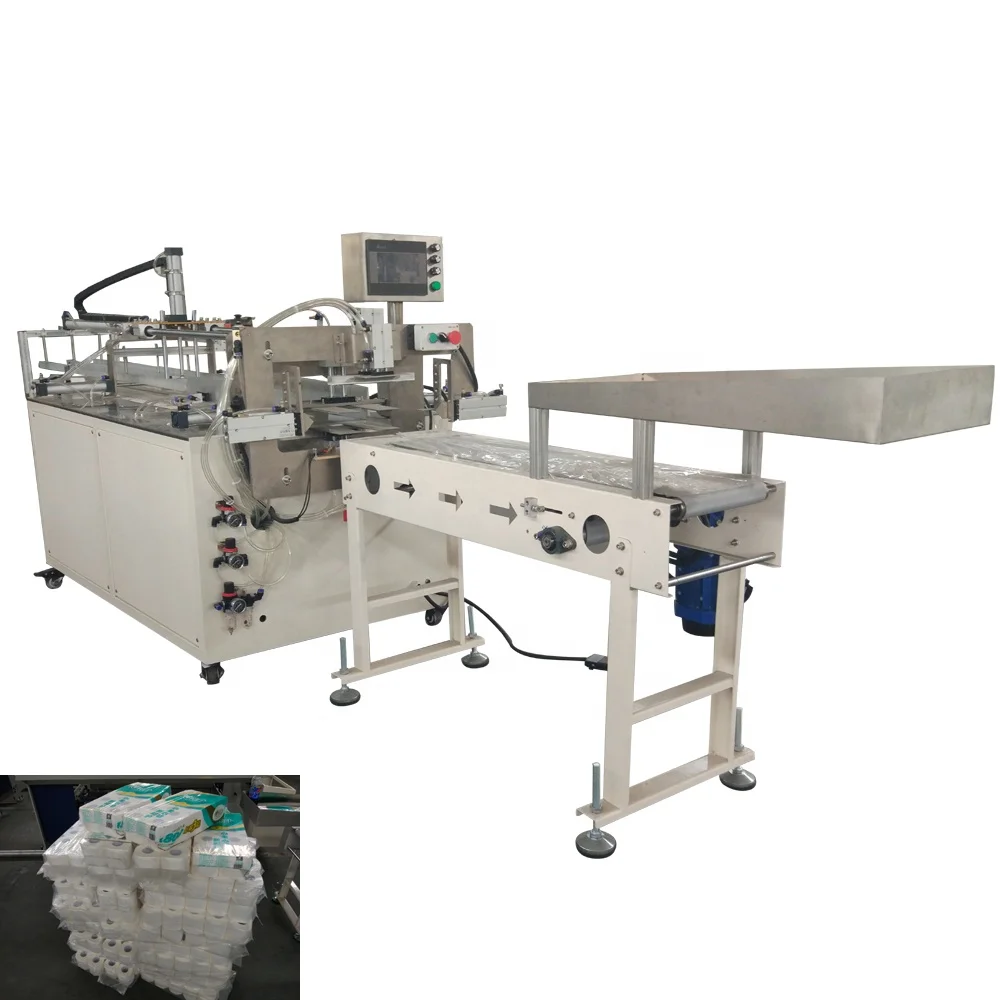

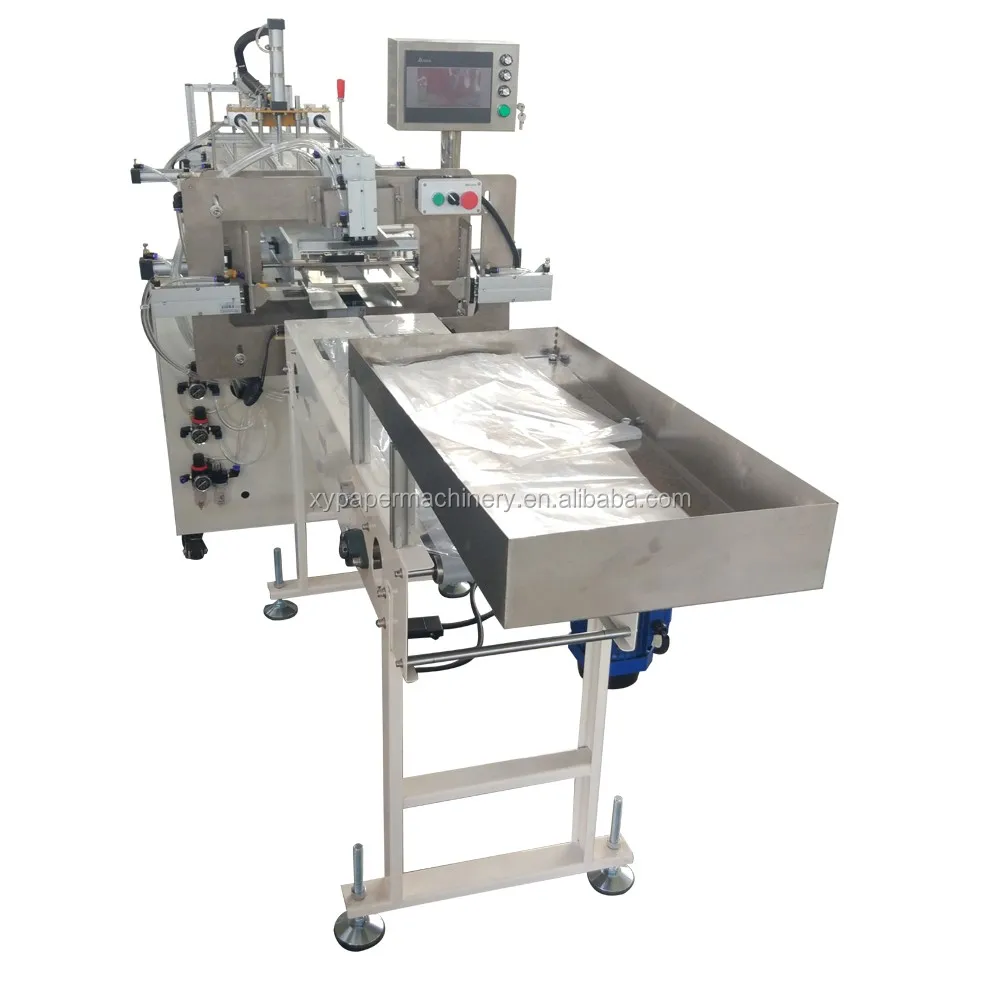

Functions and Features This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements. It's easy to operate: Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.
Speed
3-5bags/min
Roll size
Customized design according to your request
Packing way
Two layers, four lines,4*6=24 rolls in each layer,48 rolls in total
Air supply
0.6 MPA(supplied by client)
Power
2KW 220V 50Hz
Dimension
7000*1300*1400 mm
Related Products

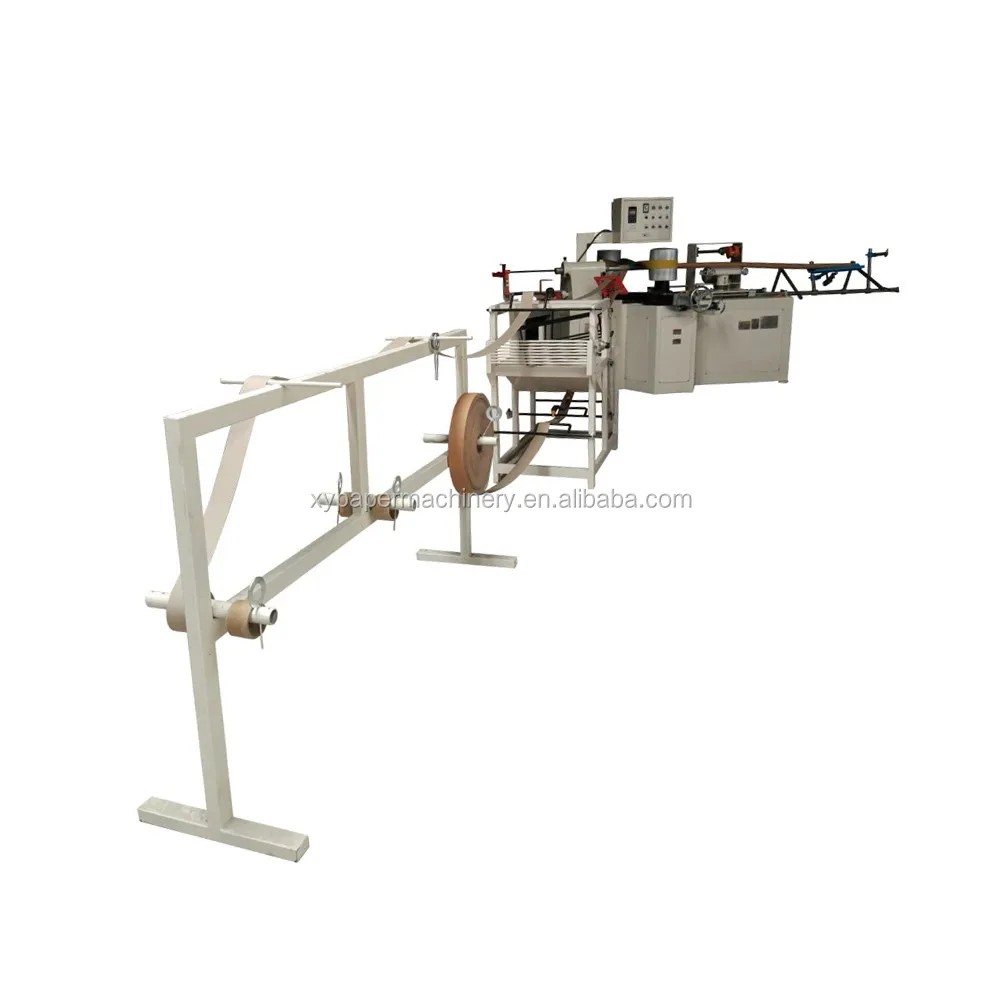

XY-SD-A Automatic toilet paper core making machine
