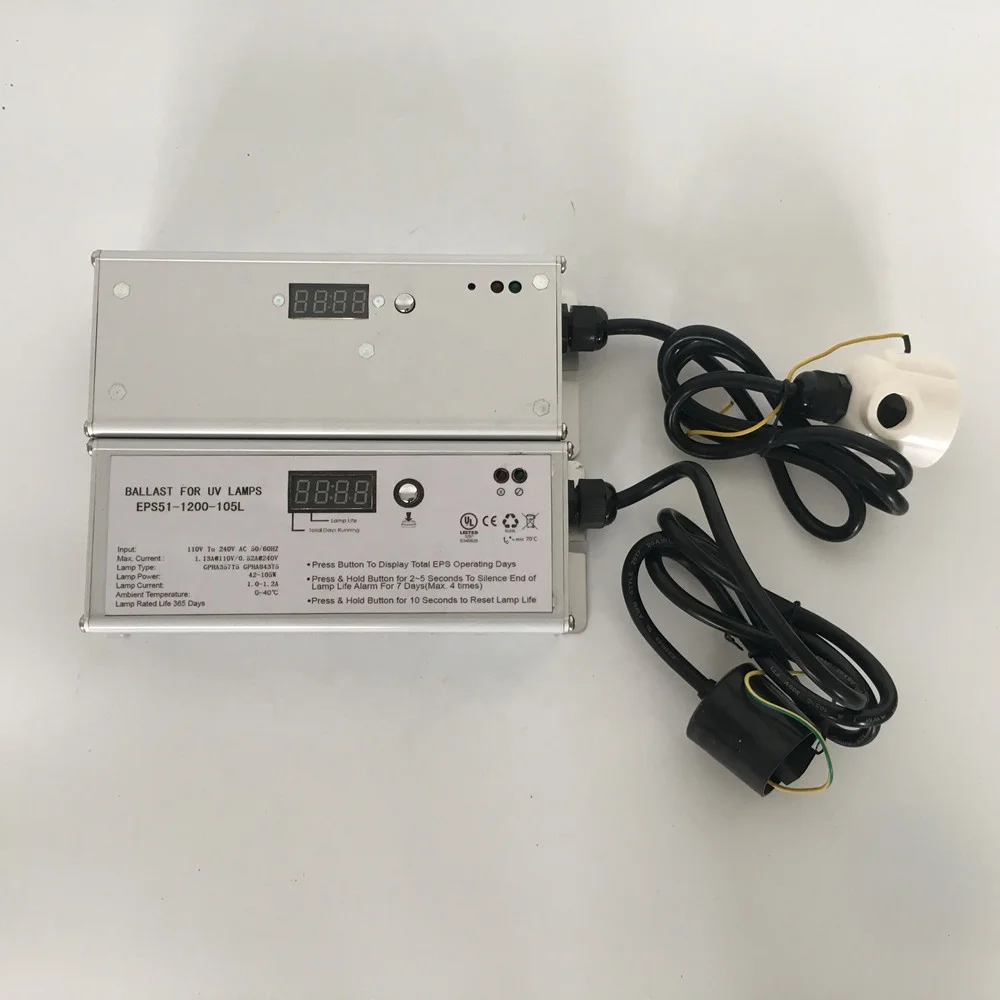

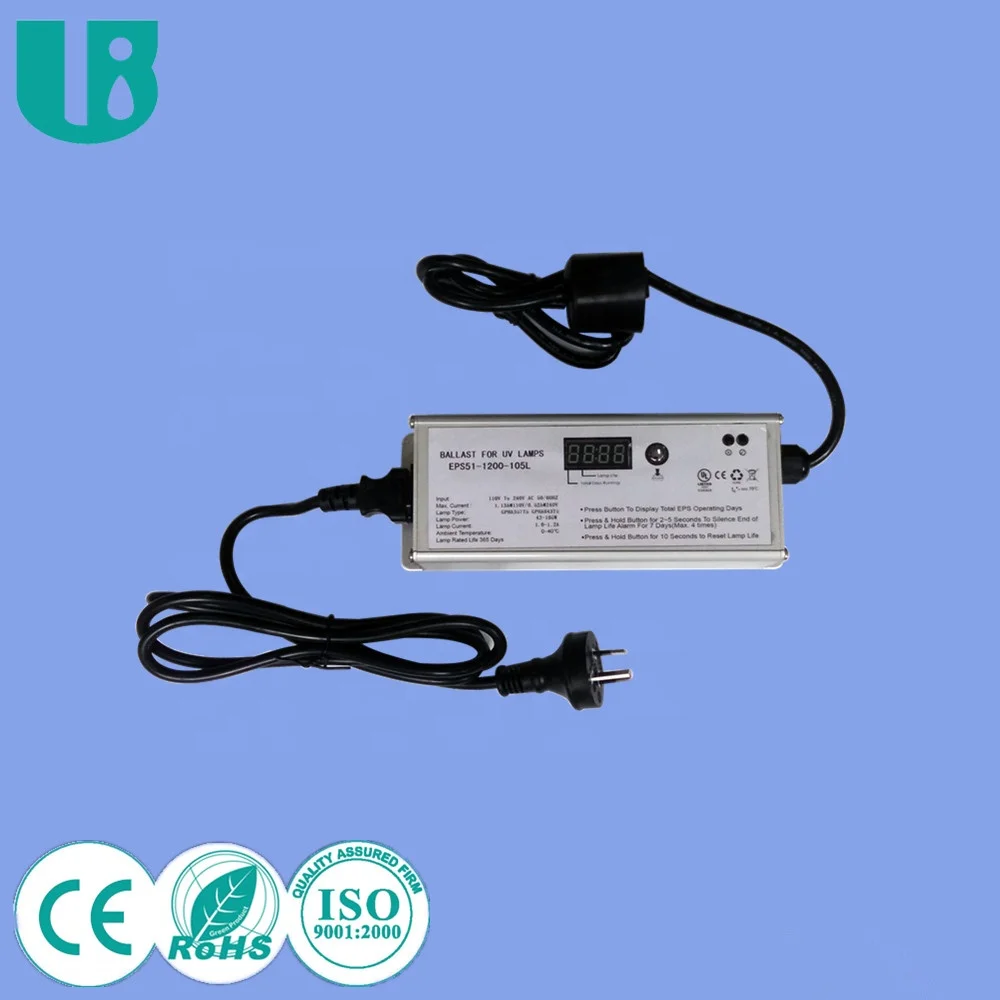

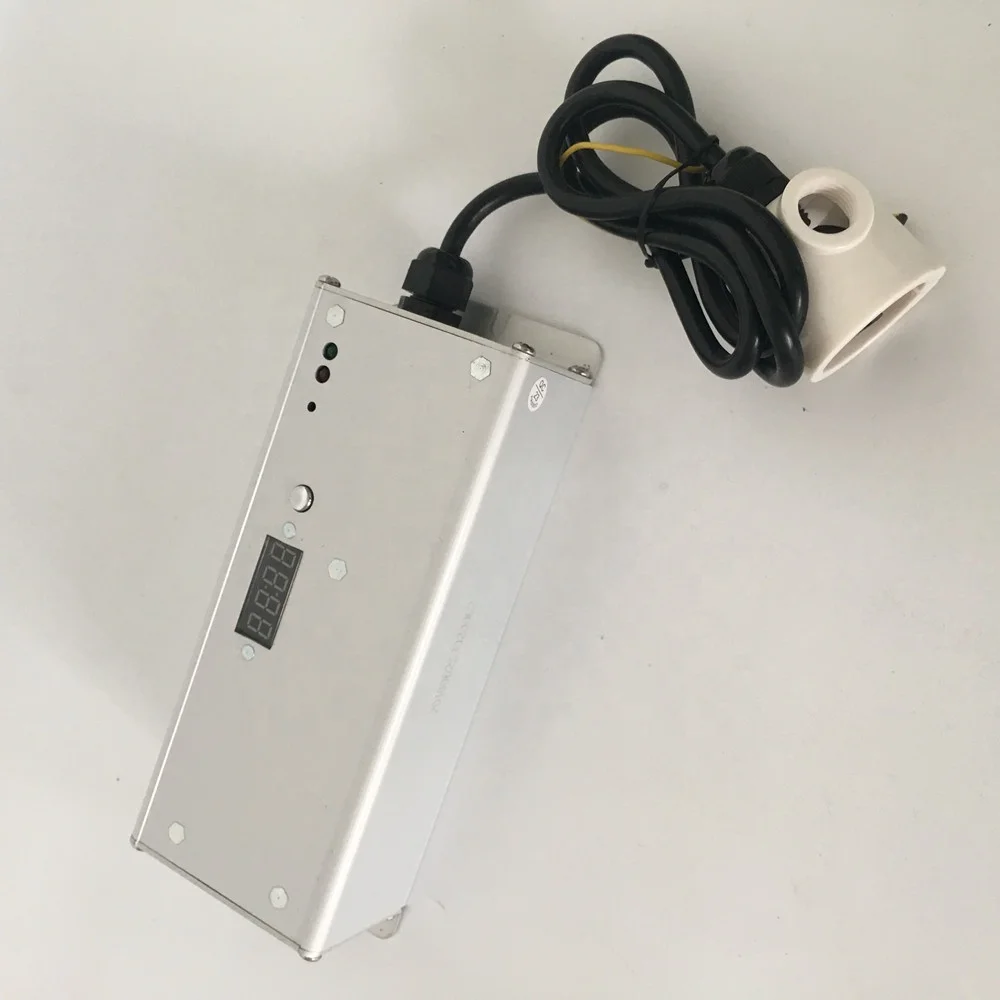

EPS51-1200-105L ballast electronic t5 54W electronic ballast
The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.
There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy. Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.
Type | Input Voltage(V) | Input Power (W) | Input Current (A) | Power Per Lamp(W) | Lamp Current(A) | Weight (kg) | Packing (mm) | Qty ( pcs ) | GW (kg) |
EPS51-425-40L | 99-264 | 45 | 0.41A@110V 0.19A@240V | 10-41 | 0.39-0.43 | 035 | 450*280*190 | 18 | 7 |
EPS51-425-75L | 99-264 | 86 | 0.79A@110V 0.36A@240V | 55-79 | 0.39-0.43 | 035 | 450*280*190 | 18 | 7 |
EPS51-800-95L | 99-264 | 103 | 0.94A@110V 0.43A@240V | 55-95 | 0.75-0.85 | 035 | 450*280*190 | 18 | 7 |
EPS51-800-2/55U | 99-264 | 105-122 | 1.13@110V 0.51@240V | 48-55 | 0.75-0.85 | 0.35 | 450*280*190 | 18 | 7 |
EPS51-800-95U | 99-264 | 70-111 | 1.03@110V 0.47@240V | 60-95 | 0.75-0.85 | 0.35 | 450*280*190 | 18 | 7 |
EPS51-1200-105U | 99-264 | 49-123 | 1.14@110V 0.52@240V | 42-105 | 1.10-1.30 | 0.35 | 450*280*190 | 18 | 7 |
EPS51-425-40L
Lamp Types: GPH212T5 GPH287T5 GPH303T5 GPH357T5 GPH436T5 GPH793T5 GOH843T5 TUV11W TUV16W TUV36T5 TUVPL-L36W
Wire map:A
l EPS51-425-75L
Lamp Types:GPH1148T5 GPH1154T5 GPH1630T5 TUV64T5
Wire map:A
l EPS51-800-95L
Lamp Types: :GPH846T5HO GPH893T5HO GHO36T5L TUV36T5HO TUV55WHO TUV75WHO TUVPL-L60WHO TUVPL-L95WHO
Wire map:A
l EPS51-800-2/55U
2*Lamp Types: TUV55WHO GPH436T5HO
Wire map:B
l EPS51-800-95U
Lamp Types:GPH846T5HO GPH893T5HO GHO36T5L TUV36T5HO TUV75WHO TUVPL-L60WHO TUVPL-L95WHO TUV55WHO TUVPL-L35WHO GPH357T5HO GPH436T5HO GPH530T5HO

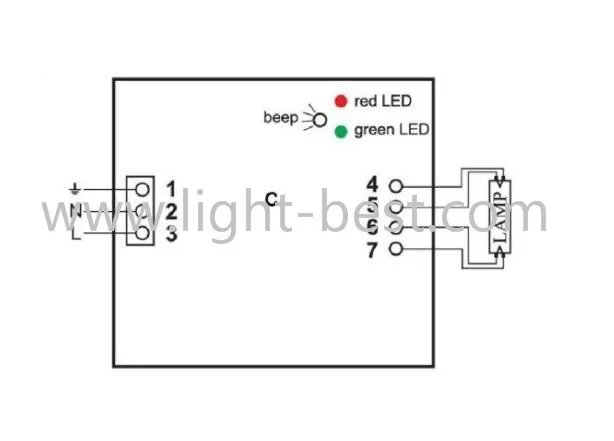

Wire map:C
l EPS51-1200-105U
Lamp Types: GPHA357T5 GPHA843T5
Wire map:C
l Technical specifications
Mains Voltage:110-240VAC±10%
Power Factor: >0.98
Efficiency: >90%
Operating Frequency: 40-60KHz
Starting:Preheat

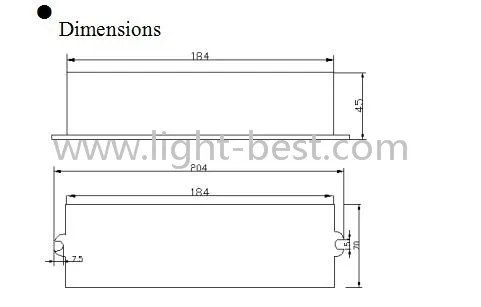

Dimensions:204*70*45mm
l Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
l Installation requirement
Wire Gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
l Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four outputs.
l Applications
All areas of applications include UV lamps:
=>Domestic drinking water
=>Industrial water treatment
Packaging & Shipping
Our Services
Lightbest provided: OEM service
Buyer Logo /Label
Custom Design Service
Guarantee:
A: Manufacture is to ISO9001:2000 standard.
B: Product is guaranteed for 12 months after lamp purchase.
C: According to the International Standard:
AQL tolerance is within 2% of the total quantity per order.
D: If AQL tolerance exceeds 2%, Lightbest will refund the buyer at 1:1 rate; OR an amount equal to the UQL value will
be deducted from the next order.
E: 2% of products are added by Lightbest (at no extra charge) to the ordered quantity for back-up purposes.
WARNING:
UV-C radiation output of these lamps is harmful to unprotected eyes and skin.
Appropriate safety wear must be worn, or installations completely scree
